ABB
  • SE48 RED ROUND BOX EXTENSION W/4 3/4 HOLES..
  • SE48 RED ROUND BOX EXTENSION W/4 3/4 HOLES..
  • SE48 RED ROUND BOX EXTENSION W/4 3/4 HOLES..
  • SE48 RED ROUND BOX EXTENSION W/4 3/4 HOLES..

Description: Red Dot® Dry-Tite™ Extension Ring, 4-Outlet, 1-5/8 in Depth, 4-1/8 in Diameter, Round Shape, 18.3 cu-in Capacity, Threaded Mounting, Die Cast Aluminum, Aluminum Lacquered, Silver

Manufacturer PN: SE-48

UPC:  04226971925

Kendall Electric Inc PN: 53885

Invoice Description:

SE48 RED ROUND BOX EXTENSION W/4 3/4 HOLES..


SPEC SHEET

▸ See All in Weatherproof Device/Outlet Box Extension


How Can We Make This Page Better?

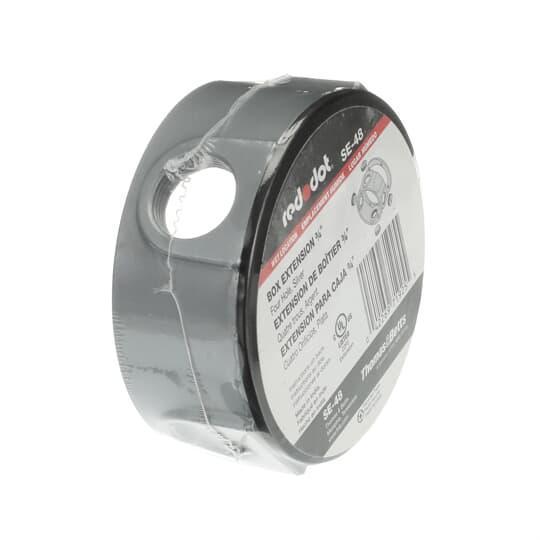

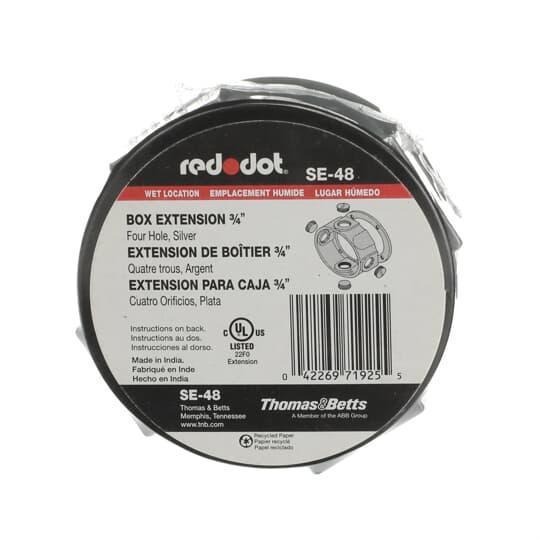

Red Dot® Dry-Tite™ SE-48 4-Outlet Extension Ring, 1-5/8 in D, Die Cast Aluminum

Log In for Pricing and Availability




Description

Red Dot® Dry-Tite™ Extension Ring, 4-Outlet, 1-5/8 in Depth, 4-1/8 in Diameter, Round Shape, 18.3 cu-in Capacity, Threaded Mounting, Die Cast Aluminum, Aluminum Lacquered, Silver

Specifications

 Brand Name Red Dot®
 Color Silver
 Depth 1-5/8 in
 Finish Aluminum Lacquered
 Includes (4) Closure Plugs, (1) Gasket and (1) Screw
 Manufacturer Part Number SE-48
 Material Die Cast Aluminum
 Mounting Type Threaded
 Shape Round
 Standards/Approvals UL E28688 / UL E28688
 Type 4-Outlet

Features

▪ Precision cast and machined surfaces permit safer wire pulling
▪ Clean cover edges provide good gasket sealing
▪ Clear UL and cubic content markings speed approval by inspectors
▪ Deep slotted stainless steel cover screws for faster installations
▪ 3/4 in hub
▪ 4 outlets
▪ 3-1/16 in ID
▪ Raintight with cover closed and when used with appropriate Red Dot® boxes

Resources

 Catalog Page
 Product Data Sheet
