Schneider Electric
  • SDSA3650D SQD GEN SDSA 3650 DELTA
  • SDSA3650D SQD GEN SDSA 3650 DELTA
  • SDSA3650D SQD GEN SDSA 3650 DELTA
  • SDSA3650D SQD GEN SDSA 3650 DELTA
  • SDSA3650D SQD GEN SDSA 3650 DELTA

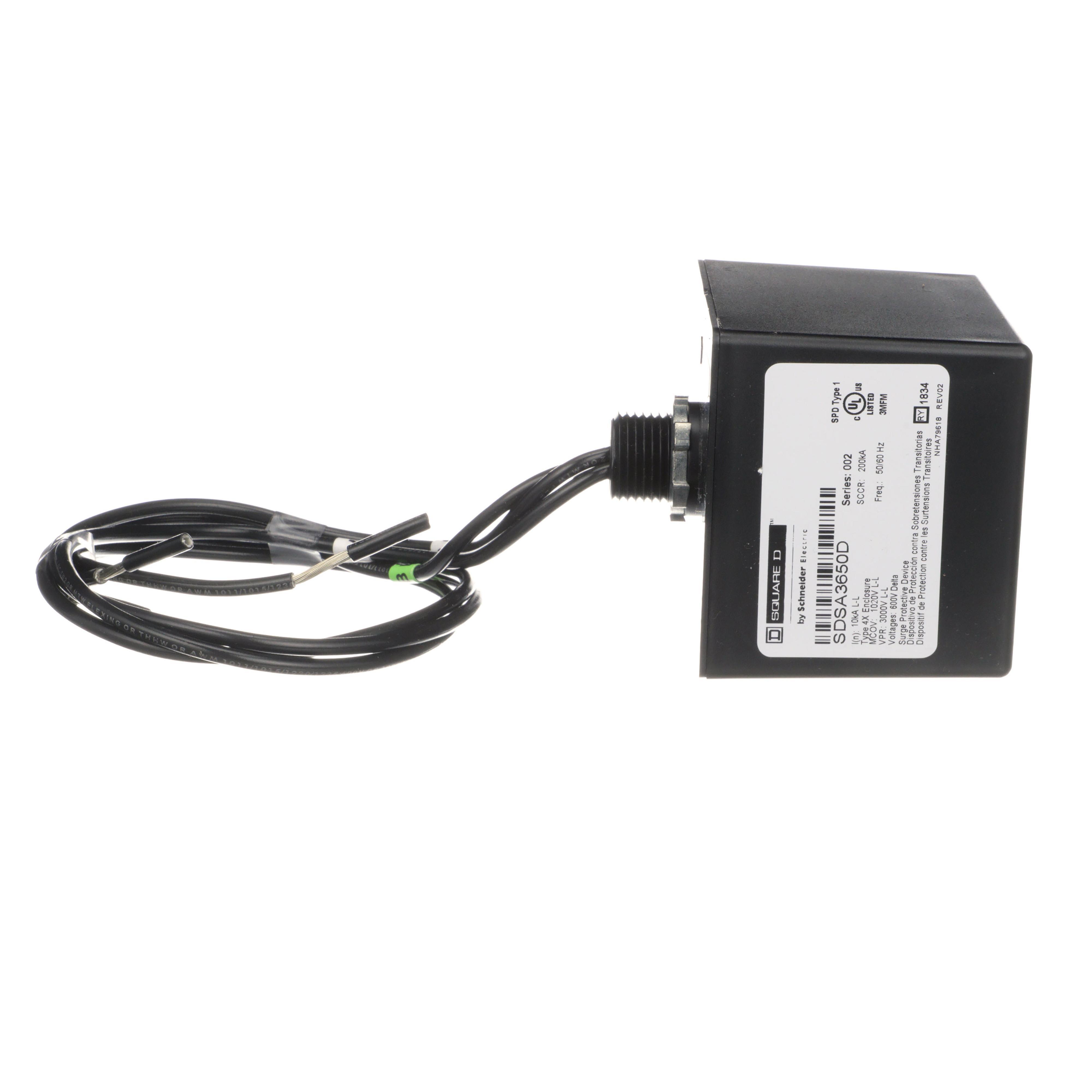

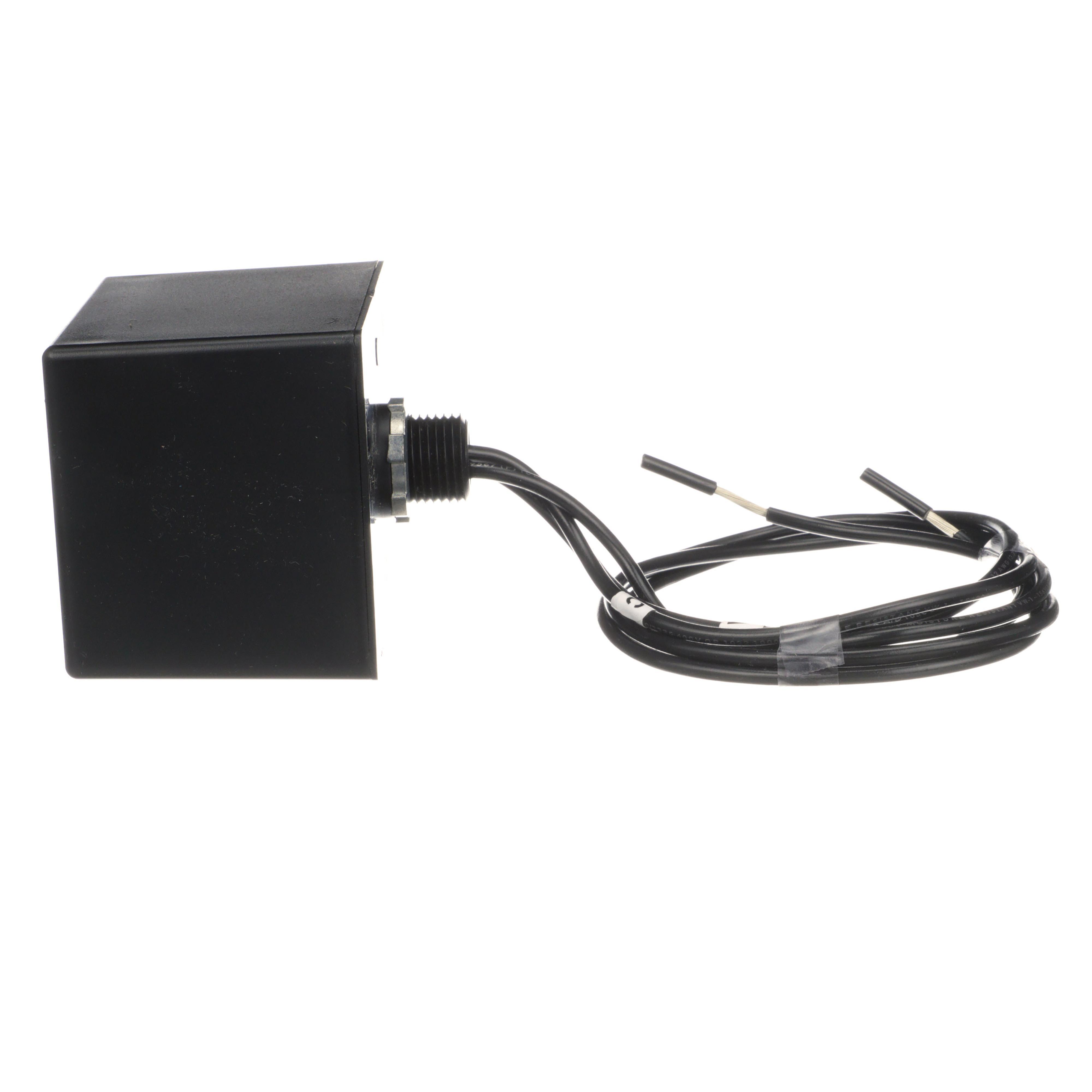

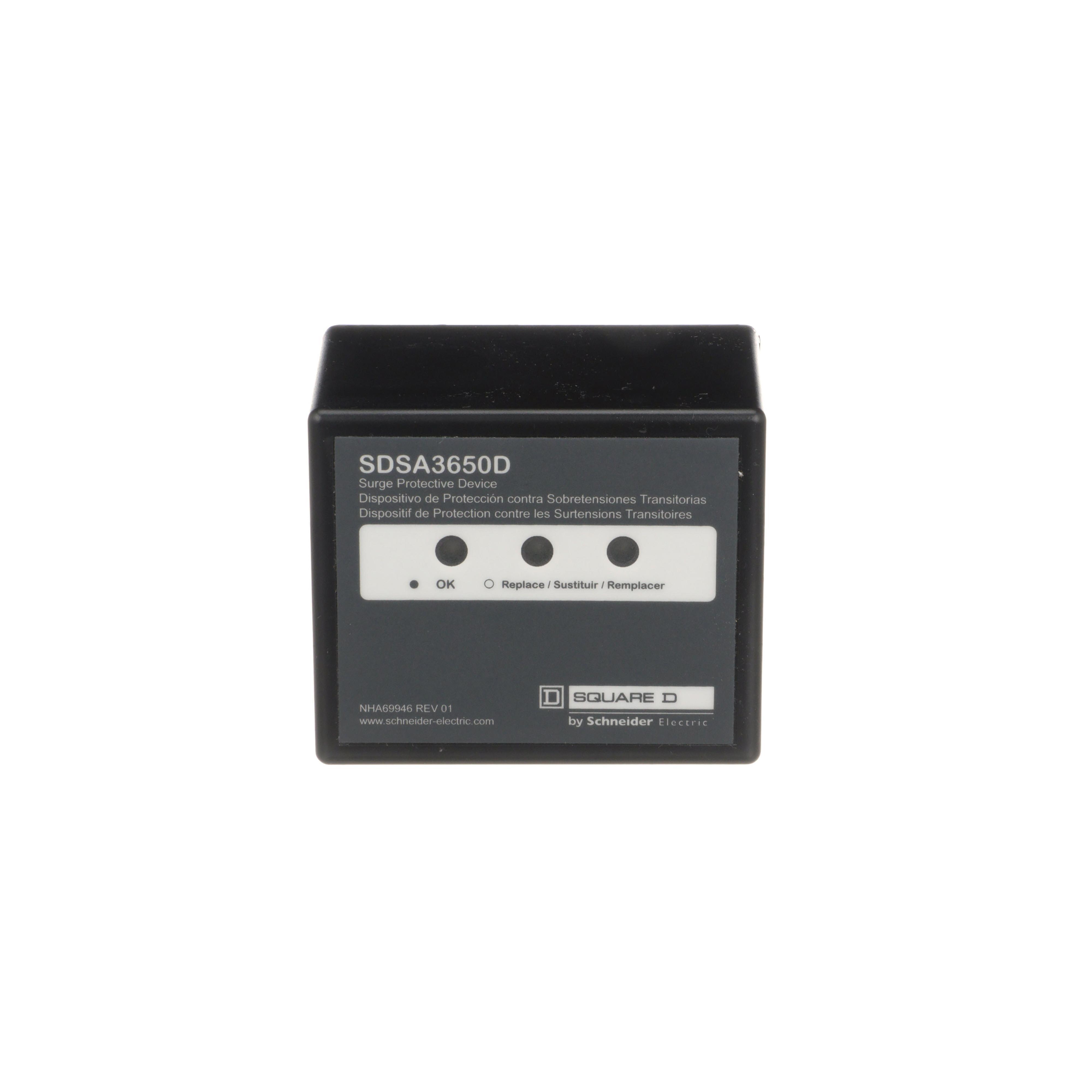

Description: Square D™ Surgelogic™ Surge Protective Device, Series: SDSA, 600 V AC Electrical Rating, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, 36 kA Peak Surge Current, 1020 VAC Clamping, 10 kA Nominal Discharge, Modes of Protection: L-L, LED Indicator, 3 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 4X Enclosure, Nipple Mounting, Plastic, Black, 3.6 in W x 3.4 in D x 3.1 in H Dimensions

Manufacturer PN: SDSA3650D

UPC:  78590192756

Kendall Electric Inc PN: 3962264

Invoice Description:

SDSA3650D SQD GEN SDSA 3650 DELTA


SPEC SHEET

How Can We Make This Page Better?

Square D™ Surgelogic™ SDSA3650D Surge Protective Device, 600 V AC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. SPD are three phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 600VAC delta three phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.
Square D™ Surgelogic™ Surge Protective Device, Series: SDSA, 600 V AC Electrical Rating, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, 36 kA Peak Surge Current, 1020 VAC Clamping, 10 kA Nominal Discharge, Modes of Protection: L-L, LED Indicator, 3 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 4X Enclosure, Nipple Mounting, Plastic, Black, 3.6 in W x 3.4 in D x 3.1 in H Dimensions

Specifications

 Application Motor-Control Feeder and Pumping Applications
 Brand Name Square D
 Clamping Voltage 1020 V AC
 Color Black
 Dimensions 3.6 in W x 3.4 in D x 3.1 in H
 Electrical Ratings 600 V AC
 Enclosure NEMA 4X
 Environmental Conditions 149 deg F Operating Temperature
 Frequency Rating 50/60 Hz
 Indicator LED
 Manufacturer Part Number SDSA3650D
 Material Plastic
 Modes of Protection L-L
 Mounting Type Nipple
 Nominal Discharge Current 10 kA
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS SDSA3650D ; 11785059 ; 785901927563 ; 78590192756 ; 00785901927563 ; 0785901927563
 Peak Surge Current 36 kA
 Phase 3
 Series SDSA
 Short Circuit Current Rating 200 kA
 Standards/Approvals RoHS Compliant|ANSI/CSA Certified|Buy American Act Compliant|UL 1449|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov

Features

▪ Protects against accidental shocks through the use of touch-safe terminals
