Schneider Electric

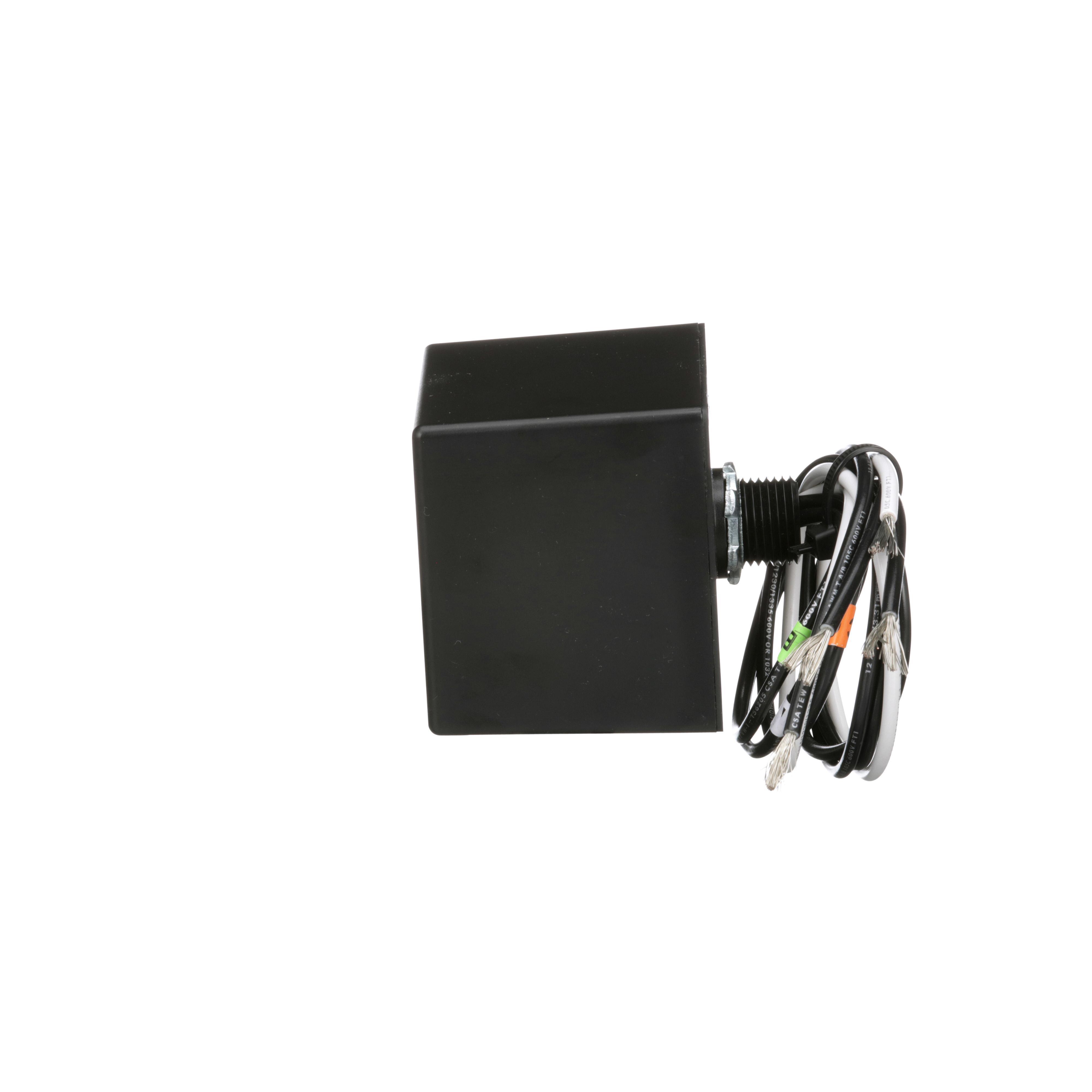

  • SDSA3650 SQD SPD T1 SDSA 40KA 600V
  • SDSA3650 SQD SPD T1 SDSA 40KA 600V
  • SDSA3650 SQD SPD T1 SDSA 40KA 600V

Description: Square D™ Surgelogic™ Surge Protective Device, Type T1 Secondary, 600 V AC, 50/60 Hz, 3 Pole, 4 Wires, 200 kA Short Circuit Current, 40 kA Peak Surge, 510 VAC Clamping, 10 kA Nominal Discharge, LED Indicator, 3 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 4X, Plastic, Black, 3 in W x 3.39 in D x 3.6 in H

Manufacturer PN: SDSA3650

UPC:  78590121088

Kendall Electric Inc PN: 4000679

Invoice Description:

SDSA3650 SQD SPD T1 SDSA 40KA 600V


SPEC SHEET

▸ See All in Surge Panel Protectors


How Can We Make This Page Better?

Square D™ Surgelogic™ SDSA3650 Type T1 Secondary Surge Protective Device, 600 V AC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. Equipped with LED status signal light for convenient use. SPD are three phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 4 wire 600Y/377VAC three phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.
Square D™ Surgelogic™ Surge Protective Device, Type T1 Secondary, 600 V AC, 50/60 Hz, 3 Pole, 4 Wires, 200 kA Short Circuit Current, 40 kA Peak Surge, 510 VAC Clamping, 10 kA Nominal Discharge, LED Indicator, 3 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 4X, Plastic, Black, 3 in W x 3.39 in D x 3.6 in H

Specifications

 Application Motor Control Feeder and Pumping and Load Centers and CSEDS Applications
 Brand Name Square D
 Clamping Voltage 510 V AC
 Color Black
 Dimensions 3 in W x 3.39 in D x 3.6 in H
 Electrical Ratings 600 V AC
 Enclosure NEMA 4X
 Environmental Conditions 149 deg F Operating Temperature
 Frequency Rating 50/60 Hz
 Indicator LED
 Manufacturer Part Number SDSA3650
 Material Plastic
 Nominal Discharge Current 10 kA
 Number of Poles 3
 Number of Wires 4
 Peak Surge Current 40 kA
 Phase 3
 Short Circuit Current Rating 200 kA
 Standards/Approvals RoHS Compliant|Buy American Act Compliant|C233.1-87|CE Certified|CSA C22.2 No. 8-M1986|cULus Listed|IEC 61643-11|UL 1283/1449|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type Type T1 Secondary

Features

▪ Protects against accidental shocks through the use of touch-safe terminals
