Schneider Electric
  • SDSA1175T SQD SPD T1 SDSA 36KA 120V
  • SDSA1175T SQD SPD T1 SDSA 36KA 120V
  • SDSA1175T SQD SPD T1 SDSA 36KA 120V
  • SDSA1175T SQD SPD T1 SDSA 36KA 120V
  • SDSA1175T SQD SPD T1 SDSA 36KA 120V

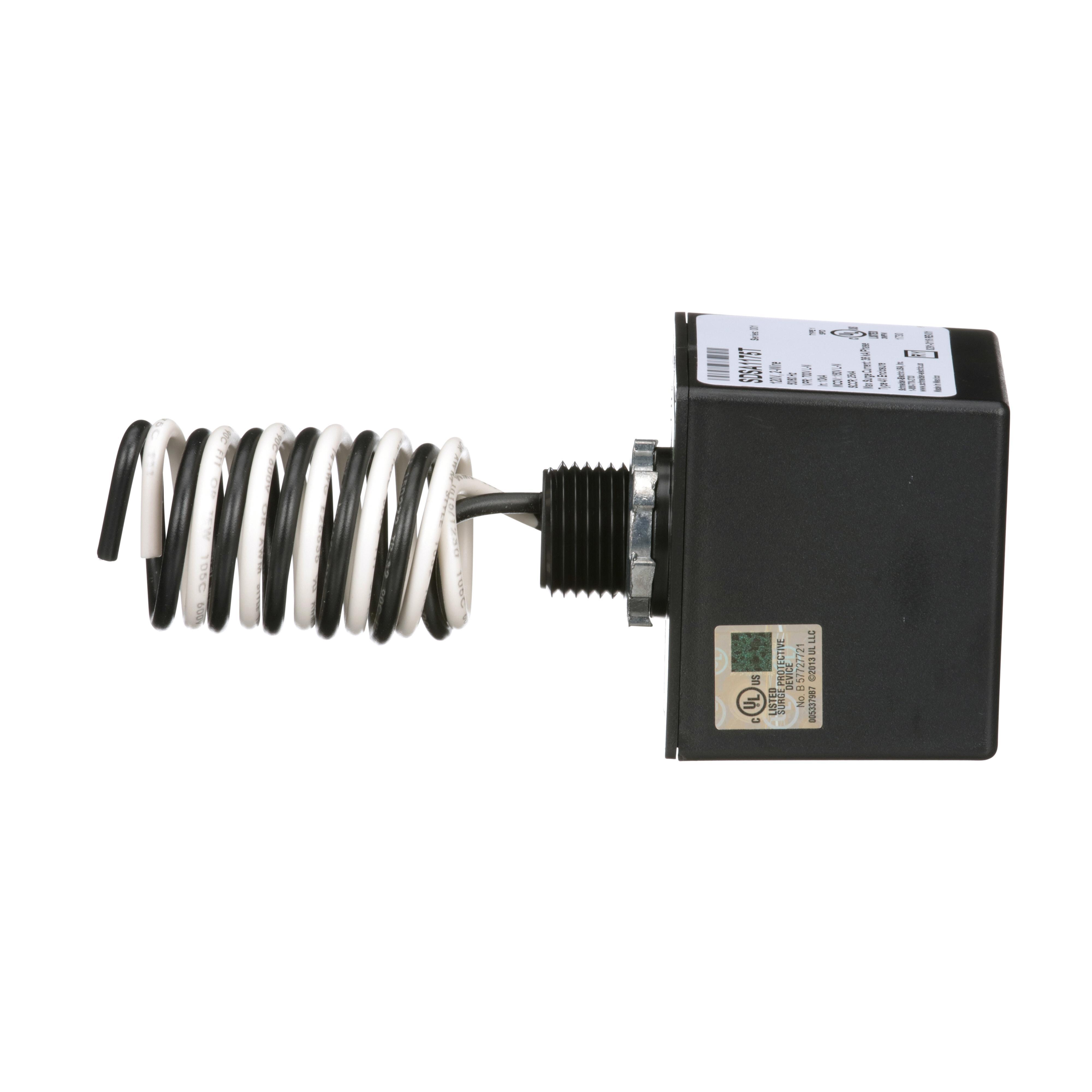

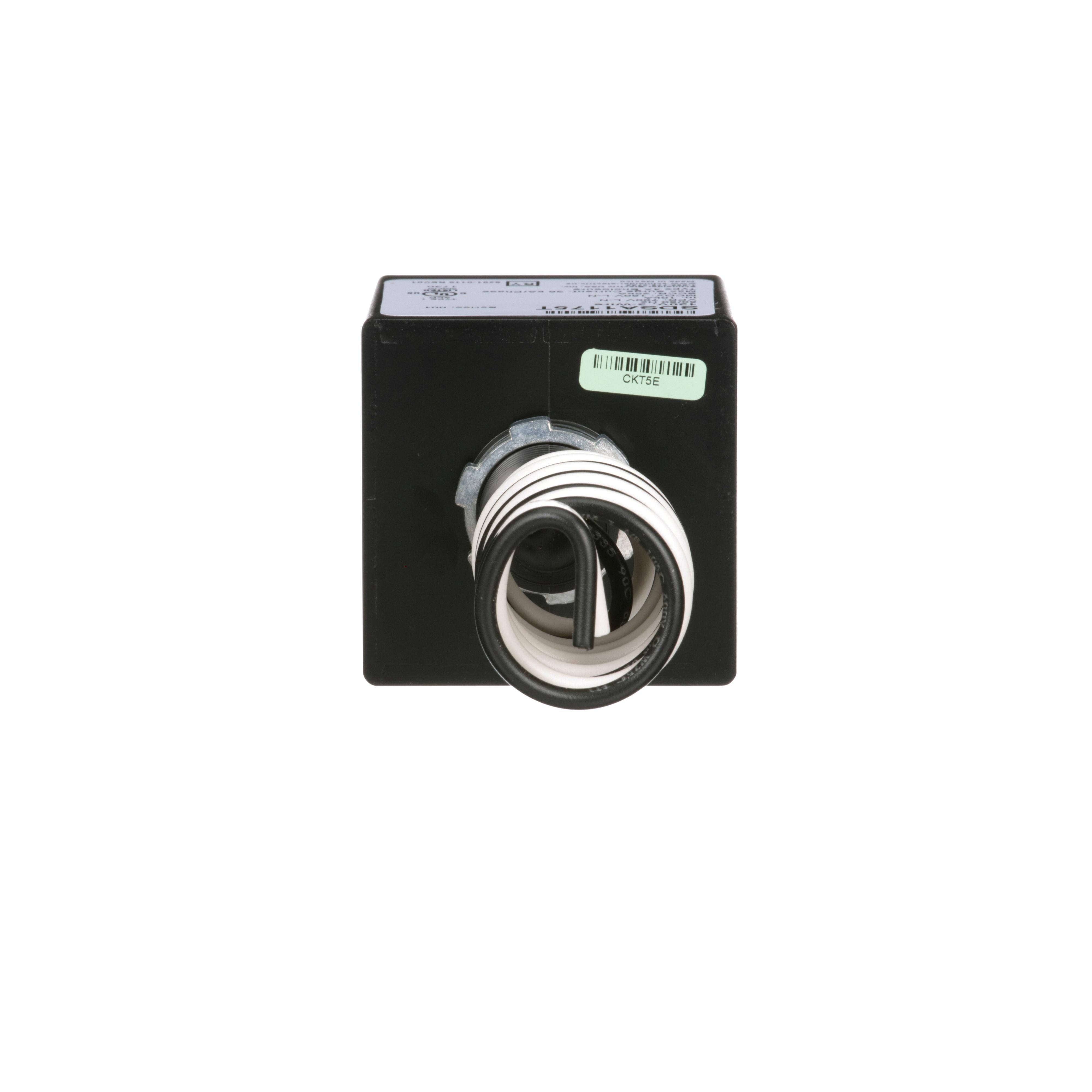

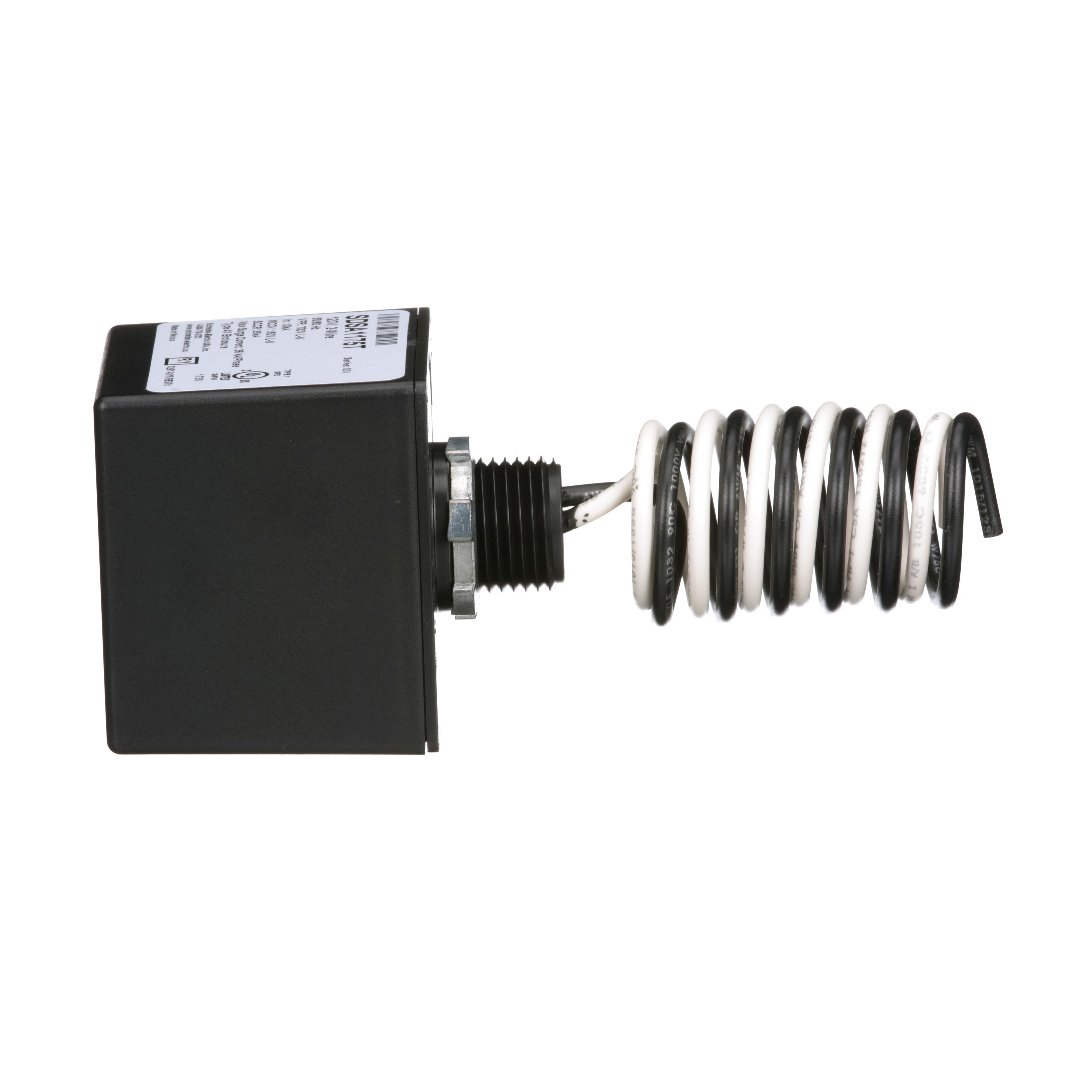

Description: Square D™ Surgelogic™ Load Center Surge Protective Device, 1-Phase, 120 V AC, 50/60 Hz, 3 Wires, 36 kA Peak Surge, NEMA 1/4X, Close Nipple/Back Mount, 13.3 in L x 11.7 in W x 7.5 in H, Plastic, Black

Manufacturer PN: SDSA1175T

UPC:  78590198409

Kendall Electric Inc PN: 3962363

Invoice Description:

SDSA1175T SQD SPD T1 SDSA 36KA 120V


SPEC SHEET

▸ See All in Surge Panel Protectors


How Can We Make This Page Better?

Square D™ Surgelogic™ SDSA1175T 1-Phase Load Center Surge Protective Device, 120 V AC

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 2 wire 120VAC single phase systems. Securing up to 36kA surge current per phase. This surge protection device is UL Listed.
Square D™ Surgelogic™ Load Center Surge Protective Device, 1-Phase, 120 V AC, 50/60 Hz, 3 Wires, 36 kA Peak Surge, NEMA 1/4X, Close Nipple/Back Mount, 13.3 in L x 11.7 in W x 7.5 in H, Plastic, Black

Specifications

 Brand Name Square D
 Color Black
 Dimensions 13.3 in L x 11.7 in W x 7.5 in H
 Enclosure NEMA 1/4X
 Frequency Rating 50/60 Hz
 Manufacturer Part Number SDSA1175T
 Material Plastic
 Mounting Type Close Nipple/Back
 Number of Wires 3
 PART NUMBER KEYWORDS SDSA1175T ; 11198949 ; 785901984092 ; 78590198409 ; 00785901984092 ; 0785901984092
 Peak Surge Current 36 kA
 Standards/Approvals RoHS Compliant|Buy American Act Compliant|CSA C22.2 No. 8-M1986/C233.1-87|cULus 1449 3rd Edition|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Type 1-Phase
 Voltage Rating 120 V AC

Features

▪ Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time
▪ Protects against accidental shocks through the use of touch-safe terminals

Resources

 Catalog Page
 Installation Instructions
 Product Data Sheet
 RoHS
 Tech Drawing URL htt
 Technical Bulletin
