Eaton

Mouse over image to zoom, click to enlarge

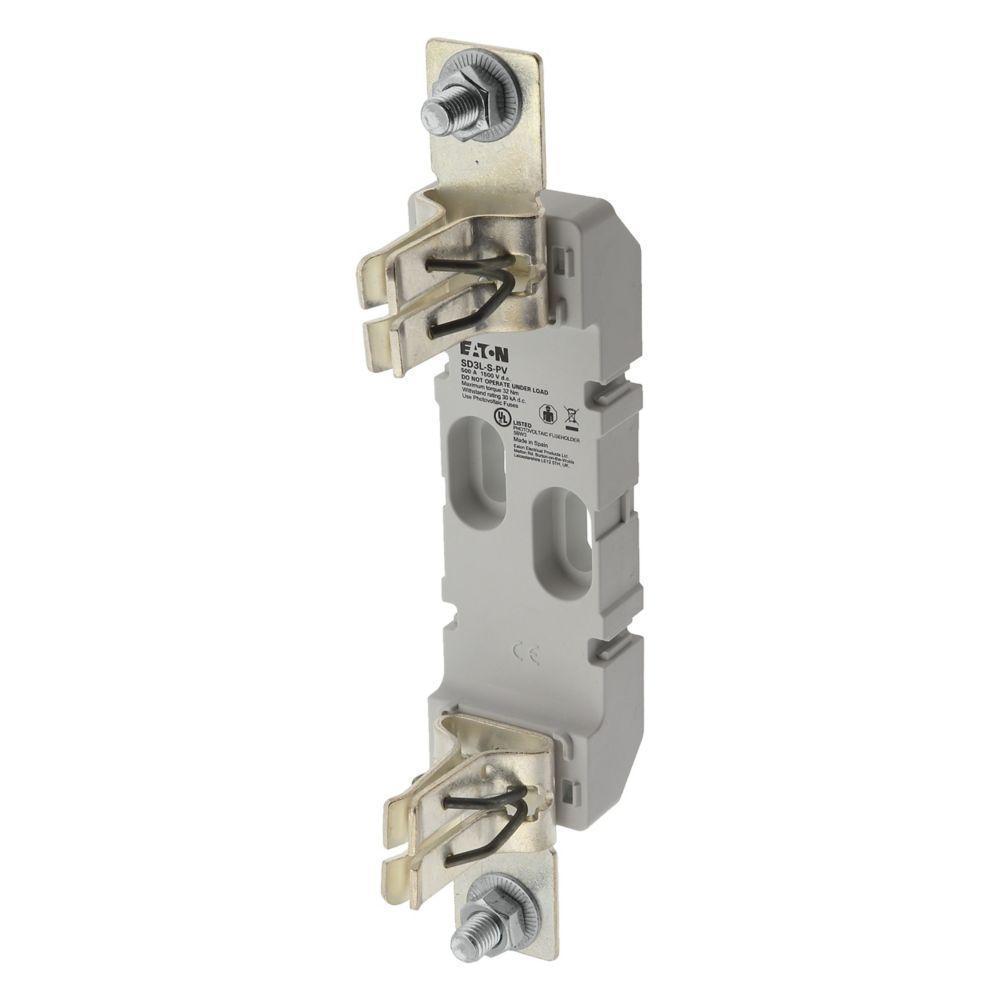

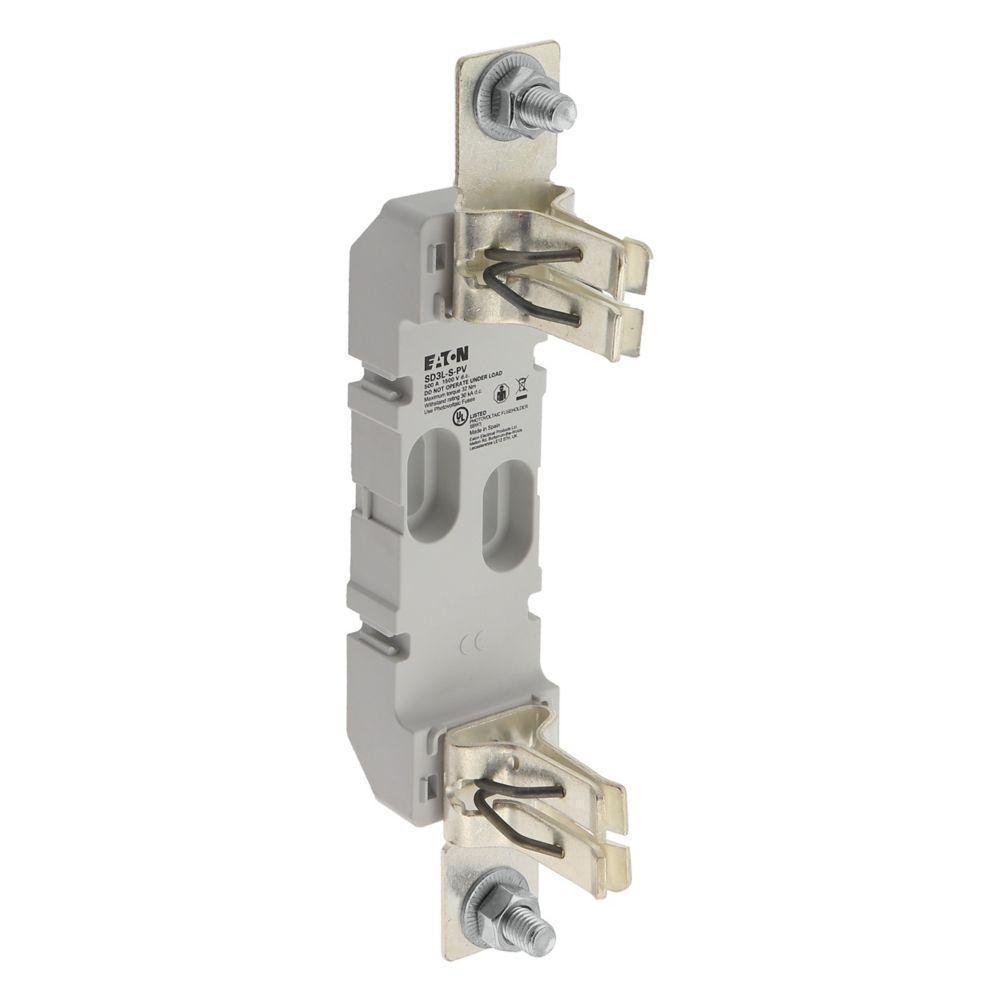

Description: Bussmann, SD3L-S-PV, Fuse Base, For Use With: Photovoltaic Size 3L Fuses, Specifications: 500 A, 1500 V DC, 1 Pole, 22 mm H x 58 mm W x 22 mm L Dimensions

Manufacturer PN: SD3L-S-PV

UPC: 05171274643

Kendall Electric Inc PN: 4578109

Invoice Description:

SD3L-S-PV BUSSMANN SIZE 3L PV FUSE BASE

SPEC SHEET

▸ See All in Special Purpose Fuse Blocks

How Can We Make This Page Better?

Bussmann SD3L-S-PV Fuse Base, For Use With Photovoltaic Size 3L Fuses, 500 A, 1500 V DC, 1 Pole

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.

Bussmann, SD3L-S-PV, Fuse Base, For Use With: Photovoltaic Size 3L Fuses, Specifications: 500 A, 1500 V DC, 1 Pole, 22 mm H x 58 mm W x 22 mm L Dimensions

Specifications

Application	Suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage
Brand Name	Bussmann
Dimensions	22 mm H x 58 mm W x 22 mm L
Manufacturer Part Number	SD3L-S-PV
Specifications	500 A, 1500 V DC, 1 Pole
Standards/Approvals	CE Marked
Suitable For Use With	Photovoltaic Size 3L Fuses
