Eaton

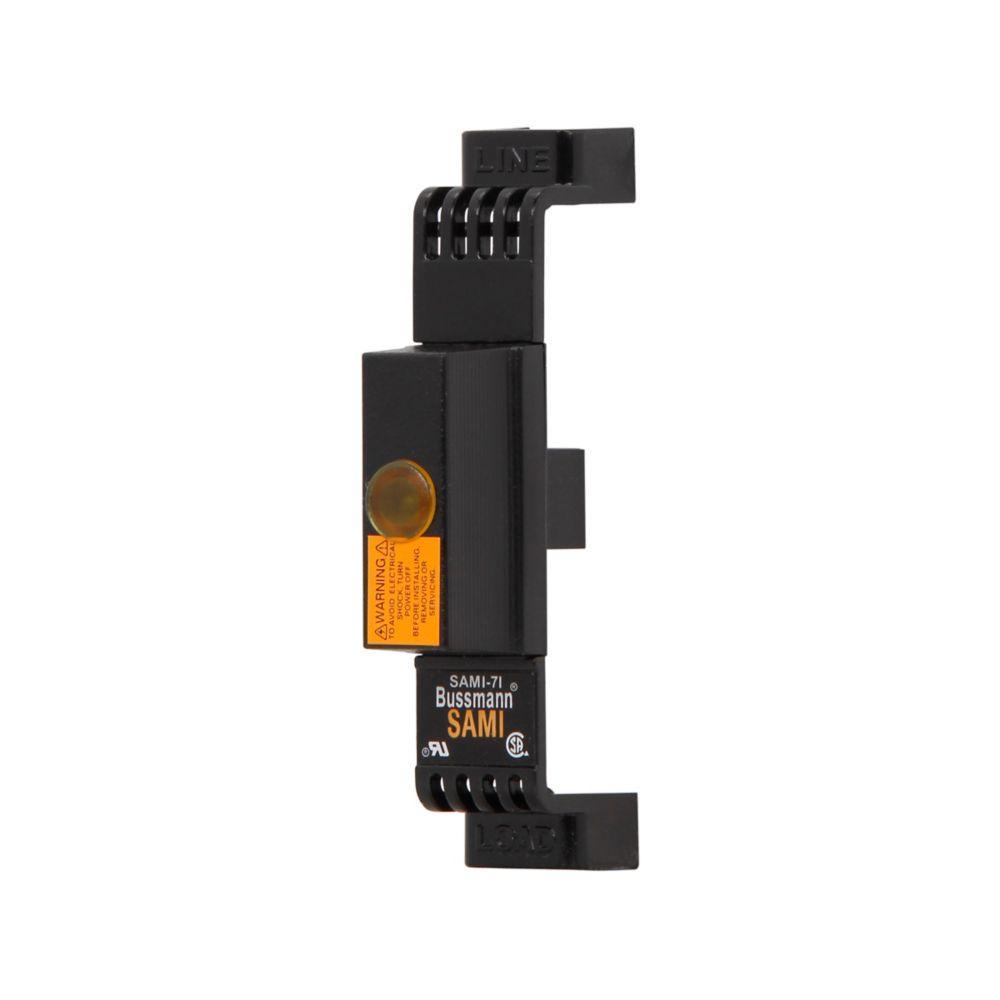

SAMI-7I BUS INDICATING FUSE COVER

Mouse over image to zoom, click to enlarge

  • SAMI-7I BUS INDICATING FUSE COVER
  • SAMI-7I BUS INDICATING FUSE COVER
  • SAMI-7I BUS INDICATING FUSE COVER

Description: Bussmann Fuse Cover, Dead Front Indicating Class CC, Series: SAMI™, 0 to 30 A, 600 V AC/DC, For Use With: Class CC Midget Fuse, 3.82 in Length, 3/4 in Width, 1.72 in Height, Thermoplastic, Black

Manufacturer PN: SAMI-7I

UPC:  05171279690

Kendall Electric Inc PN: 23223

Invoice Description:

SAMI-7I BUS INDICATING FUSE COVER


SPEC SHEET

How Can We Make This Page Better?

Bussmann SAMI-7I SAMI™ Dead Front Indicating Class CC Fuse Cover, 0 to 30 A, 600 V AC/DC, For Use With Class CC Midget Fuse, Thermoplastic, Black

Log In for Pricing and Availability




Description

Bussmann Fuse Cover, Dead Front Indicating Class CC, Series: SAMI™, 0 to 30 A, 600 V AC/DC, For Use With: Class CC Midget Fuse, 3.82 in Length, 3/4 in Width, 1.72 in Height, Thermoplastic, Black

Specifications

 Amperage Rating 0 to 30 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name Bussmann
 Color Black
 Height 1.72 in
 Length 3.82 in
 Manufacturer Part Number SAMI-7I
 Material Thermoplastic
 PART NUMBER KEYWORDS SAMI-7I ; SAMI7I ; 7648338 ; 051712796903 ; 51712796903 ; 05171279690 ; 00051712796903 ; 5027590529297
 Series SAMI™
 Standards/Approvals CE Certified|CSA File No. LR47235-93C|RoHS Compliant|UL 94-V-2 Flammability Rated|UL Listed
 Suitable For Use With Class CC Midget Fuse
 Type Dead Front Indicating Class CC
 Video Links
 Voltage Rating 600 V AC/DC
 Width 3/4 in

Features

▪ SAMI™ cover ends can easily be cut away if necessary to fit cover over existing wiring or to fit most safety switches
▪ Dead front construction provides added protection against accidental contact by maintenance personnel
▪ Labels are provided with the SAMI™ fuse cover for writing in circuit or fuse information
▪ Insulated cover allows field conversion of fuses mounted in open fuse blocks to dead front configuration
▪ Units are reusable
▪ Allows visual marking of line and load side of fuses
▪ Innovative design, covers exposed terminals and contacts of Bussmann fuse blocks
▪ Fits most competitive fuse blocks
▪ Buss yellow light on indicating SAMI™ shows when the fuse is open helps trouble shoot the system and reduces downtime
▪ Indication contacts have teeth to break oxidation layer on the existing fuse endcap to provide a clear signal path
▪ Less than 0.6 mA leakage current at 600 VAC
▪ Visual marking of line and load side
