Resideo Technologies

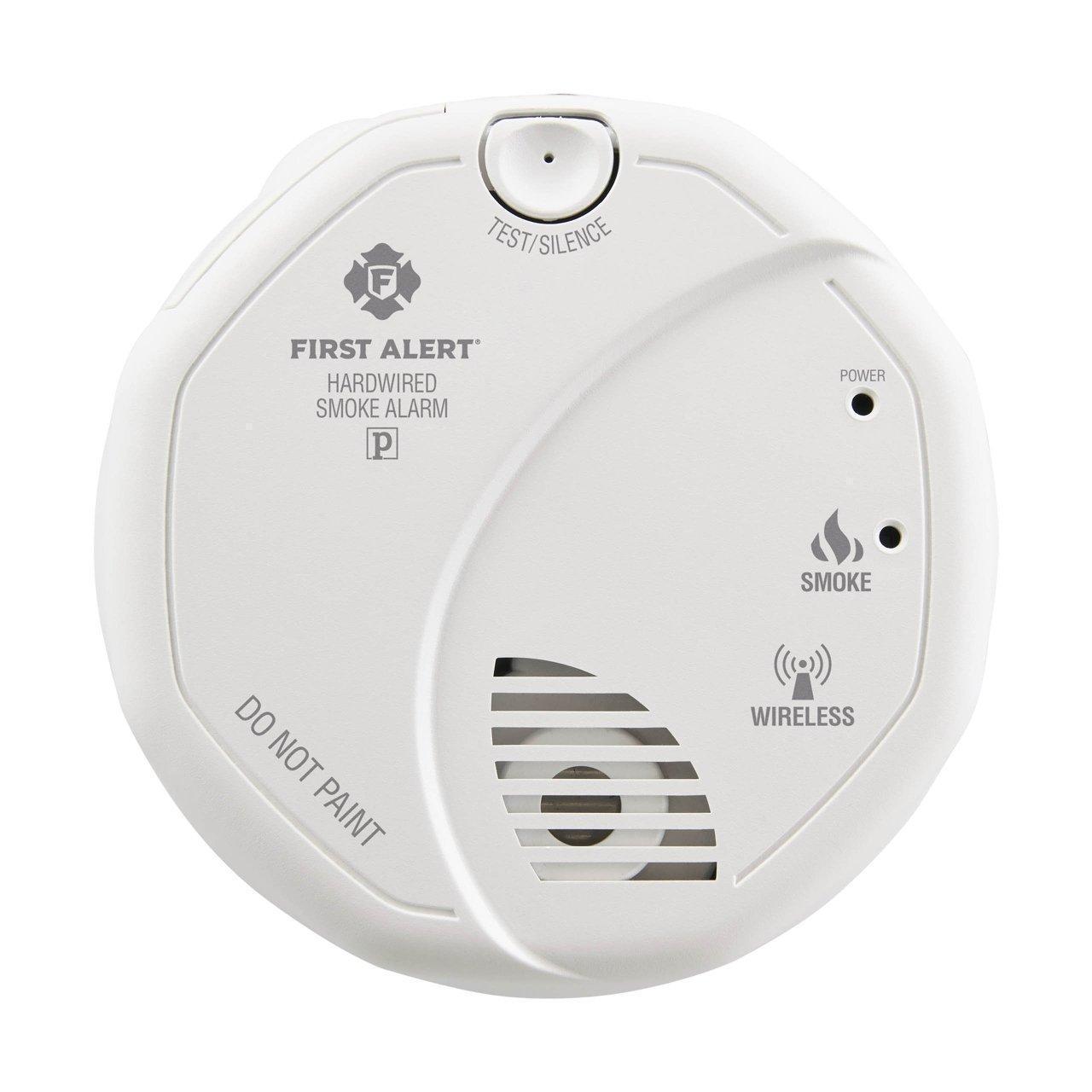

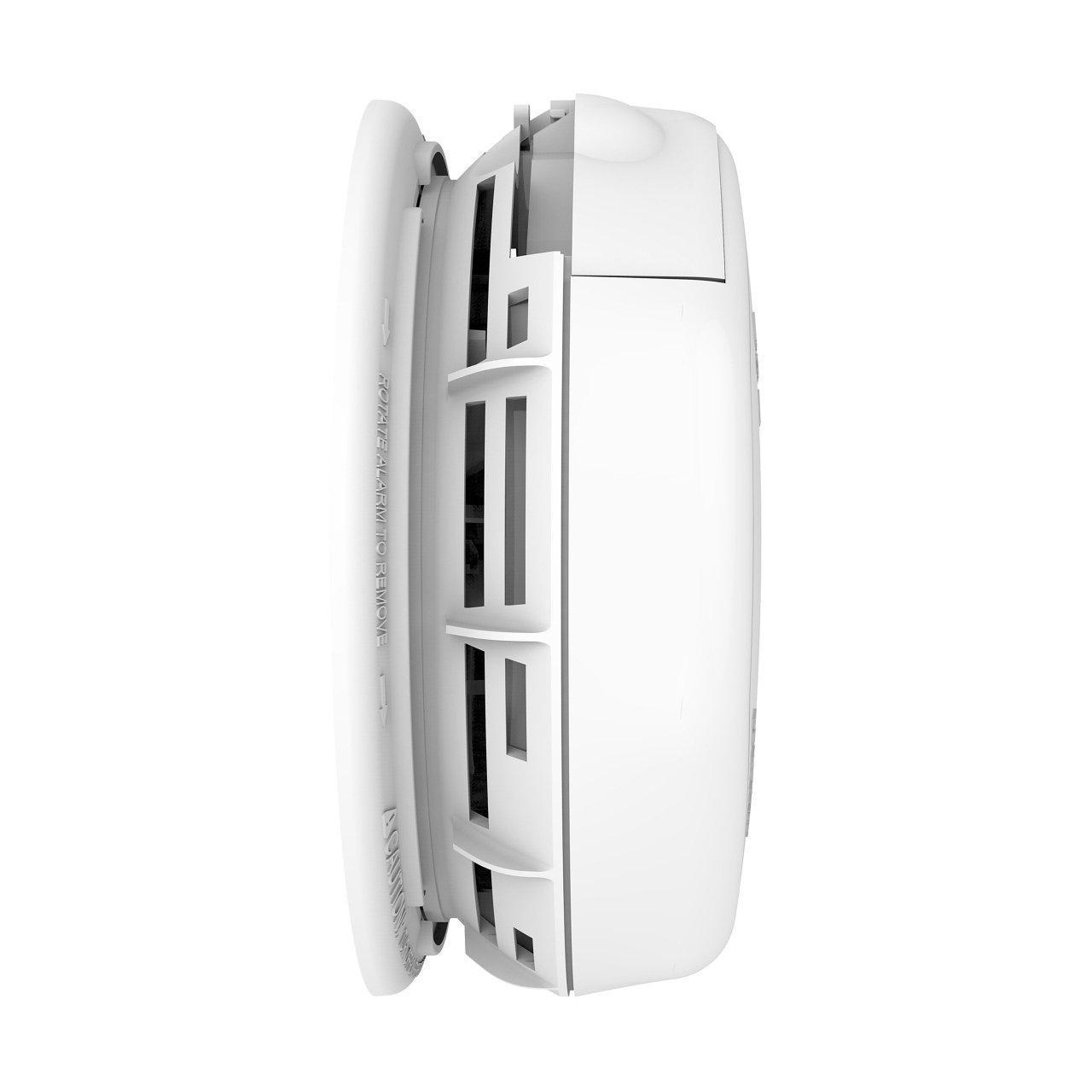

SA520B BRK 120V AC/DC ONELINK SMOKE ALARM-BRIDGE UNIT

Mouse over image to zoom, click to enlarge

  • SA520B BRK 120V AC/DC ONELINK SMOKE ALARM-BRIDGE UNIT
  • SA520B BRK 120V AC/DC ONELINK SMOKE ALARM-BRIDGE UNIT
  • SA520B BRK 120V AC/DC ONELINK SMOKE ALARM-BRIDGE UNIT
  • SA520B BRK 120V AC/DC ONELINK SMOKE ALARM-BRIDGE UNIT

Description: BRK® Smoke Alarm, Hardwired, 120 VAC, 60 Hz with (2) 1.5 VDC AA Batteries Power Source, Photoelectric Sensor, Alarm: Audible Alarm, Up to 18 Units Interconnection, 85 dB Alert, Red LED Visual Alert, 10 to 95 % Humidity, LED Display, Wireless Wiring, 40 to 100 deg F Operating, White, 5 in Dia x 2 in H Dimensions

Manufacturer PN: SA520B

UPC:  02905400205

Kendall Electric Inc PN: 2576618

Invoice Description:

SA520B BRK 120V AC/DC ONELINK SMOKE ALARM-BRIDGE UNIT


SPEC SHEET

▸ See All in Smoke Detector Alarms


How Can We Make This Page Better?

BRK® SA520B Hardwired Smoke Alarm, Photoelectric Sensor, 120 VAC, 60 Hz with (2) 1.5 VDC AA Batteries, LED Display, 85 dB

Log In for Pricing and Availability




Description

BRK Wireless Interconnect enabled alarm Bridge Unit - Wireless Photoelectric Hardwired Smoke Alarm Single button test/silence Two silence features - can silence the low-battery chirp for up to eight hours or temporarily silence an unwanted nuisance alarm Add additional OneLink alarms and hardwired alarms. Links all alarms together for a complete system. Hardwired interconnect and RF Interconnect: reliable and secure radio frequency communication between alarms. 915 MHz frequency with 65,000 security codes and 3 channel frequency hopping.
BRK® Smoke Alarm, Hardwired, 120 VAC, 60 Hz with (2) 1.5 VDC AA Batteries Power Source, Photoelectric Sensor, Alarm: Audible Alarm, Up to 18 Units Interconnection, 85 dB Alert, Red LED Visual Alert, 10 to 95 % Humidity, LED Display, Wireless Wiring, 40 to 100 deg F Operating, White, 5 in Dia x 2 in H Dimensions

Specifications

 Alarm Type Audible Alarm
 Audible Alert 85 dB
 Brand Name BRK®
 Color White
 Dimensions 5 in Dia x 2 in H
 Humidity Rating 10 to 95 %
 Includes Mounting Anchors, Screws
 Interconnection Capability Up to 18 Units
 Manufacturer Part Number SA520B
 Operating Temperature 40 to 100 deg F
 Power Source 120 V AC 60 Hz with (2) 1.5 V DC AA Batteries
 Sensor Type Photoelectric
 Standards/Approvals UL 217|Buy American Act Compliant
 Type Hardwired
 Visual Alert Red LED
 Wiring Type Wireless

Features

▪ Single button test/silence
▪ Two silence features - can silence the low-battery chirp for up to eight hours or temporarily silence an unwanted nuisance alarm
▪ Links all alarms together for a complete system
▪ Hardwired interconnect and RF Interconnect - reliable and secure radio frequency communication between alarms
▪ 915 MHz frequency with 65,000 security codes and 3 channel frequency hopping

Resources

 Catalog Page
 Product Data Sheet
