Eaton

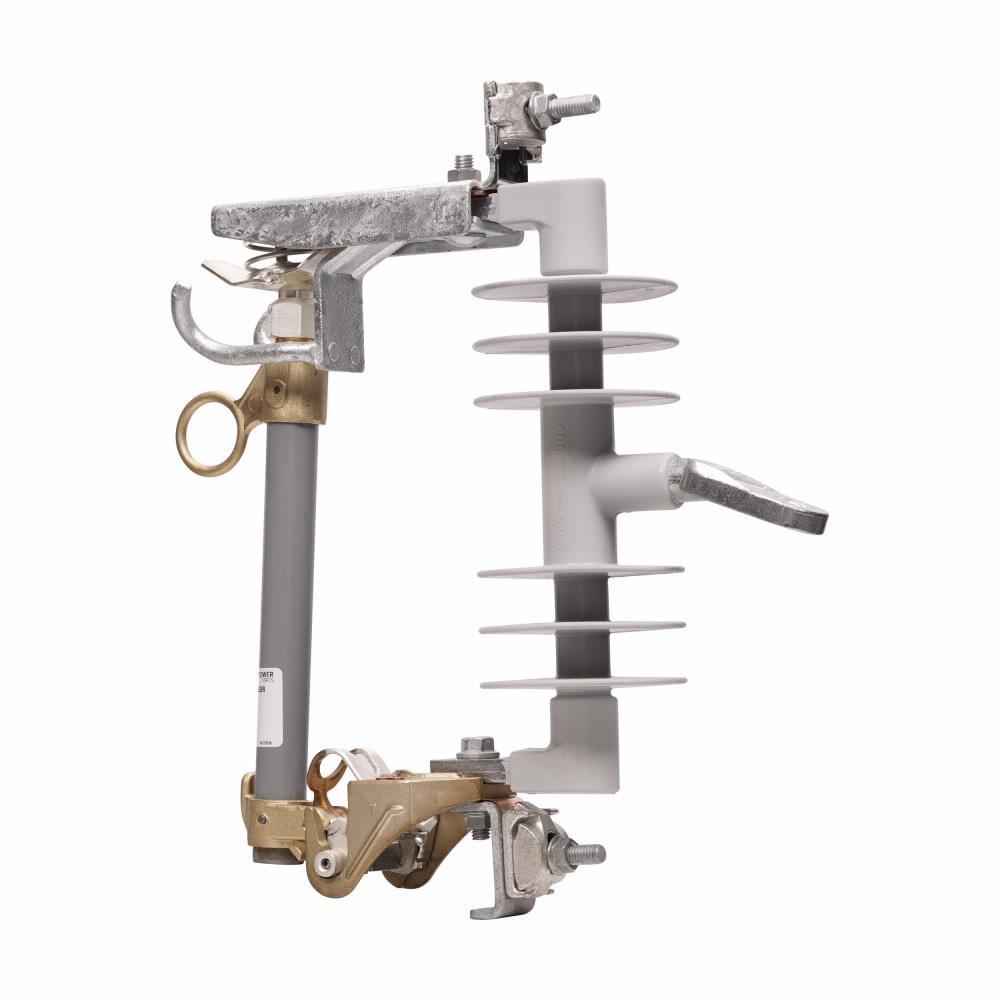

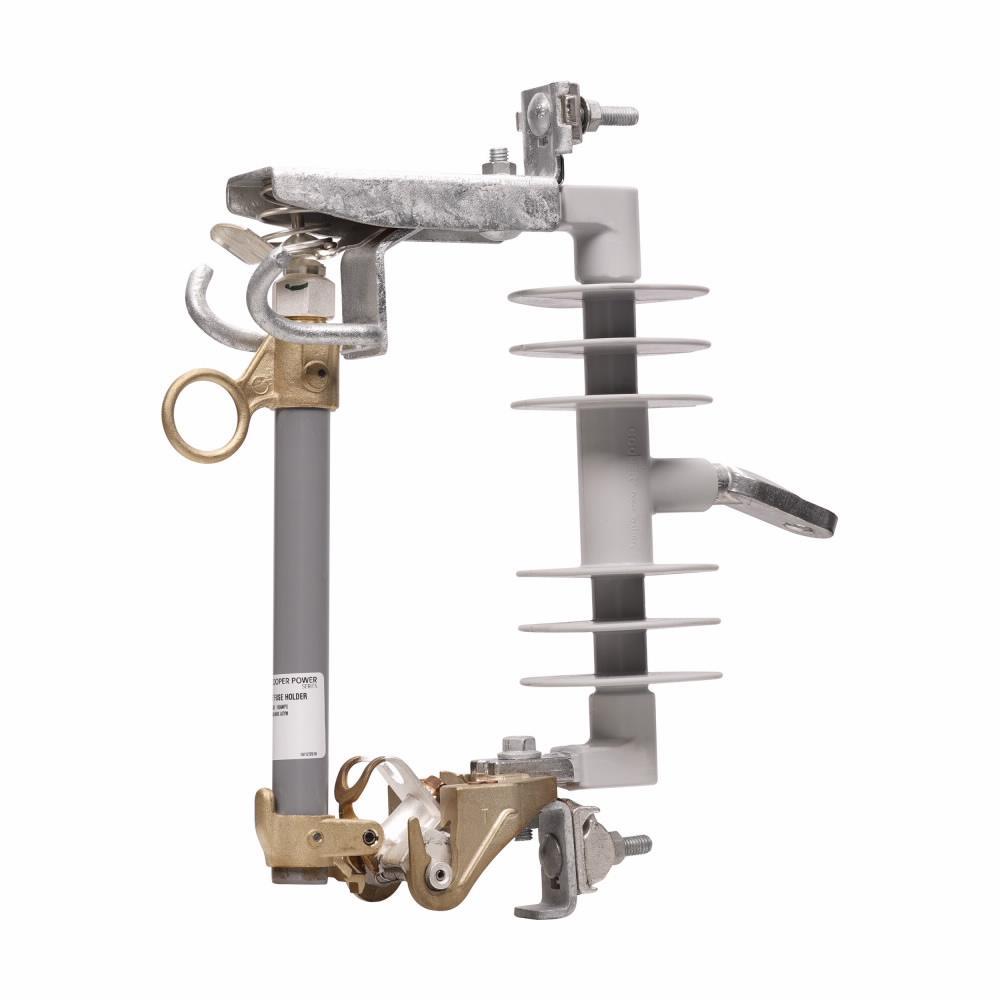

S4B1P1A EATON-PWR CUTOUT,L,15KV,100A,10KA,PRLGRV,STD CAP

Mouse over image to zoom, click to enlarge

  • S4B1P1A EATON-PWR CUTOUT,L,15KV,100A,10KA,PRLGRV,STD CAP
  • S4B1P1A EATON-PWR CUTOUT,L,15KV,100A,10KA,PRLGRV,STD CAP
  • S4B1P1A EATON-PWR CUTOUT,L,15KV,100A,10KA,PRLGRV,STD CAP

Description: Eaton Cooper Power Series, S4B1P1A, L-cutout, Series: Cooper Power Series, 100 A, 13.5 in H x 3.75 in W x 16.3 in L Dimensions

Manufacturer PN: S4B1P1A

UPC:  19400603750

Kendall Electric Inc PN: 4782863

Invoice Description:

S4B1P1A EATON-PWR CUTOUT,L,15KV,100A,10KA,PRLGRV,STD CAP


SPEC SHEET

▸ See All in Cutout Fuseholders, Caps & Blades


How Can We Make This Page Better?

Eaton Cooper Power Series S4B1P1A Cooper Power Series L-cutout, 100 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Cooper Power series distribution class cutouts are available in a variety of types - universal, arrester combinations, and loadbreak types. All cutouts provide reliable overcurrent protection for primary distribution systems. Overcurrent protection safeguards an electric system from excessive currents produced by abnormal conditions such as line faults, line or equipment overloads, or equipment failure. For the ultimate in reliability and dependability, Eaton's Cooper Power series cutouts provide superior performance in harsh climates, including reduced cracking and breakage.
Eaton Cooper Power Series, S4B1P1A, L-cutout, Series: Cooper Power Series, 100 A, 13.5 in H x 3.75 in W x 16.3 in L Dimensions

Specifications

 Amperage Rating 100 A
 Application For Utility
 Brand Name Eaton Cooper Power Series
 Dimensions 13.5 in H x 3.75 in W x 16.3 in L
 Manufacturer Part Number S4B1P1A
 PART NUMBER KEYWORDS S4B1P1A ; 194006037501 ; 19400603750 ; 00194006037501 ; 0194006037501
 Series Cooper Power Series
 Standards/Approvals ANSI/IEEE Std C37.41|ANSI/IEEE Std C37.42|ANSI/IEEE Std C37.40|CSA 310-09|PROP65

Features

▪ The porcelain Type L fuse cutout is designed with a solid core, birdproof, one-piece porcelain frame with uniform shed configuration
▪ The backbone of the UltraSIL polymer-insulated Type L fuse cutout is comprised of an E-glass fiberglass rod with crimped-on galvanized steel hanger and end fittings
▪ The cast bronze lower hinge assembly has deep pockets for the trunnion to pivot to minimize accidental fuse removal
▪ Electrical fuse loadbreak cutout consists of a heavy-duty arc reducing load interrupter mounted to the cutout frame
▪ The interrupter together with the associated fuse holder provides a safe, reliable, loadbreaking device with visible break
▪ Combining the functions of a distribution-class surge arrester with a fuse cutout provides the convenience of a compact, efficient unit with less pole-top hardware, combining these units also provides easier installation, handling and procurement
▪ Fuseholders are interchangeable with polymer and procelain fuse cutouts manufactured by S & C Electric Co
