Schneider Electric
  • S37450 SQD CIRCUIT BREAKER TERMINAL
  • S37450 SQD CIRCUIT BREAKER TERMINAL
  • S37450 SQD CIRCUIT BREAKER TERMINAL
  • S37450 SQD CIRCUIT BREAKER TERMINAL
  • S37450 SQD CIRCUIT BREAKER TERMINAL

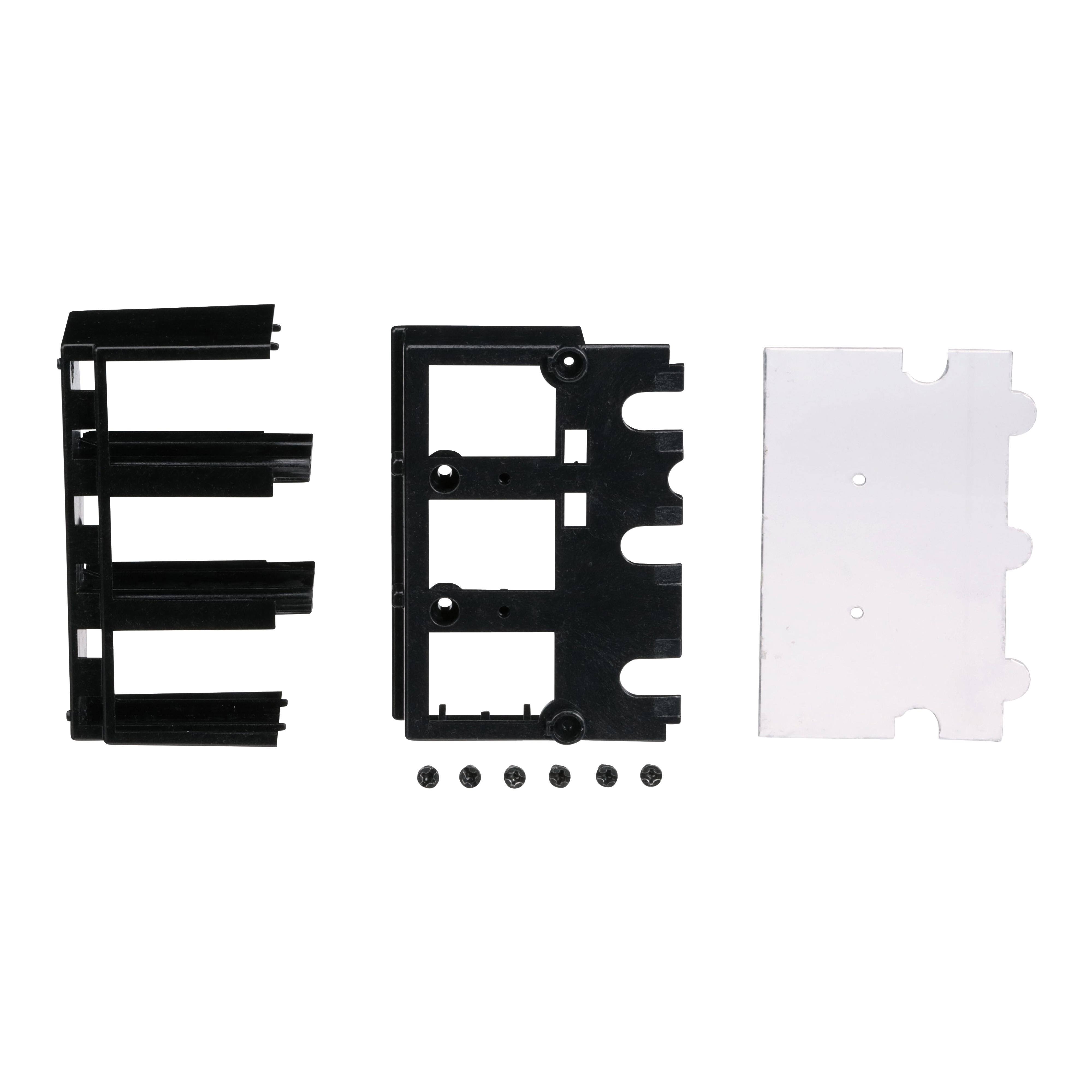

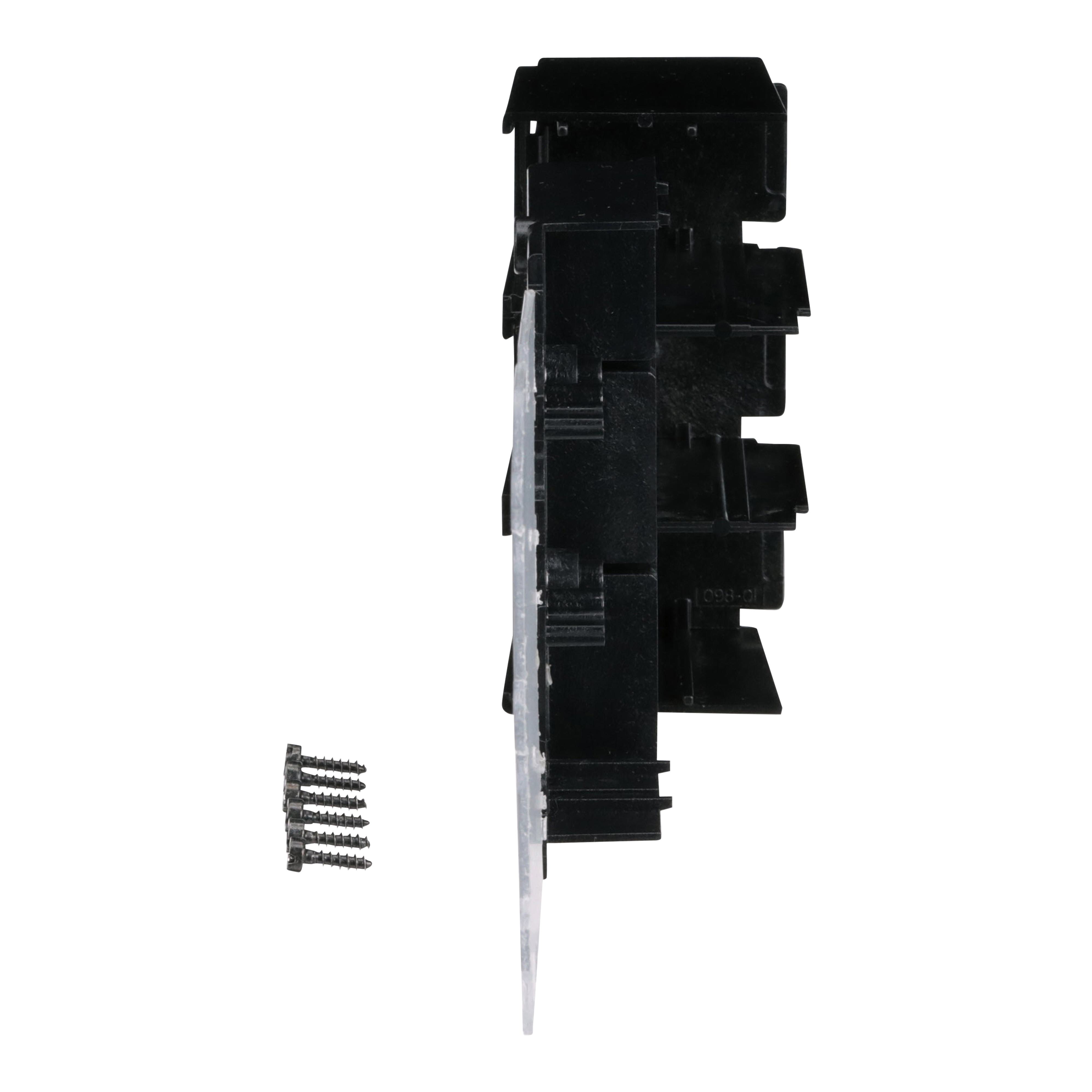

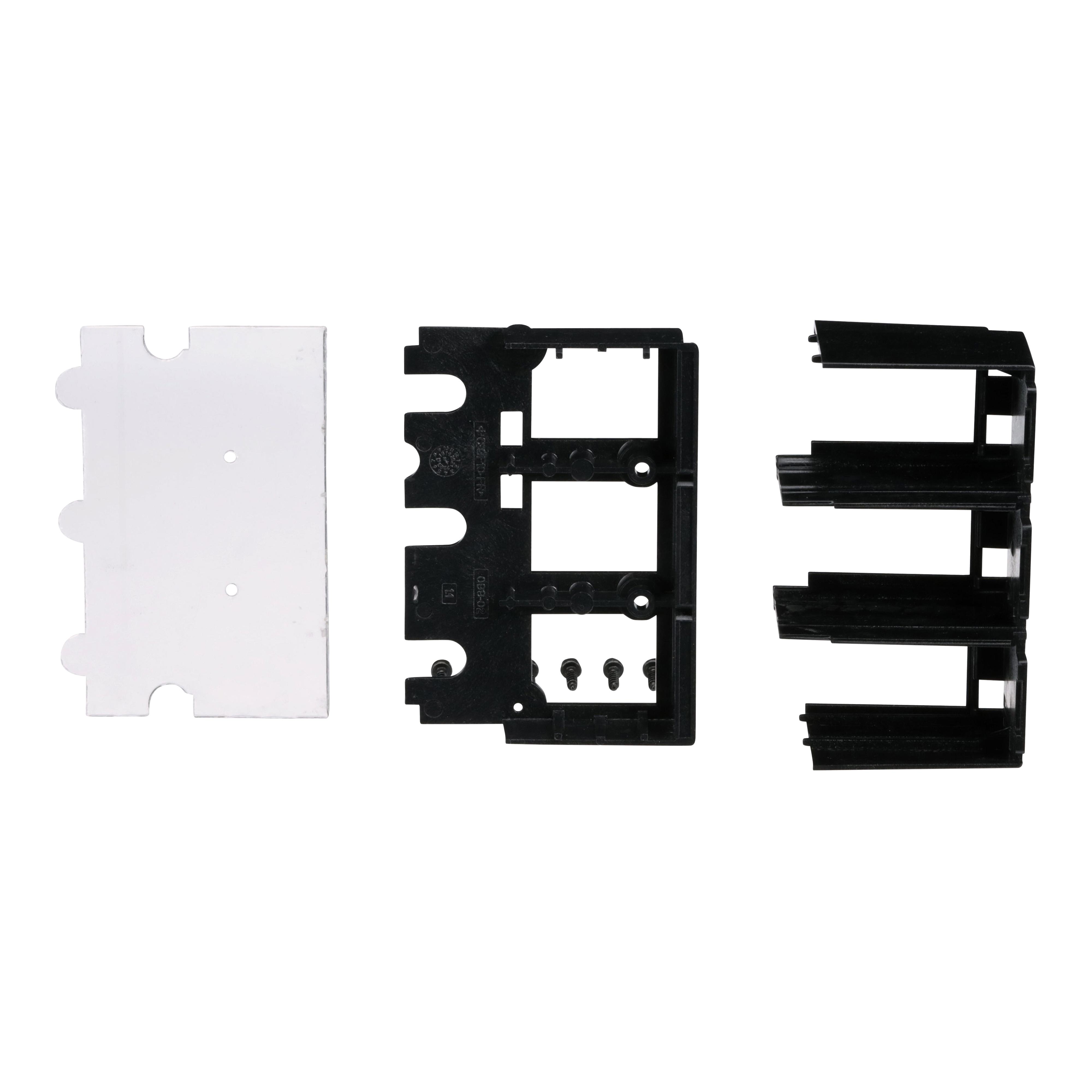

Description: Square D™ PowerPact™ Terminal Shield, Long, For Use With: PDC6JD4, PDC3JD2 J Frame Circuit Breaker, YA150JD, CYA150JD Compression Lug, 1.68 in Size

Manufacturer PN: S37450

UPC:  78590159604

Kendall Electric Inc PN: 3961958

Invoice Description:

S37450 SQD CIRCUIT BREAKER TERMINAL


SPEC SHEET

How Can We Make This Page Better?

Square D™ PowerPact™ S37450 Long Terminal Shield, 1.68 in, For Use With PDC6JD4, PDC3JD2 J Frame Circuit Breaker, YA150JD, CYA150JD Compression Lug

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The TeSys™ GV5PB/GV6PB product family are three-pole UL 489 motor protection circuit breakers when combined with a contactor that makes up an entire branch circuit. Save panel space and simplify installation using a two-component solution. Features of the product range include selectable trip class 5/ 10/20 and an adjustable short-circuit time of 5 to 13 times Ir. Solutions cover a range of application needs from compact and cost effective to advanced control and predictive alarming. Choose the best offer based on your application needs. Terminal shields are used for front connection with cables or insulated bars. They comprise two parts assembled with captive screws, forming an IP40 cover. The top part is equipped with sliding grids for precise adaptation to cables or insulated bars. The rear part completely blocks off the connection zone. Terminal shields may be mounted upstream and downstream of the circuit breaker. This PowerPact Multistandard, lug shield is a connection accessory and is for a 3P breaker. This lug shield can be mounted in either upstream or downstream positions.
Square D™ PowerPact™ Terminal Shield, Long, For Use With: PDC6JD4, PDC3JD2 J Frame Circuit Breaker, YA150JD, CYA150JD Compression Lug, 1.68 in Size

Specifications

 Application Auxiliary/Alarm Switch Applications
 Brand Name Square D
 Manufacturer Part Number S37450
 PART NUMBER KEYWORDS S37450 ; 9583524 ; 785901596042 ; 78590159604 ; 00785901596042 ; 7859015960426
 Size 1.68 in
 Standards/Approvals IEC Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With PDC6JD4, PDC3JD2 J Frame Circuit Breaker, YA150JD, CYA150JD Compression Lug
 Type Long

Features

▪ Easy plug on circuit breaker that's compatible with Square D QO Loadcenters
