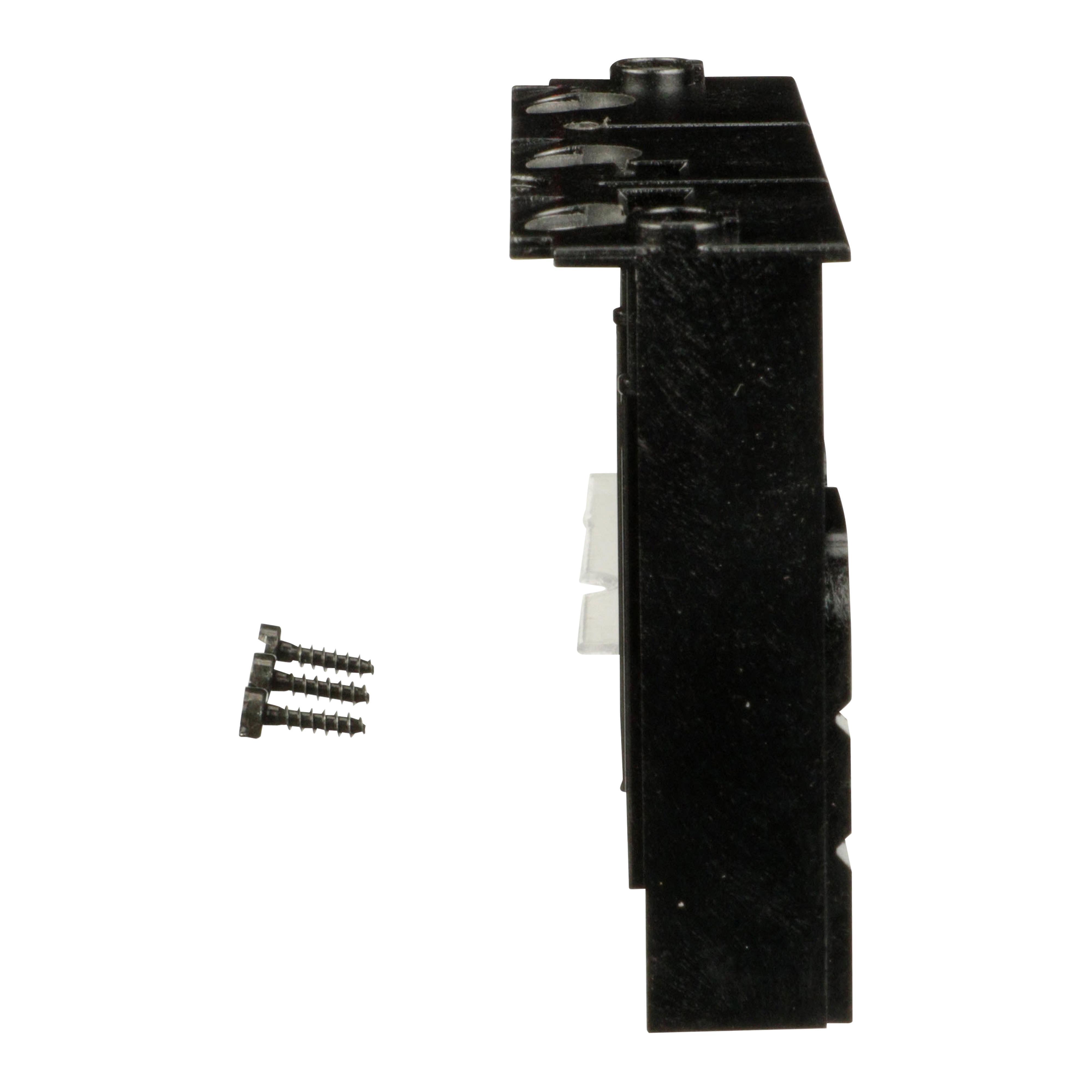

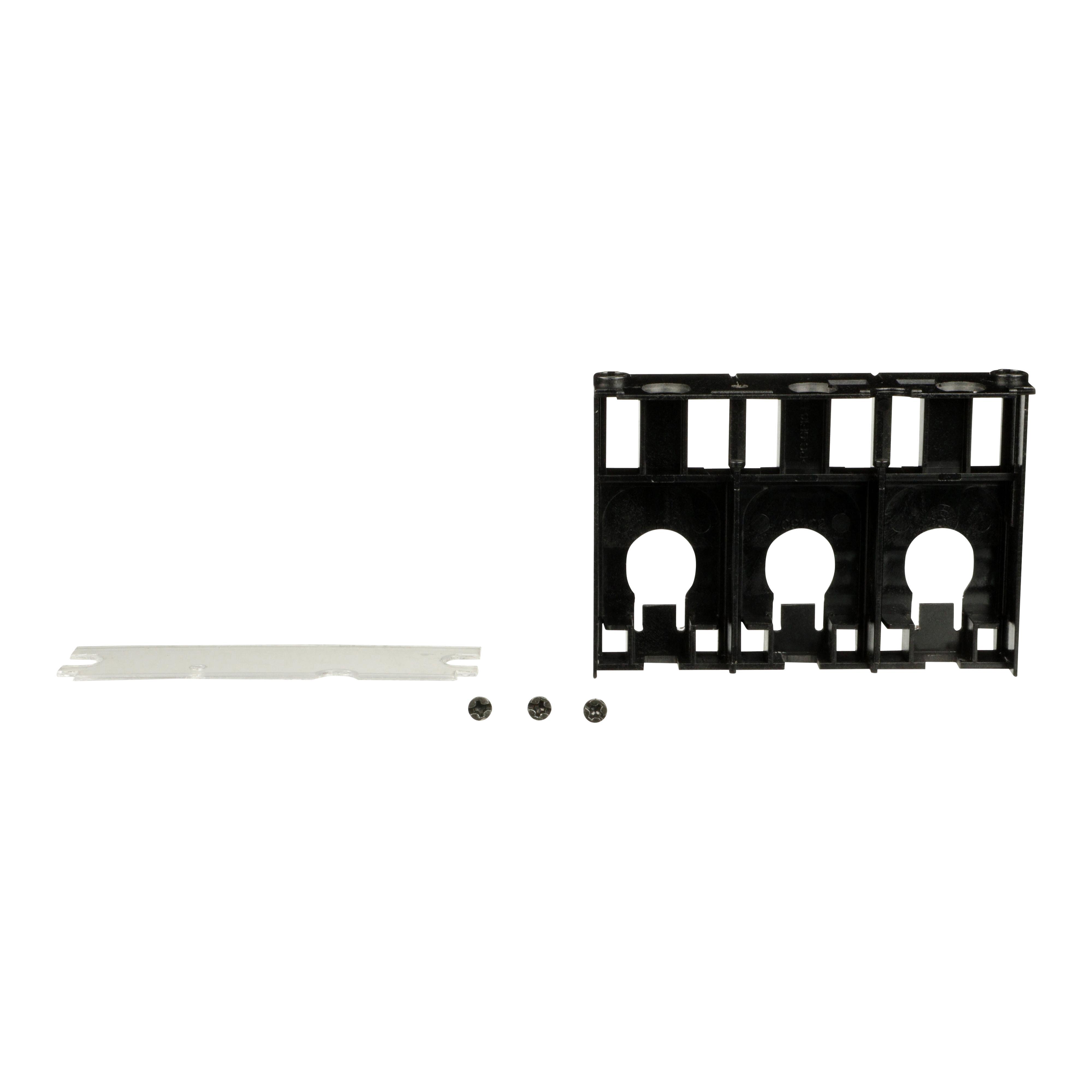

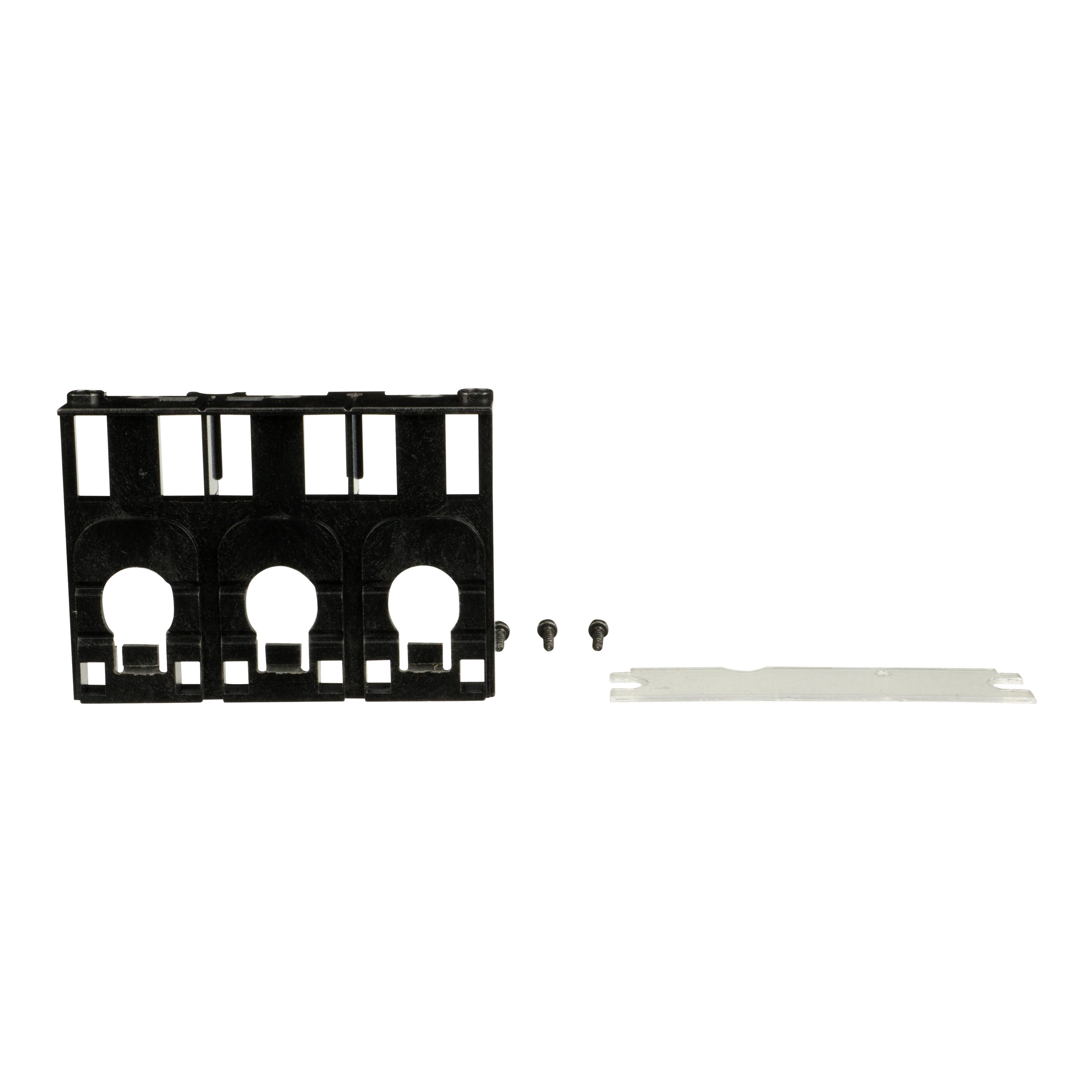

Description: Square D™ PowerPact™ Lug Shield, Short, 3 Pole, For Use With: PowerPact® Multi-Standard Circuit Breaker, 150 A Electrical Rating

Manufacturer PN: S37447

UPC:  78590144139

Kendall Electric Inc PN: 3961956

Invoice Description:

S37447 SQD CIRCUIT BREAKER SHORT


SPEC SHEET

How Can We Make This Page Better?

Square D™ PowerPact™ S37447 Short Lug Shield, For Use With PowerPact® Multi-Standard Circuit Breaker, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The TeSys™ GV5PB/GV6PB product family are three-pole UL 489 motor protection circuit breakers when combined with a contactor that makes up an entire branch circuit. Save panel space and simplify installation using a two-component solution. Features of the product range include selectable trip class 5/ 10/20 and an adjustable short-circuit time of 5 to 13 times Ir. Solutions cover a range of application needs from compact and cost effective to advanced control and predictive alarming. Choose the best offer based on your application needs. Terminal shields are used for front connection with cables or insulated bars. They comprise two parts assembled with captive screws, forming an IP40 cover. The top part is equipped with sliding grids for precise adaptation to cables or insulated bars. The rear part completely blocks off the connection zone. Terminal shields may be mounted upstream and downstream of the circuit breaker. This PowerPact Multistandard, lug shield is a connection accessory and is for a 3P, 150A breaker. This lug shield can be mounted in either downstream or upstream positions.
Square D™ PowerPact™ Lug Shield, Short, 3 Pole, For Use With: PowerPact® Multi-Standard Circuit Breaker, 150 A Electrical Rating

Specifications

 Brand Name Square D
 Electrical Ratings 150 A
 Manufacturer Part Number S37447
 Number of Poles 3
 PART NUMBER KEYWORDS S37447 ; 9582892 ; 785901441397 ; 78590144139 ; 00785901441397 ; 7859014413978
 Standards/Approvals IEC Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With PowerPact® Multi-Standard Circuit Breaker
 Type Short

Features

▪ They can be installed both downstream and upstream
