nVent

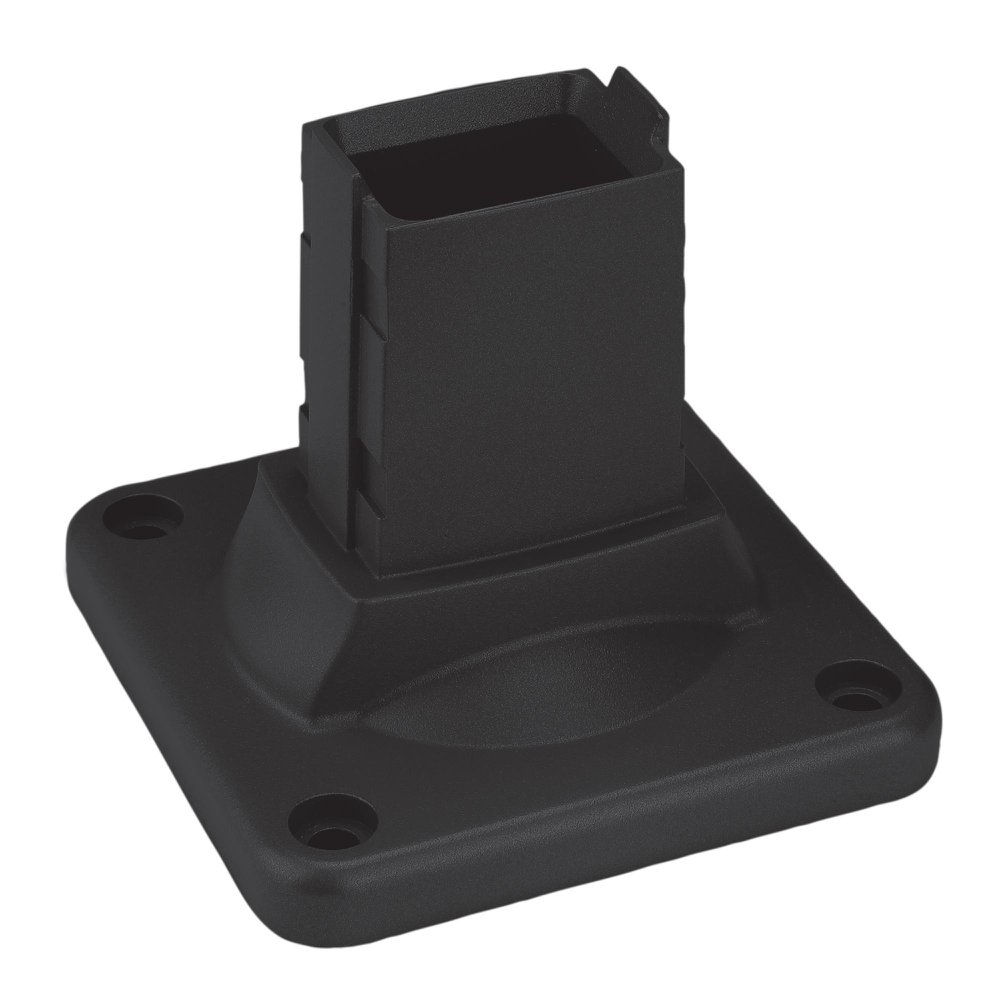

S1MWF HOFFMAN BASE WALL FLANGE RAL9005

Mouse over image to zoom, click to enlarge

Description: Hoffman SYSPEND™ Wall Flange, Series: CS5, For Use With: SYSPEND™ 180-MAX Suspension System, Die Cast Aluminum, Black

Manufacturer PN: S1MWF

UPC:  78351032777

Kendall Electric Inc PN: 3671596

Invoice Description:

S1MWF HOFFMAN BASE WALL FLANGE RAL9005


SPEC SHEET

▸ See All in Pendant Arm System Components


How Can We Make This Page Better?

Hoffman SYSPEND™ S1MWF CS5 Wall Flange, For Use With SYSPEND™ 180-MAX Suspension System, Die Cast Aluminum, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The wall flange allows for fixed positioning on a horizontal or vertical surface when rotation is not needed. Die-cast aluminum construction. Choice of RAL 9005 black or RAL 7035 light gray finish. Includes installation instructions, gaskets, and tube setscrews. Surface mounting hardware not provided.
Hoffman SYSPEND™ Wall Flange, Series: CS5, For Use With: SYSPEND™ 180-MAX Suspension System, Die Cast Aluminum, Black

Specifications

 Brand Name nVent HOFFMAN
 Color Black
 Includes Installation Instructions, Gaskets, Tube Setscrews
 Manufacturer Part Number S1MWF
 Material Die Cast Aluminum
 PART NUMBER KEYWORDS S1MWF ; 13819590 ; 783510327774 ; 78351032777 ; 8713574235694 ; 00783510327774
 Series CS5
 Standards/Approvals RoHS Compliant|REACH Compliant
 Suitable For Use With SYSPEND™ 180-MAX Suspension System

Features

▪ Surface mounting fasteners are not provided
▪ Assembled Syspend 180 HMI Arm System has a max weight load of 180 lb (81.6 kg)
