Schneider Electric
  • RXG22BD SQD 2CO 5A RELAY +LTB+LED 24VDC 78590195702
  • RXG22BD SQD 2CO 5A RELAY +LTB+LED 24VDC 78590195702
  • RXG22BD SQD 2CO 5A RELAY +LTB+LED 24VDC 78590195702
  • RXG22BD SQD 2CO 5A RELAY +LTB+LED 24VDC 78590195702
  • RXG22BD SQD 2CO 5A RELAY +LTB+LED 24VDC 78590195702

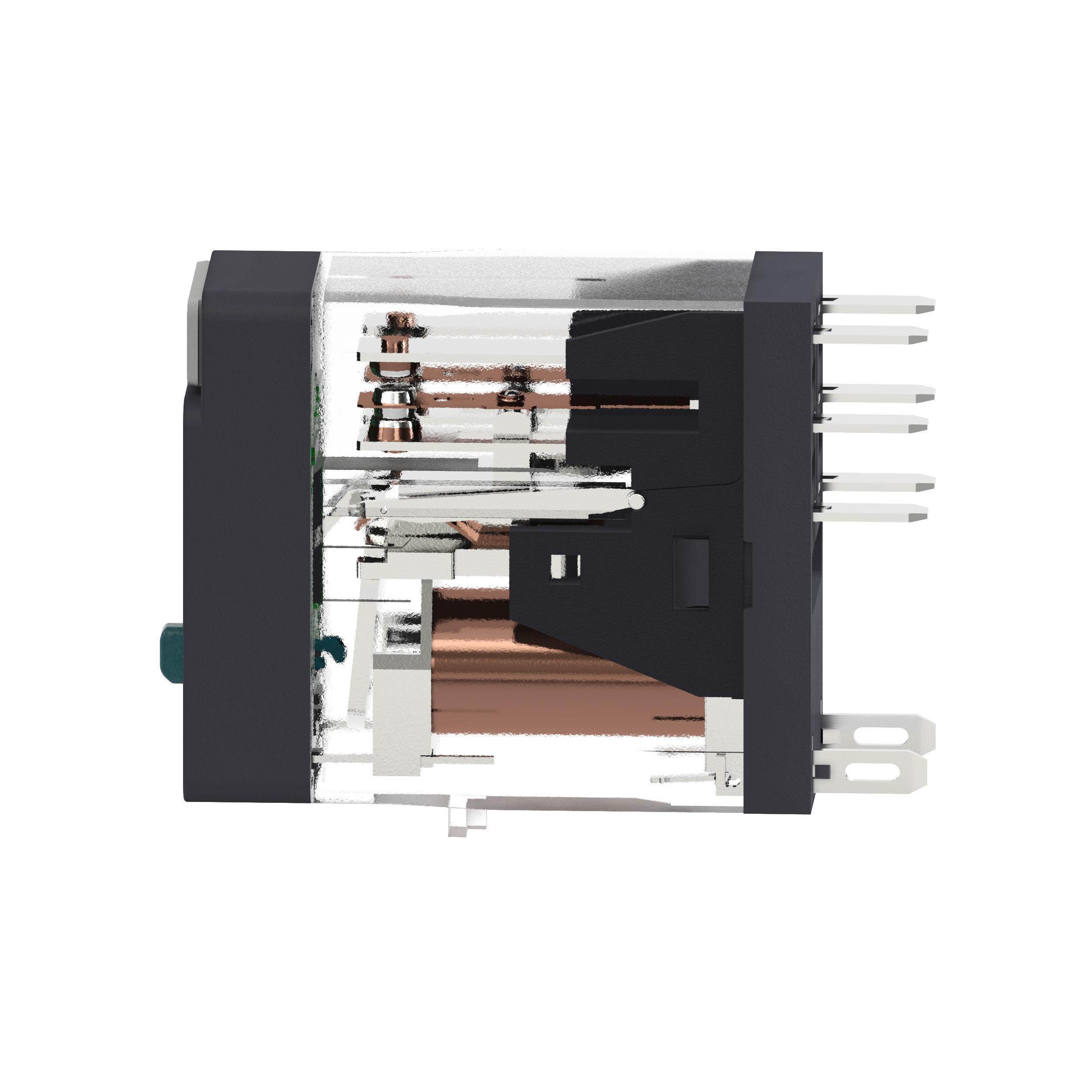

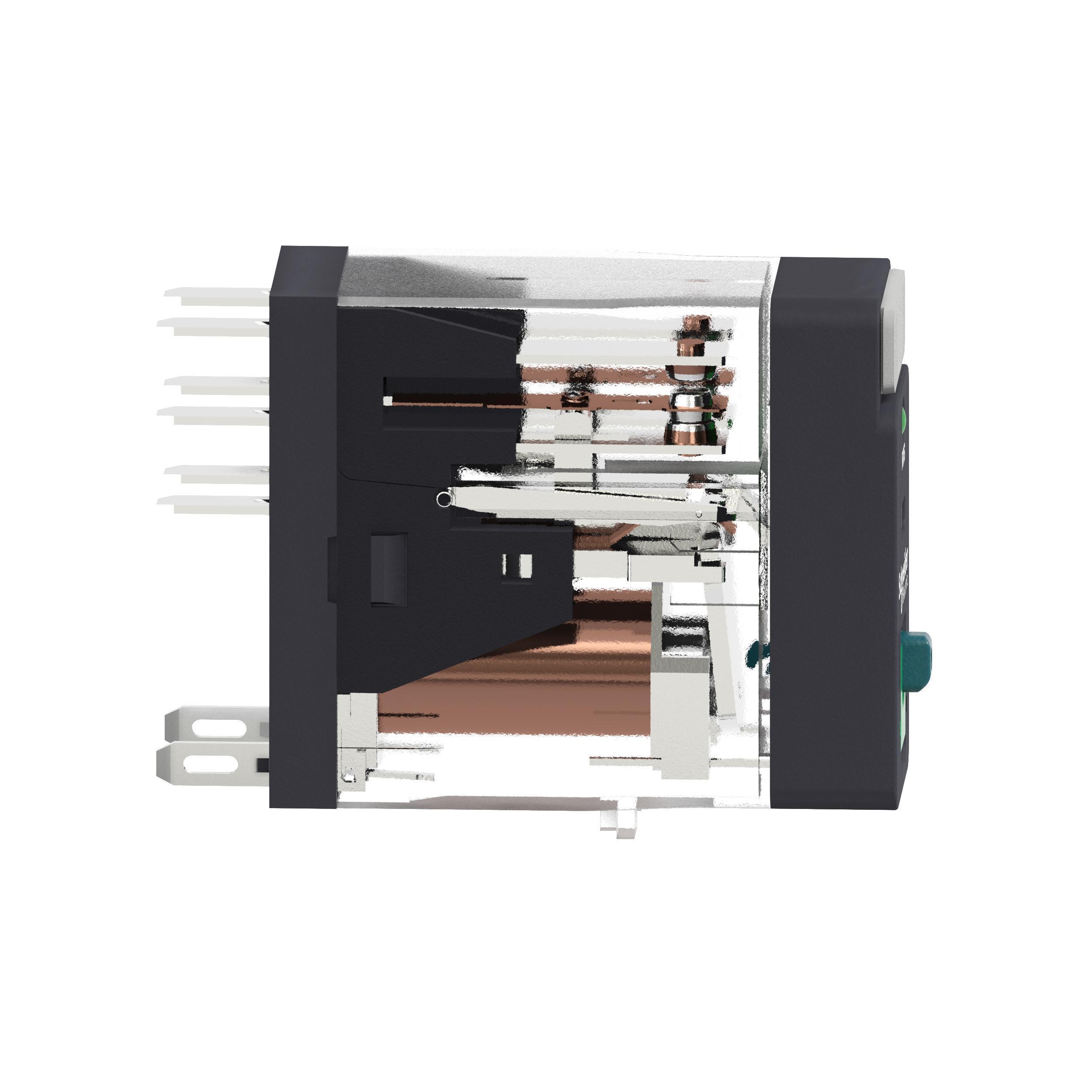

Description: Schneider Electric Square D™ Zelio™ Interface Plug-In Relay, Series: RXG Series, 5 A, 24 VDC Coil, 2CO 2 Form C DPDT Contact Form, 10 A at 250 V AC/10 A at 30 V DC Contact, 2 Pole, DIN Rail/Panel Mounting, Screw Terminal, LED Display, IP40 Enclosure, -40 to 70 deg C, 13 mm W Dimensions

Manufacturer PN: RXG22BD

UPC:  60648068917

Kendall Electric Inc PN: 4035588

Invoice Description:

RXG22BD SQD 2CO 5A RELAY +LTB+LED 24VDC 78590195702


SPEC SHEET

▸ See All in Socket Relays


How Can We Make This Page Better?

Schneider Electric Square D™ Zelio™ RXG22BD RXG Series Interface Plug-In Relay With Test Button and Lock-Down Door, 5 A, 2CO 2 Form C DPDT Contact, 24 VDC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Zelio™ RXG interface relay range is comprised of 10 A relays with 1 C/O contact and 5 A relays with 2 C/O contacts all in the same optimal foot print. The mating sockets feature separate contact terminals with reliable screw connections that attach either to a convenient 35 mm DIN rail or flexible panel mounting. The entire offer is a complete system solution with protection modules (diode, diode plus LED, RC circuit or varistor plus LED), plastic ejector/maintaining clip and ID tags to identify relays.
Schneider Electric Square D™ Zelio™ Interface Plug-In Relay, Series: RXG Series, 5 A, 24 VDC Coil, 2CO 2 Form C DPDT Contact Form, 10 A at 250 V AC/10 A at 30 V DC Contact, 2 Pole, DIN Rail/Panel Mounting, Screw Terminal, LED Display, IP40 Enclosure, -40 to 70 deg C, 13 mm W Dimensions

Specifications

 Amperage Rating 5 A
 Application General purpose
 Brand Name Square D
 Coil Voltage 24 V DC
 Contact Form 2CO 2 Form C DPDT
 Contact Rating 10 A at 250 V AC/10 A at 30 V DC
 Dimensions 13 mm W
 Enclosure IP40
 Manufacturer Part Number RXG22BD
 Mounting Type DIN Rail/Panel
 Number of Poles 2
 Series RXG Series
 Standards/Approvals 20 gn in operation;100 gn not in operation
 Temperature Rating -40 to 70 deg C
 Terminal Type Screw
 Video Links

Features

▪ Standard hold-down ejector clip integrated with socket
▪ Industry standard footprint for seamless compatibility with competitive sockets

Resources

 Catalog Page
 Product Data Sheet
