Schneider Electric

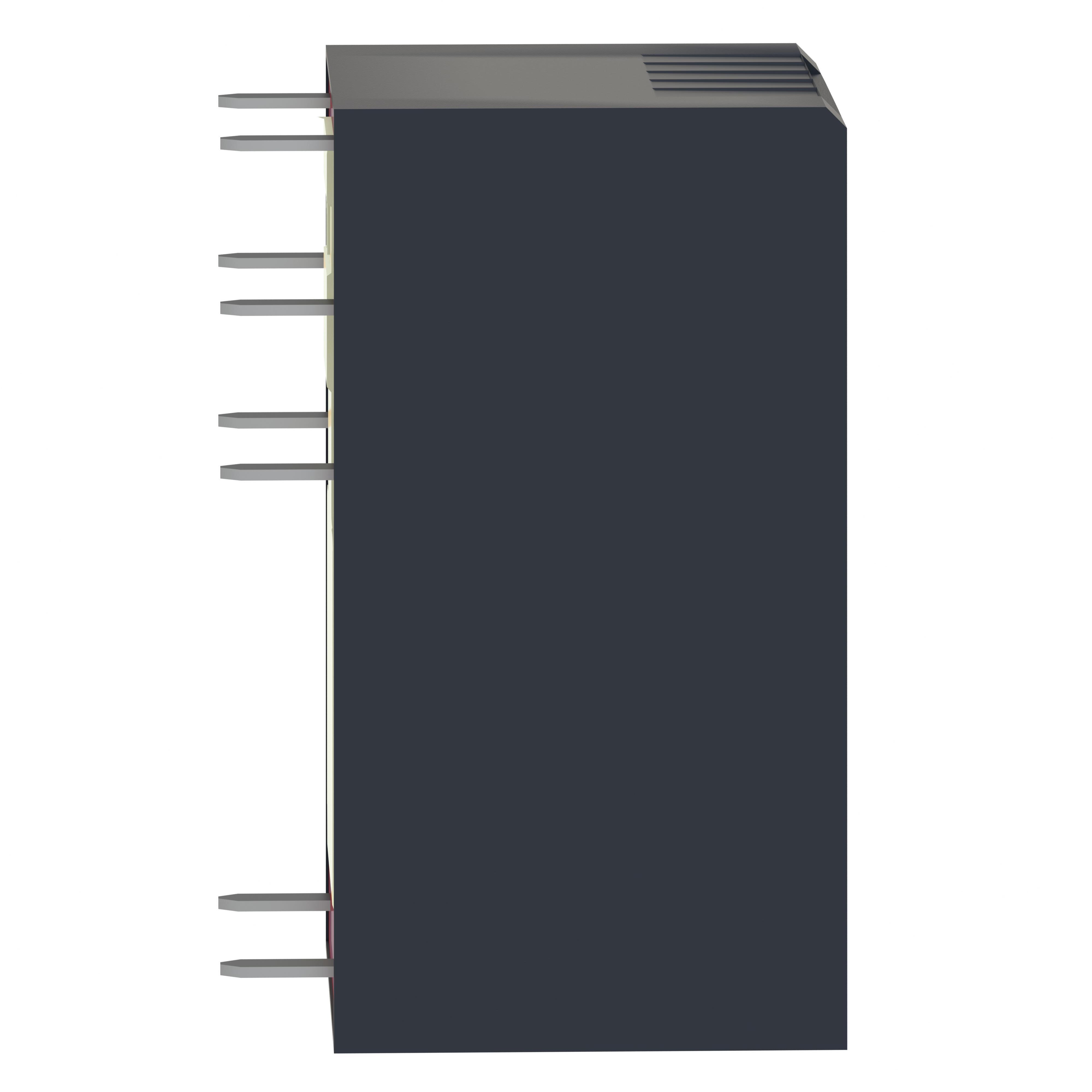

  • RSB2A080F7 SQD PLUG-IN RELAY 250VAC

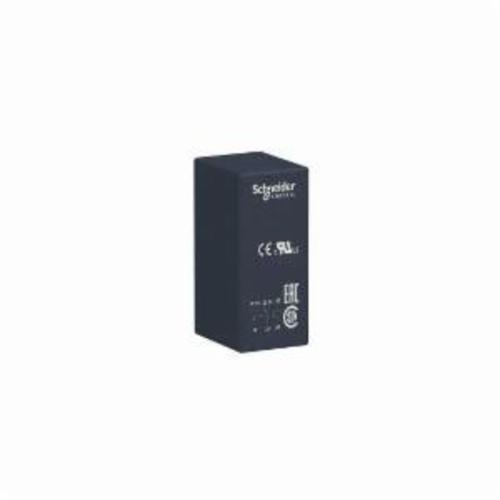

  • RSB2A080F7 SQD PLUG-IN RELAY 250VAC

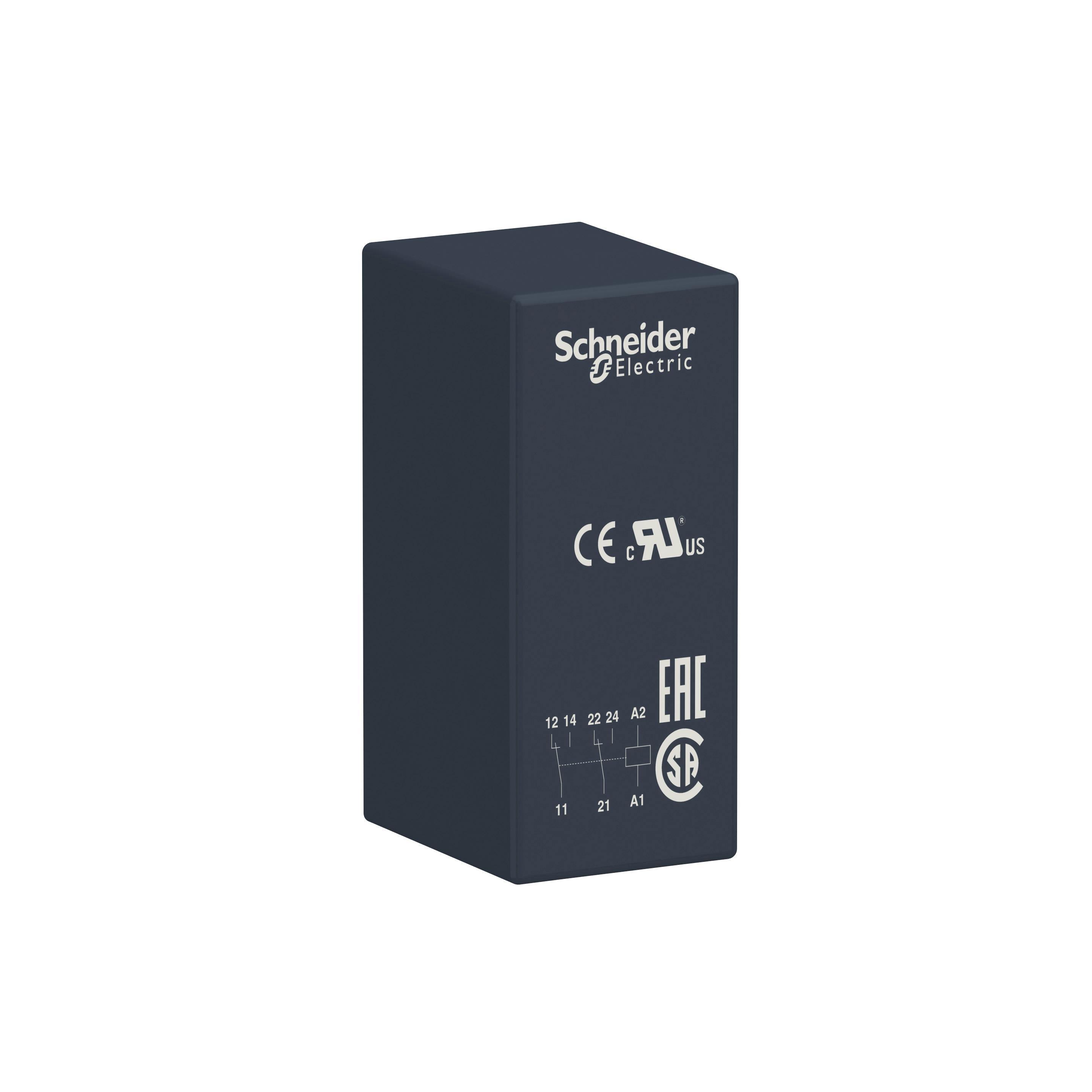

  • RSB2A080F7 SQD PLUG-IN RELAY 250VAC
  • RSB2A080F7 SQD PLUG-IN RELAY 250VAC
  • RSB2A080F7 SQD PLUG-IN RELAY 250VAC

Description: Schneider Electric, RSB2A080F7, Relay, Interface, Series: RSB, 8 A, 120 VAC Coil, 2NO-2NC 2 Form A/2 Form B Contact Form, 8 A at 250 V AC Contact, 2 Pins, 2 Pole, Plug-In/Socket Mounting, PCB Terminal, IP40 Enclosure, -40 to 70 deg C, 1.1 in W x 0.7 in D x 12.3 in H Dimensions

Manufacturer PN: RSB2A080F7

UPC:  38911025626

Kendall Electric Inc PN: 4004732

Invoice Description:

RSB2A080F7 SQD PLUG-IN RELAY 250VAC


SPEC SHEET

▸ See All in Socket Relays


How Can We Make This Page Better?

Schneider Electric RSB2A080F7 RSB Interface Relay, 8 A, 2 Pin, 2NO-2NC 2 Form A/2 Form B Contact, 120 VAC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This interfacing plug-in Relay reflects Schneider Electric expertise in Relay since 1924 by helping to reduce the size of enclosures and at the same time increase machine reliability for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC interfaces, power supplies, building or medical equipment, lighting controls. It has a large choice of number of contacts for high rated current use.
Schneider Electric, RSB2A080F7, Relay, Interface, Series: RSB, 8 A, 120 VAC Coil, 2NO-2NC 2 Form A/2 Form B Contact Form, 8 A at 250 V AC Contact, 2 Pins, 2 Pole, Plug-In/Socket Mounting, PCB Terminal, IP40 Enclosure, -40 to 70 deg C, 1.1 in W x 0.7 in D x 12.3 in H Dimensions

Specifications

 Amperage Rating 8 A
 Brand Name Square D
 Coil Voltage 120 V AC
 Contact Form 2NO-2NC 2 Form A/2 Form B
 Contact Rating 8 A at 250 V AC
 Dimensions 1.1 in W x 0.7 in D x 12.3 in H
 Enclosure IP40
 Manufacturer Part Number RSB2A080F7
 Mounting Type Plug-In/Socket
 Number of Pins 2
 Number of Poles 2
 PART NUMBER KEYWORDS RSB2A080F7 ; 8113206 ; 785901618140 ; 78590161814 ; 03389110256260 ; 3389110256260
 Series RSB
 Standards/Approvals CE Marked|CSA C22.2 No. 14|CSA Certified|EAC Certified|EN/IEC 61810-1|RoHS Compliant|UL 508|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 70 deg C
 Terminal Type PCB
 Type Interface

Features

▪ Help to reduce the size of enclosures
▪ Provides economical solution for the implementation of many switching functions
▪ It is a flexible design for space-saving
▪ Plug in type allows for easy installation and maintenance
▪ Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

Resources

 Catalog Page
 Product Data Sheet
 RoHS
