Schneider Electric

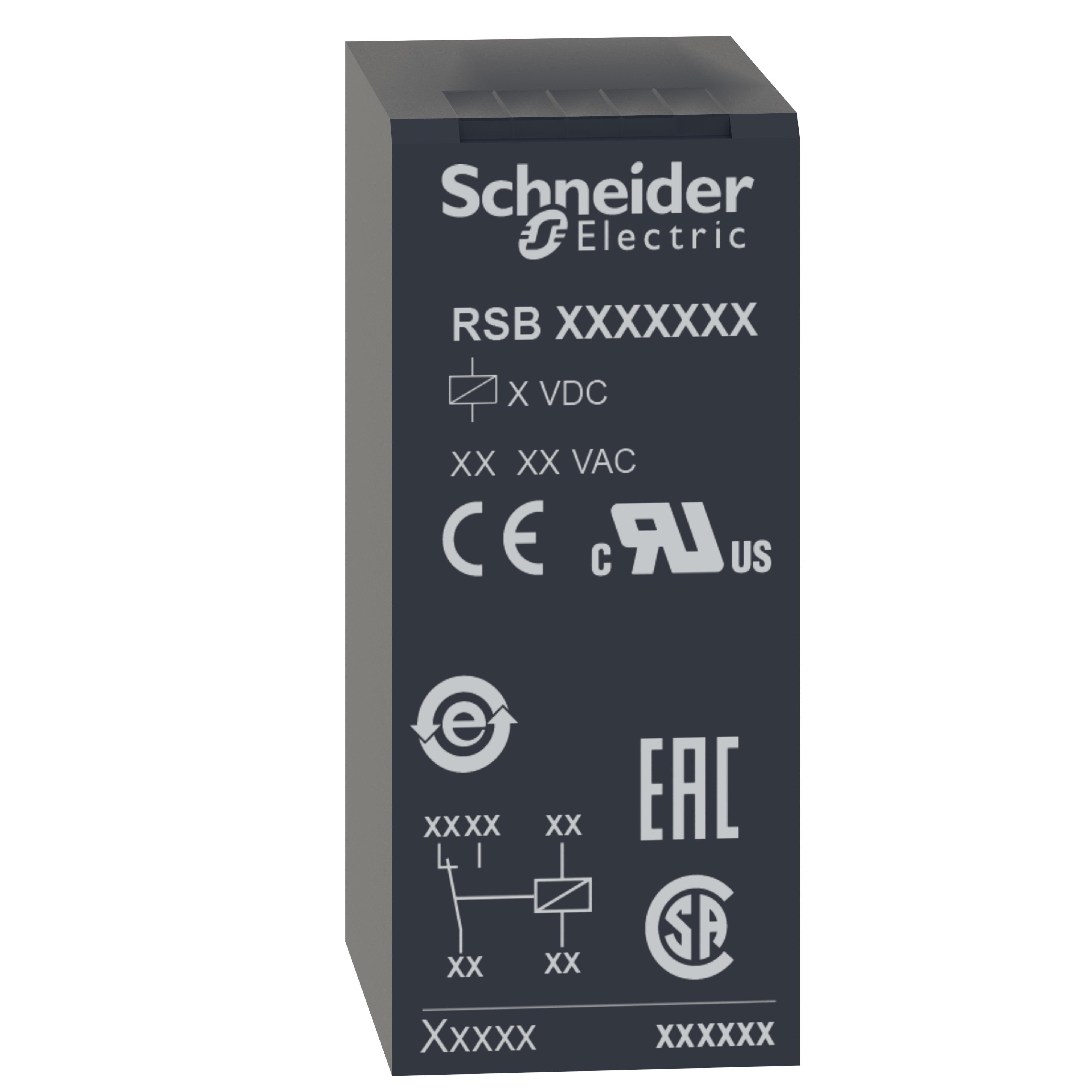

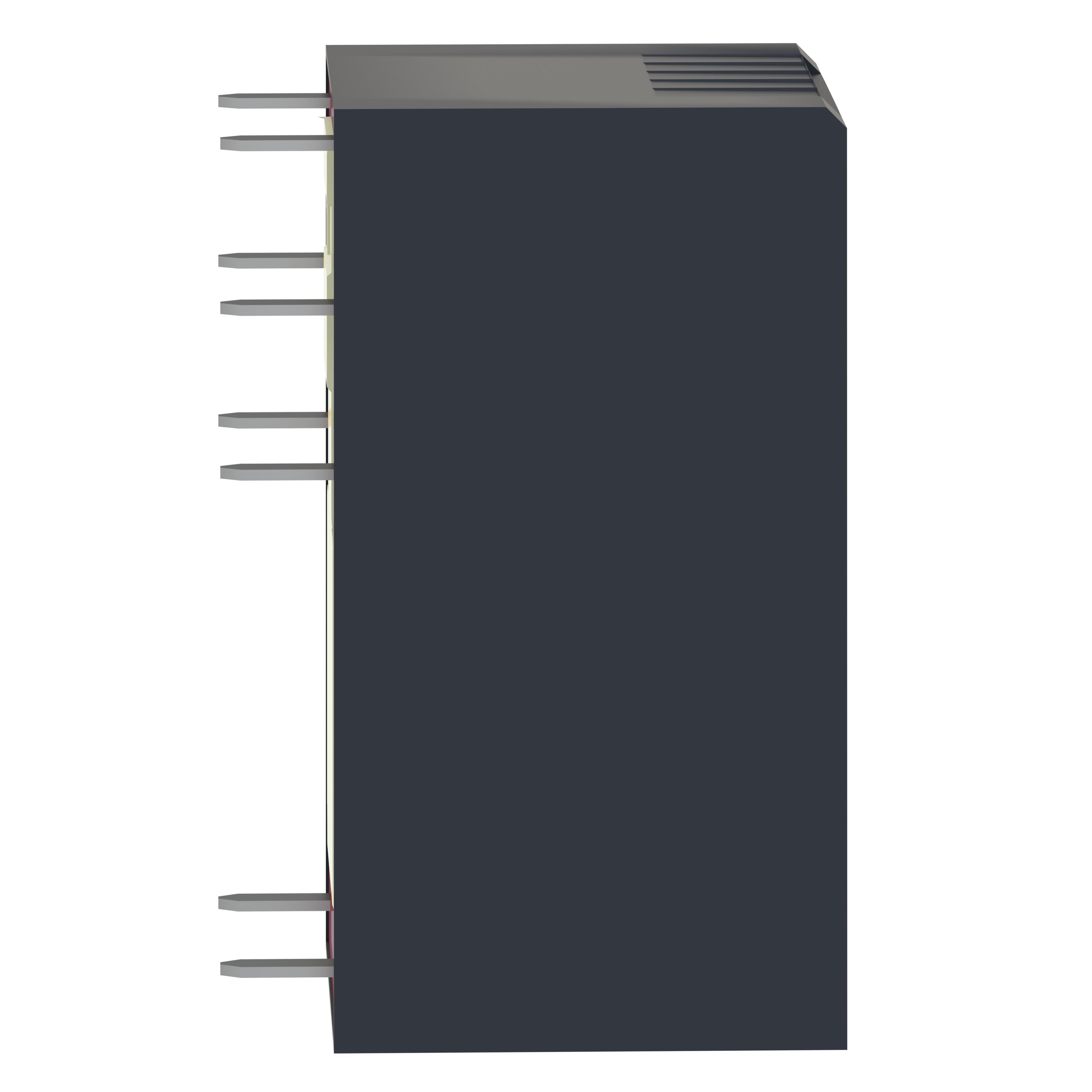

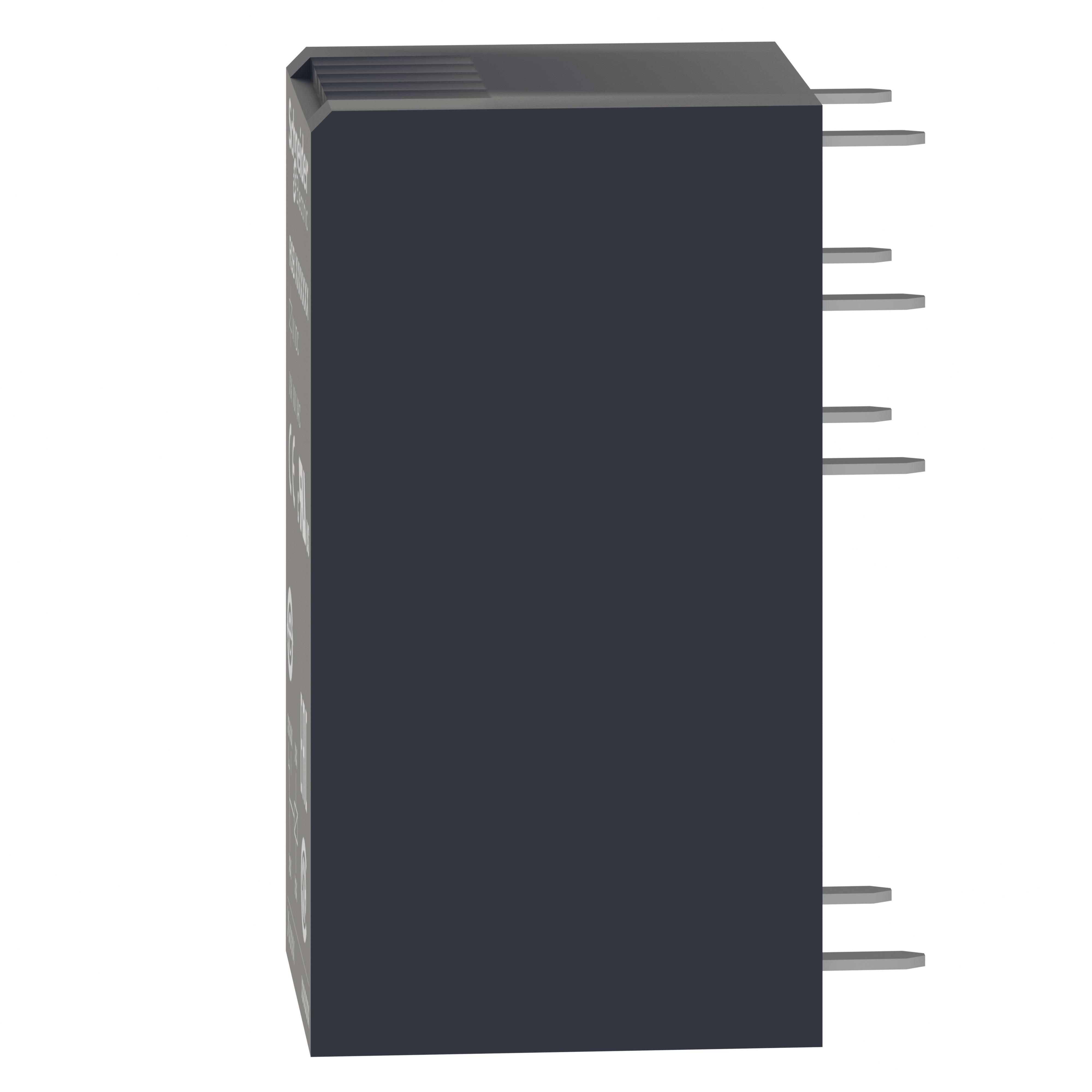

  • RSB1A120BD SQD PLUG-IN RELAY 250VAC
  • RSB1A120BD SQD PLUG-IN RELAY 250VAC
  • RSB1A120BD SQD PLUG-IN RELAY 250VAC
  • RSB1A120BD SQD PLUG-IN RELAY 250VAC
  • RSB1A120BD SQD PLUG-IN RELAY 250VAC

Description: Schneider Electric Square D™ Zelio™ Relay, Interface, Series: RSB, 12 A, 0.45 W Power, 24 VDC Coil, 1CO 1 Form C SPDT Contact Form, 12 A at 250 V AC/28 V DC Contact, 1 Pole, Plug-In/Socket Mounting, Flat Pin/PCB Terminal, IP40 Enclosure, -40 to 85 deg C, 15.7 in W x 1.14 in H x 12.5 in D Dimensions

Manufacturer PN: RSB1A120BD

UPC:  38911025413

Kendall Electric Inc PN: 3961343

Invoice Description:

RSB1A120BD SQD PLUG-IN RELAY 250VAC


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Square D™ Zelio™ RSB1A120BD Interface Relay, 12 A, 1CO 1 Form C SPDT Contact, 24 VDC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This interfacing plug-in Relay reflects Schneider Electric expertise in Relay since 1924 by helping to reduce the size of enclosures and at the same time increase machine reliability for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC interfaces, power supplies, building or medical equipment, lighting controls. It has a large choice of number of contacts for high rated current use.
Schneider Electric Square D™ Zelio™ Relay, Interface, Series: RSB, 12 A, 0.45 W Power, 24 VDC Coil, 1CO 1 Form C SPDT Contact Form, 12 A at 250 V AC/28 V DC Contact, 1 Pole, Plug-In/Socket Mounting, Flat Pin/PCB Terminal, IP40 Enclosure, -40 to 85 deg C, 15.7 in W x 1.14 in H x 12.5 in D Dimensions

Specifications

 Amperage Rating 12 A
 Application Industrial Machines, Packaging Machines, Textile Machines, HVAC, Conveyance Lines, Food and Beverage, Automation Control Panels, Low/Medium Voltage Switchgear, Motor Controls, Compressor, Blower Controls, PLC Interfaces, Power Supplies, Pumping, Building or Medical Equipment and Lighting Control Applications
 Brand Name Square D
 Coil Voltage 24 V DC
 Contact Form 1CO 1 Form C SPDT
 Contact Rating 12 A at 250 V AC/28 V DC

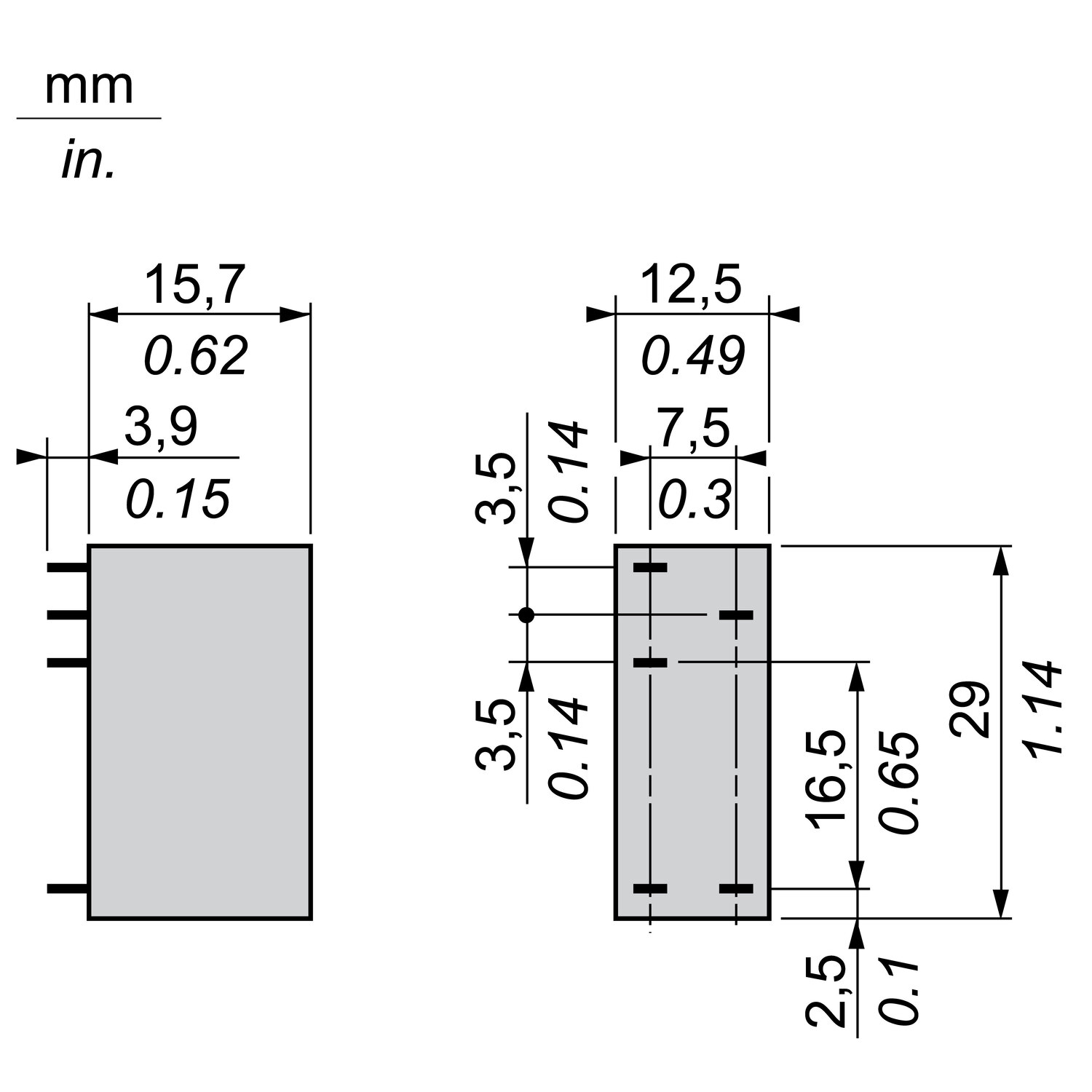

 Dimensions 15.7 in W x 1.14 in H x 12.5 in D
 Enclosure IP40
 Manufacturer Part Number RSB1A120BD
 Mounting Type Plug-In/Socket
 Number of Poles 1
 PART NUMBER KEYWORDS RSB1A120BD ; 8098923 ; 785901569121 ; 78590156912 ; 03389110254136 ; 3389110254136
 Power Rating 0.45 W
 Series RSB
 Standards/Approvals CE Marked|CSA C22.2 No. 14|EAC Certified|ECCN: EAR99|EN/IEC 60529|EN/IEC 61810-1|Green Premium|REACH Compliant|RoHS Compliant|UL 508|UL Recognized|WEEE Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 85 deg C
 Terminal Type Flat Pin/PCB
 Type Interface
 Video Links

Features

▪ Help to reduce the size of enclosures
▪ Provides economical solution for the implementation of many switching functions
▪ It is a flexible design for space-saving
▪ Plug in type allows for easy installation and maintenance
▪ Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
