Lutron Electronics

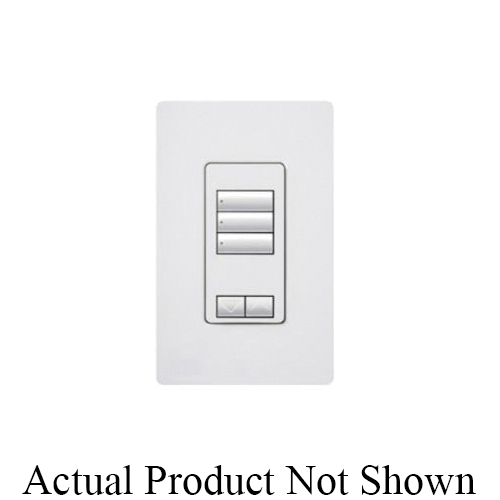

RRD-W3BRL-WH LUT RADIORA2 3BRL WALL KEYPAD WHITE

Mouse over image to zoom, click to enlarge

  • RRD-W3BRL-WH LUT RADIORA2 3BRL WALL KEYPAD WHITE
  • RRD-W3BRL-WH LUT RADIORA2 3BRL WALL KEYPAD WHITE

Description: Lutron®, RRD-W3BRL-WH, Designer Keypad, 3-Button, Series: RadioRA® 2 Maestro®, 120 V AC, 0.5 A, 0.6 W Power, 50/60 Hz Frequency, Operation Mode: Fade/Toggle On/Off, Tap Control, Wall Mounting, 32 to 104 deg F, Plastic, White, 4-11/16 in H x 2-15/16 in W x 5/16 in D Dimensions

Manufacturer PN: RRD-W3BRL-WH

UPC:  02755777209

Kendall Electric Inc PN: 2727373

Invoice Description:

RRD-W3BRL-WH LUT RADIORA2 3BRL WALL KEYPAD WHITE


SPEC SHEET

▸ See All in Dimmer Remote & Accessory Switches


How Can We Make This Page Better?

Lutron® RRD-W3BRL-WH RadioRA® 2 Maestro® 3-Button Designer Keypad, 120 V AC, 0.5 A, Fade/Toggle On/Off Operation, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

RadioRA 2 seeTouch Wall Mount Keypads provide homeowners with a simple and elegant way to operate lights, shades /draperies, motorized screens, and many other devices. Features large, easy-to-use buttons, plus a unique backlit engraving option that makes the keypads readable for your clients any time of the day or night. The RA 2 Wall Keypads' flexible design allow the color, number of buttons, and the configuration of the buttons to be changed after the keypad is installed. RA 2 Wall Keypads utilize Lutron's Clear Connect -Type A Technology and can be used in RadioRA 2 or new RadioRA 3 systems (Required Main Repeater/Processor sold separately). One pre-paid custom engraved button kit included through Lutron. Coordinating Claro wall plate sold separately.
Lutron®, RRD-W3BRL-WH, Designer Keypad, 3-Button, Series: RadioRA® 2 Maestro®, 120 V AC, 0.5 A, 0.6 W Power, 50/60 Hz Frequency, Operation Mode: Fade/Toggle On/Off, Tap Control, Wall Mounting, 32 to 104 deg F, Plastic, White, 4-11/16 in H x 2-15/16 in W x 5/16 in D Dimensions

Specifications

 Amperage Rating 0.5 A
 Application For use with lights, shades, draperies, motorized screens and many other devices
 Brand Name Lutron®
 Color White
 Control Tap
 Dimensions 4-11/16 in H x 2-15/16 in W x 5/16 in D
 Frequency Rating 50/60 Hz
 Manufacturer Part Number RRD-W3BRL-WH
 Material Plastic
 Mounting Type Wall
 Operation Mode Fade/Toggle On/Off
 Power Rating 0.6 W
 Series RadioRA® 2 Maestro®
 Standards/Approvals UL, CSA, NOM, FCC, IC, COFETEL, ANATEL
 Temperature Rating 32 to 104 deg F
 Type 3-Button
 Video Links
 Voltage Rating 120 V AC

Features

▪ Non-condensing
▪ Require 120 - 277 V and have wire lead connections
▪ Programmable to select scene or room preset levels or positions
▪ Interchangeable button kits allow the keypad to be changed to a variety of finishes, colors, button configurations, and personalized markings even after installation
▪ Adjustable backlight intensity
▪ At the press of a single button, lights fade on or off to desired levels and shades/draperies open or close to desired positions
▪ Light levels and shade/drapery positions can be fine-tuned by pressing and holding the raise/lower buttons
▪ Program preset light and shade levels on individual buttons, configure raise/lower buttons, and adjust backlight brightness through Lutron Designer software
▪ IR receivers at the back of the keypad allow for the use of an IR repeater kit integration
▪ Neutral required
▪ Configurable raise/lower selection last button or IR room/ scene (default) devices controlled by the last button pressed or last IR room/ scene selected will raise/lower, double-tap devices controlled by a double-tapped button will raise/lower
▪ RA 2 Wall Mount Keypads include one redeemable credit for a single custom personalized engraved button kit through Lutron
▪ Green LED indicator lights and backlights are on each large, easy-to-operate button to help locate in low light conditions, active buttons light up brighter
▪ ESD protection tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2
▪ 0 to 90% humidity
▪ 3 button dual group
