Schneider Electric
  • RPZF2 SQD PLUG-IN RELAY 250V 15A
  • RPZF2 SQD PLUG-IN RELAY 250V 15A
  • RPZF2 SQD PLUG-IN RELAY 250V 15A
  • RPZF2 SQD PLUG-IN RELAY 250V 15A
  • RPZF2 SQD PLUG-IN RELAY 250V 15A
  • RPZF2 SQD PLUG-IN RELAY 250V 15A

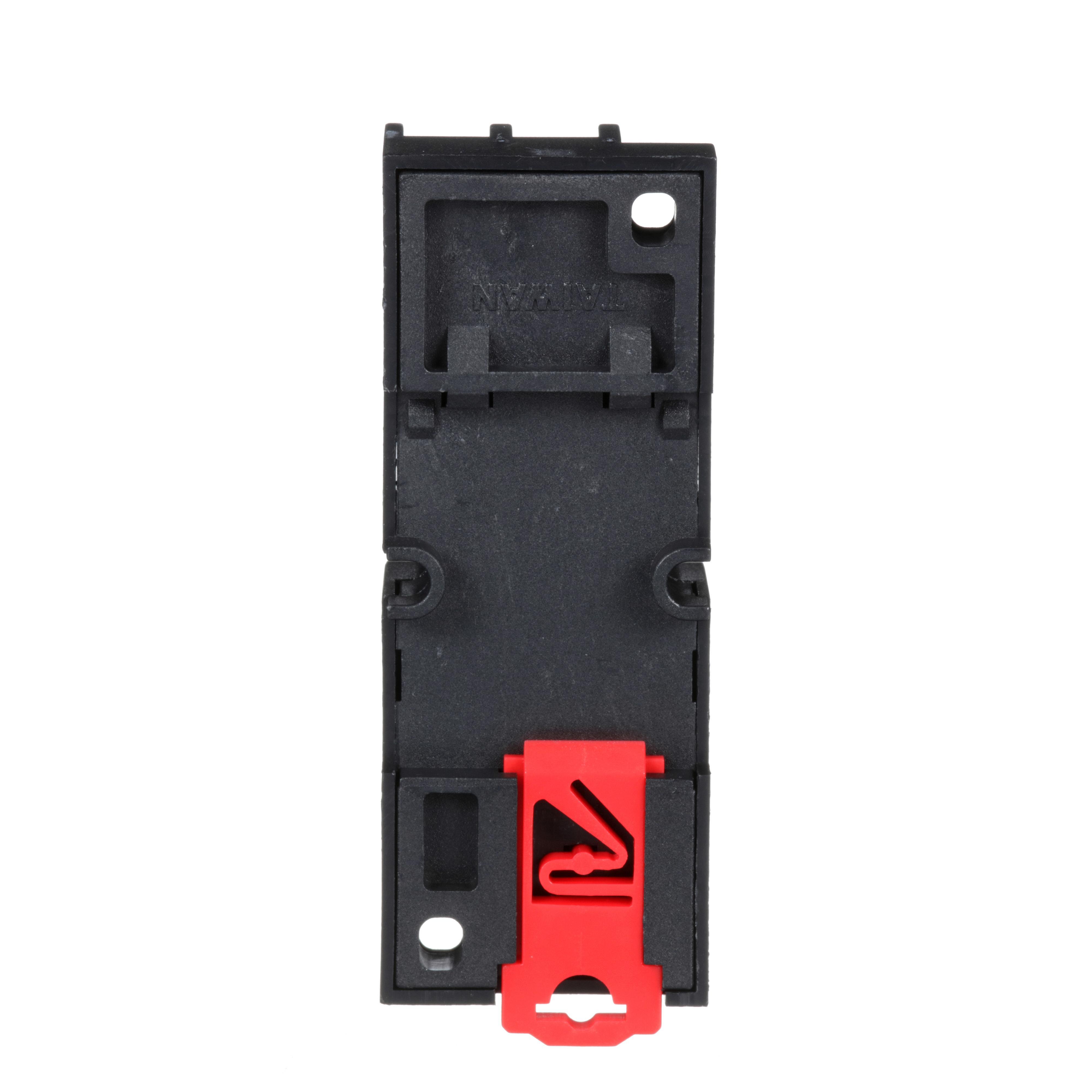

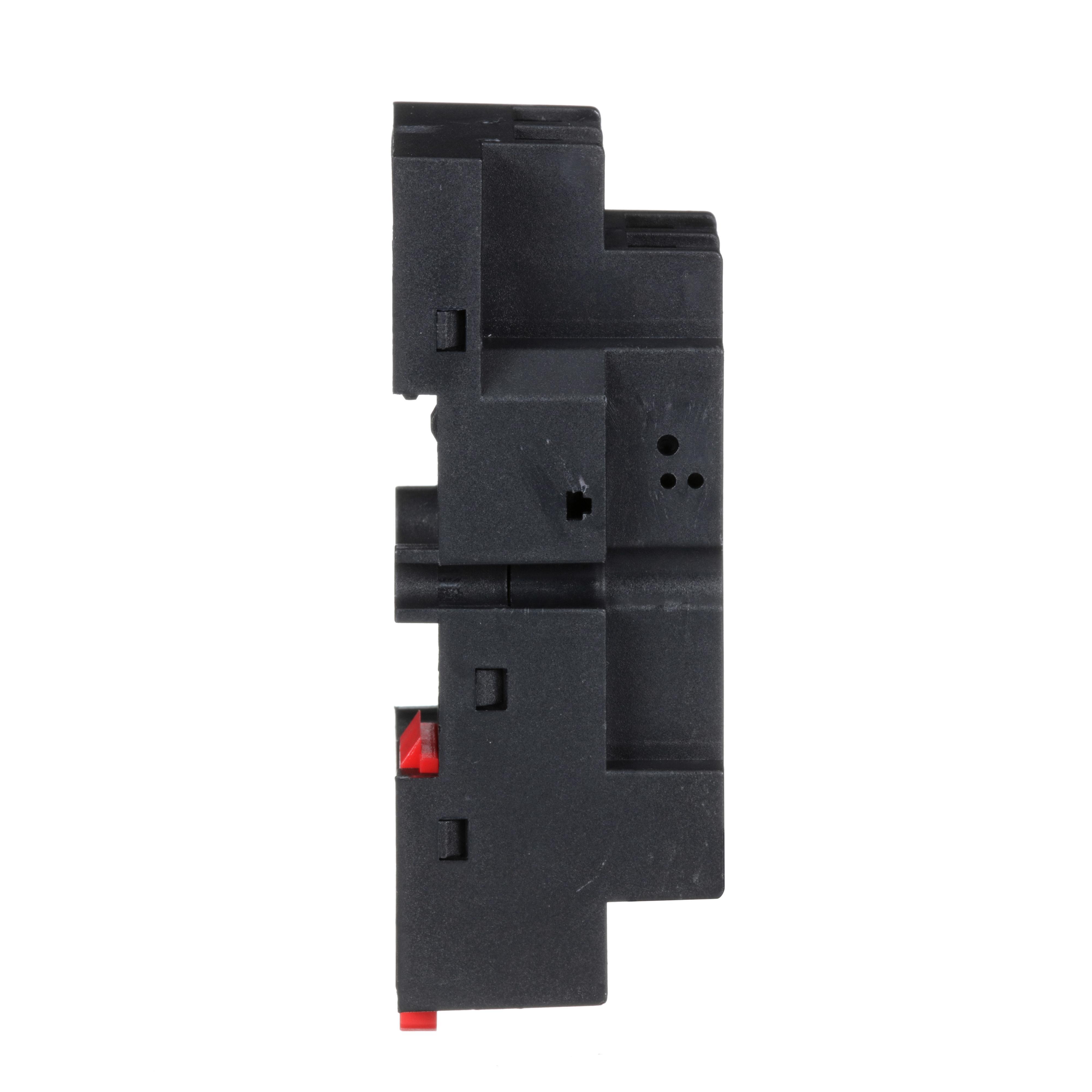

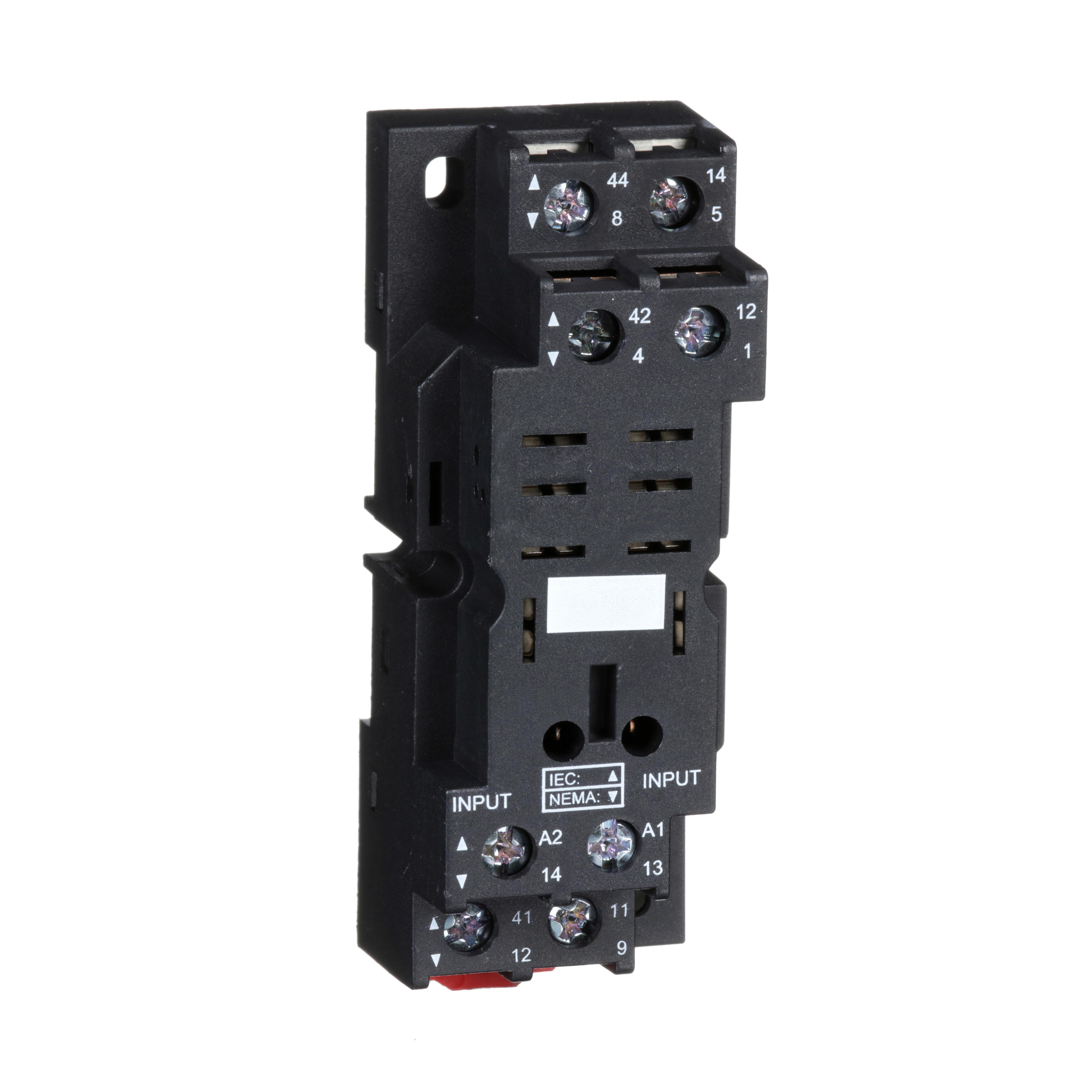

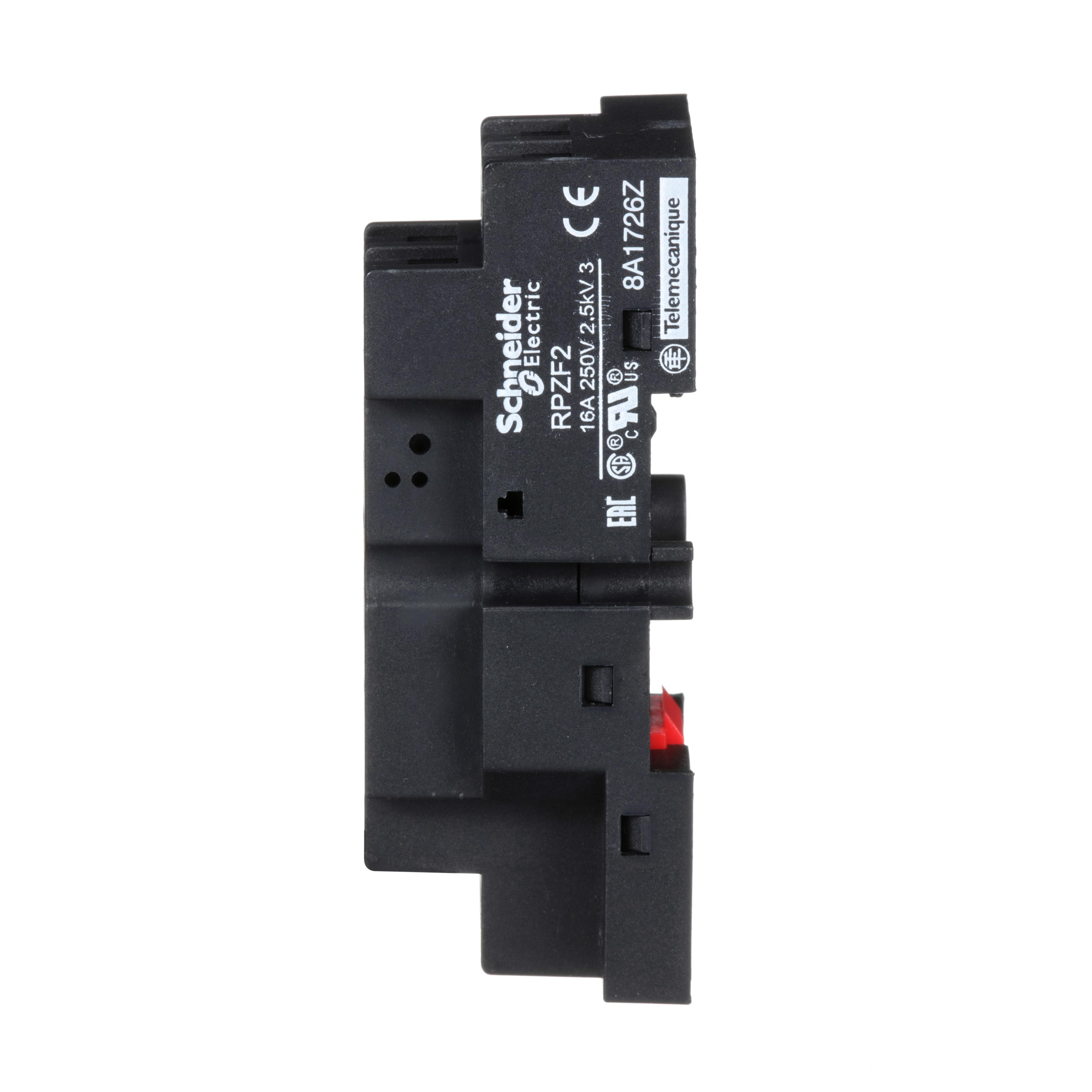

Description: Schneider Electric Square D™ Zelio™ Relay Socket, Flat Mixed, Series: RPZ, 250 V AC, 16 A, 8 Pins, -40 to 55 deg C, For Use With: Zelio™ RPM (2 CO) Plug-In Relay, DIN Rail/Panel Mounting, Screw Clamp Terminal, IP20 Enclosure, 1.18 in W x 1.18 in D x 3.31 in H Dimensions

Manufacturer PN: RPZF2

UPC:  38911940229

Kendall Electric Inc PN: 3961819

Invoice Description:

RPZF2 SQD PLUG-IN RELAY 250V 15A


SPEC SHEET

▸ See All in Socket Relays


How Can We Make This Page Better?

Schneider Electric Square D™ Zelio™ RPZF2 Flat Mixed Relay Socket, 250 V AC, 16 A, For Use With Zelio™ RPM (2 CO) Plug-In Relay, 8 Pin

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This plug-in relay socket reflects Schneider Electric expertise in relay since 1924, by compatible with interface plug-in relay RXM range. It has a large choice of number of contacts for high rated current use with space-saving design which allow for a flexible and easy installation on DIN rail.
Schneider Electric Square D™ Zelio™ Relay Socket, Flat Mixed, Series: RPZ, 250 V AC, 16 A, 8 Pins, -40 to 55 deg C, For Use With: Zelio™ RPM (2 CO) Plug-In Relay, DIN Rail/Panel Mounting, Screw Clamp Terminal, IP20 Enclosure, 1.18 in W x 1.18 in D x 3.31 in H Dimensions

Specifications

 Amperage Rating 16 A
 Brand Name Square D
 Dimensions 1.18 in W x 1.18 in D x 3.31 in H
 Enclosure IP20
 Manufacturer Part Number RPZF2
 Mounting Type DIN Rail/Panel
 Number of Pins 8
 Series RPZ
 Standards/Approvals CE Certified|CSA Certified|EN/IEC 60529|IEC 61984 Standard|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL Listed
 Suitable For Use With Zelio™ RPM (2 CO) Plug-In Relay
 Temperature Rating -40 to 55 deg C
 Terminal Type Screw Clamp
 Type Flat Mixed
 Video Links
 Voltage Rating 250 V AC

Features

▪ It uses screw-clamp terminals
▪ It is compatible with RPM with 2 C/O

Resources

 Catalog Page
 Product Data Sheet
 RoHS
