Schneider Electric

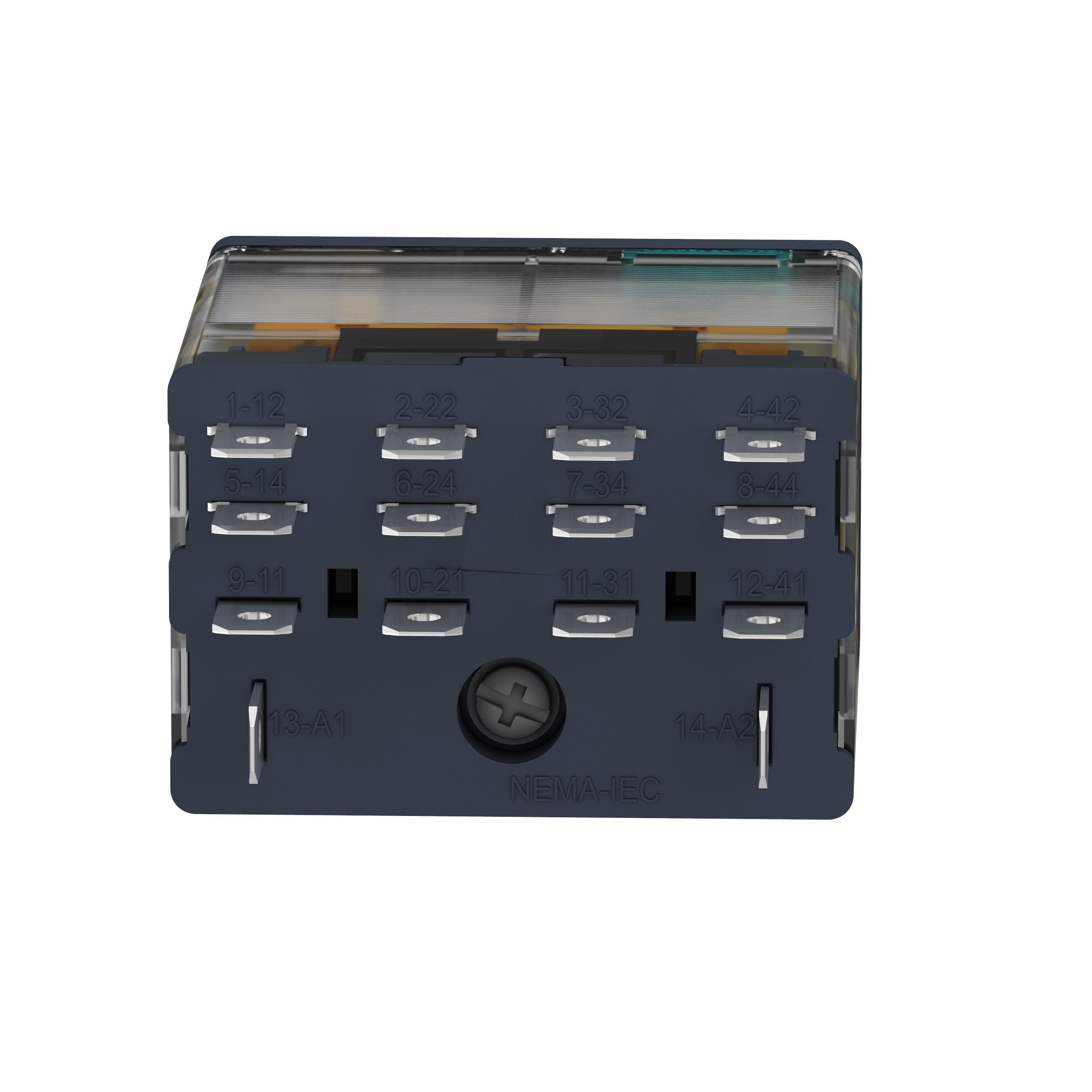

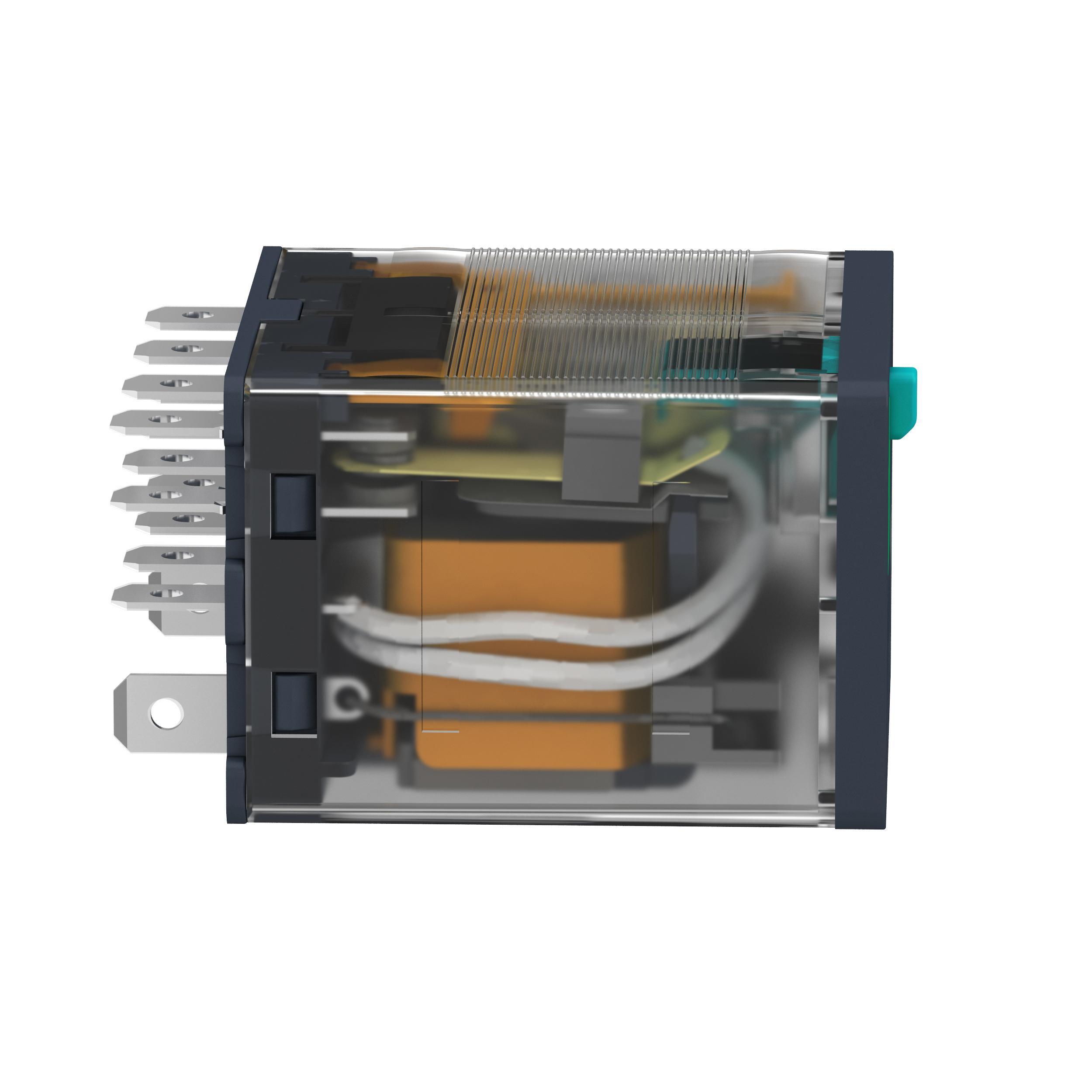

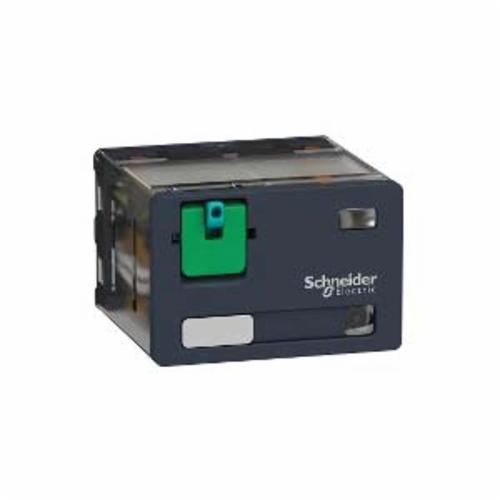

  • RPM42BD SQD PLUG-IN RELAY 250V 15A
  • RPM42BD SQD PLUG-IN RELAY 250V 15A
  • RPM42BD SQD PLUG-IN RELAY 250V 15A
  • RPM42BD SQD PLUG-IN RELAY 250V 15A
  • RPM42BD SQD PLUG-IN RELAY 250V 15A

Description: Schneider Electric Square D™ Zelio™ Miniature Power Relay, Series: RPM, 15 A, 1/2 hp Power, 10 to 150 Hz Frequency, 24 V DC Coil, 4NO-4NC 4 Form C Contact Form, 15 A at 277 VAC/15 A at 28 VDC Contact, 14 Pins, Square Base, 4 Pole, Plug-In/Socket Mounting, Faston/Flat Pin/Spade Terminal, LED Display, IP40 Enclosure, -40 to 55 deg C, 39 mm W x 41 mm D x 27 mm H Dimensions

Manufacturer PN: RPM42BD

UPC:  38911940221

Kendall Electric Inc PN: 3962325

Invoice Description:

RPM42BD SQD PLUG-IN RELAY 250V 15A


SPEC SHEET

▸ See All in Socket Relays


How Can We Make This Page Better?

Schneider Electric Square D™ Zelio™ RPM42BD Miniature Power Relay, 15 A, 14 Pin, 4NO-4NC 4 Form C Contact, 24 V DC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This power plug-in relay reflects Schneider Electric expertise in relay since 1924 by helping to reduce the size of enclosures and at the same time increasing reliability for industrial machines, packaging, textile, heating, ventilation and air conditioning system. It has large choice of number of contacts for high rated current use. It also offer LED indicator to alert on the current status of the relay.
Schneider Electric Square D™ Zelio™ Miniature Power Relay, Series: RPM, 15 A, 1/2 hp Power, 10 to 150 Hz Frequency, 24 V DC Coil, 4NO-4NC 4 Form C Contact Form, 15 A at 277 VAC/15 A at 28 VDC Contact, 14 Pins, Square Base, 4 Pole, Plug-In/Socket Mounting, Faston/Flat Pin/Spade Terminal, LED Display, IP40 Enclosure, -40 to 55 deg C, 39 mm W x 41 mm D x 27 mm H Dimensions

Specifications

 Amperage Rating 15 A
 Base Square
 Brand Name Square D
 Coil Voltage 24 V DC
 Contact Form 4NO-4NC 4 Form C
 Contact Rating 15 A at 277 V AC/15 A at 28 V DC
 Dimensions 39 mm W x 41 mm D x 27 mm H
 Enclosure IP40
 Frequency Rating 10 to 150 Hz
 Manufacturer Part Number RPM42BD
 Mounting Type Plug-In/Socket
 Number of Pins 14
 Number of Poles 4
 Power Rating 1/2 hp
 Series RPM
 Standards/Approvals Buy American Act Compliant|CCN NLDX/NLDX7|CCN NLDX2/NLDX8|CE Marked|CSA C22.2 No. 14|CSA Certified|cULus File No. E164862|EAC Certified|EN/IEC 60529|EN/IEC 61810-1|REACH Compliant|RoHS Compliant|UL 508|UL File No. E164862|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 55 deg C
 Terminal Type Faston/Flat Pin/Spade
 Video Links

Features

▪ This Schneider Electric RPM power plug-in relay has a coil control voltage of 24Vdc and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15 amperes
▪ It has LED indicators, a removable legend and a lock-down door
