Schneider Electric

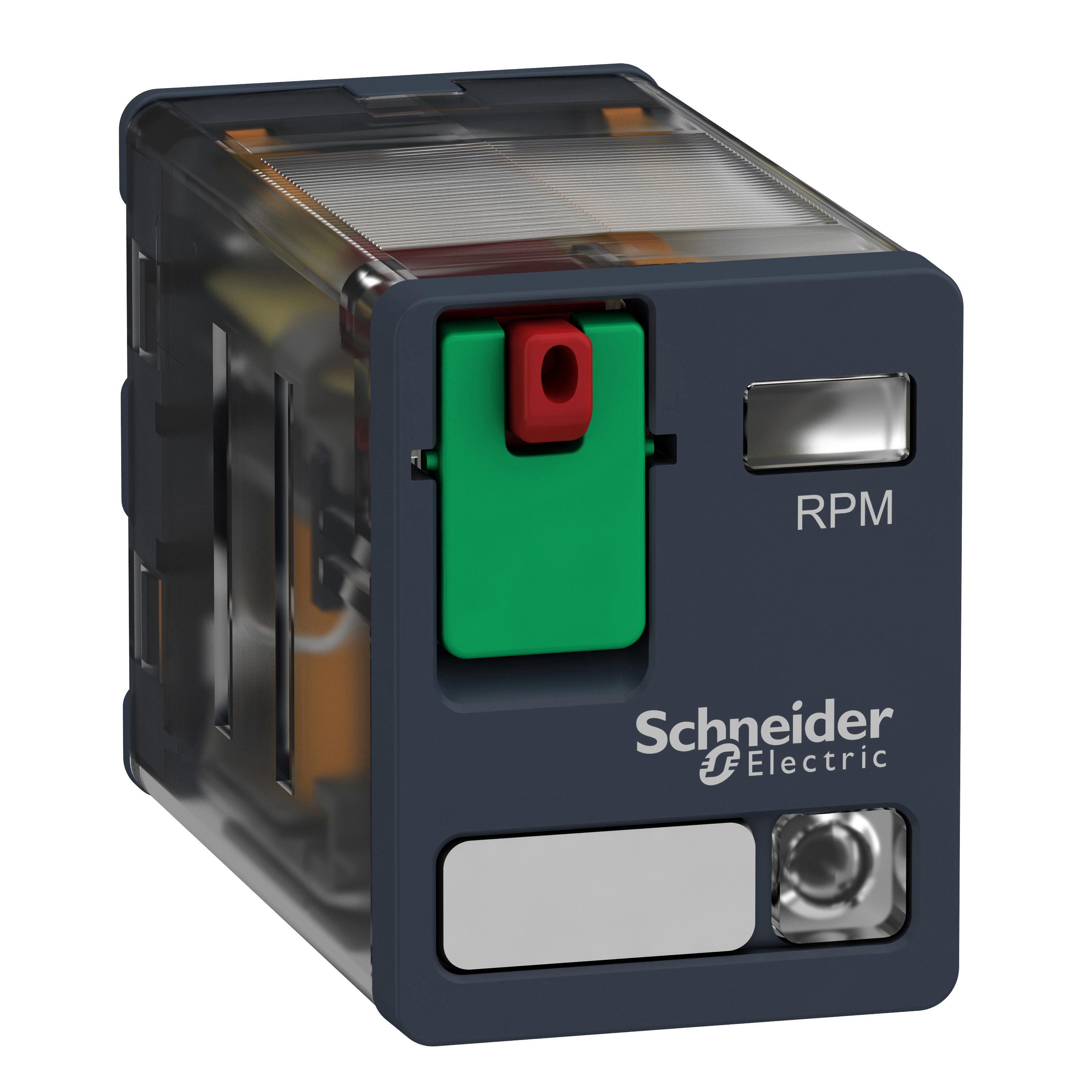

  • RPM22B7 SQD PLUG-IN RELAY 250V 15A

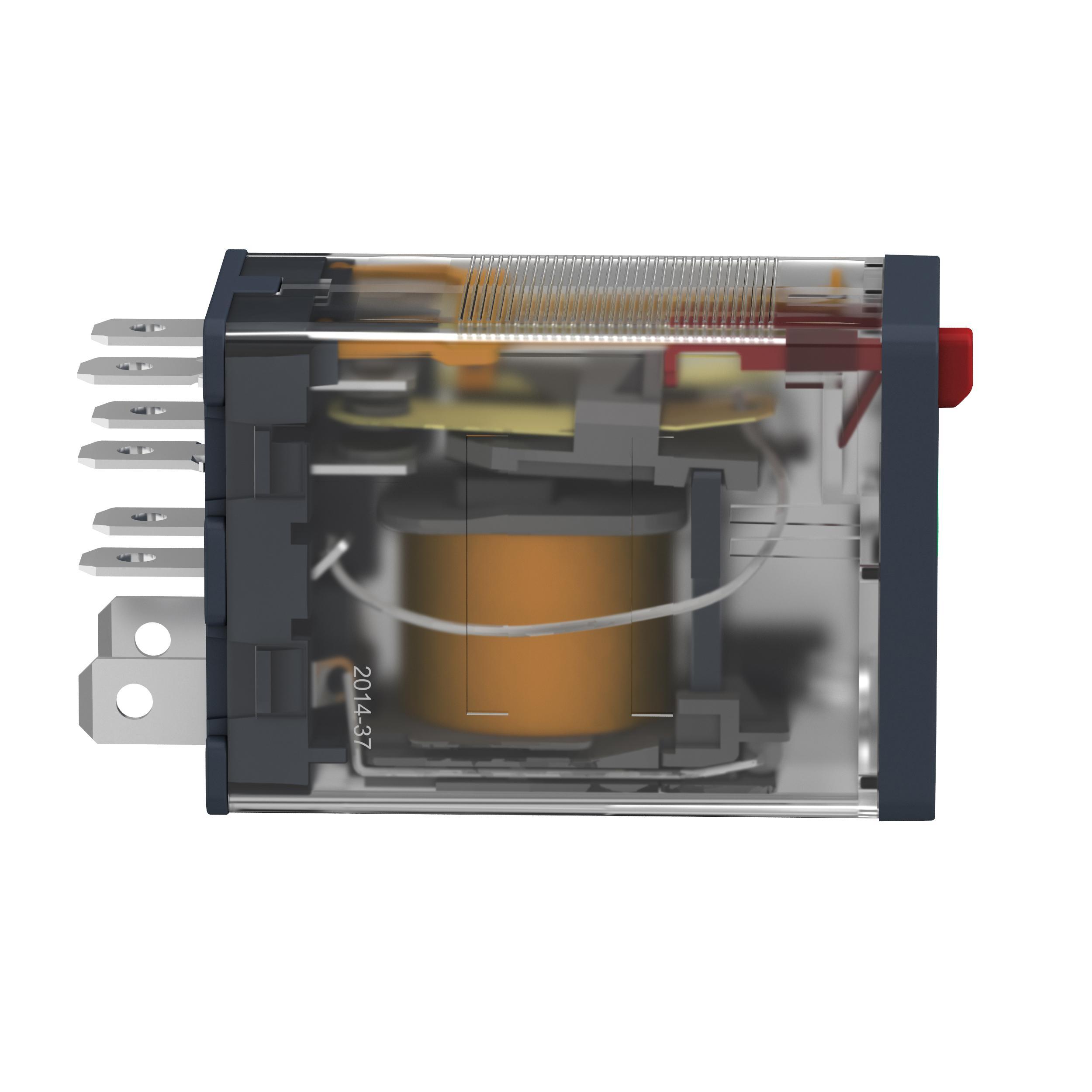

  • RPM22B7 SQD PLUG-IN RELAY 250V 15A

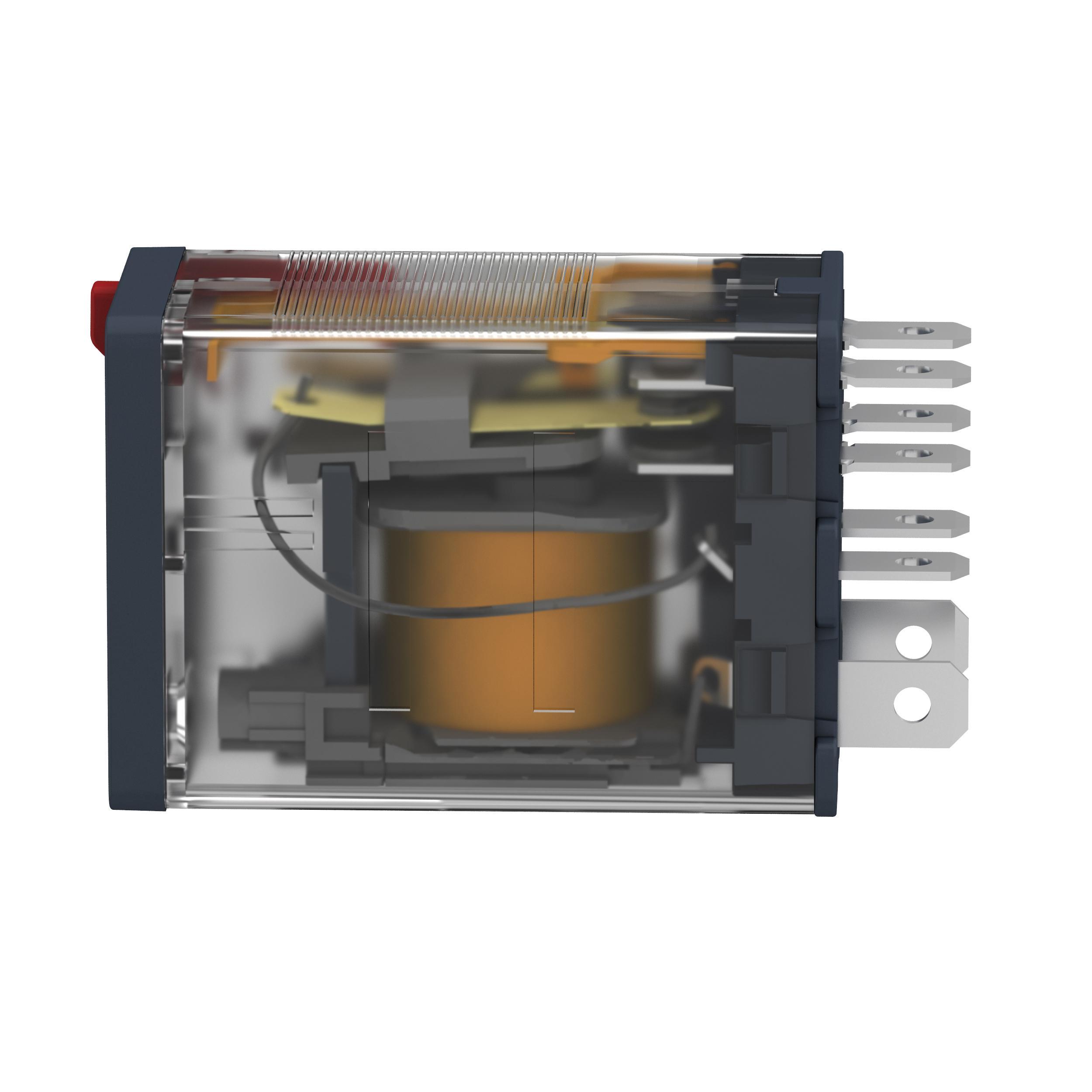

  • RPM22B7 SQD PLUG-IN RELAY 250V 15A

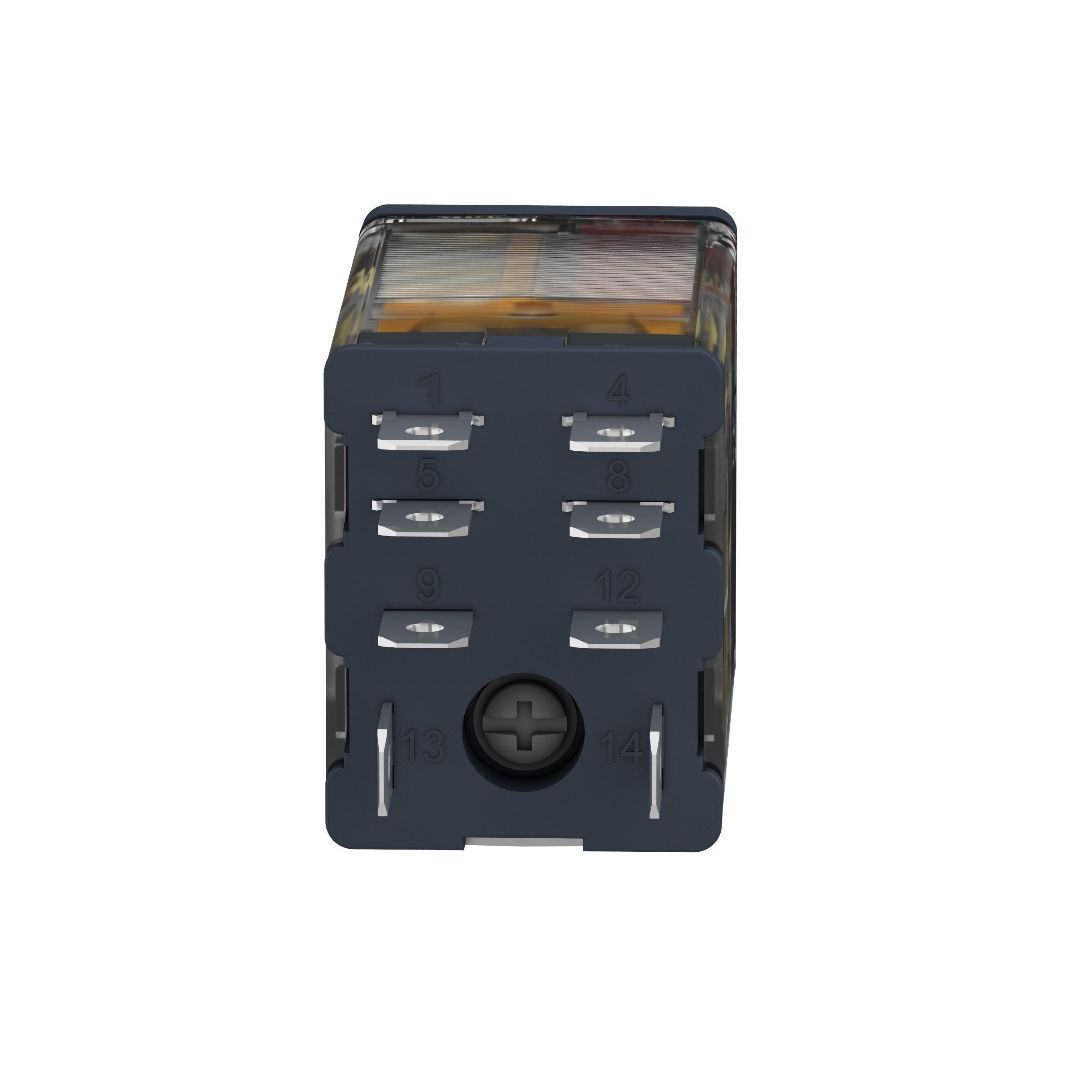

  • RPM22B7 SQD PLUG-IN RELAY 250V 15A
  • RPM22B7 SQD PLUG-IN RELAY 250V 15A
  • RPM22B7 SQD PLUG-IN RELAY 250V 15A

Description: Schneider Electric Square D™ Zelio™ Power Relay, Series: RPM, 15 A, 3750 VA Power, 60 Hz Frequency, 24 V AC Coil, 2NO-2NC 2 Form C Contact Form, 15 A at 277 VAC/15 A at 28 VDC Contact, Plug-In/Socket Mounting, Faston/Flat Pin/Spade Terminal, LED Display, IP40 Enclosure, -40 to 55 deg C, 39 mm W x 21 mm D x 27 mm H Dimensions

Manufacturer PN: RPM22B7

UPC:  38911940188

Kendall Electric Inc PN: 3962899

Invoice Description:

RPM22B7 SQD PLUG-IN RELAY 250V 15A


SPEC SHEET

▸ See All in Socket Relays


How Can We Make This Page Better?

Schneider Electric Square D™ Zelio™ RPM22B7 Power Relay, 15 A, 2NO-2NC 2 Form C Contact, 24 V AC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Zelio™ RPM plug in relays and sockets provide a complete system solution for the most demanding applications up to 15 A.
Schneider Electric Square D™ Zelio™ Power Relay, Series: RPM, 15 A, 3750 VA Power, 60 Hz Frequency, 24 V AC Coil, 2NO-2NC 2 Form C Contact Form, 15 A at 277 VAC/15 A at 28 VDC Contact, Plug-In/Socket Mounting, Faston/Flat Pin/Spade Terminal, LED Display, IP40 Enclosure, -40 to 55 deg C, 39 mm W x 21 mm D x 27 mm H Dimensions

Specifications

 Amperage Rating 15 A
 Brand Name Square D
 Coil Voltage 24 V AC
 Contact Form 2NO-2NC 2 Form C
 Contact Rating 15 A at 277 V AC/15 A at 28 V DC
 Dimensions 39 mm W x 21 mm D x 27 mm H
 Enclosure IP40
 Frequency Rating 60 Hz
 Manufacturer Part Number RPM22B7
 Mounting Type Plug-In/Socket
 Power Rating 3750 VA
 Series RPM
 Standards/Approvals Buy American Act Compliant|CE Marked|CSA C22.2 No. 14|CSA Certified|CSA File No. 230765|EAC Certified|EN/IEC 60529|IEC 61810-1|REACH Compliant|RoHS Compliant|UL 508|UL File No. E164862|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 55 deg C
 Terminal Type Faston/Flat Pin/Spade
 Video Links

Features

▪ This Schneider Electric RPM power plug-in relay has a coil control voltage of 24Vac and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15 amperes
▪ It has LED indicators, a removable legend and a lock-down door

Resources

 Catalog Page
 Product Data Sheet
