Schneider Electric
  • RPM21JD SQD PLUG-IN RELAY 250V 15A
  • RPM21JD SQD PLUG-IN RELAY 250V 15A
  • RPM21JD SQD PLUG-IN RELAY 250V 15A
  • RPM21JD SQD PLUG-IN RELAY 250V 15A
  • RPM21JD SQD PLUG-IN RELAY 250V 15A

Description: Schneider Electric Power Relay, Series: RPM, 15 A, 3750 VA Power, 10 to 150 Hz Frequency, 12 V DC Coil, 2NO-2NC 2 Form C DPDT Contact Form, 15 A at 277 VAC/15 A at 28 VDC Contact, Plug-In/Socket Mounting, Flat/Spade Terminal, IP40 Enclosure, -40 to 131 deg F

Manufacturer PN: RPM21JD

UPC:  38911940186

Kendall Electric Inc PN: 4783653

Invoice Description:

RPM21JD SQD PLUG-IN RELAY 250V 15A


SPEC SHEET

How Can We Make This Page Better?

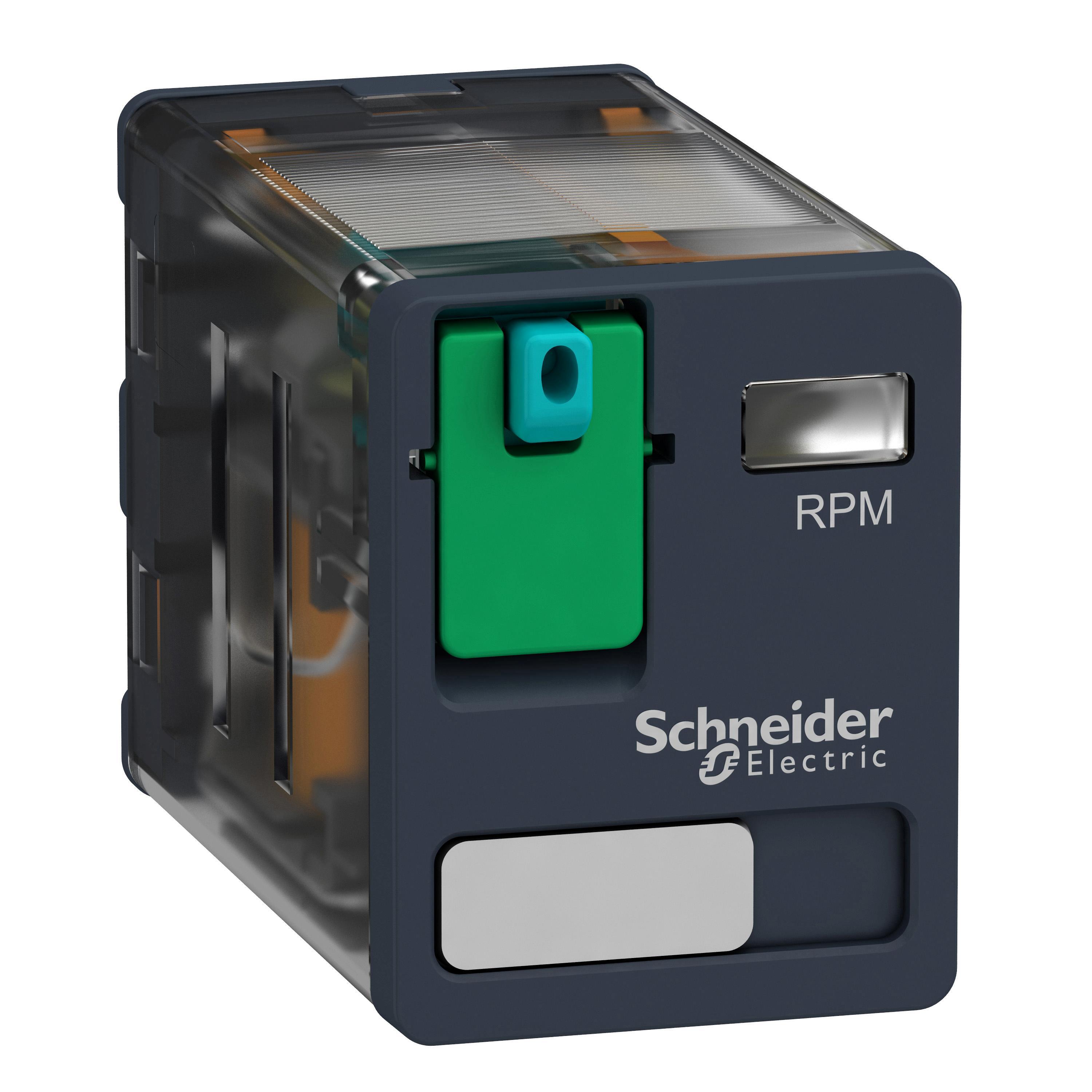

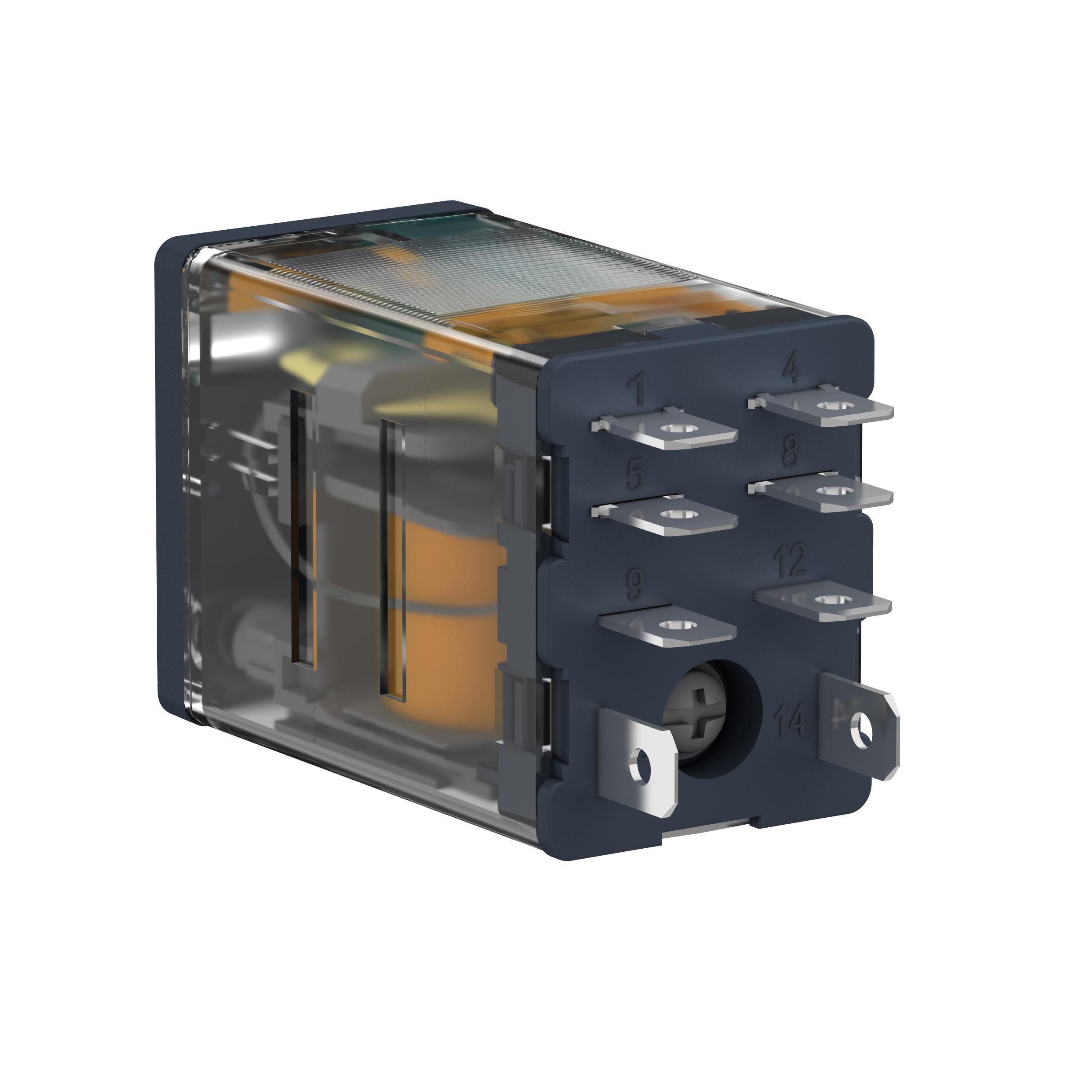

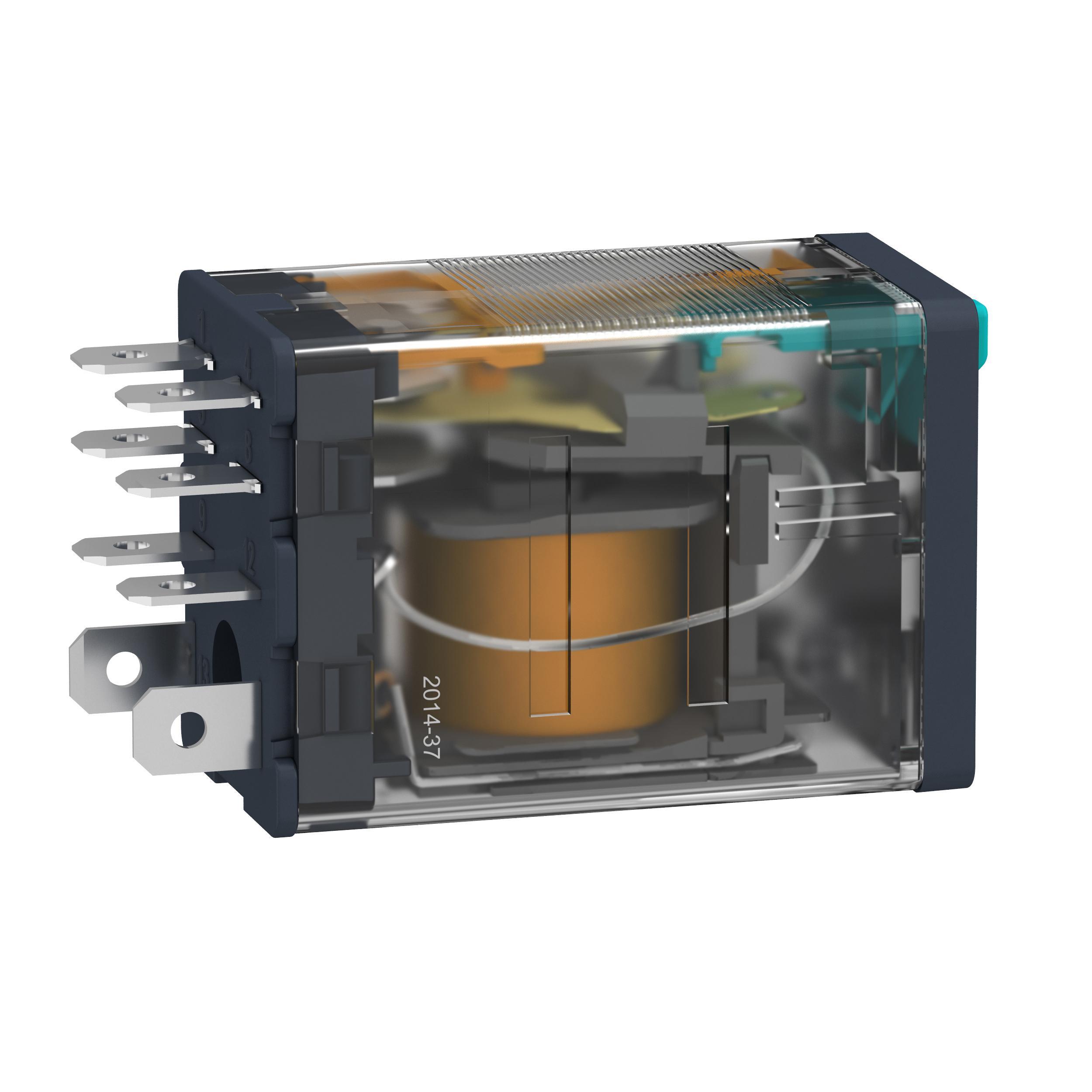

Schneider Electric RPM21JD Power Relay, 15 A, 2NO-2NC 2 Form C DPDT Contact, 12 V DC V Coil

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Zelio™ rpm plug in relays and sockets provide a complete system solution for the most demanding applications up to 15 A.
Schneider Electric Power Relay, Series: RPM, 15 A, 3750 VA Power, 10 to 150 Hz Frequency, 12 V DC Coil, 2NO-2NC 2 Form C DPDT Contact Form, 15 A at 277 VAC/15 A at 28 VDC Contact, Plug-In/Socket Mounting, Flat/Spade Terminal, IP40 Enclosure, -40 to 131 deg F

Specifications

 Amperage Rating 15 A
 Brand Name Square D
 Coil Voltage 12 V DC
 Contact Form 2NO-2NC 2 Form C DPDT
 Contact Rating 15 A at 277 V AC/15 A at 28 V DC
 Enclosure IP40
 Frequency Rating 10 to 150 Hz
 Manufacturer Part Number RPM21JD
 Mounting Type Plug-In/Socket
 PART NUMBER KEYWORDS RPM21JD ; 9513521 ; 785901447849 ; 78590144784 ; 03389119401869 ; 3389119401869
 Power Rating 3750 VA
 Series RPM
 Standards/Approvals BAA Compliant|RoHS Compliant|UL File #E164862|CSA File #230765|IEC 61810-1|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating -40 to 131 deg F
 Terminal Type Flat/Spade
 Video Links

Features

▪ High performance ensuring machine and system availability
▪ Pre-assembled to simplify selection and installation
▪ Simplicity of use with test button and visual indicators
▪ Mechanical durability of 10 million cycles
