Schneider Electric

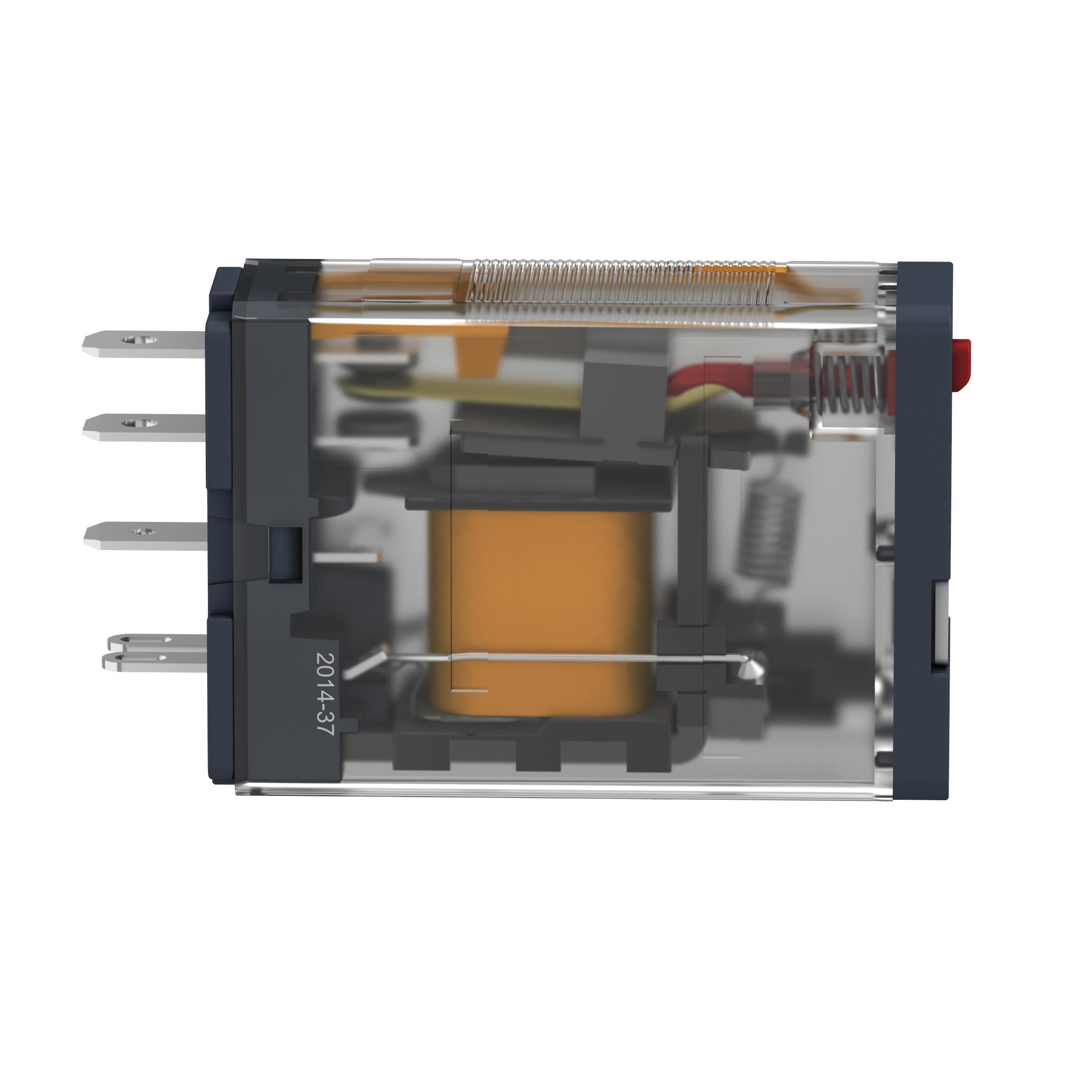

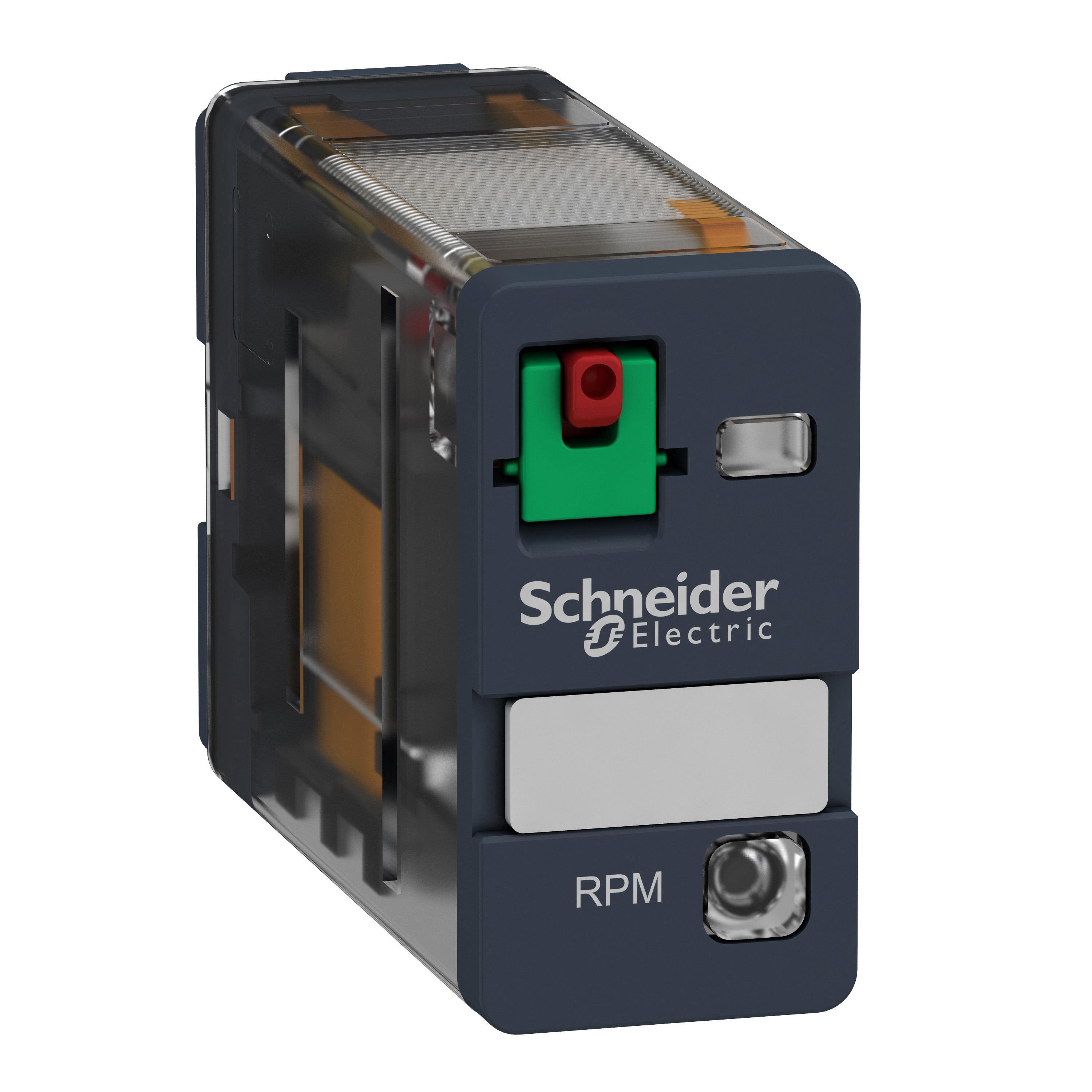

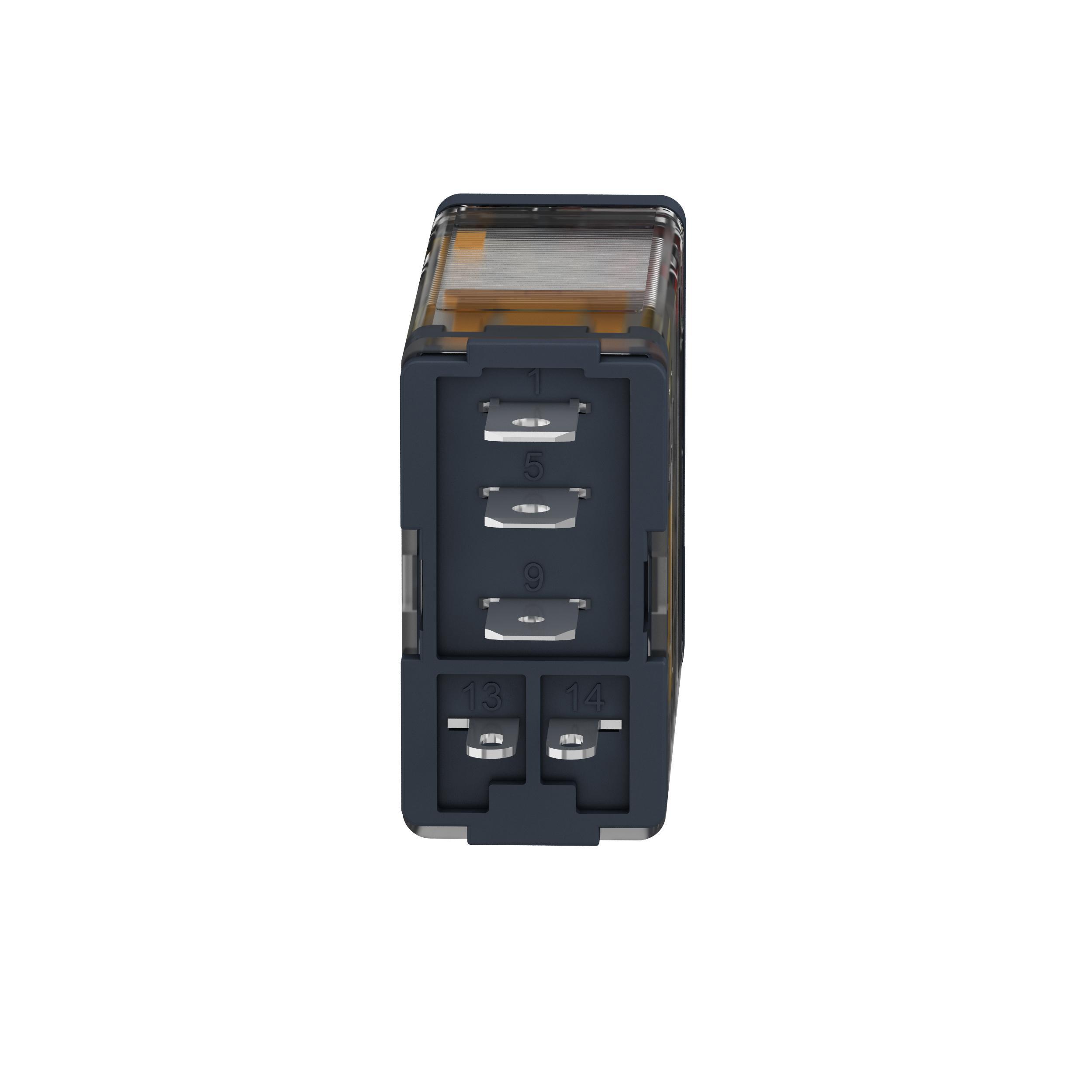

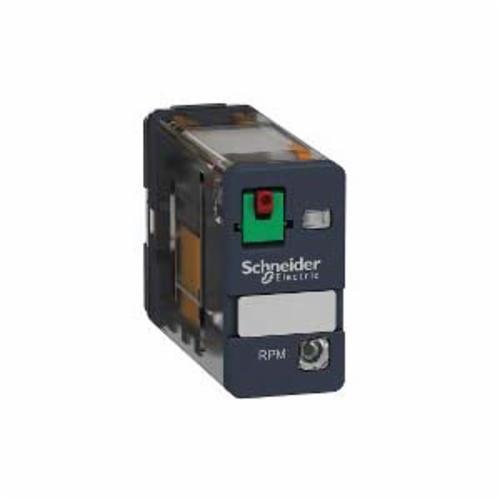

  • RPM12F7 SQD PLUG-IN RELAY 250V 15A
  • RPM12F7 SQD PLUG-IN RELAY 250V 15A
  • RPM12F7 SQD PLUG-IN RELAY 250V 15A
  • RPM12F7 SQD PLUG-IN RELAY 250V 15A
  • RPM12F7 SQD PLUG-IN RELAY 250V 15A
  • RPM12F7 SQD PLUG-IN RELAY 250V 15A

Description: Square D™ Zelio™ Miniature Power Relay, Series: RPM, 15 A, 1/2 hp, 60 Hz, 120 V AC Coil, 1NO-1NC 1 Form A/1 Form B, 15/7.5 A at 277 VAC/28 VDC Contact, 5 Pins, Square Base, 1 Pole, Plug-In/Socket Mount, Faston/Flat Pin/Screw Clamp Terminal, LED, IP40, -40 to 131 deg F, 1.57 in W x 0.55 in D x 1.0629 in H

Manufacturer PN: RPM12F7

UPC:  38911940176

Kendall Electric Inc PN: 3962123

Invoice Description:

RPM12F7 SQD PLUG-IN RELAY 250V 15A


SPEC SHEET

▸ See All in Socket Relays


How Can We Make This Page Better?

Square D™ Zelio™ RPM12F7 Miniature Power Relay, 15 A, 5 Pin, 1NO-1NC 1 Form A/1 Form B Contact, 120 V AC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This power plug-in relay reflects Schneider Electric expertise in relay since 1924 by helping to reduce the size of enclosures and at the same time increasing reliability for industrial machines, packaging, textile, heating, ventilation and air conditioning system. It has large choice of number of contacts for high rated current use. It also offer LED indicator to alert on the current status of the relay.
Square D™ Zelio™ Miniature Power Relay, Series: RPM, 15 A, 1/2 hp, 60 Hz, 120 V AC Coil, 1NO-1NC 1 Form A/1 Form B, 15/7.5 A at 277 VAC/28 VDC Contact, 5 Pins, Square Base, 1 Pole, Plug-In/Socket Mount, Faston/Flat Pin/Screw Clamp Terminal, LED, IP40, -40 to 131 deg F, 1.57 in W x 0.55 in D x 1.0629 in H

Specifications

 Amperage Rating 15 A
 Base Square
 Brand Name Square D
 Coil Voltage 120 V AC
 Contact Form 1NO-1NC 1 Form A/1 Form B
 Contact Rating 15/7.5 A at 277 V AC/28 V DC
 Dimensions 1.57 in W x 0.55 in D x 1.0629 in H
 Enclosure IP40
 Frequency Rating 60 Hz
 Manufacturer Part Number RPM12F7
 Mounting Type Plug-In/Socket
 Number of Pins 5
 Number of Poles 1
 Power Rating 1/2 hp
 Series RPM
 Standards/Approvals CCN NLDX2/NLDX8|CE Marked|CSA C22.2 No. 14|CSA Certified|cULus File No. E164862|EAC Certified|EN/IEC 61810-1|REACH Compliant|RoHS Compliant|UL 508|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 131 deg F
 Terminal Type Faston/Flat Pin/Screw Clamp
 Video Links

Features

▪ This Schneider Electric RPM power plug-in relay has a coil control voltage of 120Vac and has 1 changeover contact SPDT (single pole double throw) with a rating of 15 amperes
▪ It has LED indicators, a removable legend and a lock-down door
