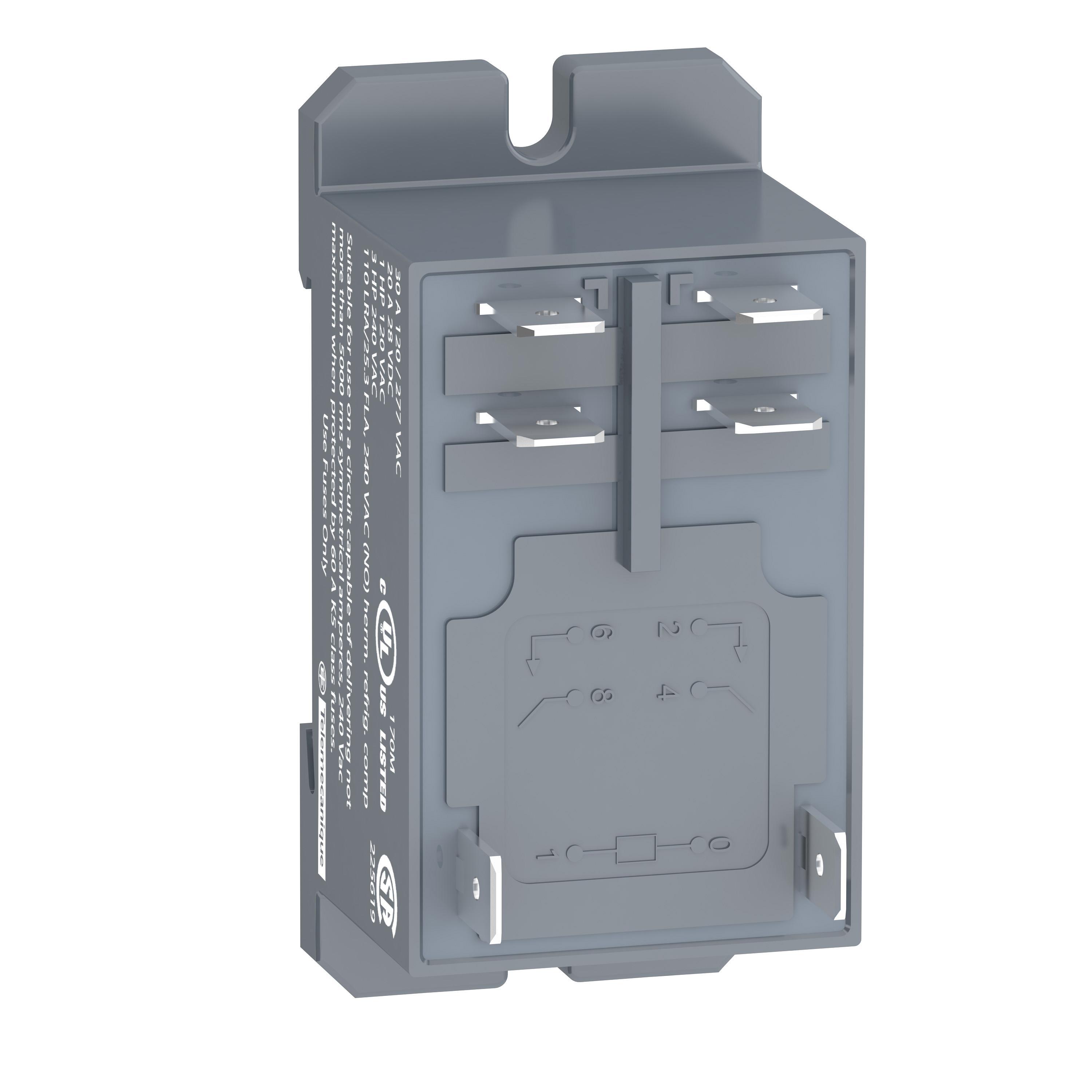

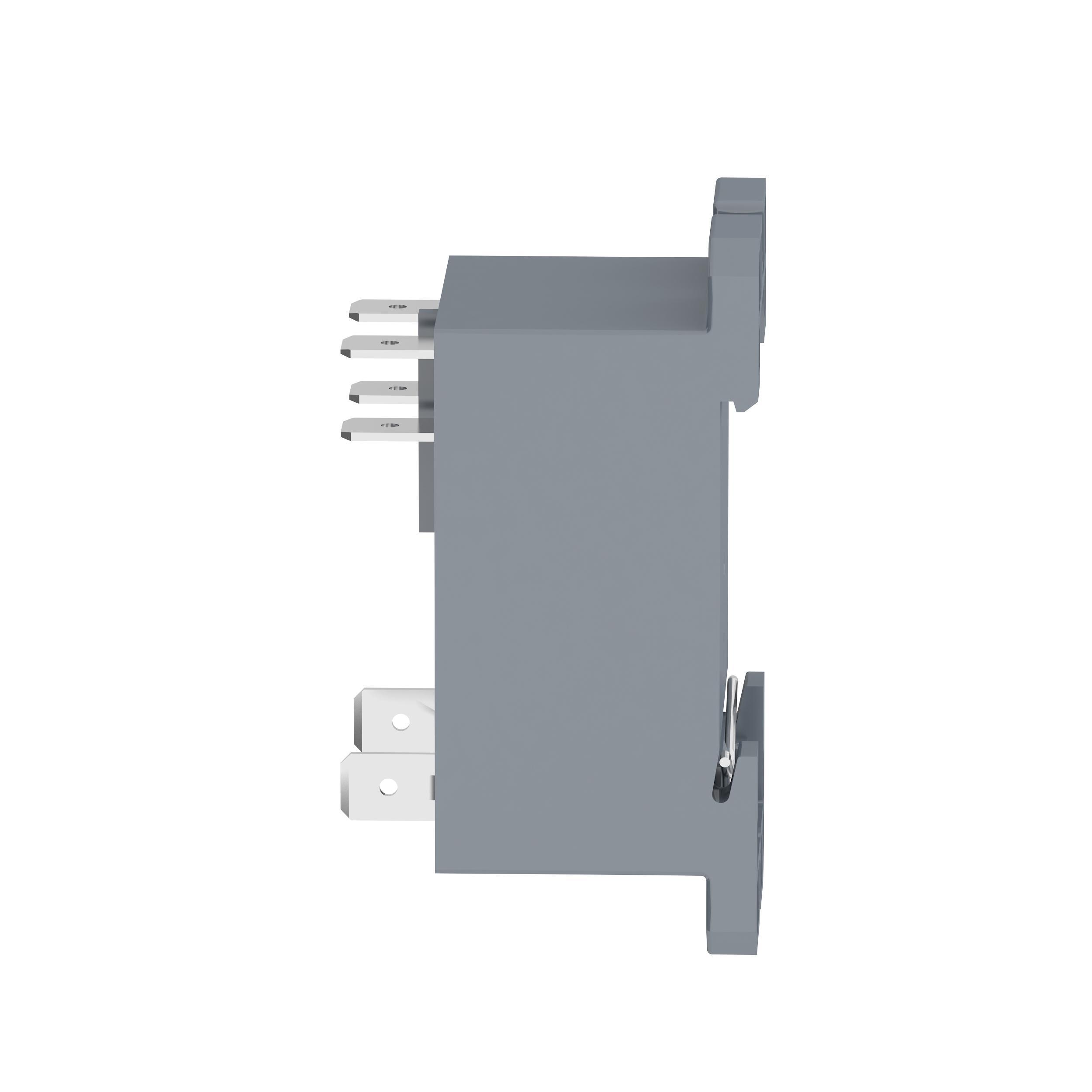

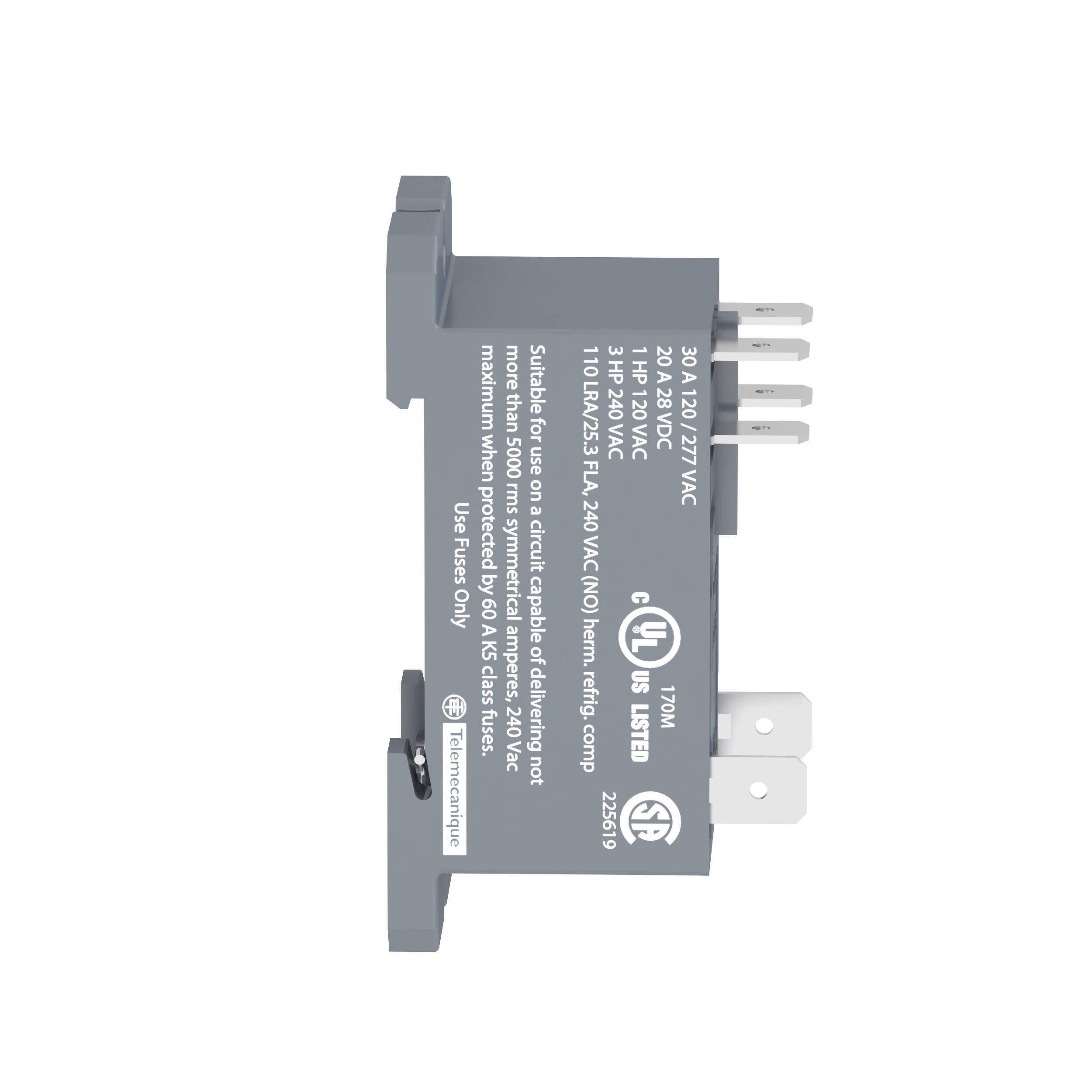

Description: Schneider Electric Square D™ Zelio™ Power Relay, Series: RPF, 30 A, 3 hp Power, 50/60 Hz Frequency, 120 V AC Coil, 2NO 2 Form A DPST Contact Form, 30 A at 277 VAC/20 A at 28 VDC Contact, 6 Pins, 2 Pole, DIN Rail/Flange Mounting, Faston/Flat Pin/Spade Terminal, IP40 Enclosure, -40 to 55 deg C, 1.34 in W x 2.68 in D x 1.65 in H Dimensions

Manufacturer PN: RPF2AF7

UPC:  38911940154

Kendall Electric Inc PN: 4035548

Invoice Description:

RPF2AF7 SQD POWER RELAY 250V 25A 78590157278


SPEC SHEET

▸ See All in Power Relays


How Can We Make This Page Better?

Schneider Electric Square D™ Zelio™ RPF2AF7 Power Relay, 30 A, 6 Pin, 2NO 2 Form A DPST Contact, 120 V AC V Coil

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This panel mounting Power Relay reflects Schneider Electric expertise in relay since 1924 by helping to reduce the size of enclosures and at the same time increasing reliability for industrial machines, packaging, textile, heating, ventilation and air conditioning system. It has large choice of number of contacts for high rated current use.
Schneider Electric Square D™ Zelio™ Power Relay, Series: RPF, 30 A, 3 hp Power, 50/60 Hz Frequency, 120 V AC Coil, 2NO 2 Form A DPST Contact Form, 30 A at 277 VAC/20 A at 28 VDC Contact, 6 Pins, 2 Pole, DIN Rail/Flange Mounting, Faston/Flat Pin/Spade Terminal, IP40 Enclosure, -40 to 55 deg C, 1.34 in W x 2.68 in D x 1.65 in H Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Square D
 Coil Voltage 120 V AC
 Contact Form 2NO 2 Form A DPST
 Contact Rating 30 A at 277 V AC/20 A at 28 V DC
 Dimensions 1.34 in W x 2.68 in D x 1.65 in H
 Enclosure IP40
 Frequency Rating 50/60 Hz
 Manufacturer Part Number RPF2AF7
 Mounting Type DIN Rail/Flange
 Number of Pins 6
 Number of Poles 2
 Power Rating 3 hp
 Series RPF
 Standards/Approvals CCN NLDX2|CE Marked|CSA C22.2 No. 14|CSA Certified|cULus File No. E164862|EN/IEC 61810-1|GOST Certified|NLDX8 Listed|RoHS Compliant|UL 508|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 55 deg C
 Terminal Type Faston/Flat Pin/Spade
 Video Links

Features

▪ This Schneider Electric RPF panel mounting power relay with fast-on terminalshas a coil control voltage of 120Vac and has 2 normally open contacts with a rating of 30 amperes
