Schneider Electric

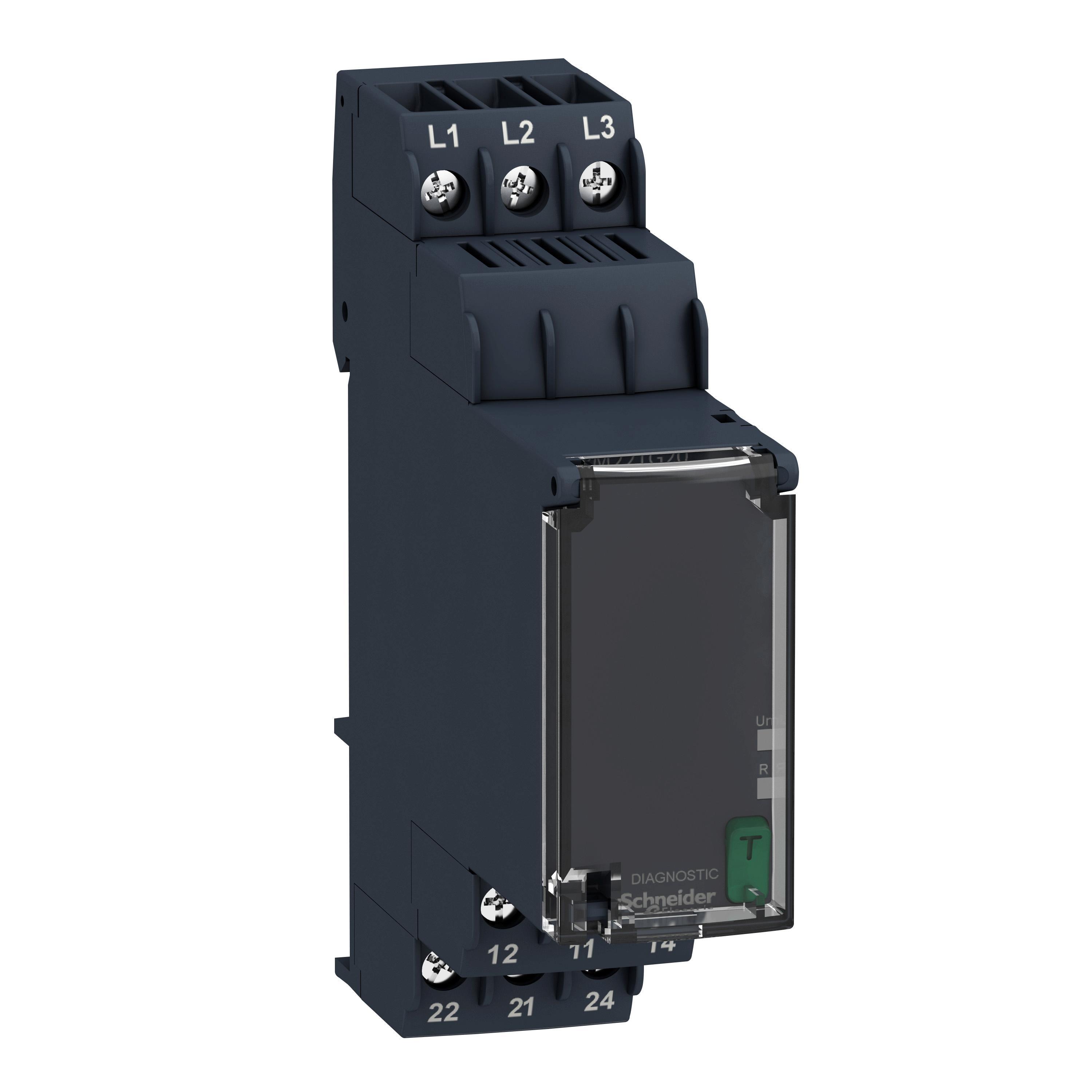

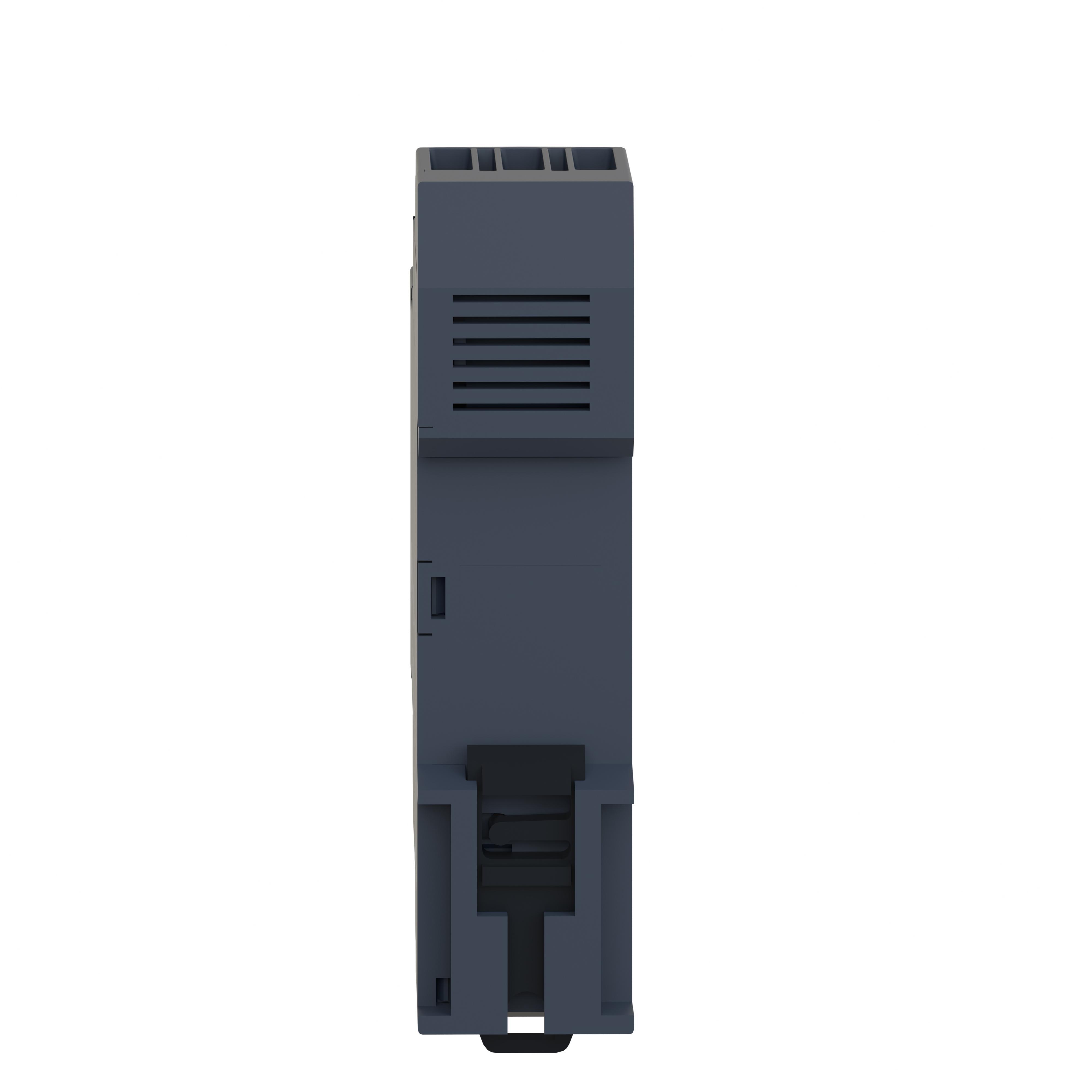

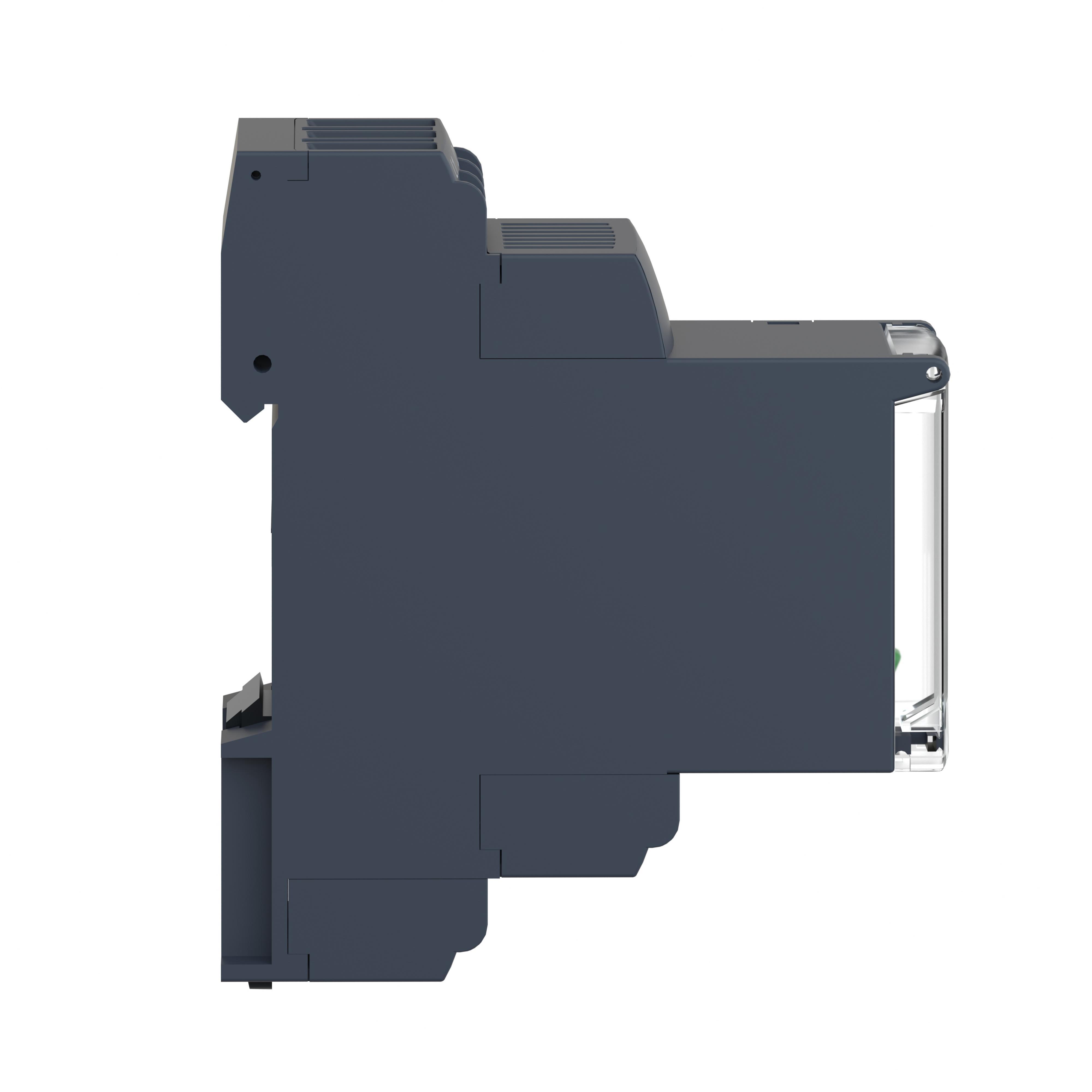

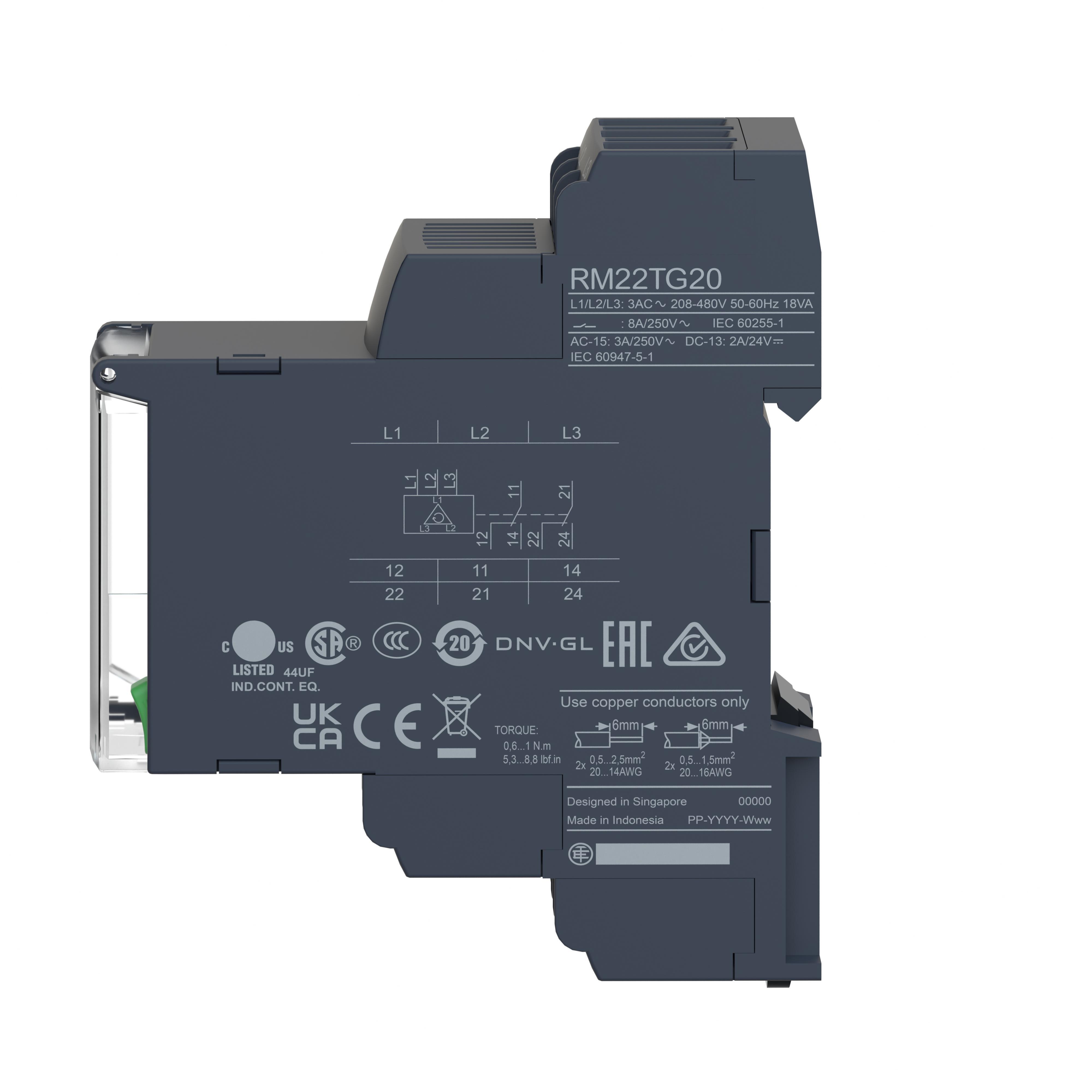

  • RM22TG20 SQD PHASE CTRL RELAY 208
  • RM22TG20 SQD PHASE CTRL RELAY 208
  • RM22TG20 SQD PHASE CTRL RELAY 208
  • RM22TG20 SQD PHASE CTRL RELAY 208
  • RM22TG20 SQD PHASE CTRL RELAY 208
  • RM22TG20 SQD PHASE CTRL RELAY 208

Description: Schneider Electric Square D™ Zelio™ IEC Control Relay, 3 ph Modular Measurement Multi-Function, Series: RM22, 8 A, 15 VA Power, 50/60 Hz Frequency, 183 to 528 V AC Coil, 2CO 2 Form C DPDT Contact Form, 2 Pole, DIN Rail Mounting, Screw Clamp Terminal, IP20/IP40/IP50 Enclosure, -20 to 50/-20 to 60 deg C, 0.89 in W Dimensions

Manufacturer PN: RM22TG20

UPC:  60648079213

Kendall Electric Inc PN: 3969975

Invoice Description:

RM22TG20 SQD PHASE CTRL RELAY 208


SPEC SHEET

▸ See All in Phase Monitoring Relays


How Can We Make This Page Better?

Schneider Electric Square D™ Zelio™ RM22TG20 3 ph Modular Measurement Multi-Function IEC Control Relay, 8 A, 2CO 2 Form C DPDT Contact, 183 to 528 V AC V Coil

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This modular 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form factors with 22.5 mm W, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers.
Schneider Electric Square D™ Zelio™ IEC Control Relay, 3 ph Modular Measurement Multi-Function, Series: RM22, 8 A, 15 VA Power, 50/60 Hz Frequency, 183 to 528 V AC Coil, 2CO 2 Form C DPDT Contact Form, 2 Pole, DIN Rail Mounting, Screw Clamp Terminal, IP20/IP40/IP50 Enclosure, -20 to 50/-20 to 60 deg C, 0.89 in W Dimensions

Specifications

 Amperage Rating 8 A
 Application Construction Cranes, Harbor Cranes, Motor Voltage, Current Overload, Construction Lifts, Passenger Lifts, Escalators, Motor Voltage, Current Overload, Liquid Level on Water Tank at Water and Waste Water Recycling Plant Applications
 Brand Name Square D
 Coil Voltage 183 to 528 V AC
 Contact Form 2CO 2 Form C DPDT
 Dimensions 0.89 in W
 Enclosure IP20/IP40/IP50
 Frequency Rating 50/60 Hz
 Manufacturer Part Number RM22TG20
 Mounting Type DIN Rail
 Number of Poles 2
 PART NUMBER KEYWORDS RM22TG20 ; 13854061 ; 785901009320 ; 78590100932 ; 03606480792137 ; 3606480792137
 Power Rating 15 VA
 Series RM22
 Standards/Approvals REACH Compliant|EN/IEC 60255-1|CSA Certified|CE Certified|RCM/EAC/GL Certified|CCC Certified|Green Premium|WEEE Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
 Temperature Rating -20 to 50/-20 to 60 deg C
 Terminal Type Screw Clamp
 Type 3 ph Modular Measurement Multi-Function

Features

▪ Simplified panel design due to 0.89in width same as 2-pole circuit breaker
▪ Experience unprecedented accuracy, predictive maintenance, and superior security
▪ Provides automatic shutdown management and fault information for a quick fault identification and troubleshooting
▪ Transparent cover offers tamper protection and reduces maintenance
▪ Multi-functional - gives you flexibility in maintenance, reducing the variety of products to stock
