Legrand

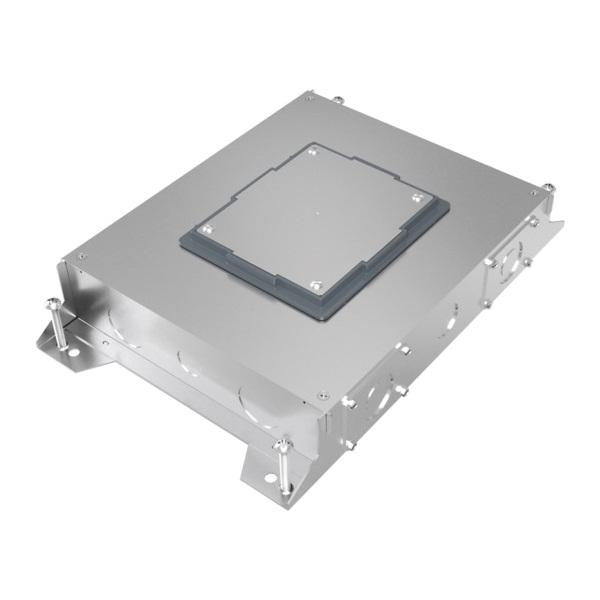

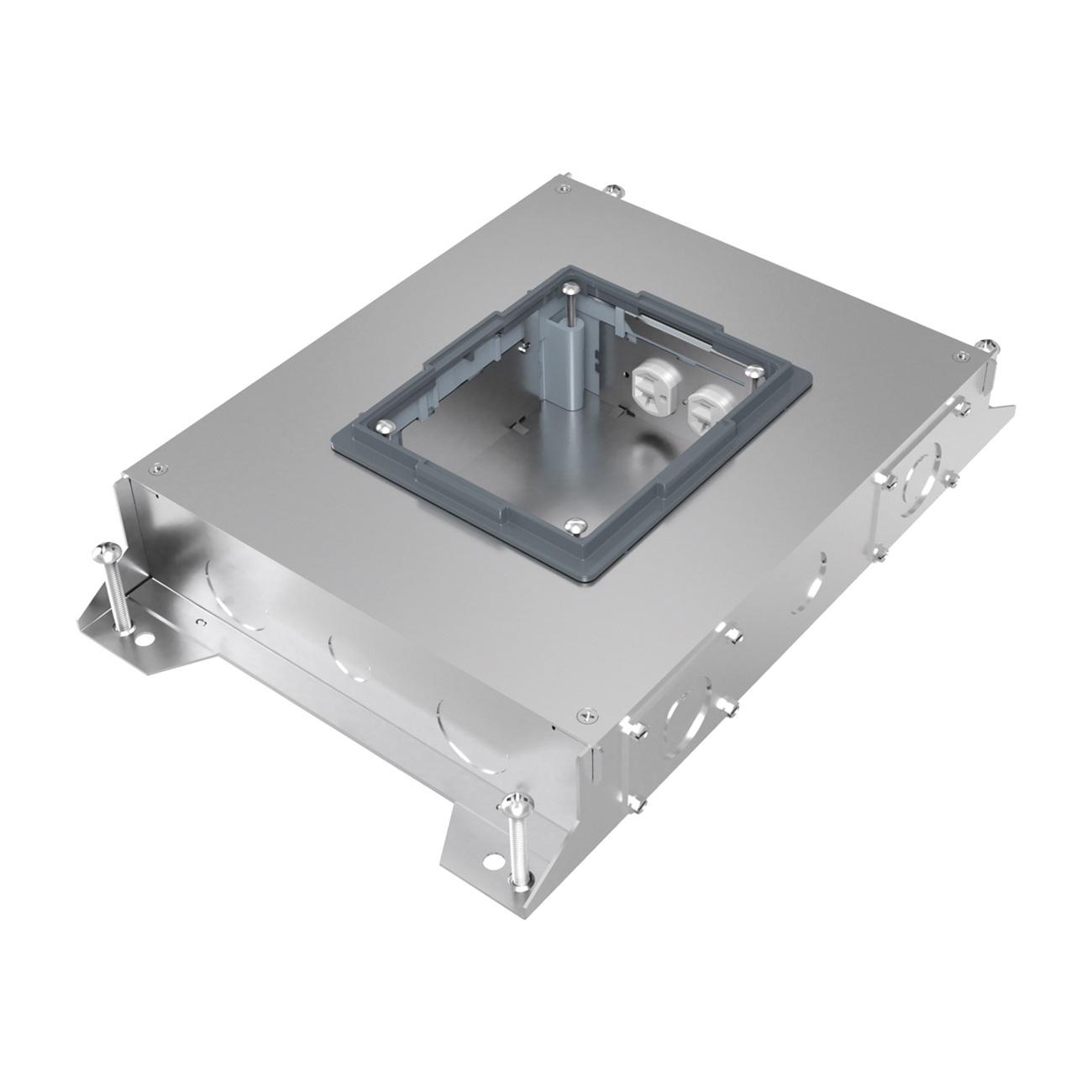

RFBA4R30 WIREMOLD RFBA 4G 3.0 IN RECT CVR FLOOR BOX

Mouse over image to zoom, click to enlarge

  • RFBA4R30 WIREMOLD RFBA 4G 3.0 IN RECT CVR FLOOR BOX
  • RFBA4R30 WIREMOLD RFBA 4G 3.0 IN RECT CVR FLOOR BOX
  • RFBA4R30 WIREMOLD RFBA 4G 3.0 IN RECT CVR FLOOR BOX

Description: Wiremold® Floor Box, Standard Above Grade, Series: Resource RFBA Series, 4 Gangs, 20 Knockouts, 2 in Knockout, 3/4 to 2 in Cable Entry, Rectangular Shape, Floor Mounting, Steel, 17-3/4 in L x 11-15/16 in W x 3-1/2 in H Dimensions

Manufacturer PN: RFBA4R30

UPC:  78656410541

Kendall Electric Inc PN: 4394183

Invoice Description:

RFBA4R30 WIREMOLD RFBA 4G 3.0 IN RECT CVR FLOOR BOX


SPEC SHEET

▸ See All in Floor Boxes


How Can We Make This Page Better?

Wiremold® RFBA4R30 Resource RFBA Series Standard Above Grade Floor Box With Rectangular Activations, Steel, 4 Gangs, 20 Knockouts, 17-3/4 in L x 11-15/16 in W x 3-1/2 in H

Log In for Pricing and Availability




Description

Your go-to floor box just got better. Resource RFB Series Floor Boxes are designed for maximum efficiency throughout an entire building, bringing versatile recessed activations for power and data services to open space areas or directly to workstations. No matter what size you choose, components and accessories work across the entire line interchangeably. Simply mix-and-match as needed for your project. Improved wire and cable routing makes wire pulling much easier in adjacent compartments and around corners. Available in two, four, six and 10 gang models with a variety of covers, colors and profiles. Installs in tile, stone, carpet, terrazzo, wood and polished concrete. Perfect for many applications, including schools, financial institutions, commercial office buildings, hospitality and residential.
Wiremold® Floor Box, Standard Above Grade, Series: Resource RFBA Series, 4 Gangs, 20 Knockouts, 2 in Knockout, 3/4 to 2 in Cable Entry, Rectangular Shape, Floor Mounting, Steel, 17-3/4 in L x 11-15/16 in W x 3-1/2 in H Dimensions

Specifications

 Application Indoor, Schools, Financial Institutions, Commercial Office Buildings, Hospitality, Residential and Commercial Applications
 Brand Name Wiremold®
 Cable Entry Size 3/4 to 2 in
 Dimensions 17-3/4 in L x 11-15/16 in W x 3-1/2 in H
 Knockout Size 2 in
 Manufacturer Part Number RFBA4R30
 Material Steel
 Mounting Type Floor
 Number of Gangs 4
 Number of Knockouts 20
 PART NUMBER KEYWORDS RFBA4R30 ; 17124343 ; 786564105411 ; 78656410541 ; 00786564105411
 Series Resource RFBA Series
 Shape Rectangular
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|cULus File No. E2961 Guide QCIT|ECCN EAR99|LEED Certified|NAFTA Certified|RoHS 2011/65/EU|RoHS 2015/863|UL 514
 Type Standard Above Grade
 Video Links

Features

▪ One consistent design, Mix-and-match Resource RFBA Series Floor Boxes of any size with interchangeable components
▪ Makes every project installation quick and efficient
▪ Universal sized conduit feed, Meets all requirements for each box
▪ 2- and 4-gang shallow boxes accept a 1 in conduit feed, while all standard boxes accept a 2 in conduit feed
▪ Improved wire and cable routing, Allows for easier wire pulling in adjacent compartments and around corners, reducing the overall cost for most cabling requirements
▪ Two finishes, Every box configuration is available in either a standard zinc-plated construction or a lightweight "slab-on-grade" finish with fusion-bonded epoxy corrosion resistant paint
▪ Removable dividers post-pour, Fully adjustable before and after the concrete pour
▪ Adapts to most power and communication needs, Common mounting plates can be used for any of the Resource RFB Series Floor Boxes
▪ Reduces overall life cycle cost
