Schneider Electric
  • RE17LLBM SQD ASYMMETRICAL FLASHING
  • RE17LLBM SQD ASYMMETRICAL FLASHING
  • RE17LLBM SQD ASYMMETRICAL FLASHING
  • RE17LLBM SQD ASYMMETRICAL FLASHING

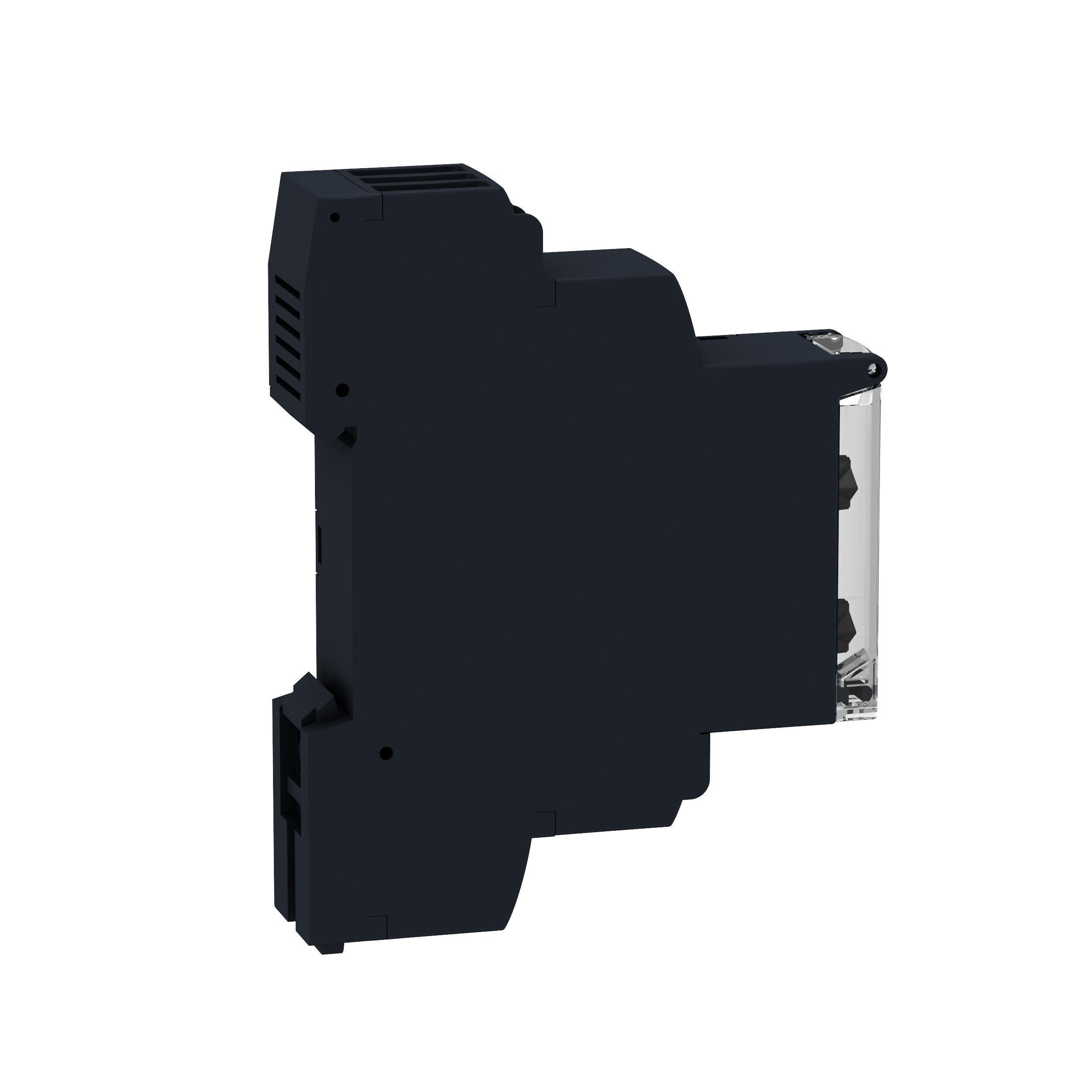

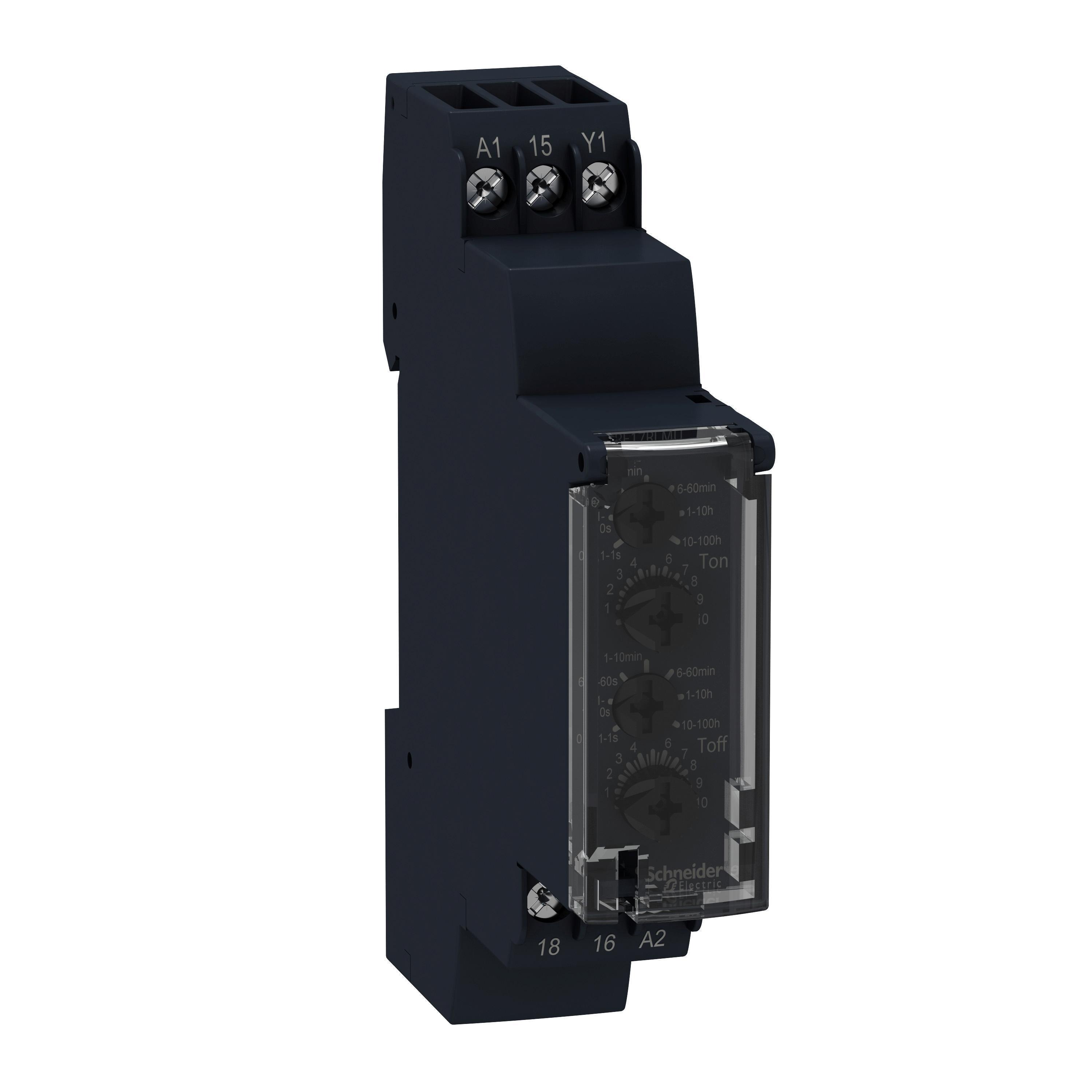

Description: Schneider Electric Square D™ Zelio™ Modular Timing Relay, Operation Mode: Asymmetrical Flasher, 24 to 240 V AC, 0.7 A, 1 Pole, 1 Form C SPDT Contact Form, 0.1 sec to 100 hr Time Setting, LED Display, Screw Electrical Connections, IP20/IP40/IP50 Enclosure, -20 to 60 deg C, DIN Rail Mounting, 17.5 mm W x 90 mm H Dimensions

Manufacturer PN: RE17LLBM

UPC:  60648055265

Kendall Electric Inc PN: 3963487

Invoice Description:

RE17LLBM SQD ASYMMETRICAL FLASHING


SPEC SHEET

▸ See All in Plug-In Timers


How Can We Make This Page Better?

Schneider Electric Square D™ Zelio™ RE17LLBM Modular Timing Relay With Solid State Output, 0.1 sec to 100 hr Setting, 24 to 240 V AC, 1 Form C SPDT Contact, 1 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Zelio™ RE17, RE22 and RENF22 modular timer range is comprised of both 8 A relay and 0.7 A solid state outputs. Thanks to its space saving 17.5 mm design, this relay is ideal for applications that require a lot of control in a small foot print. The RE17 series is designed to attach to a 35 mm DIN rail.
Schneider Electric Square D™ Zelio™ Modular Timing Relay, Operation Mode: Asymmetrical Flasher, 24 to 240 V AC, 0.7 A, 1 Pole, 1 Form C SPDT Contact Form, 0.1 sec to 100 hr Time Setting, LED Display, Screw Electrical Connections, IP20/IP40/IP50 Enclosure, -20 to 60 deg C, DIN Rail Mounting, 17.5 mm W x 90 mm H Dimensions

Specifications

 Amperage Rating 0.7 A
 Brand Name Square D
 Contact Form 1 Form C SPDT
 Dimensions 17.5 mm W x 90 mm H
 Electrical Connections Screw
 Enclosure IP20/IP40/IP50
 Manufacturer Part Number RE17LLBM
 Mounting Type DIN Rail
 Number of Poles 1
 Operation Mode Asymmetrical Flasher
 Standards/Approvals CE Certified|CSA Certified|cULus Listed|ECCN: EAR99|EC-EN 61000-6-1|EC-EN 61000-6-3|EN 61000-6-2|IEC 61812-1|EN 61000-6-4|GL|IEC 60068-2-27|IEC 60068-2-6|IEC 60529|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-4|IEC 61000-4-4|3|IEC 61000-4-5|IEC 61000-4-5|3|IEC 61000-4-6|IEC 61000-4-11|IEC 61000-4-11|EN 55022|Green Premium™|RoHS Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
 Temperature Rating -20 to 60 deg C
 Time Setting 0.1 sec to 100 hr
 Voltage Rating 24 to 240 V AC

Features

▪ This Schneider Electric RE17L timing relay can be set between 0.1 seconds and 100 hr, has an output rating of 0.7 amperes, is 17.5 milimeters wide and can be supplied with 24 to 240Vac
▪ It also has a solid state output
