Eaton

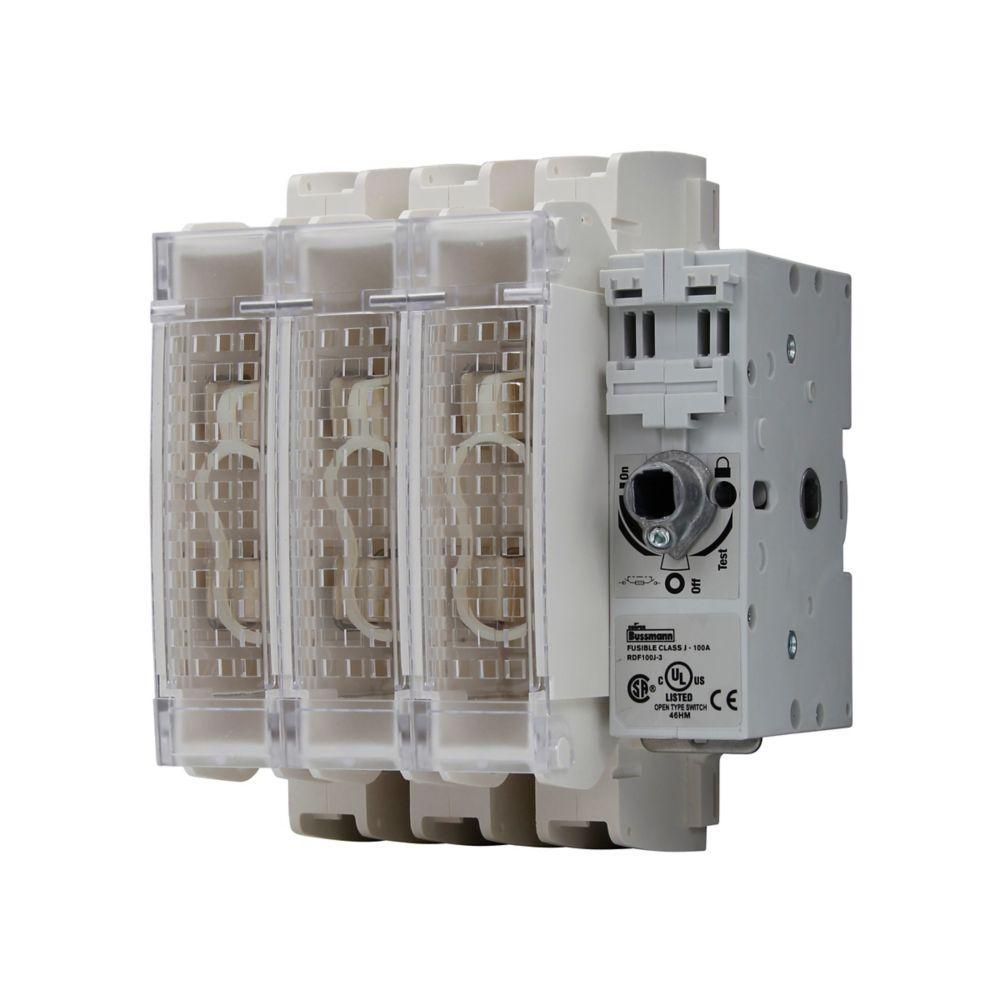

RDF100J-3 BUS SWITCH 100A J 3P UL98

Mouse over image to zoom, click to enlarge

  • RDF100J-3 BUS SWITCH 100A J 3P UL98
  • RDF100J-3 BUS SWITCH 100A J 3P UL98

Description: Bussmann Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 VAC, 250 VDC, 100 A, 30 hp, 75 hp at 600 VAC, 20 hp at 250 VDC, 3 ph, 3 Pole, 200 kA Short Circuit, Front/Side Handle Actuator, DIN Rail/Panel/Flange Mounting, -20 to 70 deg C, 5.8 in L x 4.75 in W x 7.5 in H Dimensions

Manufacturer PN: RDF100J-3

UPC:  05171240264

Kendall Electric Inc PN: 2975764

Invoice Description:

RDF100J-3 BUS SWITCH 100A J 3P UL98


SPEC SHEET

▸ See All in Open Rotary Control Disconnects


How Can We Make This Page Better?

Bussmann RDF100J-3 Class J Fused Standard Rotary Disconnect Switch, 600 VAC, 250 VDC, 100 A, 30 hp, 75 hp at 600 VAC, 20 hp at 250 VDC, 3 Poles

Log In for Pricing and Availability




Description

Bussmann UL 98 and UL 489 fused disconnect switches "break" and "make" power circuits ON and OFF load. The switches employ double break contacts per pole that help ensure complete isolation of the fuse when the switch is in the "Off" position.
Bussmann Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 VAC, 250 VDC, 100 A, 30 hp, 75 hp at 600 VAC, 20 hp at 250 VDC, 3 ph, 3 Pole, 200 kA Short Circuit, Front/Side Handle Actuator, DIN Rail/Panel/Flange Mounting, -20 to 70 deg C, 5.8 in L x 4.75 in W x 7.5 in H Dimensions

Specifications

 Actuator Type Front/Side Handle
 Amperage Rating 100 A
 Application Stationary Machinery Equipment in Factory and Robotics Applications
 Brand Name Bussmann
 Dimensions 5.8 in L x 4.75 in W x 7.5 in H
 Horsepower 30 hp, 75 hp at 600 VAC, 20 hp at 250 VDC
 Manufacturer Part Number RDF100J-3
 Mounting Type DIN Rail/Panel/Flange
 Number of Poles 3
 Phase 3
 Series RDF
 Short Circuit Current Rating 200 kA
 Standards/Approvals CE Marking|CSA C22.2 No. 4/257020|cULus Listed|IEC 60947-3|NFPA 79|RoHS Compliant|UL 98/489 File No. E155130/E359801
 Temperature Rating -20 to 70 deg C
 Type Class J Fused Standard
 Video Links
 Voltage Rating 600 VAC/250 VDC

Features

▪ Make and break power under load
▪ Double break by pole
▪ Fingersafe® design covers
▪ Defeatable handles automatically re-latch when the panel door is closed
▪ Most disconnect switches are front, right side, flange or direct handle operable
