Schneider Electric
  • RC816F200S SQD METERMAIN RINGLESS
  • RC816F200S SQD METERMAIN RINGLESS
  • RC816F200S SQD METERMAIN RINGLESS
  • RC816F200S SQD METERMAIN RINGLESS

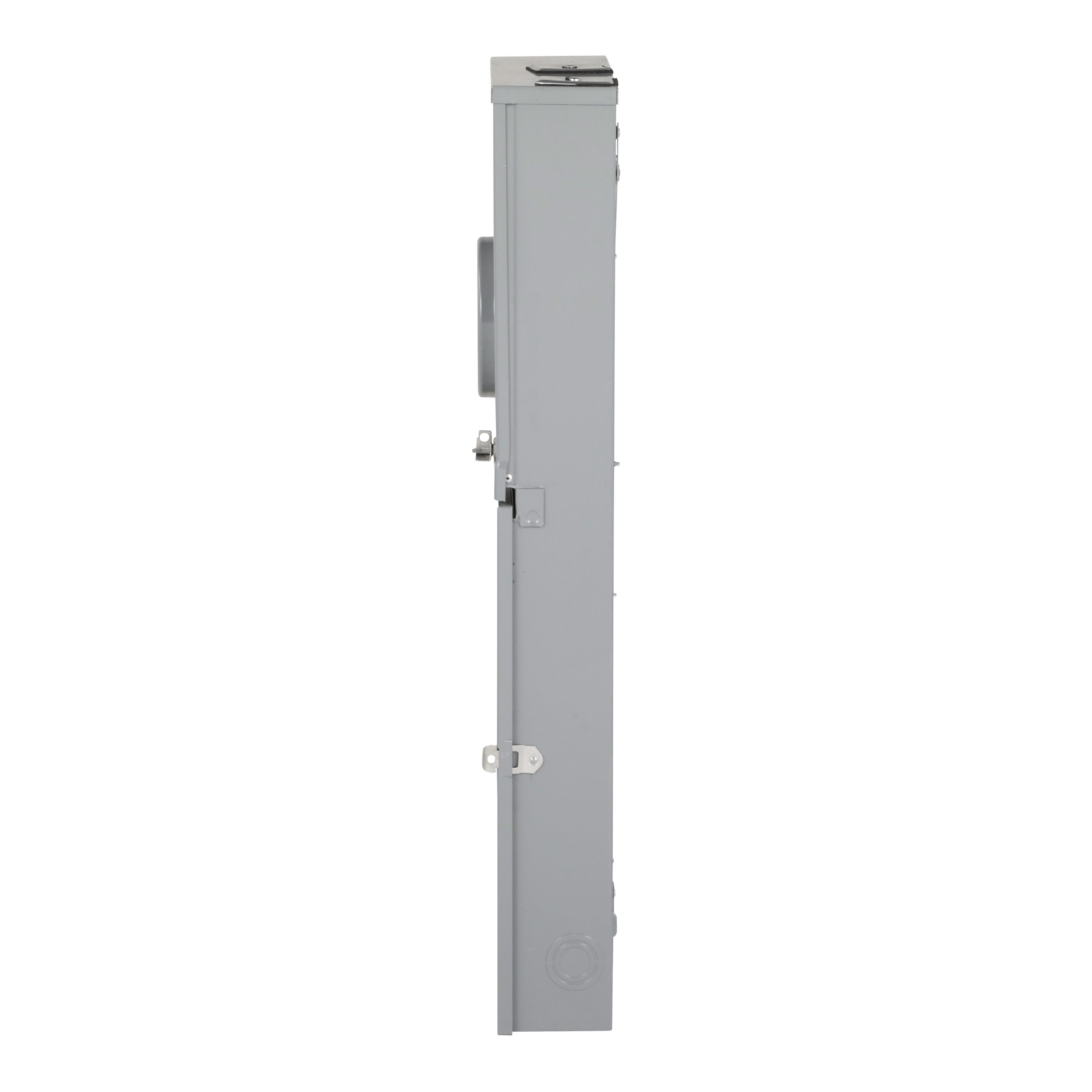

Description: Square D™ HomeLine™ Combination Service Entrance Meter Main, 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 VAC, 200 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 6 AWG to 350 kcmil/8 to 2/0 AWG Wire, A Hub, Ringless Cover, Line/Service Ground/Feed Through Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 18.35 in W x 5.32 in D x 48.62 in H Dimensions

Manufacturer PN: RC816F200S

UPC:  78590194654

Kendall Electric Inc PN: 4000626

Invoice Description:

RC816F200S SQD METERMAIN RINGLESS


SPEC SHEET

▸ See All in Meter Mains


How Can We Make This Page Better?

Square D™ HomeLine™ RC816F200S 3-Wire 8-Circuit 16-Space Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 VAC, 200 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 6 AWG to 350 kcmil/8 to 2/0 AWG Wire, A Hub, Ringless Cover, Line/Service Ground/Feed Through Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 18.35 in W x 5.32 in D x 48.62 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application For residential, indoor and load wires to exit top endwall with addition of tunnel kit OHBS applications
 Brand Name Square D
 Cover Type Ringless
 Dimensions 18.35 in W x 5.32 in D x 48.62 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Hub Size A
 Includes Circuit Breaker, Factory Installed Barrel Lock/Fifth Jaw, Load Side Feed Through Lugs
 Manufacturer Part Number RC816F200S
 Mounting Type Surface
 Number of Jaws 5
 Phase 1
 Standards/Approvals BAA Compliant|RoHS Compliant|UL 50|UL 67|UL 414 File #E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|CSA Approved
 Terminal Type Line/Service Ground/Feed Through Lug
 Type 3-Wire 8-Circuit 16-Space Field Installed Rainproof
 Voltage Rating 120/240 VAC

Features

▪ Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester
▪ Multiple disconnect units can be converted to semi-flush with addition of flange kit
▪ 6 AWG to 350 kcmil line side main, 8 to 2/0 AWG service ground lug
▪ Without bypass
