Schneider Electric

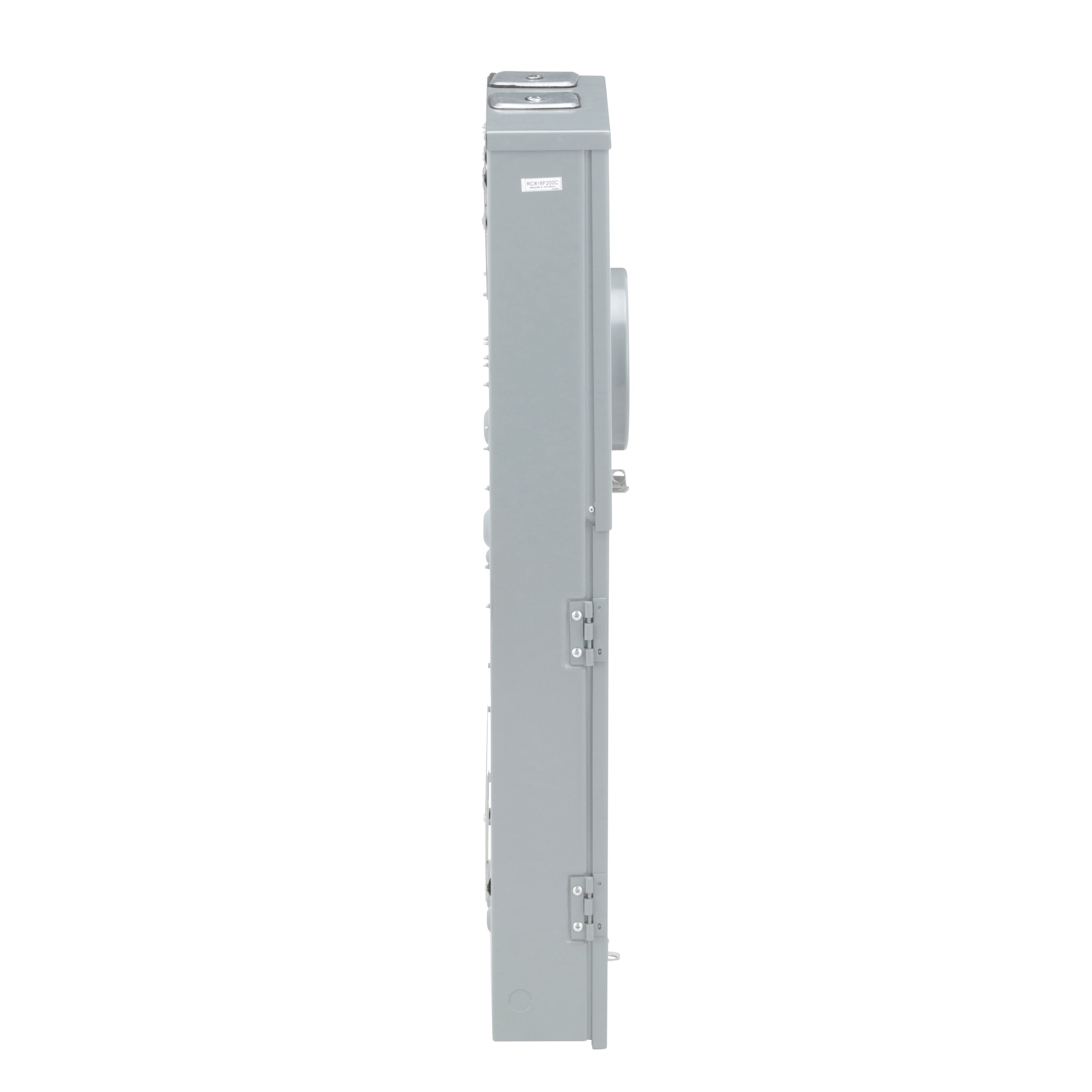

  • RC816F200C SQD METER MAIN RINGLESS
  • RC816F200C SQD METER MAIN RINGLESS
  • RC816F200C SQD METER MAIN RINGLESS

Description: Square D™ Homeline™ Combination Service Entrance Meter Main, 8-Space 16-Circuit All-in-One Field Installed Rainproof, 120/240, 208Y/120 V AC, 200 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 6 AWG to 350 kcmil, 12 to 2/0 AWG Wire, A Hub, Ringless Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 14.37 in W x 4.67 in D x 35.13 in H Dimensions

Manufacturer PN: RC816F200C

UPC:  78590186392

Kendall Electric Inc PN: 3959829

Invoice Description:

RC816F200C SQD METER MAIN RINGLESS


SPEC SHEET

▸ See All in Meter Mains


How Can We Make This Page Better?

Square D™ Homeline™ RC816F200C 8-Space 16-Circuit All-in-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240, 208Y/120 V AC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Square D® Load Centers and Combination Service Entrance Devices, RC816F200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs.
Square D™ Homeline™ Combination Service Entrance Meter Main, 8-Space 16-Circuit All-in-One Field Installed Rainproof, 120/240, 208Y/120 V AC, 200 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 6 AWG to 350 kcmil, 12 to 2/0 AWG Wire, A Hub, Ringless Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 14.37 in W x 4.67 in D x 35.13 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ringless

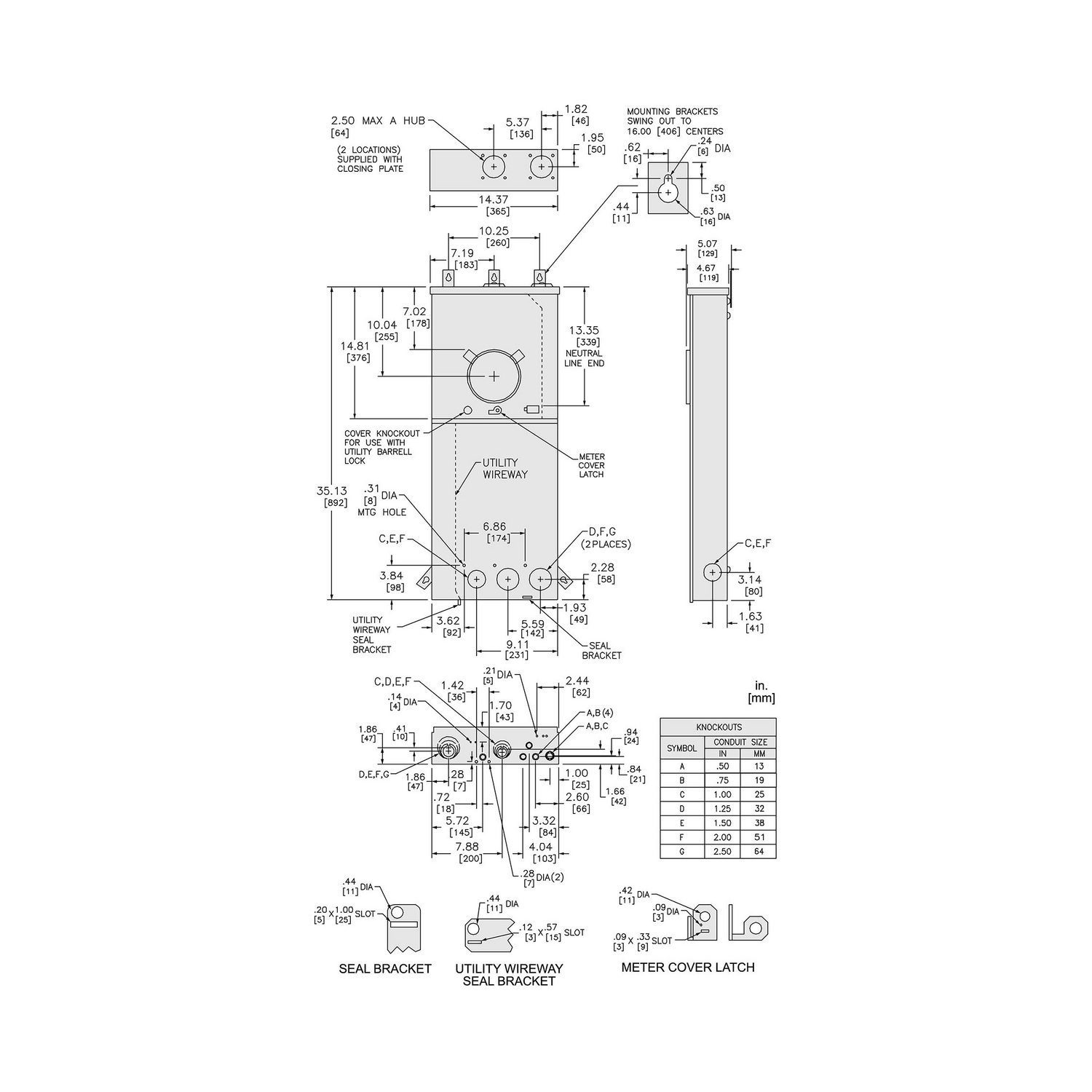

 Dimensions 14.37 in W x 4.67 in D x 35.13 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Frequency Rating 50/60 Hz
 Hub Size A
 Includes Closing Plate Hub, Factory Installed Barrel Lock and Load Side Feed Through Lugs
 Manufacturer Part Number RC816F200C
 Mounting Type Surface
 PART NUMBER KEYWORDS RC816F200C ; 8064745 ; 785901863922 ; 78590186392 ; 00785901863922 ; 0785901863922
 Phase 1
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 50/67/414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|CSA Approved
 Terminal Type Line/Lug
 Type 8-Space 16-Circuit All-in-One Field Installed Rainproof
 Voltage Rating 120/240, 208Y/120 V AC

Features

▪ Homeline ringless meter mains support standard utility meters and a main disconnect breakers
▪ This single compact solution provides a time and space saving solution for contractors and installers
▪ Suitable for use as service entrance equipment
▪ CSED allows for the meter socket to integrate with the load center into one compact design
