Schneider Electric
  • RC816F125CH SQD METER MAIN RINGLESS
  • RC816F125CH SQD METER MAIN RINGLESS
  • RC816F125CH SQD METER MAIN RINGLESS
  • RC816F125CH SQD METER MAIN RINGLESS

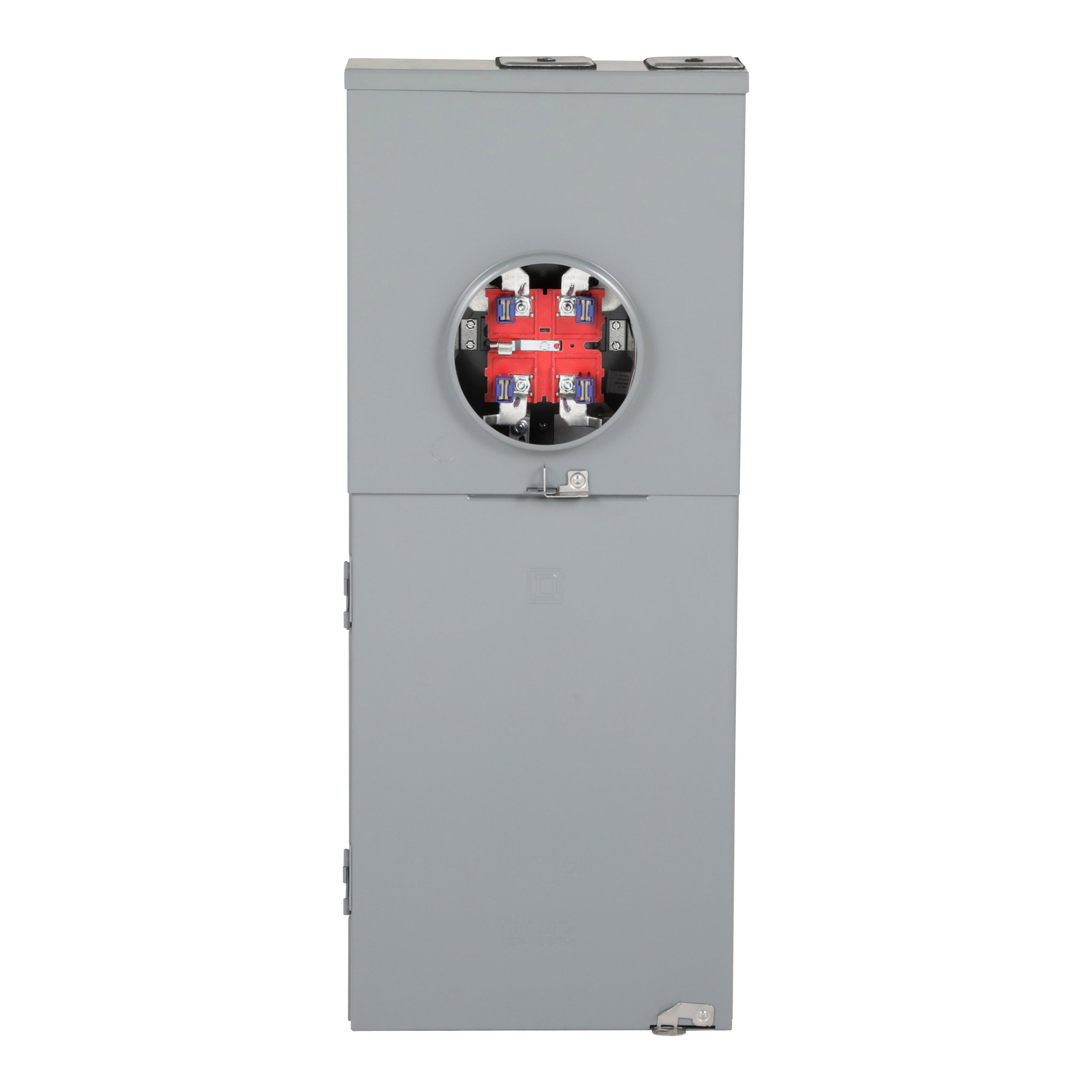

Description: Square D™ HomeLine™ Combination Service Entrance Meter Main, 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 VAC, 208Y/120 VAC, 125 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 6 AWG to 350 kcmil, 12 to 2/0 AWG Aluminum/Copper Wire, A Hub, Ringless Cover, Line/Service Ground/Feed Through Lug Terminal, Flush Mounting, NEMA 3R Enclosure, 35.13 in H x 14.37 in W x 4.67 in D Dimensions

Manufacturer PN: RC816F125CH

UPC:  78590140183

Kendall Electric Inc PN: 4124015

Invoice Description:

RC816F125CH SQD METER MAIN RINGLESS


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

Square D™ HomeLine™ RC816F125CH 3-Wire 8-Circuit 16-Space Field Installed Rainproof Combination Service Entrance Meter Main With Horn Bypass, 120/240 VAC, 208Y/120 VAC, 125 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 VAC, 208Y/120 VAC, 125 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 6 AWG to 350 kcmil, 12 to 2/0 AWG Aluminum/Copper Wire, A Hub, Ringless Cover, Line/Service Ground/Feed Through Lug Terminal, Flush Mounting, NEMA 3R Enclosure, 35.13 in H x 14.37 in W x 4.67 in D Dimensions

Specifications

 Amperage Rating 125 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ringless
 Dimensions 35.13 in H x 14.37 in W x 4.67 in D
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Frequency Rating 50/60 Hz
 Hub Type A
 Includes Closing Plate Hub, Factory Installed Barrel Lock, Load Side Feed Through Lugs
 Manufacturer Part Number RC816F125CH
 Mounting Type Flush
 Phase 1
 Standards/Approvals RoHS Compliant|UL 50|UL 67|UL 414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Terminal Type Line/Service Ground/Feed Through Lug
 Type 3-Wire 8-Circuit 16-Space Field Installed Rainproof
 Voltage Rating 120 to 240 VAC/208Y to 120 VAC

Features

▪ Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester
▪ Multiple disconnect units can be converted to semi-flush with addition of flange kit
▪ 6 AWG to 350 kcmil line side main, 12 to 2/0 AWG service ground lug
▪ Device supplied with barrel lock provisions factory installed
