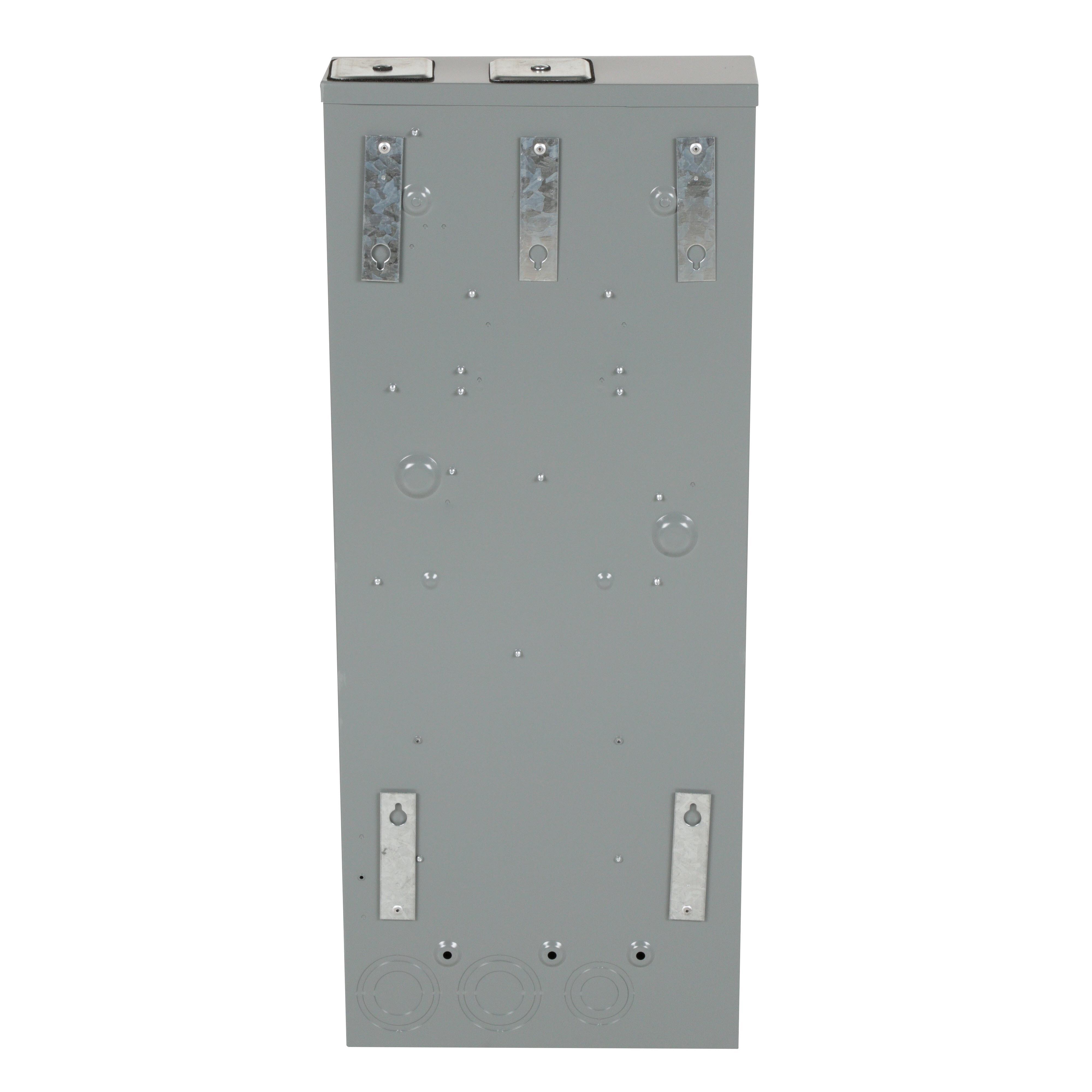

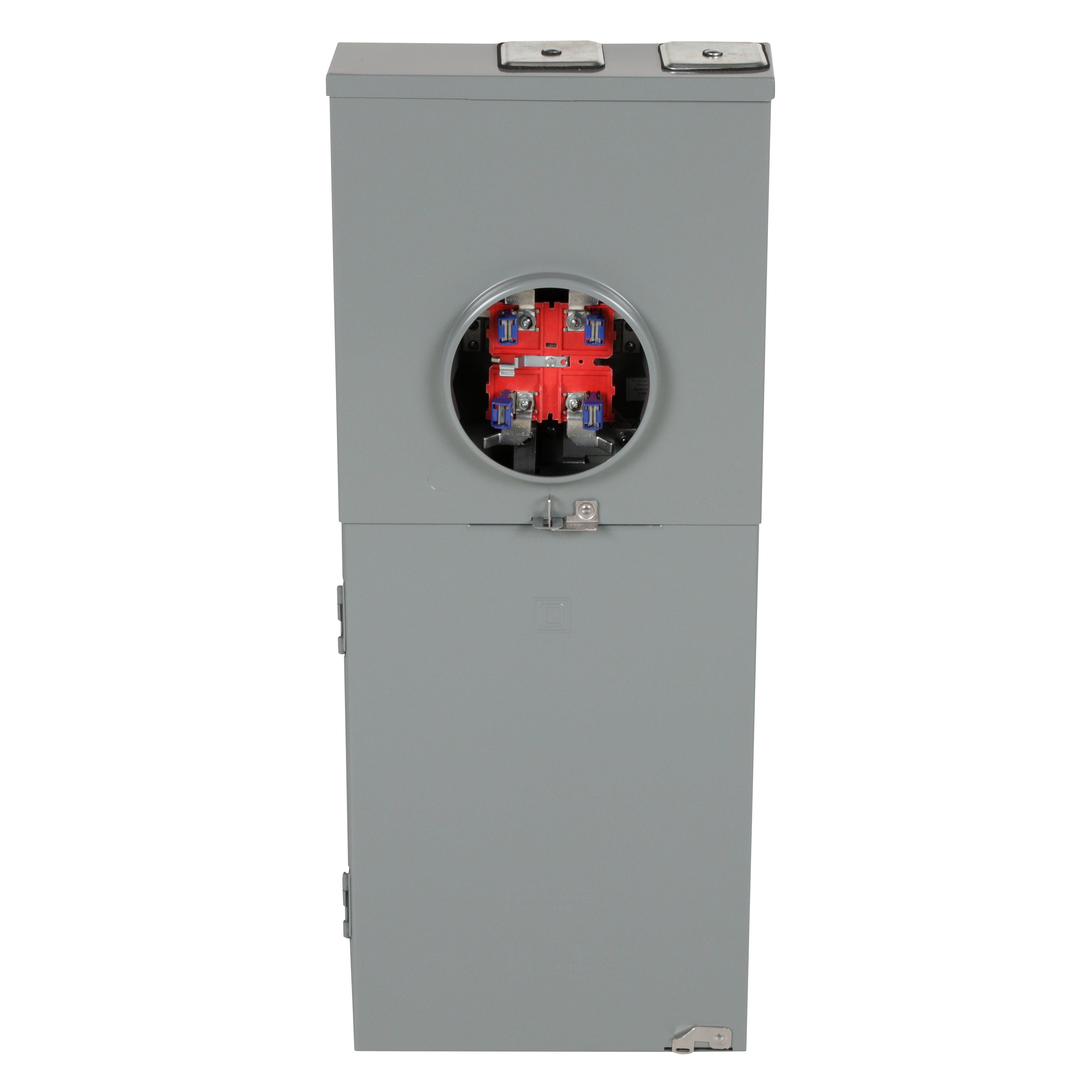

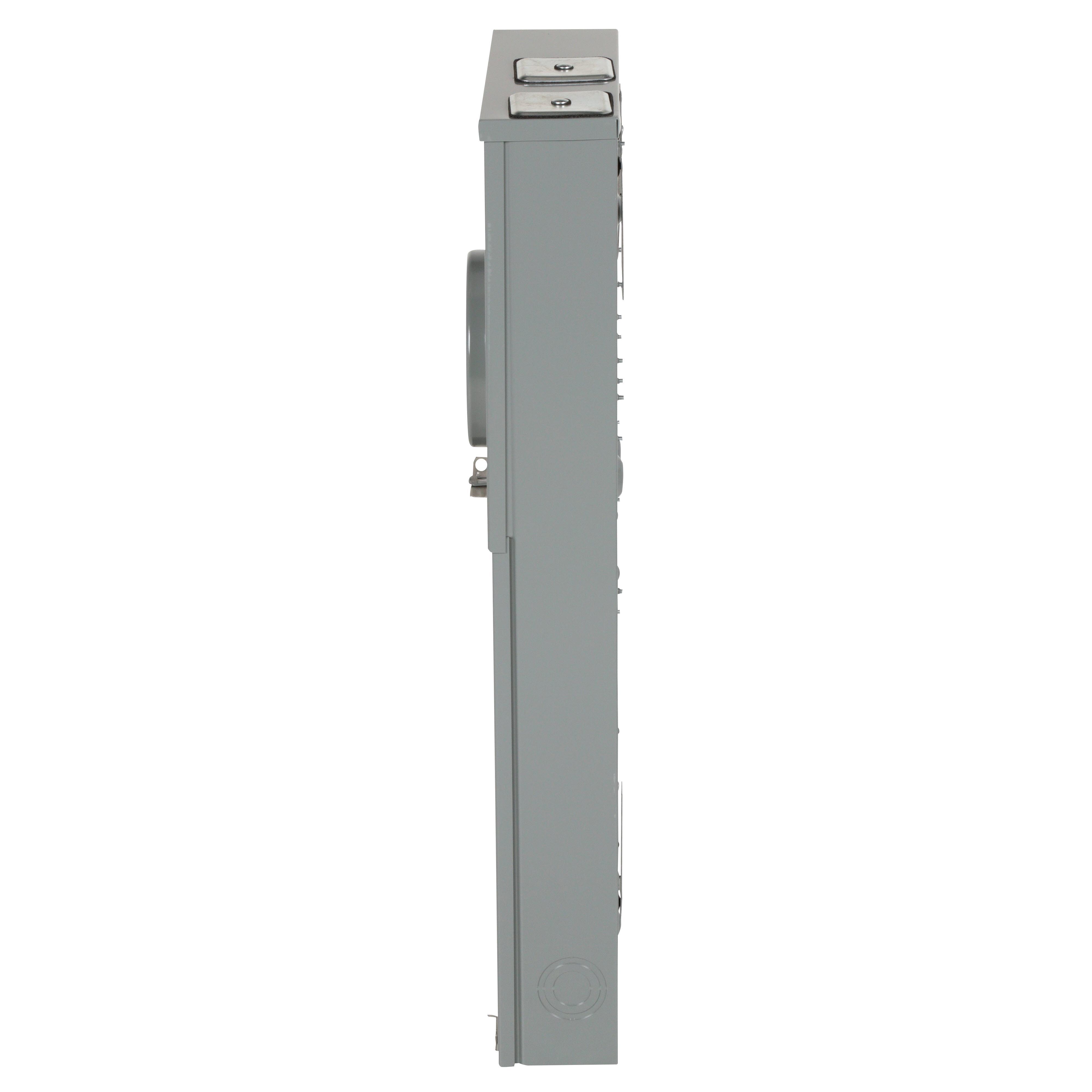

Description: Square D™ Homeline™ Combination Service Entrance Meter Main, 8-Space 16-Circuit All-In-One Field Installed Horn Bypass Rainproof, 120/240 VAC, 100 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 5 Jaws, 12 to 2/0 AWG, 6 AWG to 350 kcmil Wire, A Hub, Ringless Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 14.37 in W x 4.67 in D x 35.13 in H Dimensions

Manufacturer PN: RC816F100CH

UPC:  78590140182

Kendall Electric Inc PN: 3960031

Invoice Description:

RC816F100CH SQD METER MAIN RINGLESS


SPEC SHEET

▸ See All in Meter Mains


How Can We Make This Page Better?

Square D™ Homeline™ RC816F100CH 8-Space 16-Circuit All-In-One Field Installed Horn Bypass Rainproof Combination Service Entrance Meter Main With Horn Bypass, 120/240 VAC, 100 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ Homeline™ Combination Service Entrance Meter Main, 8-Space 16-Circuit All-In-One Field Installed Horn Bypass Rainproof, 120/240 VAC, 100 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 5 Jaws, 12 to 2/0 AWG, 6 AWG to 350 kcmil Wire, A Hub, Ringless Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 14.37 in W x 4.67 in D x 35.13 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application Residential, Indoor and Service Entrance Equipment Applications
 Brand Name Square D
 Cover Type Ringless
 Dimensions 14.37 in W x 4.67 in D x 35.13 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Frequency Rating 50/60 Hz
 Hub Type A
 Includes Closing Plate Hub, Factory Installed Barrel Lock and Load Side Feed Through Lugs
 Manufacturer Part Number RC816F100CH
 Mounting Type Surface
 Number of Jaws 5
 Phase 1
 Standards/Approvals RoHS Compliant|UL 50|UL 67|UL 414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Certified|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov|CSA Approved
 Terminal Type Line/Lug
 Type 8-Space 16-Circuit All-In-One Field Installed Horn Bypass Rainproof
 Voltage Rating 120/240 VAC

Features

▪ Multiple disconnect units can accommodate plug-on surge Breaker™ secondary surge arrester
▪ Multiple disconnect units can be converted to semi-flush with addition of flange kit
▪ 6 AWG to 350 kcmil line side main, 12 to 2/0 AWG service ground lug
▪ 3-wire configuration
▪ Surface mount or convertible to semi-flush with field installed flange kit
▪ 5th jaw factory installed
