Schneider Electric
  • RC816D400SL SQD METER MAIN 400A
  • RC816D400SL SQD METER MAIN 400A
  • RC816D400SL SQD METER MAIN 400A
  • RC816D400SL SQD METER MAIN 400A

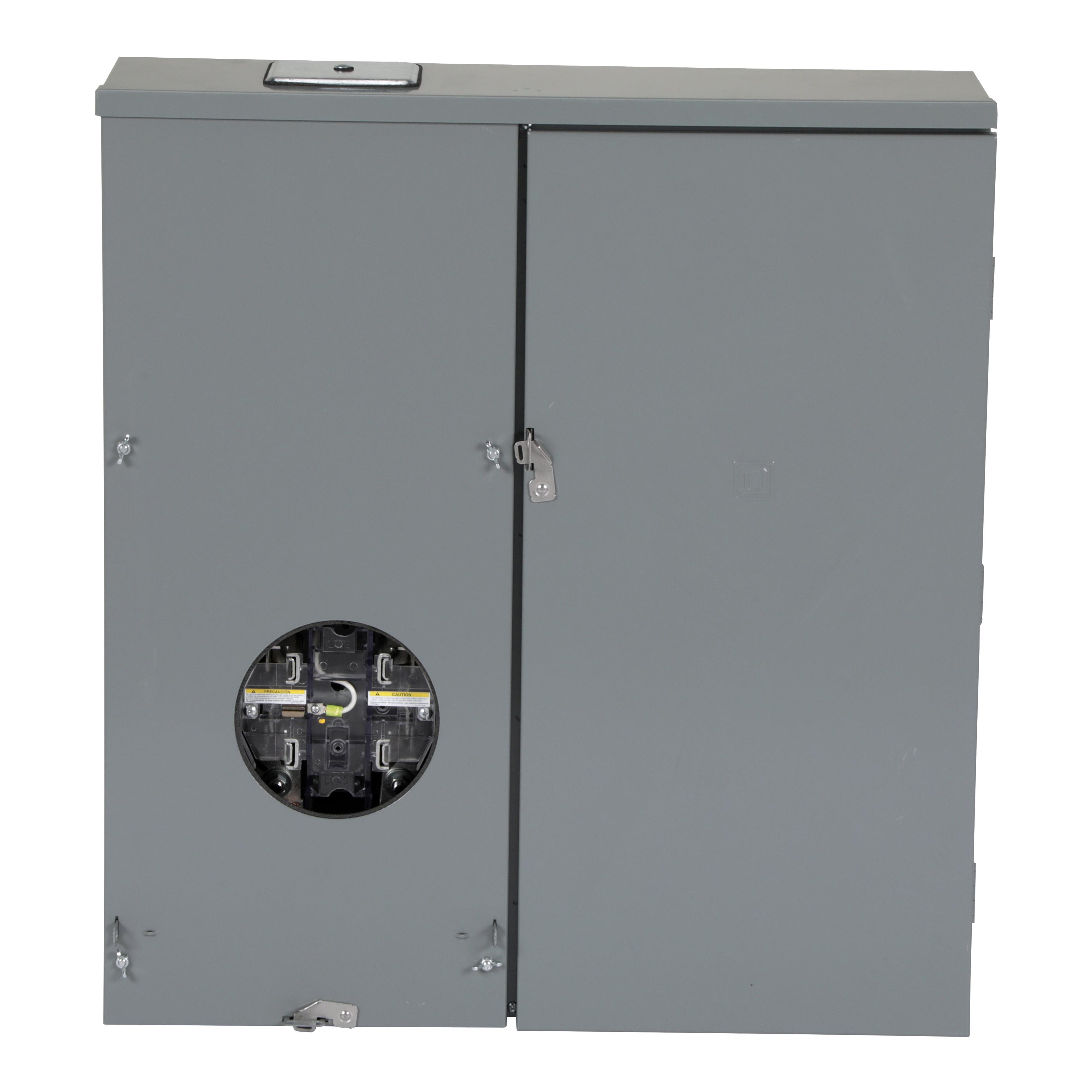

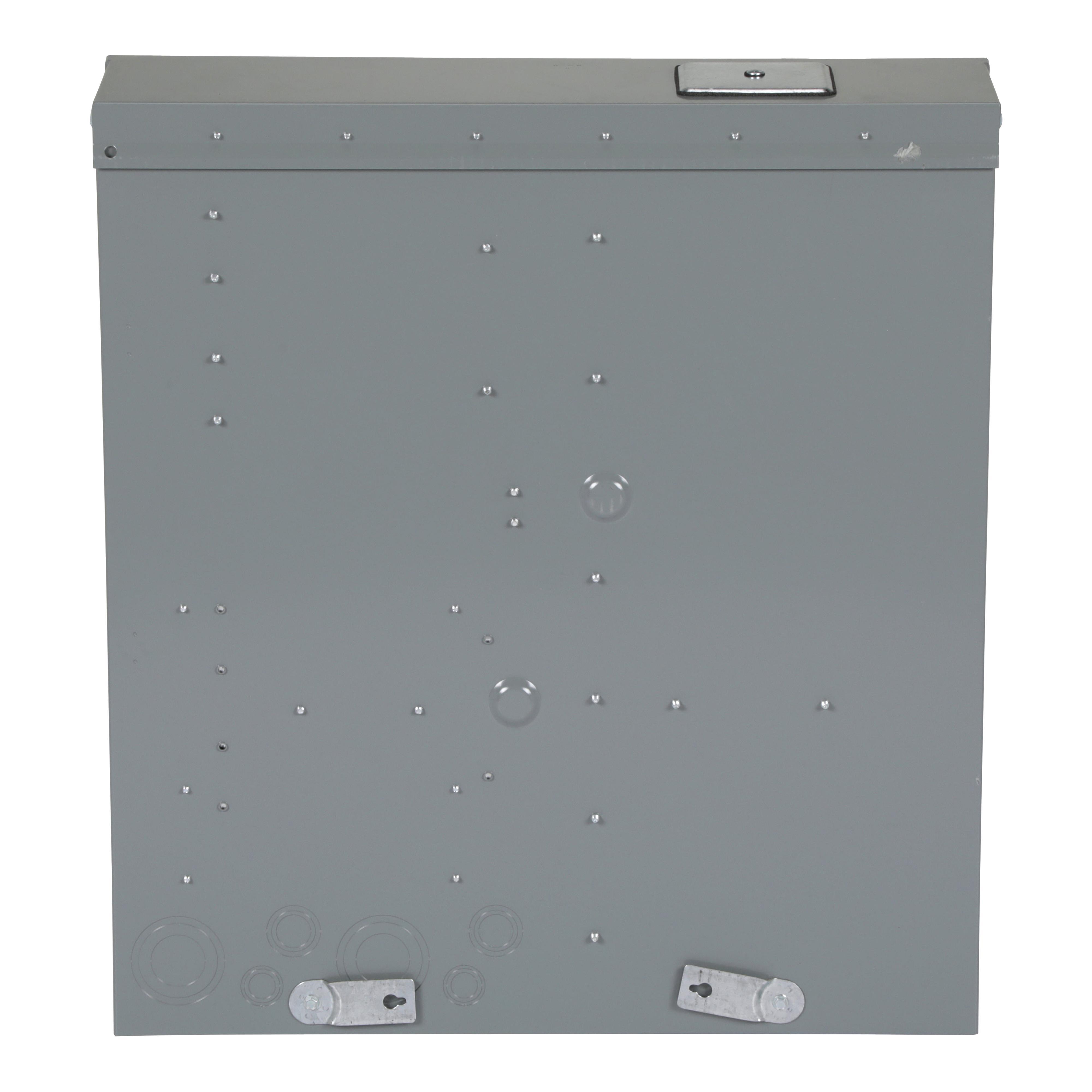

Description: Square D™ HomeLine™ Combination Service Entrance Meter Main, 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 V AC, 400 A, 1, Overhead/Underground Feed, 5 Jaws, 4 AWG to 600 kcmil, 1/0 AWG to 350 kcmil Aluminum/Copper Wire, Ringless Cover, Feed-Through Lug Terminal, Surface Mount, NEMA 3R, 32.68 in H x 28.27 in W x 7.89 in D

Manufacturer PN: RC816D400SL

UPC:  78590133527

Kendall Electric Inc PN: 3963218

Invoice Description:

RC816D400SL SQD METER MAIN 400A


SPEC SHEET

▸ See All in Meter Mains


How Can We Make This Page Better?

Square D™ HomeLine™ RC816D400SL 3-Wire 8-Circuit 16-Space Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Lever Bypass, 120/240 V AC, 400 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a Homeline ringless type with horn bypass, and combination overhead/underground feed. With a current rating of 400A, this product has a short circuit current rating of 22kA. Single main service disconnects option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 V AC, 400 A, 1, Overhead/Underground Feed, 5 Jaws, 4 AWG to 600 kcmil, 1/0 AWG to 350 kcmil Aluminum/Copper Wire, Ringless Cover, Feed-Through Lug Terminal, Surface Mount, NEMA 3R, 32.68 in H x 28.27 in W x 7.89 in D

Specifications

 Amperage Rating 400 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ringless
 Dimensions 32.68 in H x 28.27 in W x 7.89 in D
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Includes Factory Installed Barrel Lock
 Manufacturer Part Number RC816D400SL
 Mounting Type Surface
 Number of Jaws 5
 Phase 1
 Standards/Approvals UL 50/67/414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Certified|Federal Specification W-P-115C|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|CSA Approved
 Terminal Type Feed-Through Lug
 Type 3-Wire 8-Circuit 16-Space Field Installed Rainproof
 Voltage Rating 120/240 V AC

Features

▪ Homeline ringless meter mains support standard utility meters and a main disconnect breakers
▪ This single compact solution provides a time and space saving solution for contractors and installers
▪ Suitable for use as service entrance equipment
▪ CSED allows for the meter socket to integrate with the load center into one compact design
