Schneider Electric

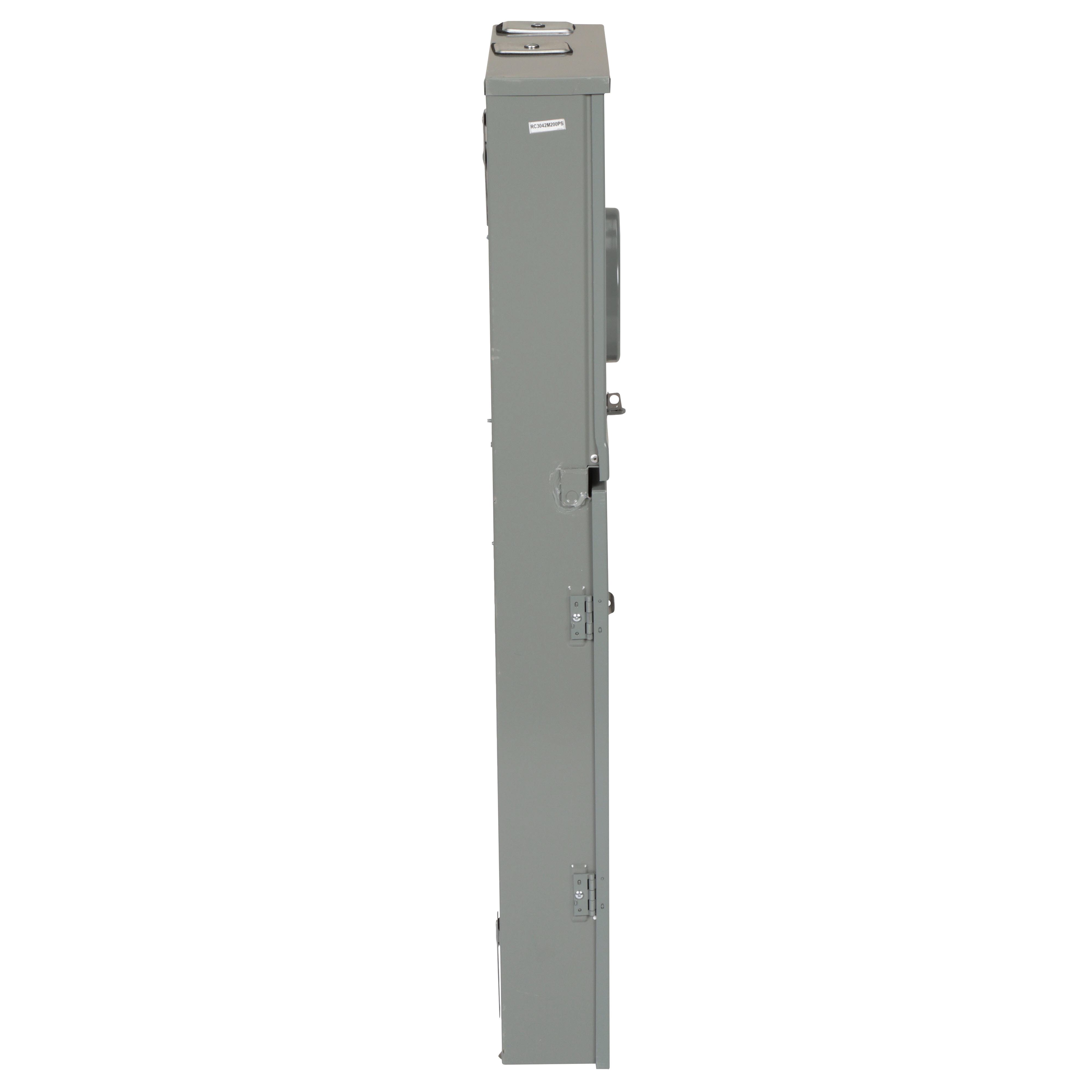

  • RC3042M200PS SQD ALL-IN-ONE
  • RC3042M200PS SQD ALL-IN-ONE
  • RC3042M200PS SQD ALL-IN-ONE

Description: Square D™ Homeline™ Combination Service Entrance Meter Main, All-in-One 30-Space 42-Circuit, 200 A, Overhead/Underground Feed, 12 to 2/0 AWG Wire, A Hub, Ringless Cover, Surface Mounting, NEMA 3R Enclosure, 18.76 in W x 5.41 in D x 45.47 in H Dimensions

Manufacturer PN: RC3042M200PS

UPC:  78590100973

Kendall Electric Inc PN: 4370218

Invoice Description:

RC3042M200PS SQD ALL-IN-ONE


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

Square D™ Homeline™ RC3042M200PS All-in-One 30-Space 42-Circuit Combination Service Entrance Meter Main, 200 A, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device with a plug on neutral has a ringless meter socket. This unit has no bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2200VH which has a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 30 spaces which will accept up to 12 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 45.47 inches tall, 18.78 inches wide and 4.41 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance device with plug on neutral is UL Listed.
Square D™ Homeline™ Combination Service Entrance Meter Main, All-in-One 30-Space 42-Circuit, 200 A, Overhead/Underground Feed, 12 to 2/0 AWG Wire, A Hub, Ringless Cover, Surface Mounting, NEMA 3R Enclosure, 18.76 in W x 5.41 in D x 45.47 in H Dimensions

Specifications

 Amperage Rating 200 A
 Brand Name Square D
 Cover Type Ringless
 Dimensions 18.76 in W x 5.41 in D x 45.47 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Hub Type A
 Manufacturer Part Number RC3042M200PS
 Mounting Type Surface
 Standards/Approvals REACH Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
 Type All-in-One 30-Space 42-Circuit

Features

▪ Homeline All in ones CSEDs support standard utility meters and a main disconnect breakers
▪ This single compact solution provides a time and space saving solution for contractors and installers
▪ Suitable for use as service entrance equipment
▪ CSED allows for the meter socket to integrate with the load center into one compact design
