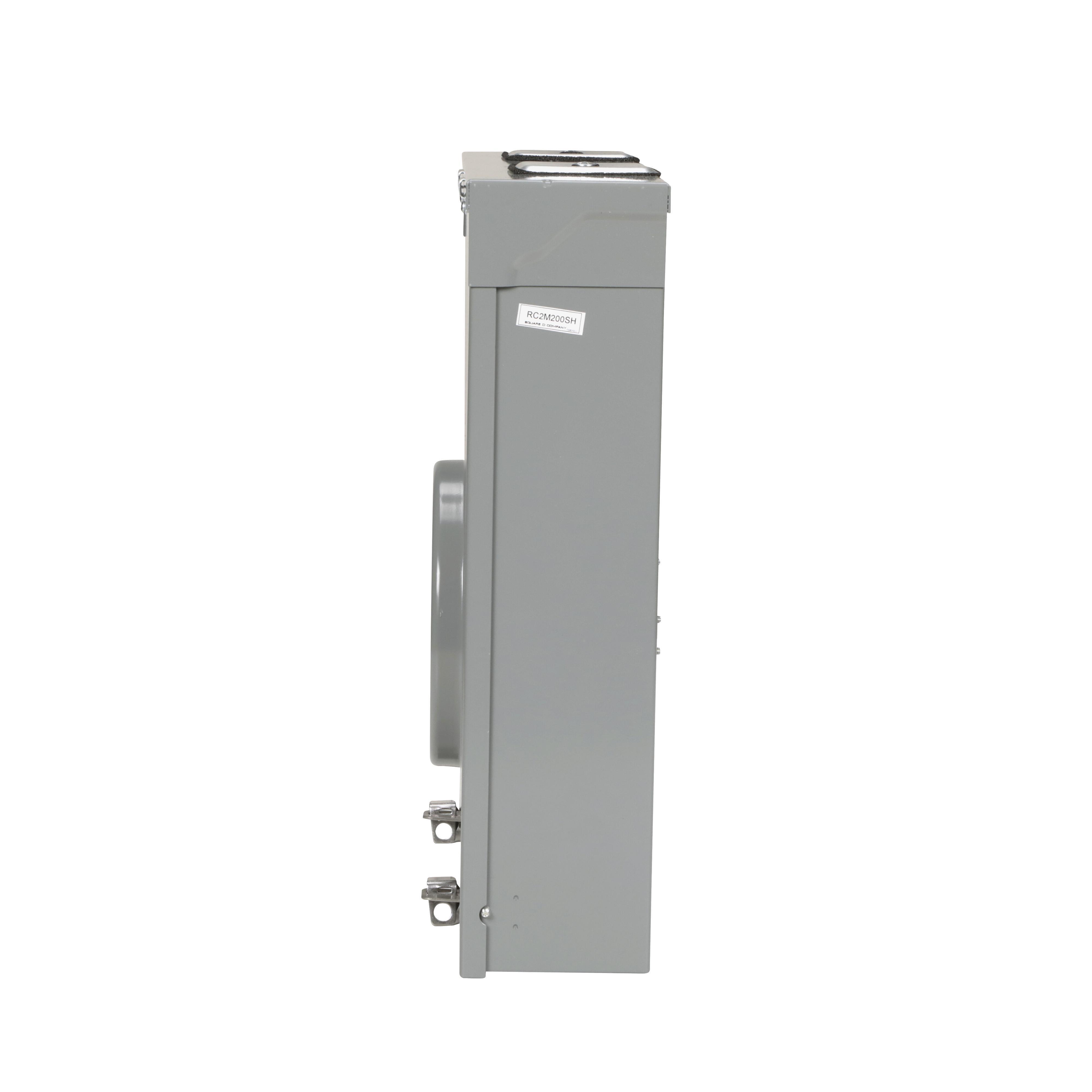

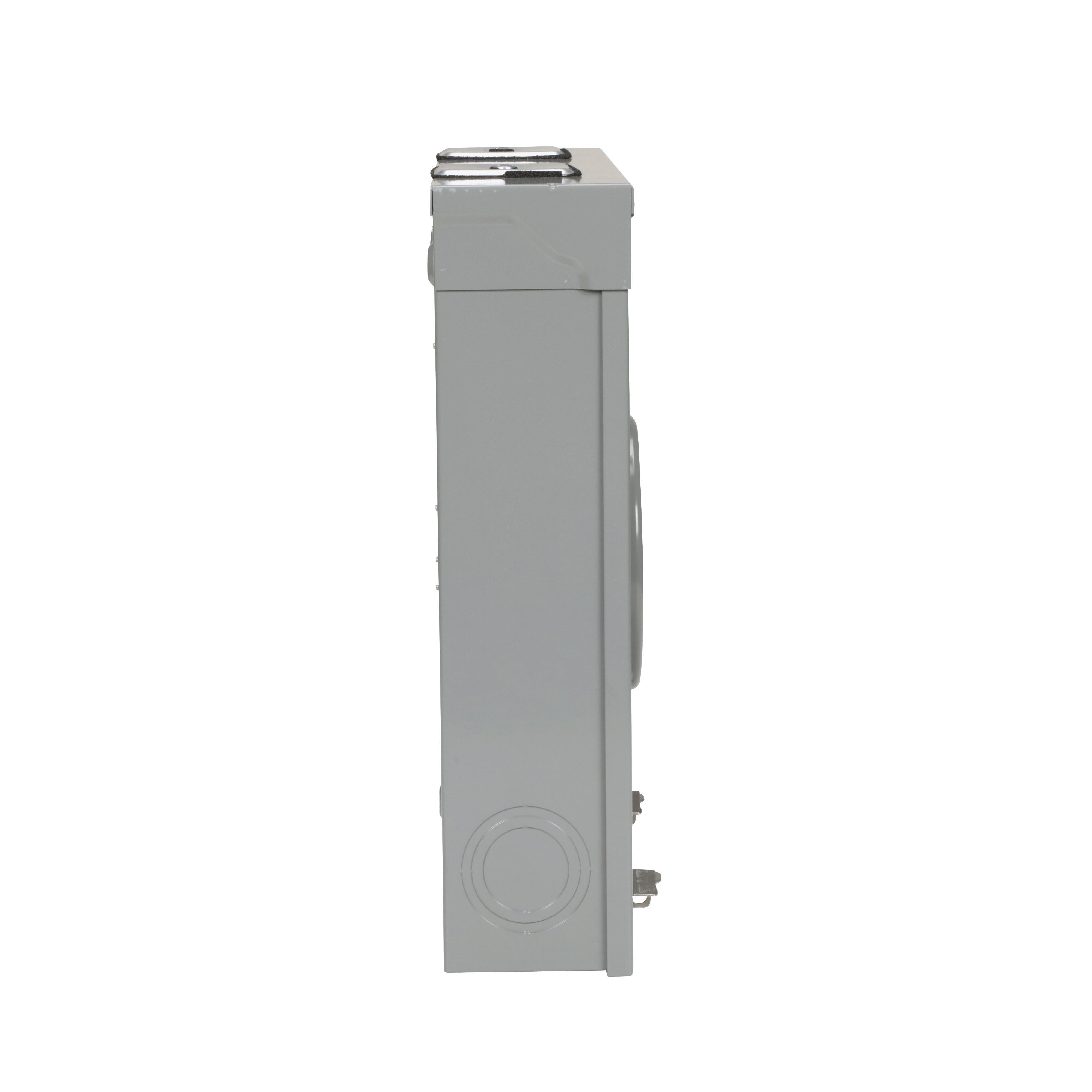

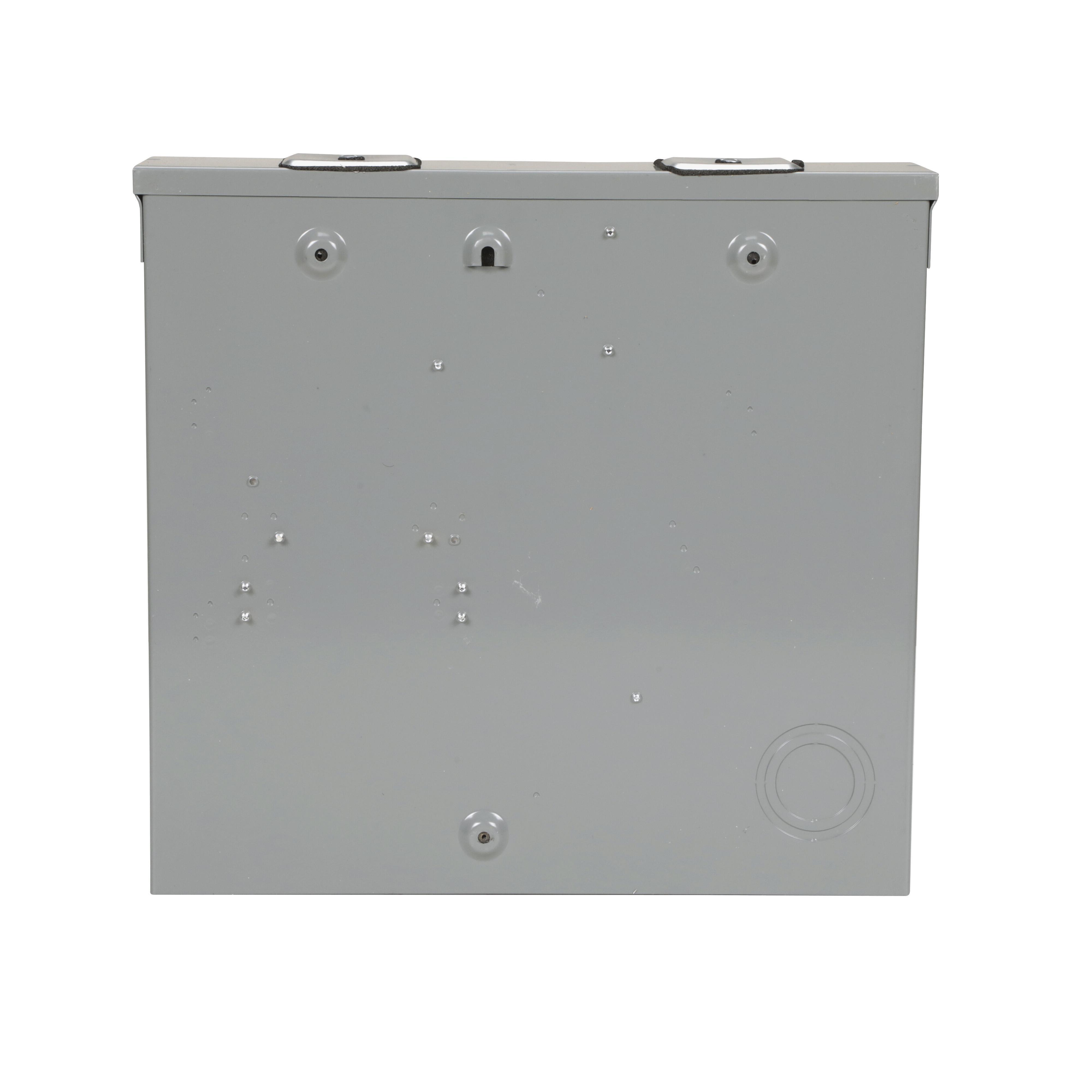

Description: Square D™ HomeLine™ Combination Service Entrance Meter Main, 3-Wire Field Installed Rainproof, 120/240 V AC, 200 A, 1 Phase, Overhead/Underground Feed, 5 Jaws, 6 AWG to 300 kcmil Aluminum/Copper, 8 to 2/0 AWG Aluminum/Copper Wire, A Hub, 1/2 in Hub, Ringless Cover, Line/Service Ground Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 18.23 in H x 19.58 in W x 4.6 in D Dimensions

Manufacturer PN: RC2M200S

UPC:  78590139669

Kendall Electric Inc PN: 4871370

Invoice Description:

RC2M200S SQD METER MAIN RINGLESS


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

Square D™ HomeLine™ RC2M200S 3-Wire Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 V AC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This QO All In One combination service entrance device has a ringless meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect, which must be ordered separately, is a QOM2 VH (200 A maximum) and a QO VH (50 A maximum). Device has a 22 kA short circuit current rating. Load center has no spaces. This unit has a NEMA 3R surface mounting enclosure that is 18.23 inches tall, 19.58 inches wide and 4.60 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept up to two 8 AWG to 2/0 AWG copper or aluminum wire. This QO combination service entrance device is UL Listed. Device meets EUSERC standards.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 3-Wire Field Installed Rainproof, 120/240 V AC, 200 A, 1 Phase, Overhead/Underground Feed, 5 Jaws, 6 AWG to 300 kcmil Aluminum/Copper, 8 to 2/0 AWG Aluminum/Copper Wire, A Hub, 1/2 in Hub, Ringless Cover, Line/Service Ground Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 18.23 in H x 19.58 in W x 4.6 in D Dimensions

Specifications

 Amperage Rating 200 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ringless
 Dimensions 18.23 in H x 19.58 in W x 4.6 in D
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Hub Size 1/2 in
 Hub Type A
 Includes Factory Installed Barrel Lock
 Manufacturer Part Number RC2M200S
 Mounting Type Surface
 Number of Jaws 5
 Phase 1
 Standards/Approvals RoHS Compliant|UL 50|UL 67|UL 414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|CSA Approved
 Terminal Type Line/Service Ground Lug
 Type 3-Wire Field Installed Rainproof
 Voltage Rating 120/240 V AC

Features

▪ Homeline ringless meter mains support standard utility meters and a main disconnect breakers
▪ This single compact solution provides a time and space saving solution for contractors and installers
▪ Suitable for use as service entrance equipment
▪ CSED allows for the meter socket to integrate with the load center into one compact design
