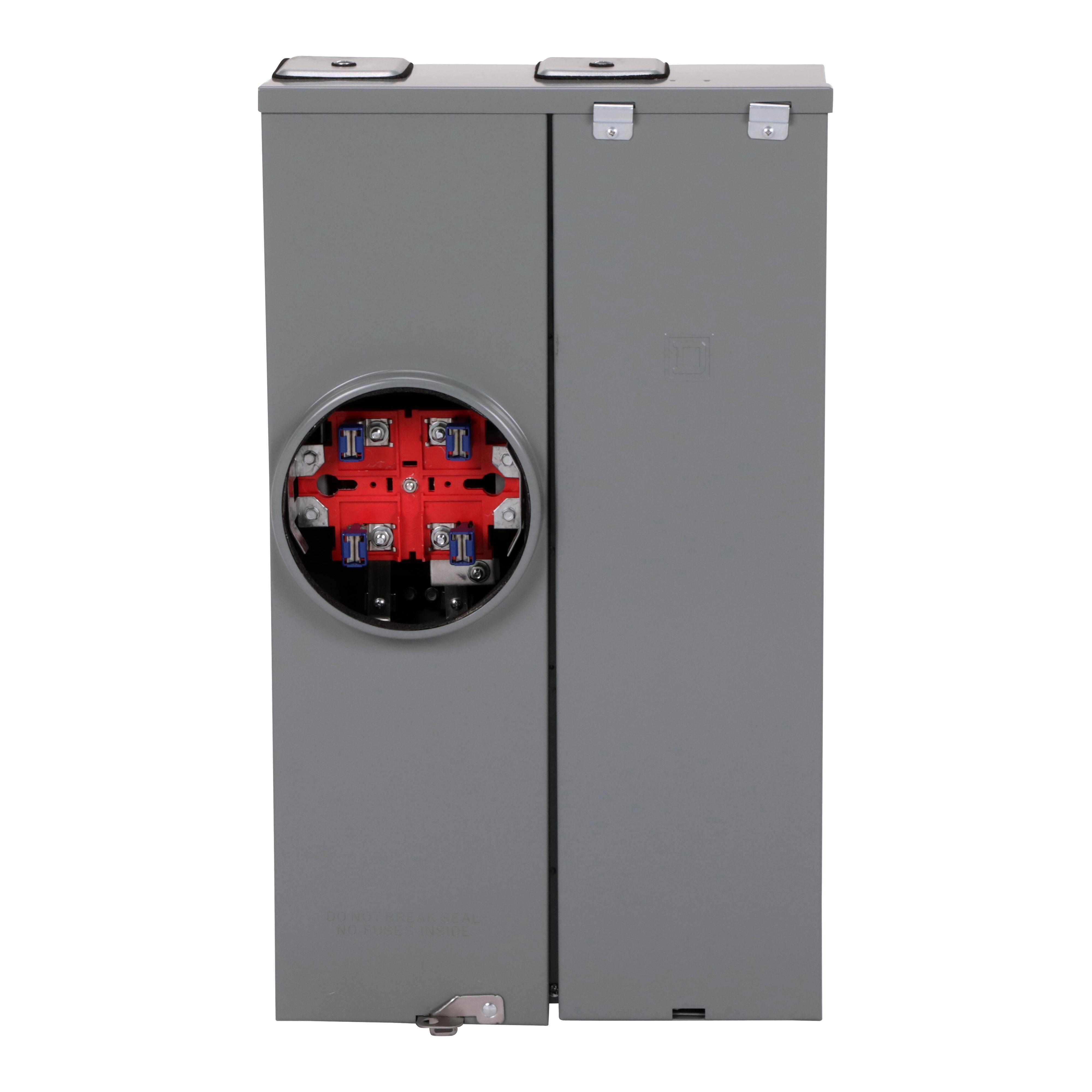

Description: Square D™ HomeLine™ Combination Service Entrance Meter Main, 16-Circuit 24-Space All-In-One Field Installed Rainproof, 120/240 V AC, 100 A, 1 Phase, Overhead/Underground Feed, 6 to 2/0 AWG Aluminum/Copper Wire, A Hub, 2-1/2 in Hub, Ringless Cover, Line/Service Ground Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 25.12 in H x 14.77 in W x 4.8 in D Dimensions

Manufacturer PN: RC1624M100S

UPC:  78590130884

Kendall Electric Inc PN: 4570421

Invoice Description:

RC1624M100S SQD ALL IN ONE RINGLESS


SPEC SHEET

How Can We Make This Page Better?

Square D™ HomeLine™ RC1624M100S 16-Circuit 24-Space All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 V AC, 100 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 16 spaces and 24 circuits. This surface mounted device has UL listed rated current rating as 100A and short-circuit current 10kA. Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 16-Circuit 24-Space All-In-One Field Installed Rainproof, 120/240 V AC, 100 A, 1 Phase, Overhead/Underground Feed, 6 to 2/0 AWG Aluminum/Copper Wire, A Hub, 2-1/2 in Hub, Ringless Cover, Line/Service Ground Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 25.12 in H x 14.77 in W x 4.8 in D Dimensions

Specifications

 Amperage Rating 100 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ringless

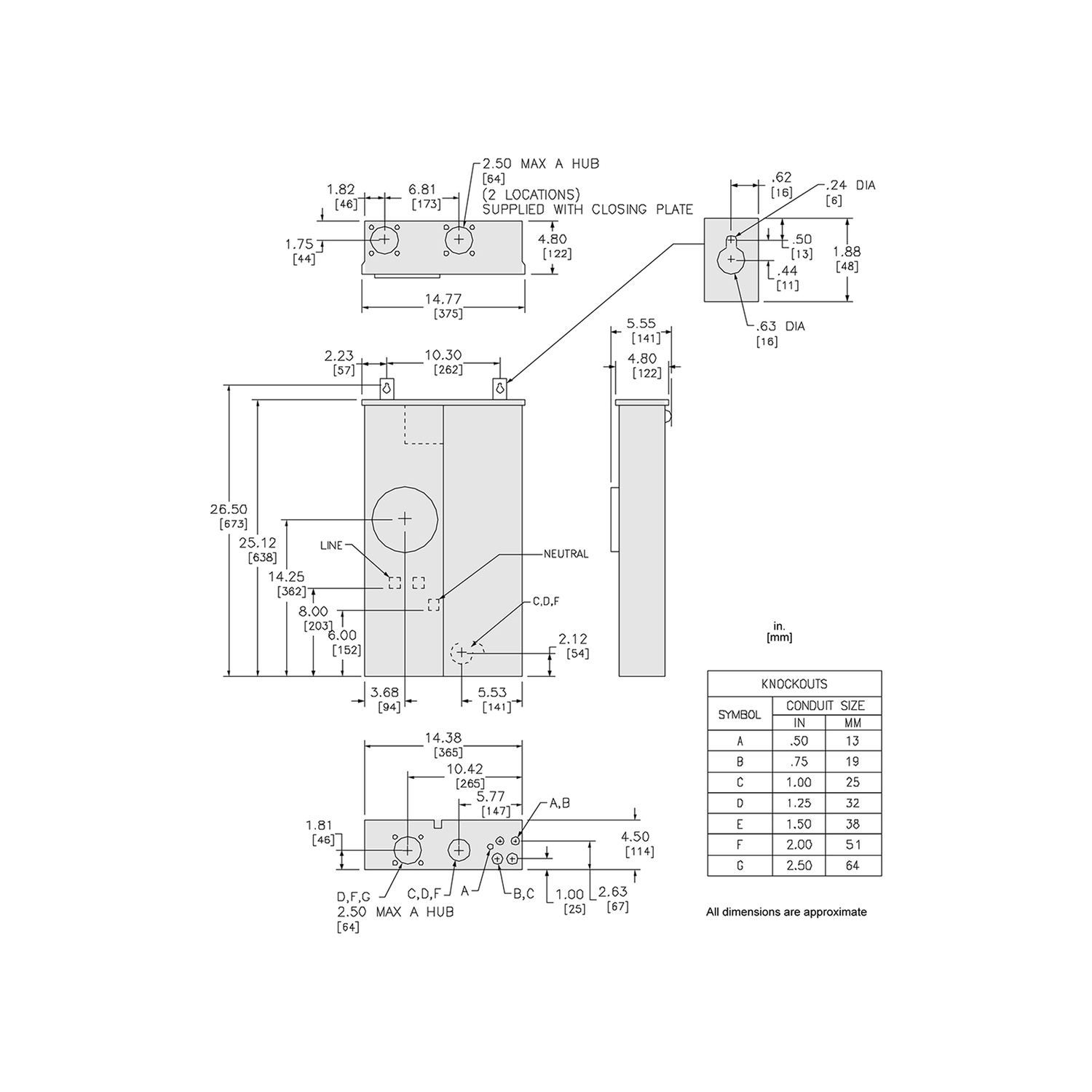

 Dimensions 25.12 in H x 14.77 in W x 4.8 in D
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Hub Size 2-1/2 in
 Hub Type A
 Manufacturer Part Number RC1624M100S
 Mounting Type Surface
 PART NUMBER KEYWORDS RC1624M100S ; 8131024 ; 785901308843 ; 78590130884 ; 00785901308843 ; 0785901308843
 Phase 1
 Standards/Approvals RoHS Compliant|UL 50|UL 67|UL 414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|CSA Approved
 Terminal Type Line/Service Ground Lug
 Type 16-Circuit 24-Space All-In-One Field Installed Rainproof
 Voltage Rating 120/240 V AC

Features

▪ Compatible with Homeline plug in mount breakers
▪ Suitable for use as service entrance equipment
▪ 16-spaces, 24 circuits
▪ Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
