Schneider Electric

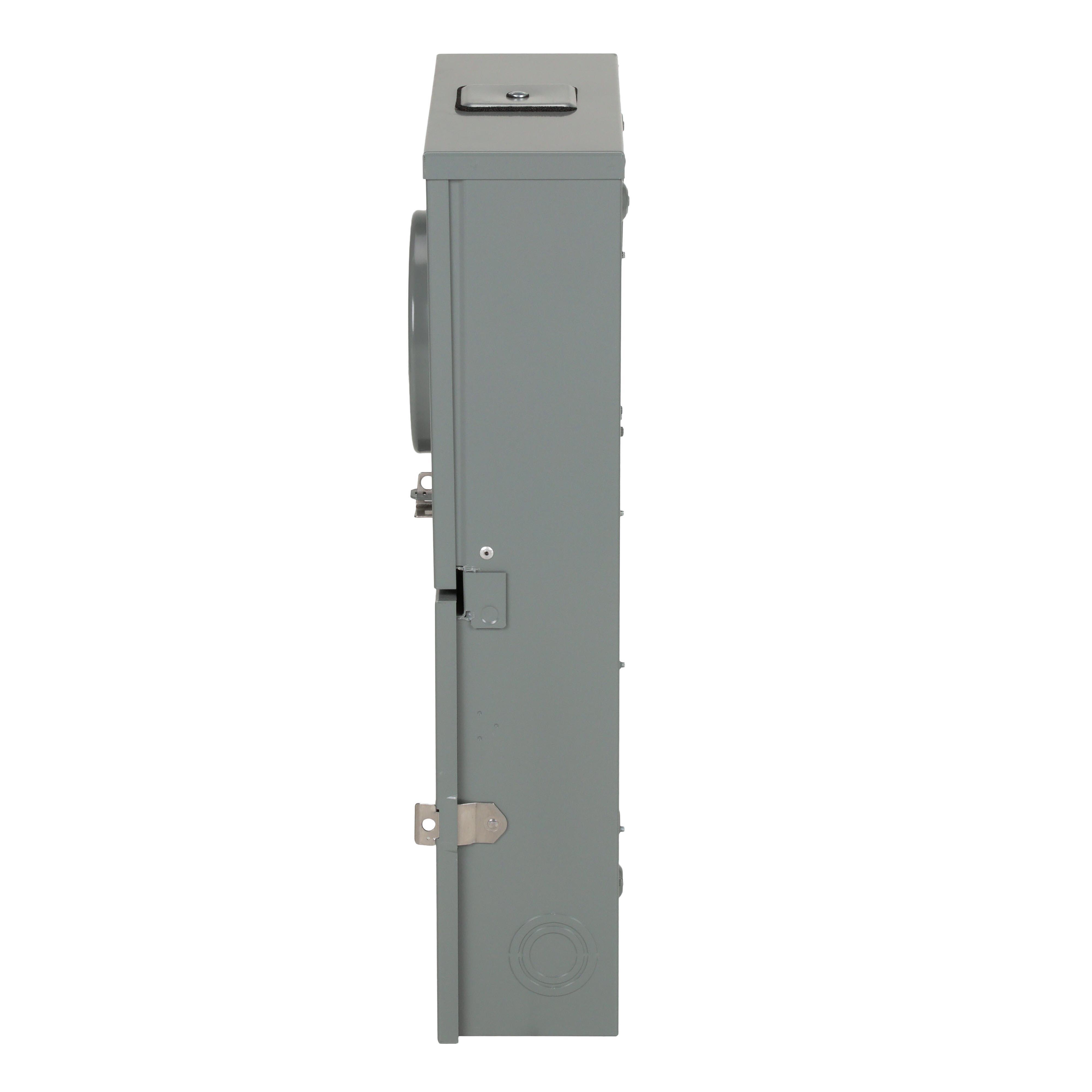

  • RC12L200C SQD METER MAIN RINGLESS
  • RC12L200C SQD METER MAIN RINGLESS
  • RC12L200C SQD METER MAIN RINGLESS

Description: Square D™ HomeLine™ Combination Service Entrance Meter Main, 12-Circuit All-In-One Field Installed Rainproof, 120/240/208Y/120 VAC, 200 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 4 Jaws, 6 AWG to 350 kcmil/12 to 2/0 AWG Wire, A Hub, Ringless Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 14.37 in W x 4.67 in D x 35.13 in H Dimensions

Manufacturer PN: RC12L200C

UPC:  78590186398

Kendall Electric Inc PN: 4906822

Invoice Description:

RC12L200C SQD METER MAIN RINGLESS


SPEC SHEET

▸ See All in Meter Mains


How Can We Make This Page Better?

Square D™ HomeLine™ RC12L200C 12-Circuit All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240/208Y/120 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 12-Circuit All-In-One Field Installed Rainproof, 120/240/208Y/120 VAC, 200 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 4 Jaws, 6 AWG to 350 kcmil/12 to 2/0 AWG Wire, A Hub, Ringless Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 14.37 in W x 4.67 in D x 35.13 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application Residential and Indoor Applications
 Brand Name Square D
 Cover Type Ringless
 Dimensions 14.37 in W x 4.67 in D x 35.13 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Frequency Rating 50/60 Hz
 Hub Size A
 Includes Closing Plate Hub and Factory Installed Barrel Lock
 Manufacturer Part Number RC12L200C
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Standards/Approvals BAA Compliant|RoHS Compliant|UL 50/67/414 File #E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|CSA Approved
 Terminal Type Line/Lug
 Type 12-Circuit All-In-One Field Installed Rainproof
 Voltage Rating 120/240/208Y/120 VAC

Features

▪ Multiple disconnect units can accommodate plug-on surge Breaker™ secondary surge arrester
▪ Multiple disconnect units can be converted to semi-flush with addition of flange kit
▪ 6 AWG to 350 kcmil line side main, 12 to 2/0 AWG service ground lug
▪ Without bypass
▪ Surface mount or convertible to semi-flush with field installed flange kit
