Eaton

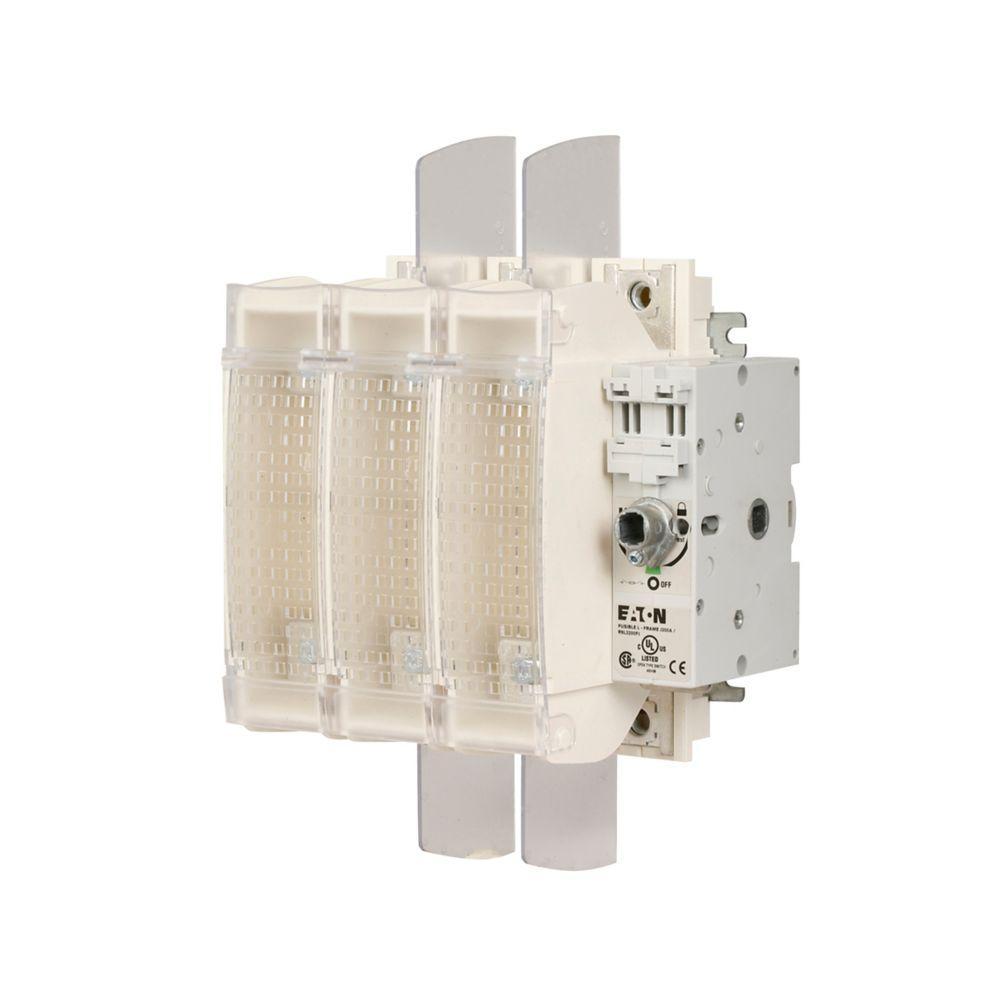

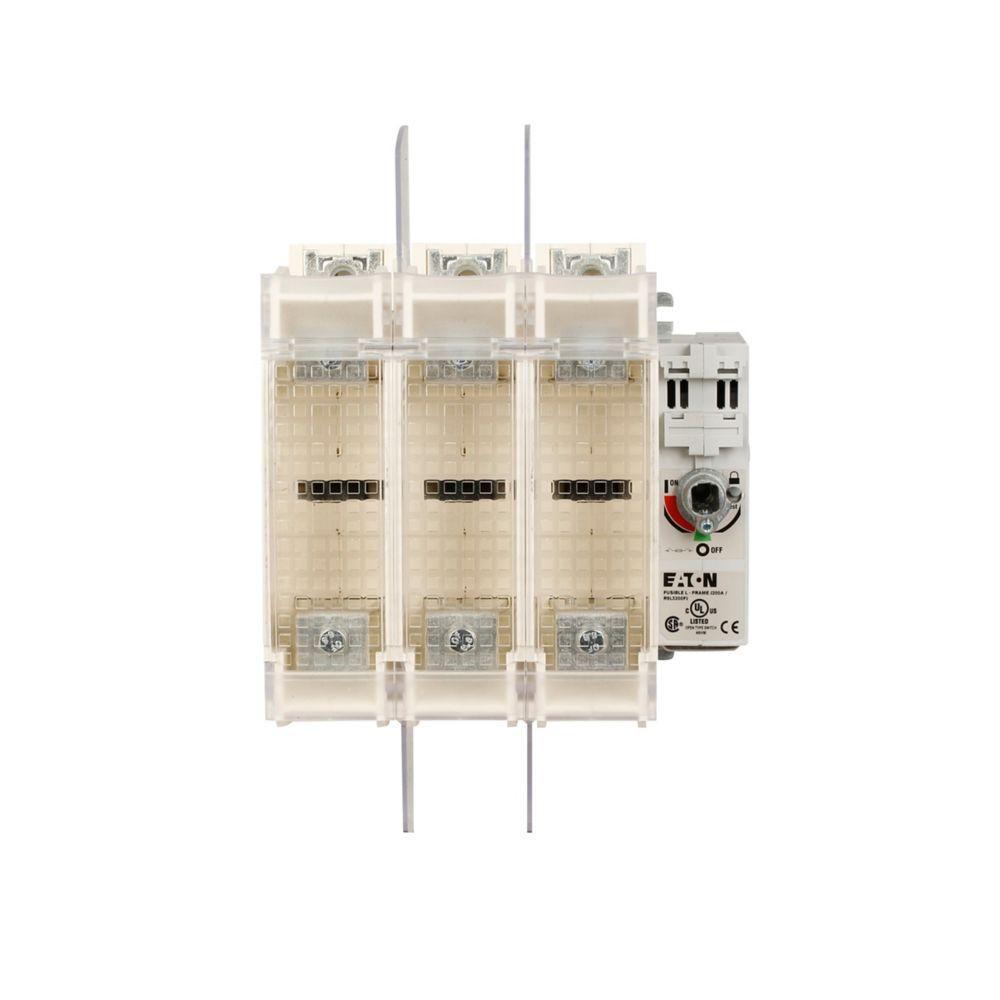

R9L3200FJ CH UL98 L-FRAME 3P 200A J-FUSIBLE ROTARY DISCONNECT

Mouse over image to zoom, click to enlarge

  • R9L3200FJ CH UL98 L-FRAME 3P 200A J-FUSIBLE ROTARY DISCONNECT
  • R9L3200FJ CH UL98 L-FRAME 3P 200A J-FUSIBLE ROTARY DISCONNECT
  • R9L3200FJ CH UL98 L-FRAME 3P 200A J-FUSIBLE ROTARY DISCONNECT

Description: EATON Rotary Disconnect Switch, L -Frame Fusible, Series: R9 Series, 600 V AC, 200 A, 144 hp, 150 hp, 3 ph, 3 Pole, 200 kA Short Circuit, Rotary Handle Actuator, Class J Insulation, DIN Rail Mount, Lug Terminal, 5.12 in L x 7.69 in W x 11.47 in H

Manufacturer PN: R9L3200FJ

UPC:  78668540881

Kendall Electric Inc PN: 2811392

Invoice Description:

R9L3200FJ CH UL98 L-FRAME 3P 200A J-FUSIBLE ROTARY DISCONNECT


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

EATON R9L3200FJ L -Frame Fusible Rotary Disconnect Switch, 600 V AC, 200 A, 144 hp, 150 hp, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's full-range of rotary disconnects offers a compact, economical, and high-quality choice for switching and isolation spanning a range from 16A - 1200A. The R5 Series of switches are UL 508 listed devices, suitable for use as motor disconnects. The R9 offering consists of UL 98 listed fusible and non-fusible products that may be used for service entrance, or anywhere a local means of disconnect is needed or required.
EATON Rotary Disconnect Switch, L -Frame Fusible, Series: R9 Series, 600 V AC, 200 A, 144 hp, 150 hp, 3 ph, 3 Pole, 200 kA Short Circuit, Rotary Handle Actuator, Class J Insulation, DIN Rail Mount, Lug Terminal, 5.12 in L x 7.69 in W x 11.47 in H

Specifications

 Actuator Type Rotary Handle
 Amperage Rating 200 A
 Application Industrial Facilities, Factories, Control and Power Distribution Applications
 Brand Name EATON
 Dimensions 5.12 in L x 7.69 in W x 11.47 in H
 Horsepower 144 hp, 150 hp
 Manufacturer Part Number R9L3200FJ
 Mounting Type DIN Rail
 Number of Poles 3
 Phase 3
 Series R9 Series
 Short Circuit Current Rating 200 kA
 Standards/Approvals UL 98,IEC Rated,CSA Certified,CE Marked,NFPA 79
 Terminal Type Lug
 Type L -Frame Fusible
 Video Links
 Voltage Rating 600 V AC

Features

▪ Load break functionality
▪ Double break contacts
▪ Compact footprints
▪ This function provides a simple alternative to a separately wired pushbutton
▪ Defeatable pistol handles automatically re-latch when the panel door is closed
▪ Front or side operation
▪ Flange operation
