Eaton

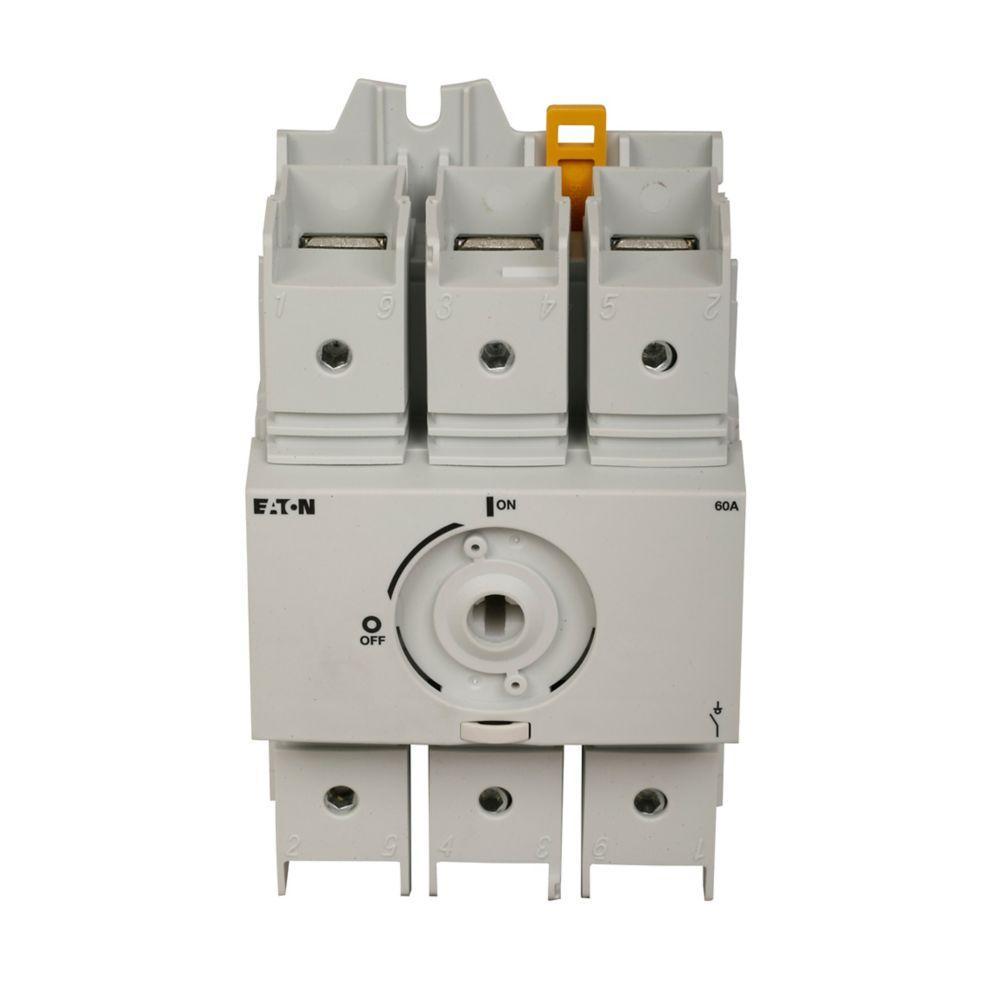

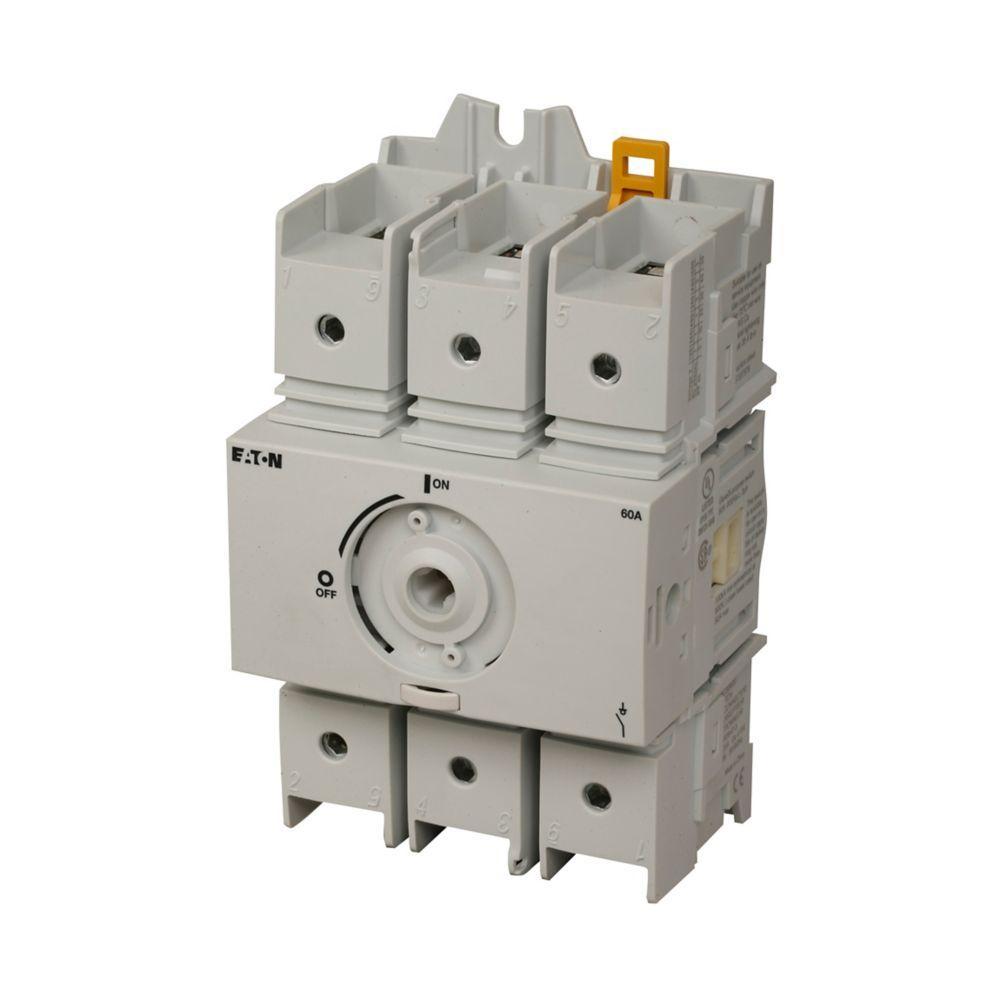

R9C3060U CH UL98, C-FRAME, 3-POLE, 60AMP, NON-FUSIBLE ROTARY DISCONNECT

Mouse over image to zoom, click to enlarge

  • R9C3060U CH UL98, C-FRAME, 3-POLE, 60AMP, NON-FUSIBLE ROTARY DISCONNECT
  • R9C3060U CH UL98, C-FRAME, 3-POLE, 60AMP, NON-FUSIBLE ROTARY DISCONNECT
  • R9C3060U CH UL98, C-FRAME, 3-POLE, 60AMP, NON-FUSIBLE ROTARY DISCONNECT

Description: EATON Rotary Disconnect Switch, C-Frame Non-Fusible, Series: R9 Series, 600 V AC, 60 A, 50 hp, 52 hp, 3 ph, 3 Pole, 2 Wires, 100 kA Short Circuit, Rotary Handle Actuator, DIN Rail Mount, Line/Load Terminal, 2.52 in L x 3.07 in W x 5.62 in H

Manufacturer PN: R9C3060U

UPC:  78668540292

Kendall Electric Inc PN: 2822187

Invoice Description:

R9C3060U CH UL98, C-FRAME, 3-POLE, 60AMP, NON-FUSIBLE ROTARY DISCONNECT


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

EATON R9C3060U C-Frame Non-Fusible Rotary Disconnect Switch, 600 V AC, 60 A, 50 hp, 52 hp, 3 Poles

Log In for Pricing and Availability




Description

Eaton's full-range of rotary disconnects offers a compact, economical, and high-quality choice for switching and isolation spanning a range from 16A - 1200A. The R5 Series of switches are UL 508 listed devices, suitable for use as motor disconnects. The R9 offering consists of UL 98 listed fusible and non-fusible products that may be used for service entrance, or anywhere a local means of disconnect is needed or required.
EATON Rotary Disconnect Switch, C-Frame Non-Fusible, Series: R9 Series, 600 V AC, 60 A, 50 hp, 52 hp, 3 ph, 3 Pole, 2 Wires, 100 kA Short Circuit, Rotary Handle Actuator, DIN Rail Mount, Line/Load Terminal, 2.52 in L x 3.07 in W x 5.62 in H

Specifications

 Actuator Type Rotary Handle
 Amperage Rating 60 A
 Application Industrial Facilities, Factories, Control and Power Distribution Applications
 Brand Name EATON
 Dimensions 2.52 in L x 3.07 in W x 5.62 in H
 Horsepower 50 hp, 52 hp
 Manufacturer Part Number R9C3060U
 Mounting Type DIN Rail
 Number of Poles 3
 Number of Wires 2
 Phase 3
 Series R9 Series
 Short Circuit Current Rating 100 kA
 Standards/Approvals CSA Certified,UL 98,IEC Rated,EN Listed
 Terminal Type Line/Load
 Type C-Frame Non-Fusible
 Video Links
 Voltage Rating 600 V AC

Features

▪ Direct or external operation handle (padlockable in on position)
▪ Double breaking per phase
