Legrand

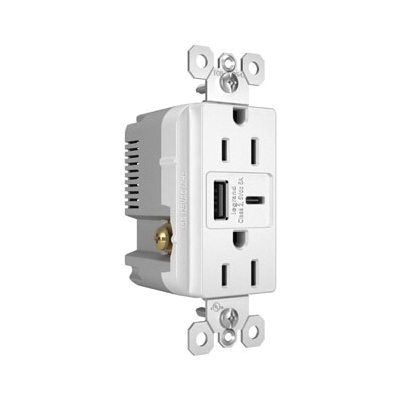

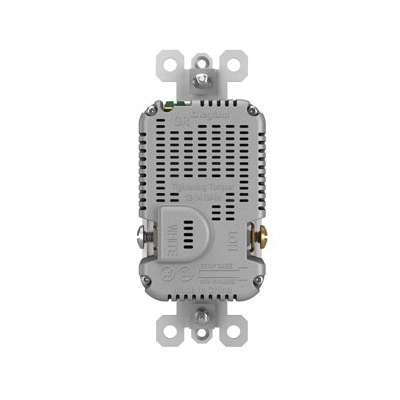

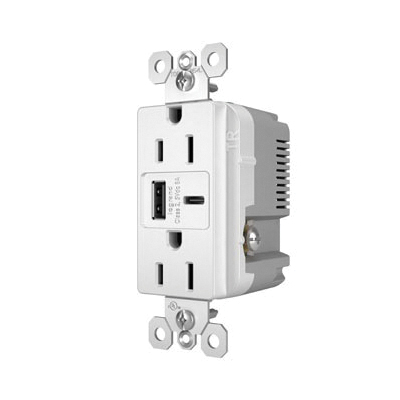

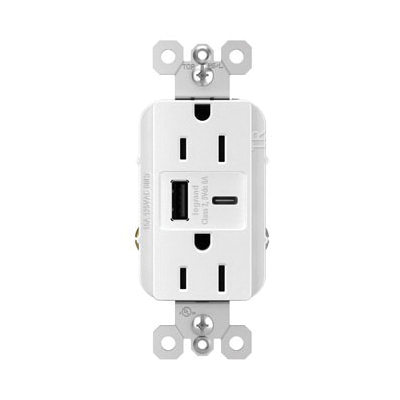

R26USBAC6W P&S RAD A/C FAST CHARG USB + DUP 15A W

Mouse over image to zoom, click to enlarge

  • R26USBAC6W P&S RAD A/C FAST CHARG USB + DUP 15A W
  • R26USBAC6W P&S RAD A/C FAST CHARG USB + DUP 15A W
  • R26USBAC6W P&S RAD A/C FAST CHARG USB + DUP 15A W
  • R26USBAC6W P&S RAD A/C FAST CHARG USB + DUP 15A W
  • R26USBAC6W P&S RAD A/C FAST CHARG USB + DUP 15A W

Description: Pass & Seymour® USB Charging Receptacle, Duplex Hybrid Ultra-Fast, Series: radiant®, 15 A, 125 V AC Electrical Rating, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 2 USB Quantity, 6 A USB, 2.69 in H x 1.74 in W x 1.67 in D Size, Screw Connection, Wiring Method: Back/Side Wire, Nylon/Polycarbonate, White, Environmental Conditions: -40 to 60 deg C Operating Temperature

Manufacturer PN: R26USBAC6W

UPC:  78500720774

Kendall Electric Inc PN: 4119808

Invoice Description:

R26USBAC6W P&S RAD A/C FAST CHARG USB + DUP 15A W


SPEC SHEET

How Can We Make This Page Better?

Pass & Seymour® R26USBAC6W radiant® Duplex Hybrid Ultra-Fast USB Charging Receptacle With 15 A Duplex Tamper-Resistant Receptacle, 15 A, 125 V AC, White

Log In for Pricing and Availability




Description

Install the fastest USB charger on the market. Charge your smartphones, tablets and laptops up to 40% faster than 3 to 5 A USB chargers, while enjoying the added power convenience of tamper-resistant outlets that meet NEC requirements. Industry leading charging capacity of 6 A, shared between both ports. Protects children: patented shutter system helps prevent improper insertion of foreign objects - now with black "invisi-shutters" for an invisible effect. The external brass back wire pressure plate and posted side wire terminal screws make installation fast and easy.
Pass & Seymour® USB Charging Receptacle, Duplex Hybrid Ultra-Fast, Series: radiant®, 15 A, 125 V AC Electrical Rating, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 2 USB Quantity, 6 A USB, 2.69 in H x 1.74 in W x 1.67 in D Size, Screw Connection, Wiring Method: Back/Side Wire, Nylon/Polycarbonate, White, Environmental Conditions: -40 to 60 deg C Operating Temperature

Specifications

 Application Residential, Multiple Dwelling and Hospitality/Lodging Applications
 Brand Name Pass & Seymour®
 Color White
 Connection Screw
 Electrical Ratings 15 A, 125 V AC
 Environmental Conditions -40 to 60 deg C Operating Temperature
 Manufacturer Part Number R26USBAC6W
 Material Nylon/Polycarbonate
 PART NUMBER KEYWORDS R26USBAC6W ; 14776513 ; 785007207743 ; 78500720774 ; 00785007207743
 Series radiant®
 Size 2.69 in H x 1.74 in W x 1.67 in D
 Standards/Approvals NEC Certified|CSA C22.2 No. 223|CSA C22.2 No. 42|cULus Listed|UL File No. E140596|UL 498|UL 1315|UL 94 V-2 Flammability Rating|ECCN: EAR99
 Type Duplex Hybrid Ultra-Fast
 USB Quantity 2
 USB Rating 6 A
 USB Type Type-A USB 2.0/C
 Video Links
 Wiring Method Back/Side Wire

Features

▪ Provides fast and convenient built-in charging, without sacrificing plugs or requiring a bulky adapter
▪ Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with invisi-shutters for an invisible effect
▪ Replaces a traditional outlet easily, in as little as 10 min, with features like scalloped cover design and posted side-wire terminal screws for faster installation
▪ More color options available to fit any style, including finishes to match current hardware and lighting trends
▪ Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
