ABB

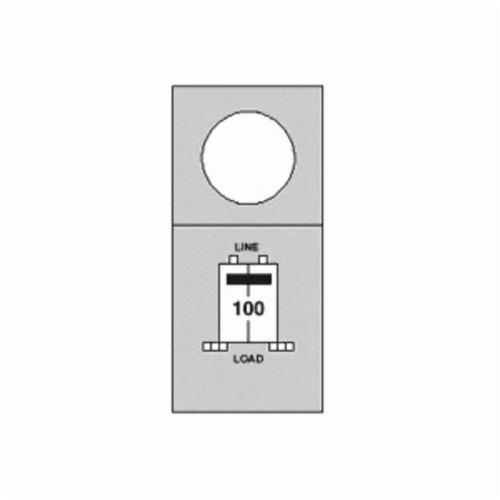

R100T MEP 100AMP 120/240V EQUIP 78456757530

Mouse over image to zoom, click to enlarge

  • R100T MEP 100AMP 120/240V EQUIP 78456757530
  • R100T MEP 100AMP 120/240V EQUIP 78456757530

Description: Midwest® GE Metered Power Outlet, Ringless Triple-Tap, 120/240 VAC, 100 A, 1 ph, CBT2102 Circuit Breaker, Overhead Feed, 10 kA Short Circuit, Lug Connection, NEMA 3R Enclosure, Steel, Surface Mounting

Manufacturer PN: R100T

UPC:  78456757530

Kendall Electric Inc PN: 2214165

Invoice Description:

R100T MEP 100AMP 120/240V EQUIP 78456757530


SPEC SHEET

▸ See All in Metered Power Outlet Panels


How Can We Make This Page Better?

Midwest® GE R100T Ringless Triple-Tap Metered Power Outlet, 120/240 VAC, 100 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Service Entrance products are typically utilized on single family residences and mobile homes. Additionally, Service Entrance for mobile homes is generally located within 30 feet of the mobile home. This location requirement by the NEC and the common use of underground service feeders, combine to make Service Entrance on a pedestal the preferred installation method by many park owners. Midwest offers a broad range of pedestal units, factory assembled and wired, with loop feed lugs to reduce installation time and labor expense. Midwest also offers a wide selection of surface units for single family residences and mobile home sites.
Midwest® GE Metered Power Outlet, Ringless Triple-Tap, 120/240 VAC, 100 A, 1 ph, CBT2102 Circuit Breaker, Overhead Feed, 10 kA Short Circuit, Lug Connection, NEMA 3R Enclosure, Steel, Surface Mounting

Specifications

 Amperage Rating 100 A
 Application Residential and Construction Applications
 Brand Name Midwest®
 Circuit Breaker Type CBT2102
 Connection Type Lug
 Enclosure NEMA 3R
 Feed Type Overhead
 Manufacturer Part Number R100T
 Material Steel
 Mounting Type Surface
 Phase 1
 Short Circuit Current Rating 10 kA
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed
 Type Ringless Triple-Tap
 Voltage Rating 120/240 VAC

Features

▪ Padlock provision to prevent unauthorized entry
▪ No space
▪ 9 x 30 in cabinet size
▪ (2) 1, 1-1/4, 1-1/2in, (2) 1/2, 3/4, 1 in, (1) 9/32 in knockouts
▪ Series wiring configuration
▪ Circuit protection
▪ Hub provision
▪ 3 load lugs per phase
▪ National electric code requires electrical distribution equipment to be rated as "service entrance", wherever electrical power enters a building or other structure
▪ Pedestal units come standard with loop feed lugs to reduce installation time and labor expense
▪ Service entrance equipment is made of heavy, galvanized G90 steel, preventing corrosion and fading
▪ Durable polyester powder coat finish resists chipping and fading
▪ Segregated meter compartment for utility power protection
▪ Weather resistant and tamper resistant GFCI receptacles
▪ Horn bypass comes standard on ringless metered units
▪ copper/aluminum rated field terminations
▪ Factory installed copper/aluminum equipment ground lug
