Schneider Electric
  • QU816D400CL SQD METER MAIN 400A
  • QU816D400CL SQD METER MAIN 400A
  • QU816D400CL SQD METER MAIN 400A

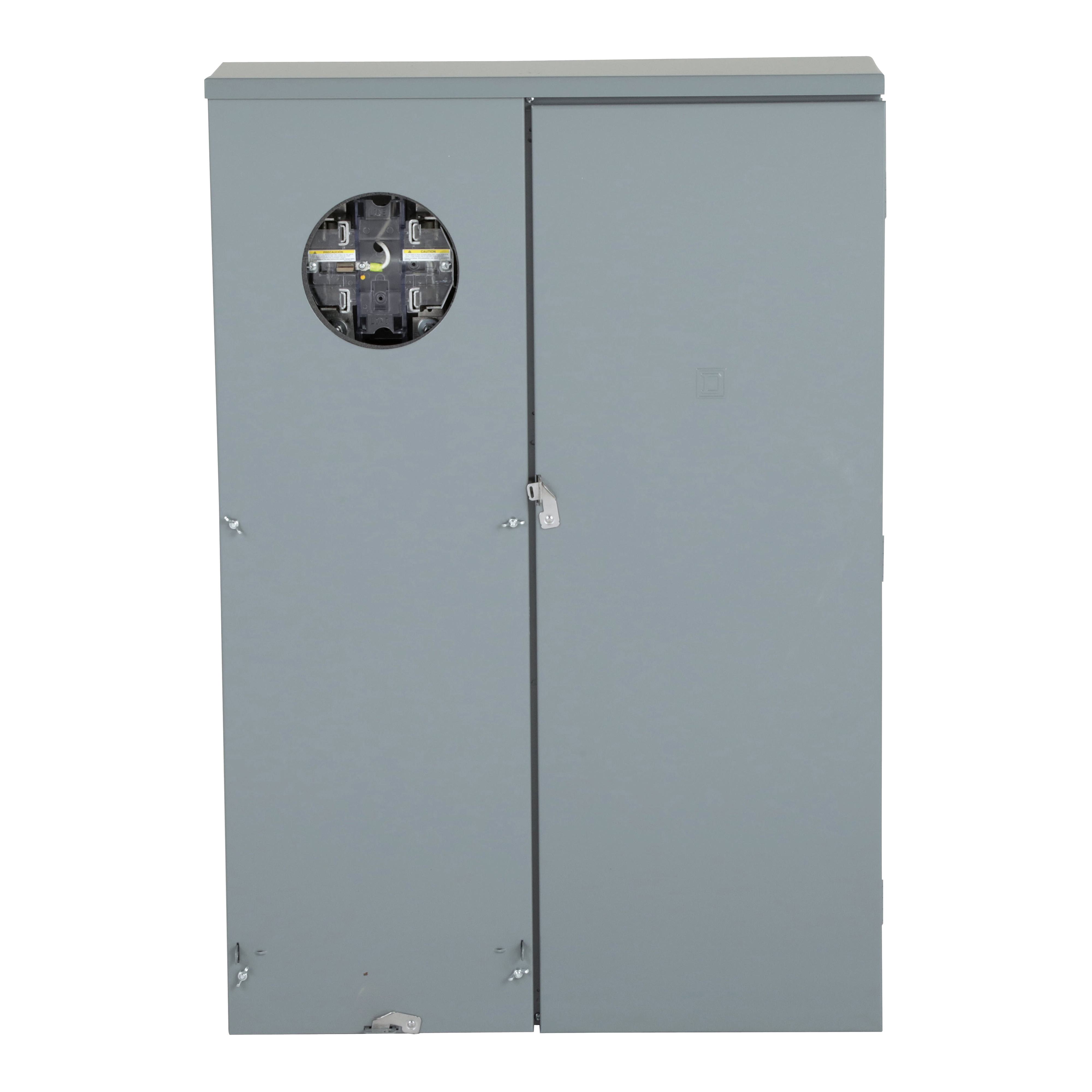

Description: Square D™ QO™ Combination Service Entrance Meter Main, 8-Circuit 16-Space Field Installed Rainproof, 120/240 VAC, 400 A, 1 ph, Underground Feed, 5 Jaws, 4 AWG to 250 kcmil Aluminum/Copper Wire, A-L Hub, 2-1/2 in, 3 in, 3-1/2 in, 4 in Hub, Ringless Cover, Line/Service Ground/Feed Through Lug Terminal, Flush Mounting, NEMA 3R Enclosure, 43 in H x 28-1/4 in W Dimensions

Manufacturer PN: QU816D400CL

UPC:  78590142984

Kendall Electric Inc PN: 4727874

Invoice Description:

QU816D400CL SQD METER MAIN 400A


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

Square D™ QO™ QU816D400CL 8-Circuit 16-Space Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Lever Bypass, Field Installed Flange Kit, 120/240 VAC, 400 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ QO™ Combination Service Entrance Meter Main, 8-Circuit 16-Space Field Installed Rainproof, 120/240 VAC, 400 A, 1 ph, Underground Feed, 5 Jaws, 4 AWG to 250 kcmil Aluminum/Copper Wire, A-L Hub, 2-1/2 in, 3 in, 3-1/2 in, 4 in Hub, Ringless Cover, Line/Service Ground/Feed Through Lug Terminal, Flush Mounting, NEMA 3R Enclosure, 43 in H x 28-1/4 in W Dimensions

Specifications

 Amperage Rating 400 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ringless
 Dimensions 43 in H x 28-1/4 in W
 Enclosure NEMA 3R
 Feed Type Underground
 Hub Size 2-1/2 in, 3 in, 3-1/2 in, 4 in
 Hub Type A-L
 Includes Factory Installed Fifth Jaw
 Manufacturer Part Number QU816D400CL
 Mounting Type Flush
 Number of Jaws 5
 Phase 1
 Standards/Approvals UL 50|UL 67|UL 414|UL File No. E6294|ANSI C12.7|NEMA PB-1|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|CSA Approved
 Terminal Type Line/Service Ground/Feed Through Lug
 Type 8-Circuit 16-Space Field Installed Rainproof
 Voltage Rating 120/240 VAC

Features

▪ Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester
▪ Multiple disconnect units can be converted to semi-flush with addition of flange kit
▪ 4 AWG to 250 kcmil aluminum/copper service ground lug
▪ QO™ panel is rated 200 A maximum
▪ Knockout provided in cover for use with barrel lock kit SCBRLLOCK
