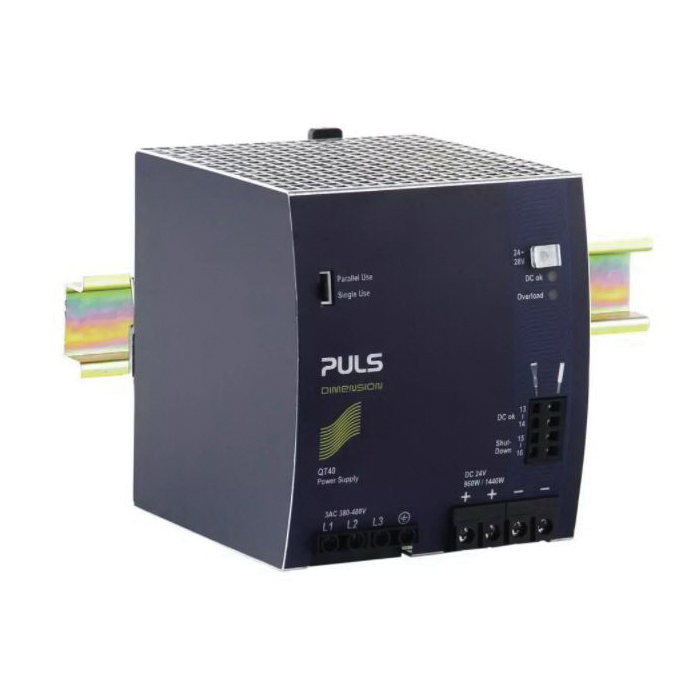

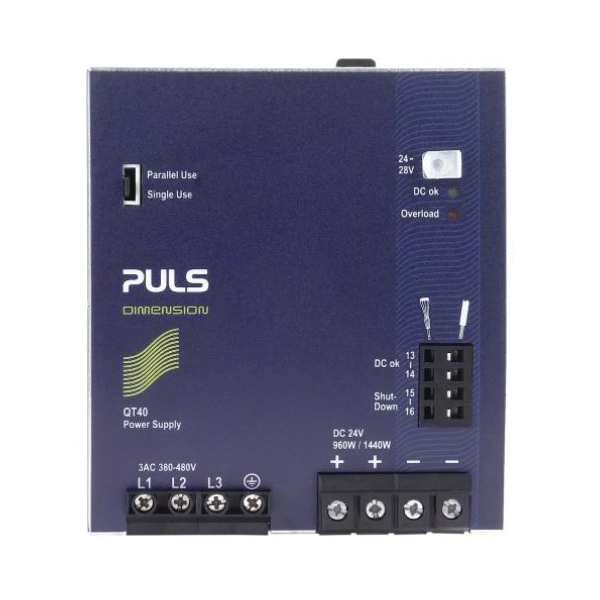

QT40.242 PULS POWER SUPPLY, 960W, 380-480VAC 3PH, 24-28VDC, 40-34.3A WITH EXTENDED LIFETIME

Mouse over image to zoom, click to enlarge

  • QT40.242 PULS POWER SUPPLY, 960W, 380-480VAC 3PH, 24-28VDC, 40-34.3A WITH EXTENDED LIFETIME
  • QT40.242 PULS POWER SUPPLY, 960W, 380-480VAC 3PH, 24-28VDC, 40-34.3A WITH EXTENDED LIFETIME
  • QT40.242 PULS POWER SUPPLY, 960W, 380-480VAC 3PH, 24-28VDC, 40-34.3A WITH EXTENDED LIFETIME

Manufacturer PN: QT40.242

Kendall Electric Inc PN: 3552301

Invoice Description:

QT40.242 PULS POWER SUPPLY, 960W, 380-480VAC 3PH, 24-28VDC, 40-34.3A WITH EXTENDED LIFETIME


SPEC SHEET

▸ See All in DC Power Supplies


How Can We Make This Page Better?

Puls QT40.242 DIN Rail Power Supply for 3-Phase system, 24 V, 40 A

Log In for Pricing and Availability




Specifications

 AC Input Voltage AC 380 - 480 V (-15 %/+10 %)
 Adjustment Range 24 - 28 V
 Brand Name Puls
 Connection Method Screw terminals
 DC OK Signal yes
 Derating 24 W/°C for >+60 °C
 Dimensions WxHxD 110 mm x 124 mm x 127 mm
 Efficiency Typ 95.3 %
 External Input Fuse Recommendation B-6 A / C-6 A
 Harmonic Correction active
 Input Inrush Current 4.5 A
 Input Inrush Current Limitation active
 MTBF SN 29500 40 C H 375000 h
 Mounting Method DIN rail
 Operating Temp Range -25 °C to 70 °C
 Output Current 34.3 A at 28 V
 Output Current Range 40 - 34.3 A
 Output Power 960 W
 Power Factor 0.88
 Power Losses Typ 47.3 W
 Power Reserves 50 % BonusPower

Features

▪ 3 AC 380-480 V wide-range input
▪ Three input fuses included
▪ Extra long lifetime
▪ Width only 110 mm, weight only 1.5 kg
▪ 95.3 % Full load and excellent partial load efficiencies
▪ 50 % BonusPower, 1440 W for up to 4 s
▪ 100 A Peak current for 10ms for easy fuse tripping
▪ Active power factor correction (PFC)
▪ Active filtering of input transients
▪ Negligibly low input inrush current
▪ Full power between -25 °C and +60 °C
▪ Current sharing feature for parallel use
▪ Internal data logging for troubleshooting included
▪ Remote control of output voltage
▪ DC-OK relay contact
▪ Shut-down input
