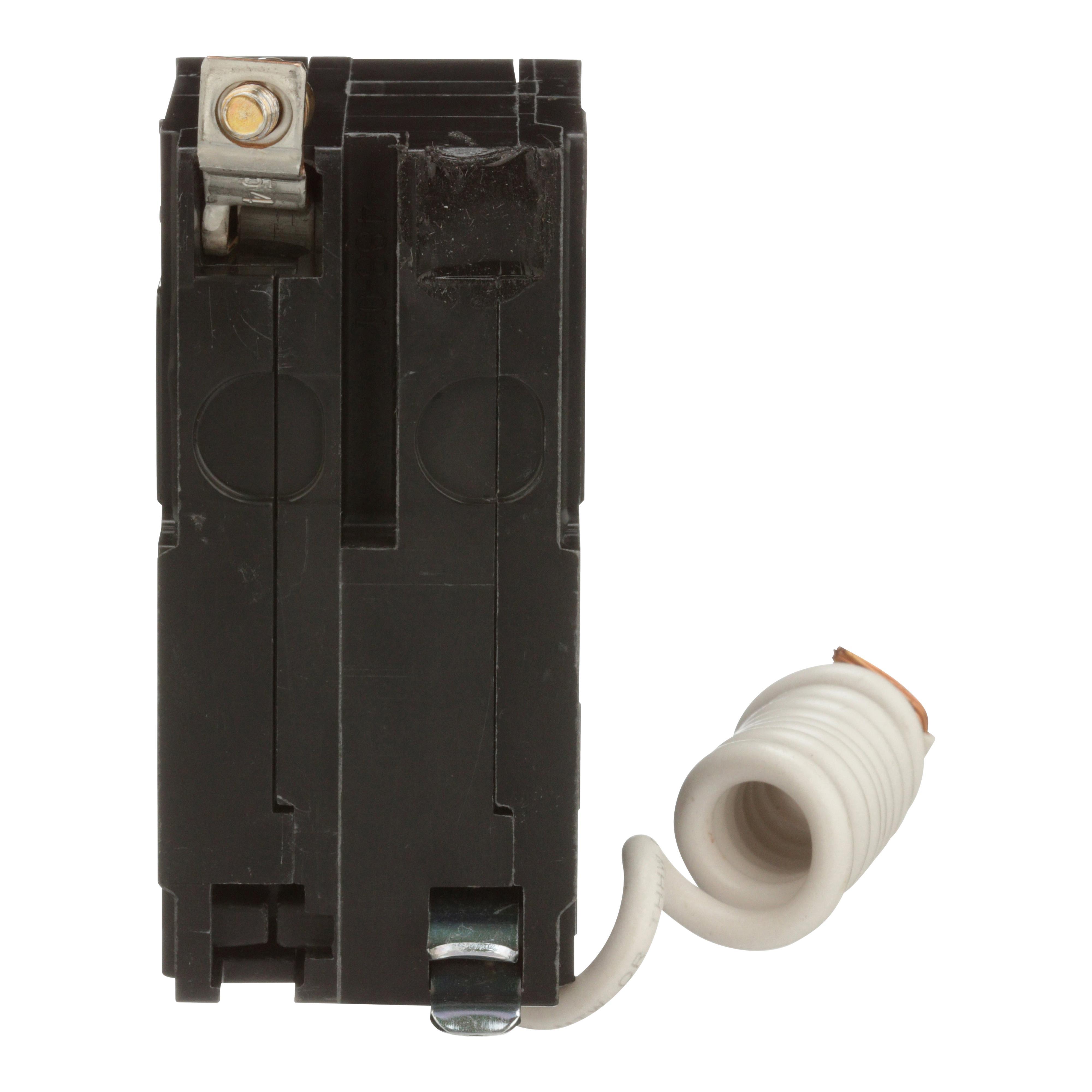

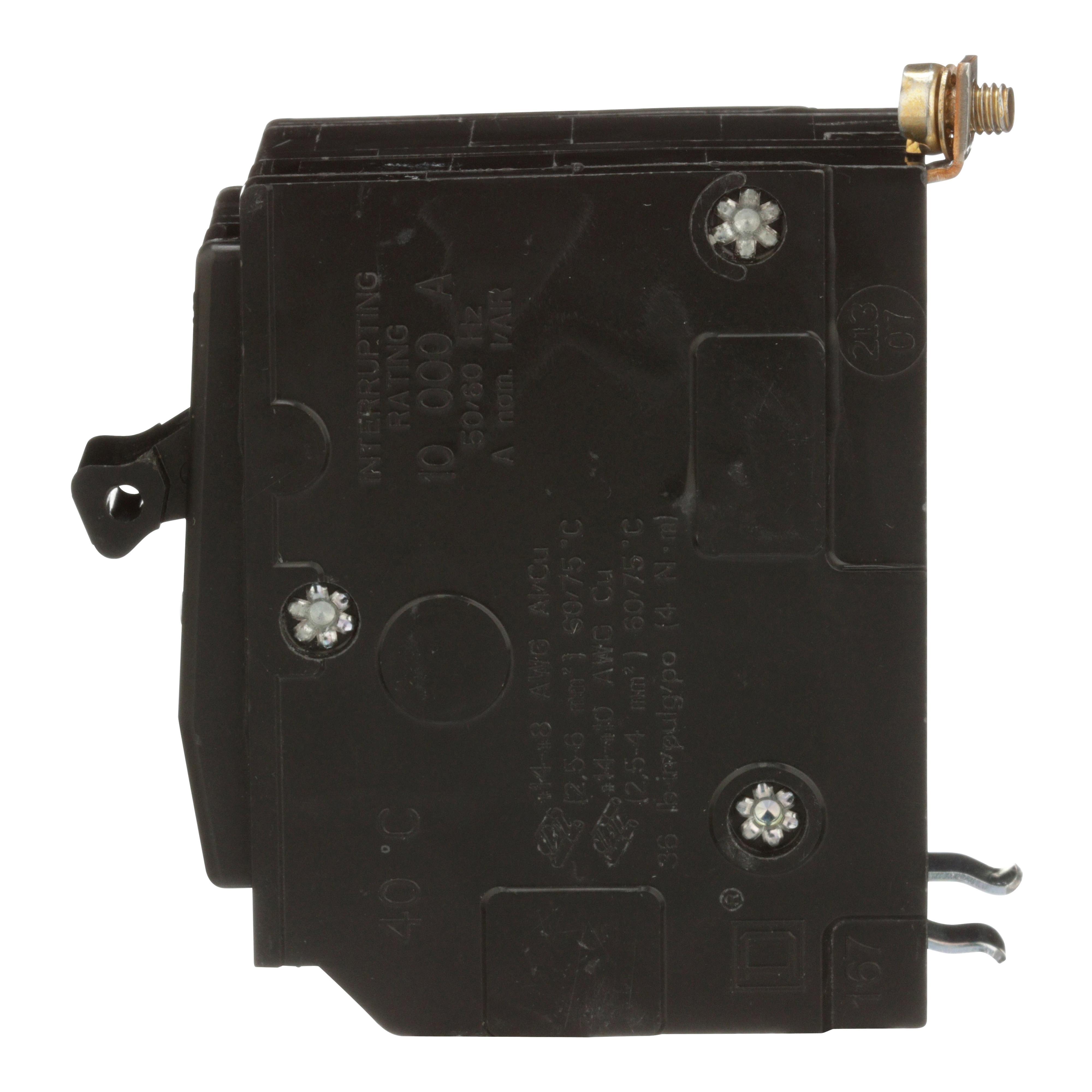

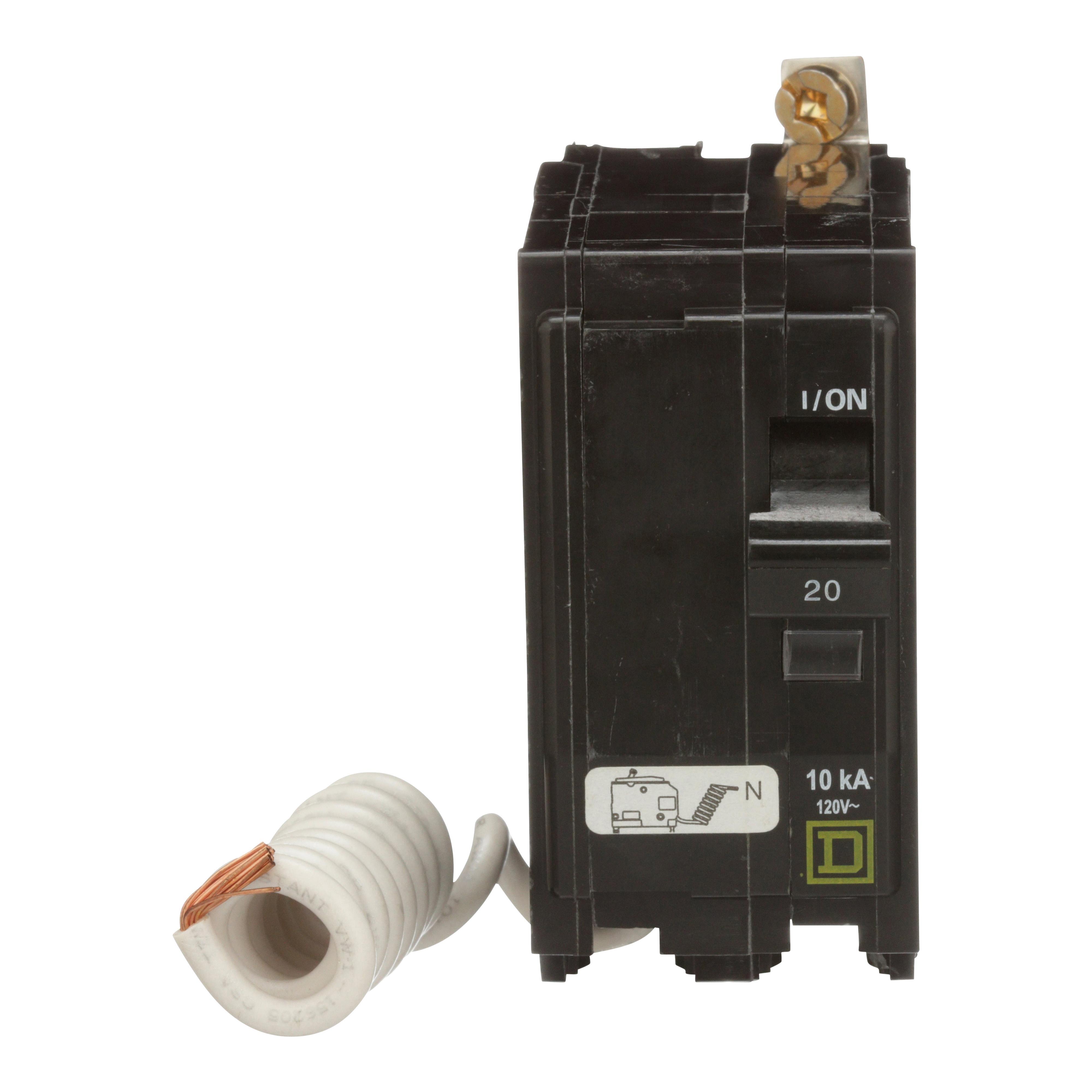

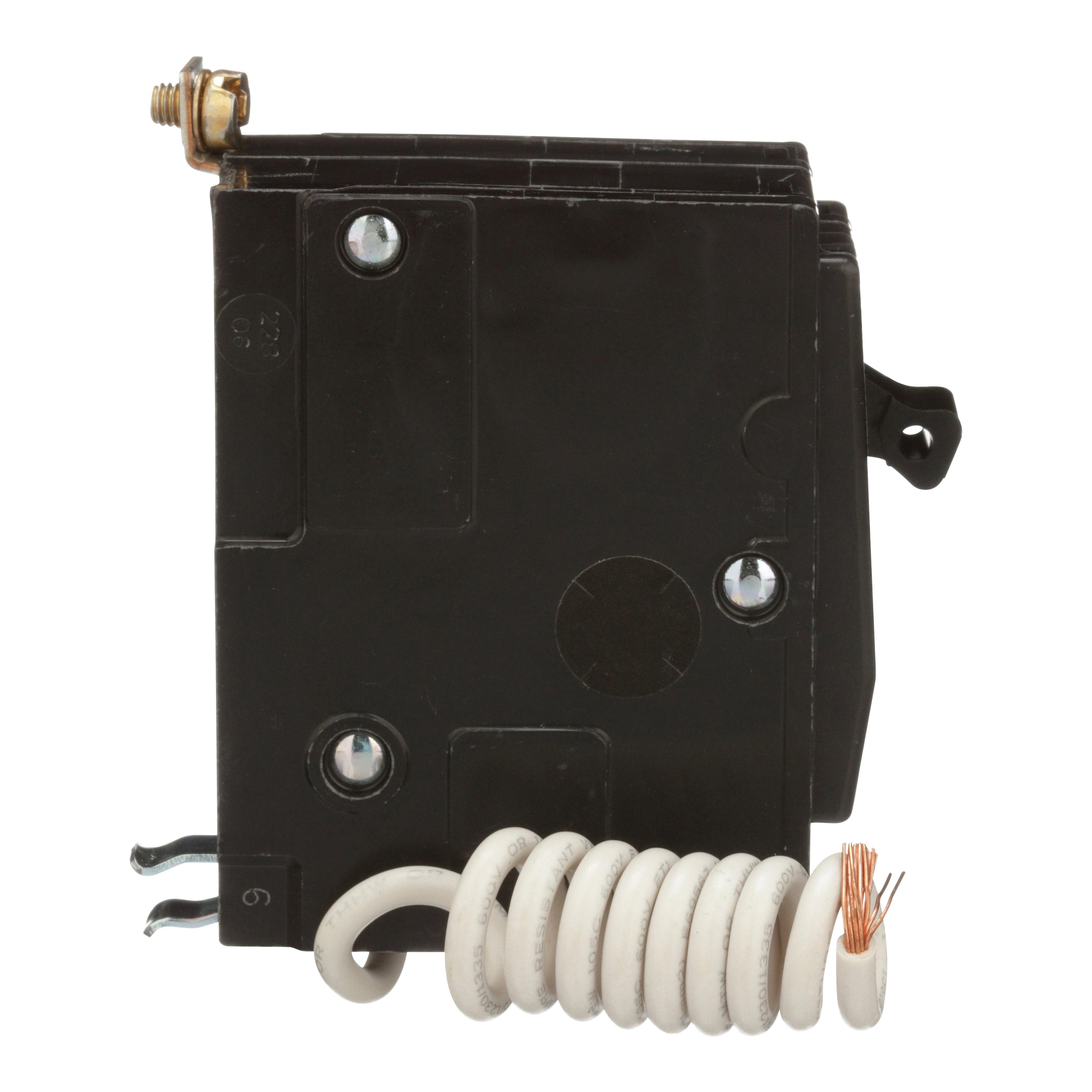

Description: Square D™ QO™ Miniature Circuit Breaker, Type QOB-SWN, 120 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Bolt-On Mounting, 40 deg C, 2.91 in L x 1.5 in W x 3 in H Dimensions, Fiberglass Filled Thermoset

Manufacturer PN: QOB220SWN

UPC:  78590134178

Kendall Electric Inc PN: 4000505

Invoice Description:

QOB220SWN SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Special Application Breakers


How Can We Make This Page Better?

Square D™ QO™ QOB220SWN Type QOB-SWN Miniature Circuit Breaker, 120 V AC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a switch neutral. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™ QO™ Miniature Circuit Breaker, Type QOB-SWN, 120 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Bolt-On Mounting, 40 deg C, 2.91 in L x 1.5 in W x 3 in H Dimensions, Fiberglass Filled Thermoset

Specifications

 Amperage Rating 20 A
 Application For providing overload, short circuit protection and designed to protect gas pump assemblies applications
 Brand Name Square D
 Connection Type Pressure Plate

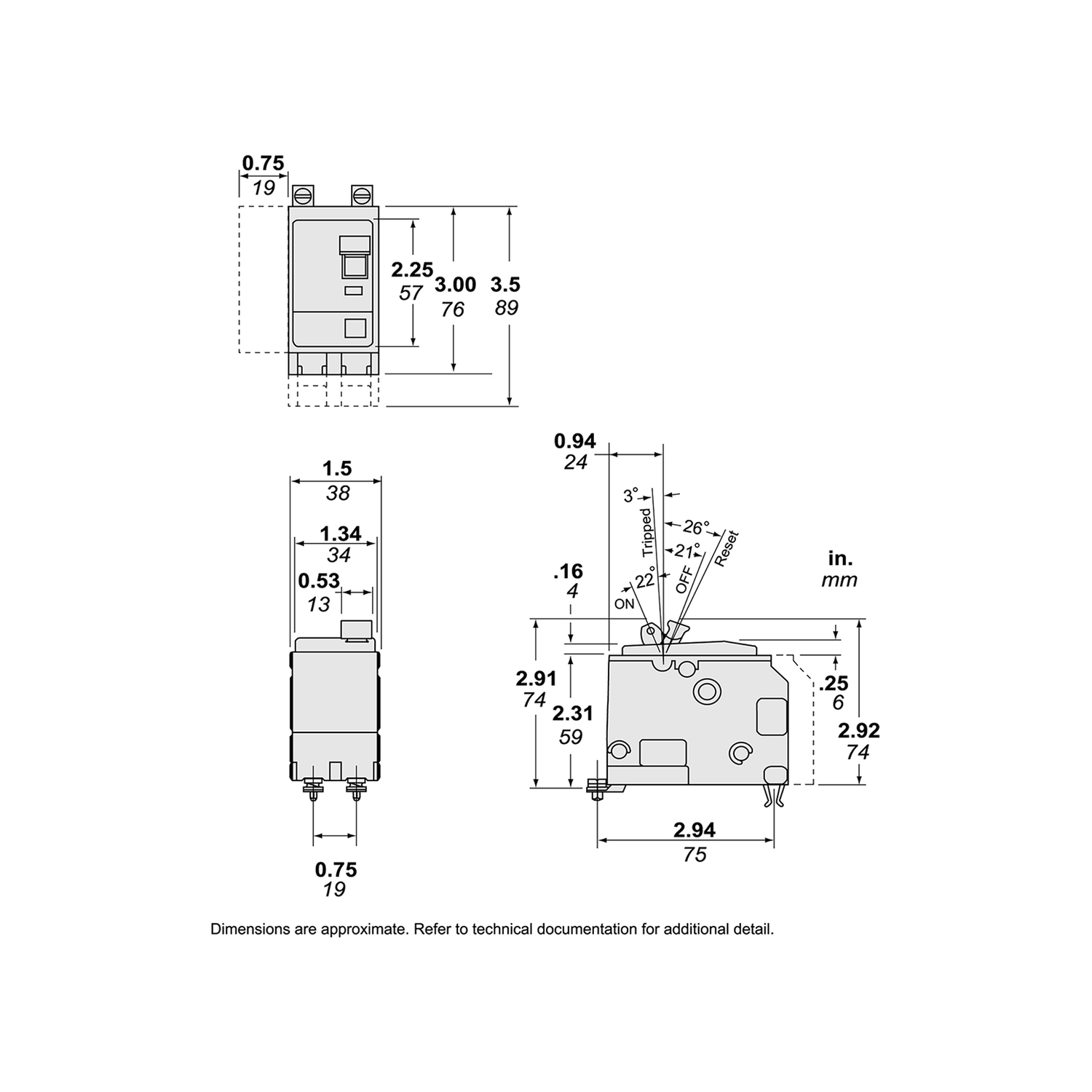

 Dimensions 2.91 in L x 1.5 in W x 3 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QOB220SWN
 Material Fiberglass Filled Thermoset
 Mounting Type Bolt-On
 Number of Poles 2
 PART NUMBER KEYWORDS QOB220SWN ; 8151201 ; 785901341789 ; 78590134178 ; 00785901341789 ; 0785901341789
 Phase 1
 Standards/Approvals CSA C22.2 File No. 5|CSA Certified|Federal/Specification W-C-375B/GEN|NEMA AB1|NOM/ANCE Certified|PROP65: Cancer and reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL File No. 489 File No. E84967|UL Listed
 Temperature Rating 40 deg C
 Type Type QOB-SWN
 Voltage Rating 120 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
▪ Time-saving diagnostics with touch of a button
