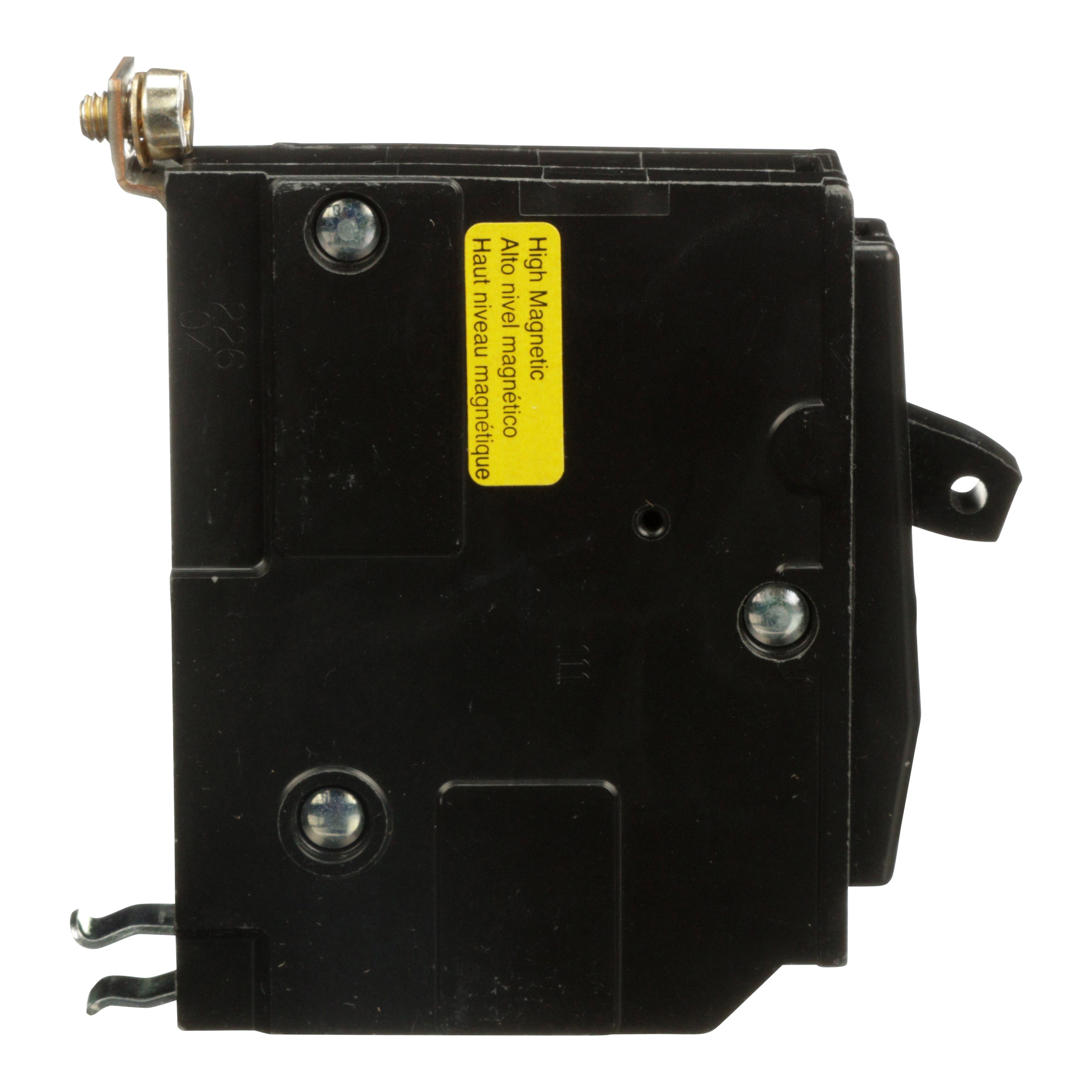

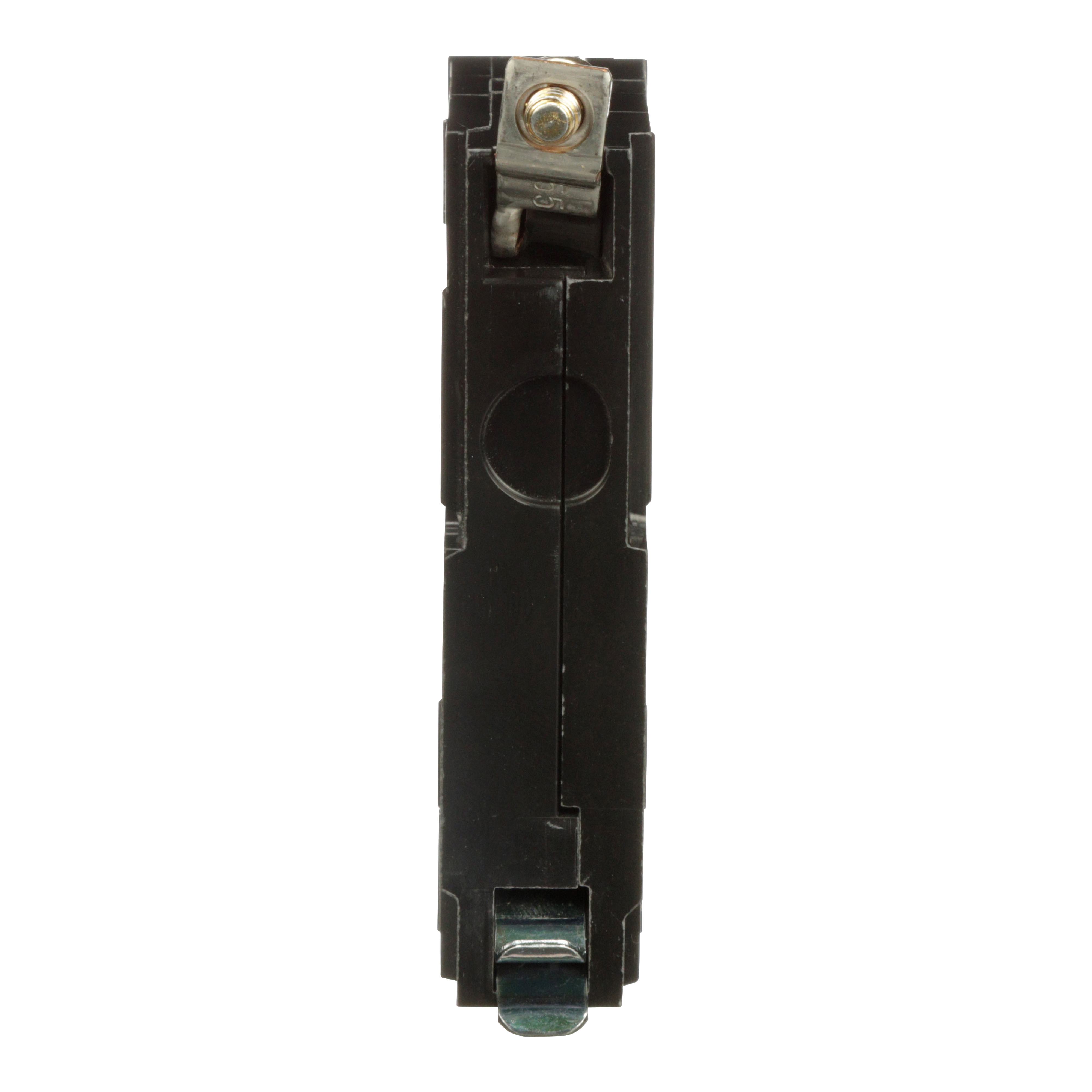

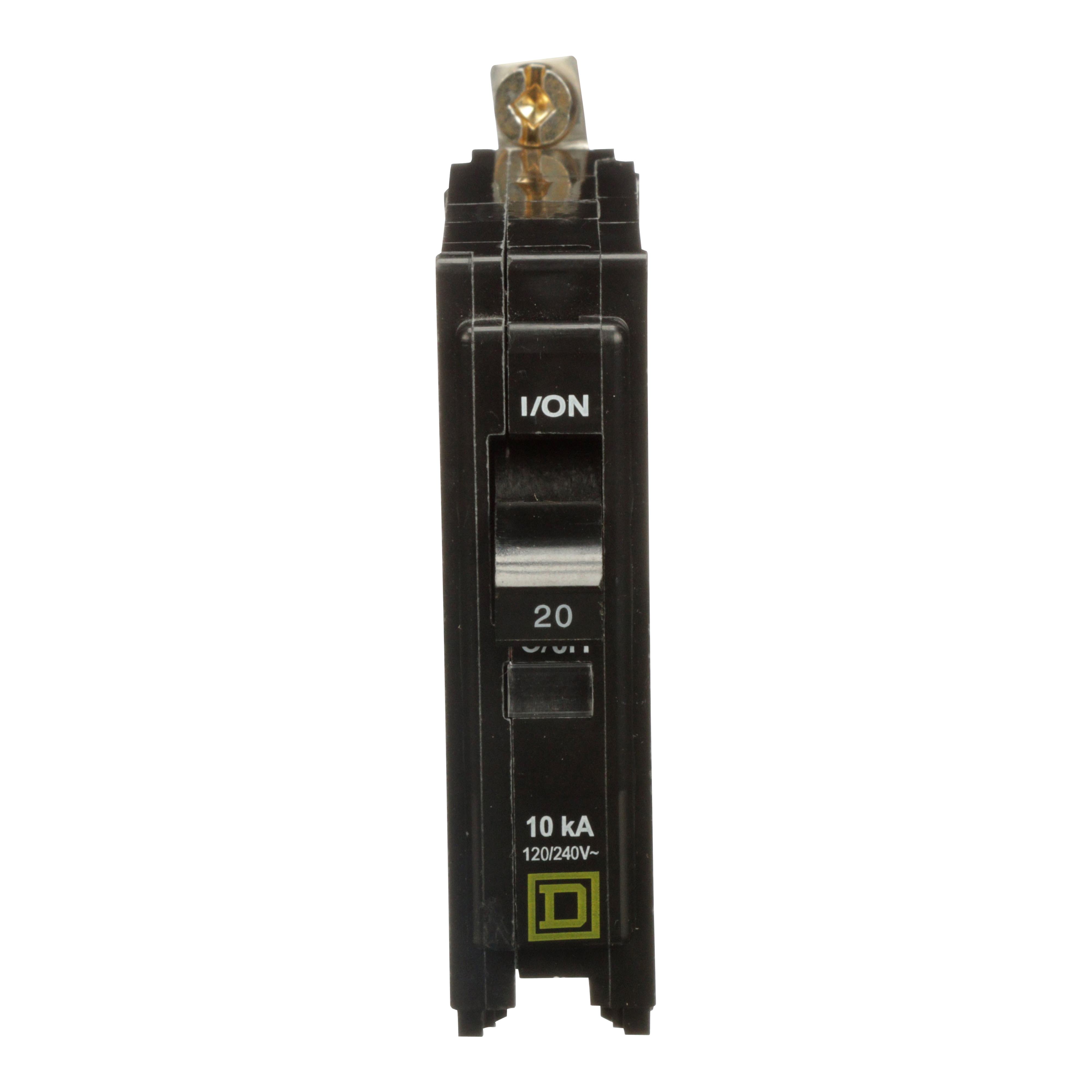

Description: Square D™ QO™ Miniature Circuit Breaker, Type QOB High Magnetic, 120 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Bolt-On Mounting, 40 deg C, 2.91 in L x 0.75 in W x 3 in H Dimensions

Manufacturer PN: QOB120HM

UPC:  78590134171

Kendall Electric Inc PN: 4000482

Invoice Description:

QOB120HM SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Special Application Breakers


How Can We Make This Page Better?

Square D™ QO™ QOB120HM Type QOB High Magnetic Miniature Circuit Breaker, 120 V AC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product has a high magnetic feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™ QO™ Miniature Circuit Breaker, Type QOB High Magnetic, 120 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Bolt-On Mounting, 40 deg C, 2.91 in L x 0.75 in W x 3 in H Dimensions

Specifications

 Amperage Rating 20 A
 Application For providing overload, short circuit protection and recommended for applicationswhere high initial inrush may occur applications
 Brand Name Square D
 Connection Type Pressure Plate

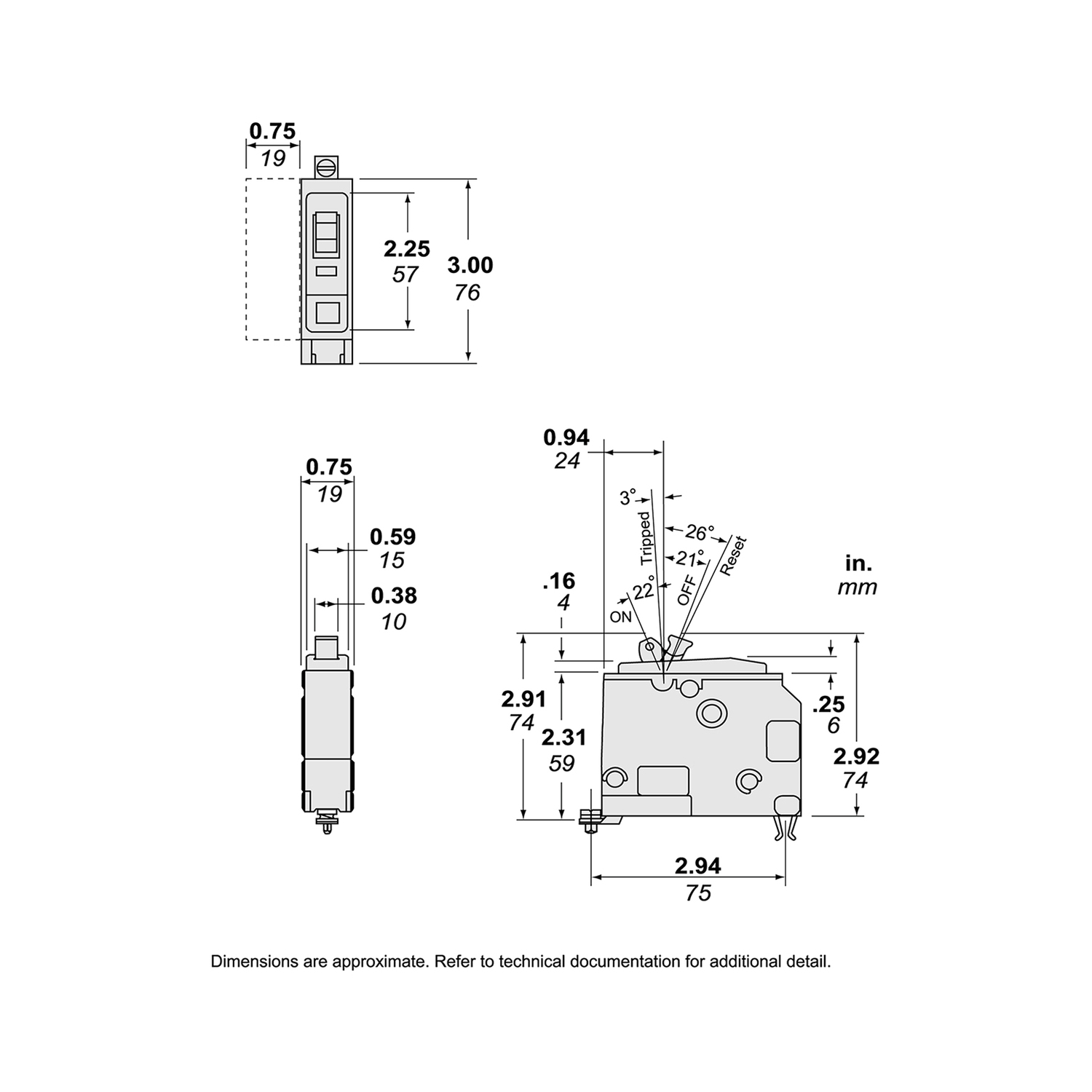

 Dimensions 2.91 in L x 0.75 in W x 3 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QOB120HM
 Mounting Type Bolt-On
 Number of Poles 1
 PART NUMBER KEYWORDS QOB120HM ; 8151178 ; 785901341710 ; 78590134171 ; 00785901341710 ; 0785901341710
 Phase 1
 Standards/Approvals CSA C22.2 No. 5|CSA Certified|Federal Specification W-C-375B/GEN|HACR Rated|NEMA AB1|NOM/ANCE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov|RoHS Compliant|UL 489 File No. E84967|UL Listed
 Temperature Rating 40 deg C
 Type Type QOB High Magnetic
 Voltage Rating 120 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
▪ Time-saving diagnostics with touch of a button
