Schneider Electric
  • QO816L100DS SQD LOAD CENTER QO MLO
  • QO816L100DS SQD LOAD CENTER QO MLO
  • QO816L100DS SQD LOAD CENTER QO MLO
  • QO816L100DS SQD LOAD CENTER QO MLO

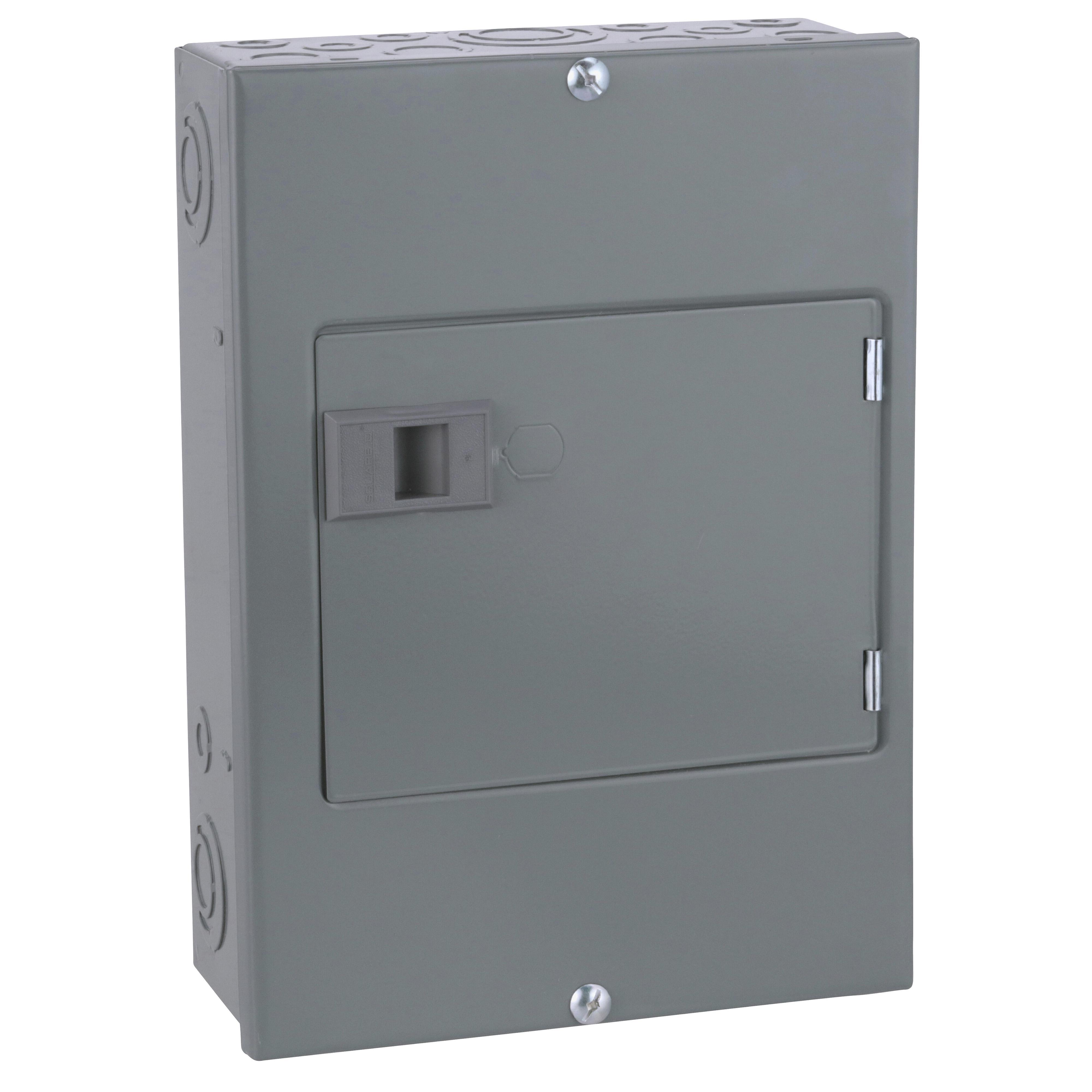

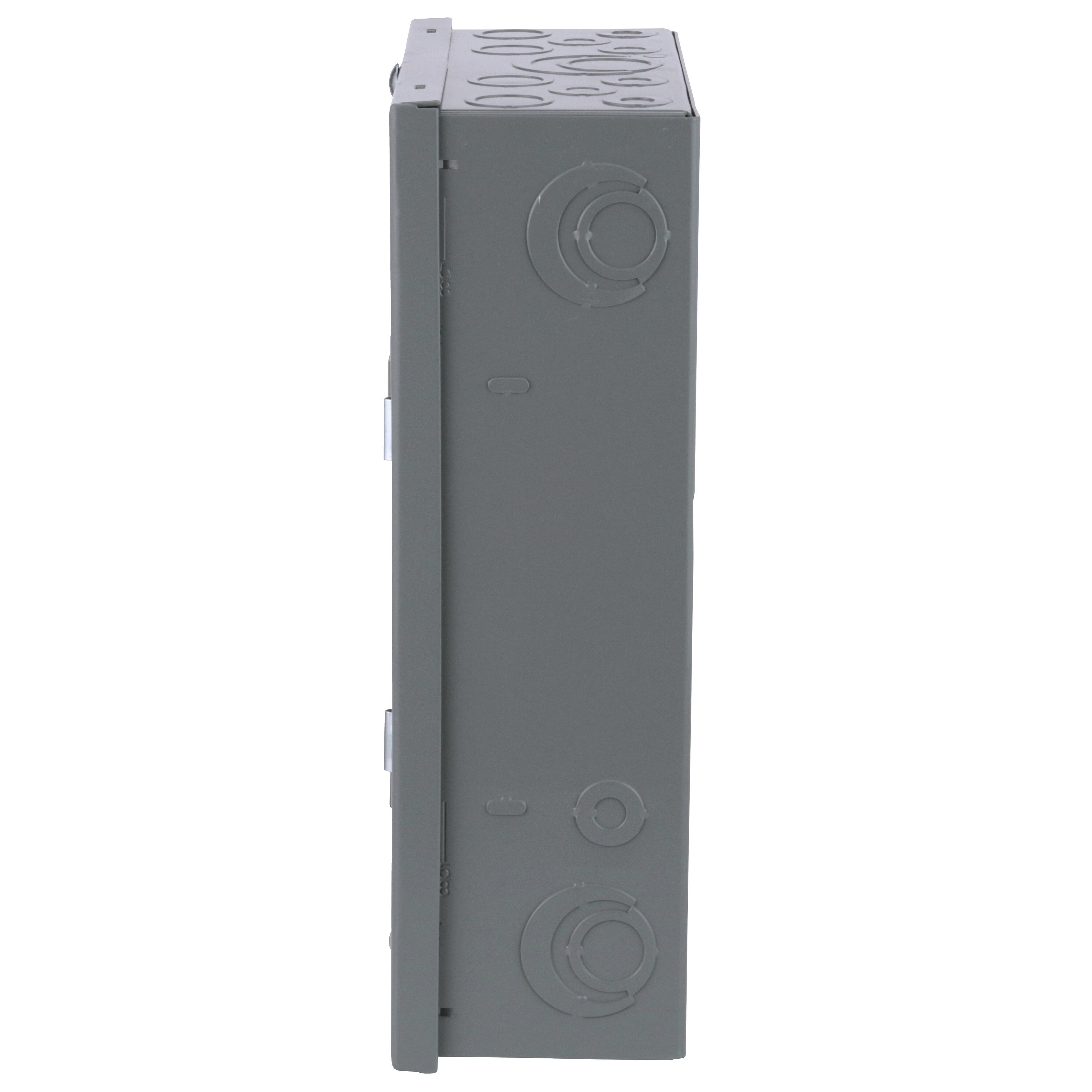

Description: Square D™, QO816L100DS, Main Lug Load Center, 1-ph Fixed, 120/240 VAC, 100 A, 1 Pole, 50/60 Hz Frequency, 10 kA Interrupt, 16 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 8 Spaces, 8 to 1 AWG Wire, Surface Mounting, NEMA 1 Enclosure, Steel Housing Material, 8.88 in W x 3.8 in D x 12.57 in H Dimensions

Manufacturer PN: QO816L100DS

UPC:  78590178574

Kendall Electric Inc PN: 4000469

Invoice Description:

QO816L100DS SQD LOAD CENTER QO MLO


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

Square D™ QO816L100DS 1-ph Fixed Main Lug Load Center, 120/240 VAC, 100 A, 1 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO™ circuit breaker load centers from Square D™ are underwriters laboratories (UL) Listed panel boards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™, QO816L100DS, Main Lug Load Center, 1-ph Fixed, 120/240 VAC, 100 A, 1 Pole, 50/60 Hz Frequency, 10 kA Interrupt, 16 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 8 Spaces, 8 to 1 AWG Wire, Surface Mounting, NEMA 1 Enclosure, Steel Housing Material, 8.88 in W x 3.8 in D x 12.57 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QO
 Dimensions 8.88 in W x 3.8 in D x 12.57 in H
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Housing Material Steel
 Includes Surface Cover with Door
 Manufacturer Part Number QO816L100DS
 Mounting Type Surface
 Number of Circuits 16
 Number of Poles 1
 Number of Spaces 8
 Standards/Approvals RoHS Compliant|UL Listed|NOM Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Type 1-ph Fixed
 Video Links
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ 8 tandem circuit breaker
▪ Straight-in wiring to help minimize service cable installation
▪ Tin plated aluminum bus construction on main lug or main circuit breaker panels
▪ Service entrance equipment capable panels
▪ Single captive screw interior mounting on indoor panels to ease removal
▪ New side hinge doors on outdoor convertible main panels
▪ Outdoor panel covers are lockable with padlock
▪ Gray baked enamel electrodeposited over cleaned, phosphatized steel
▪ Top or bottom feed by rotating enclosure
▪ Does not accepts plug-on neutral circuit breaker
▪ Lug electrical connection
