Schneider Electric
  • QO612L100DF SQD LOAD CENTER QO MLO
  • QO612L100DF SQD LOAD CENTER QO MLO
  • QO612L100DF SQD LOAD CENTER QO MLO
  • QO612L100DF SQD LOAD CENTER QO MLO

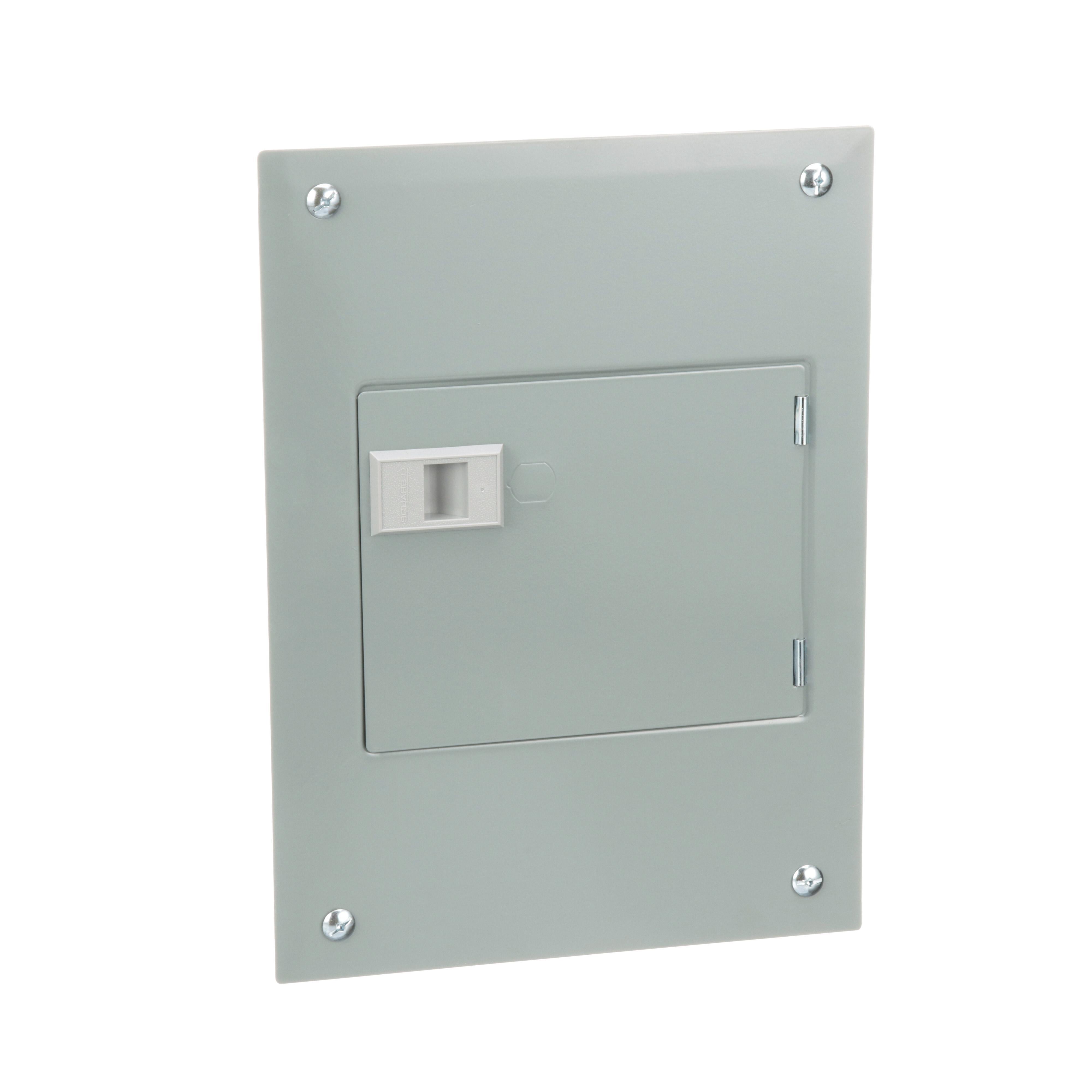

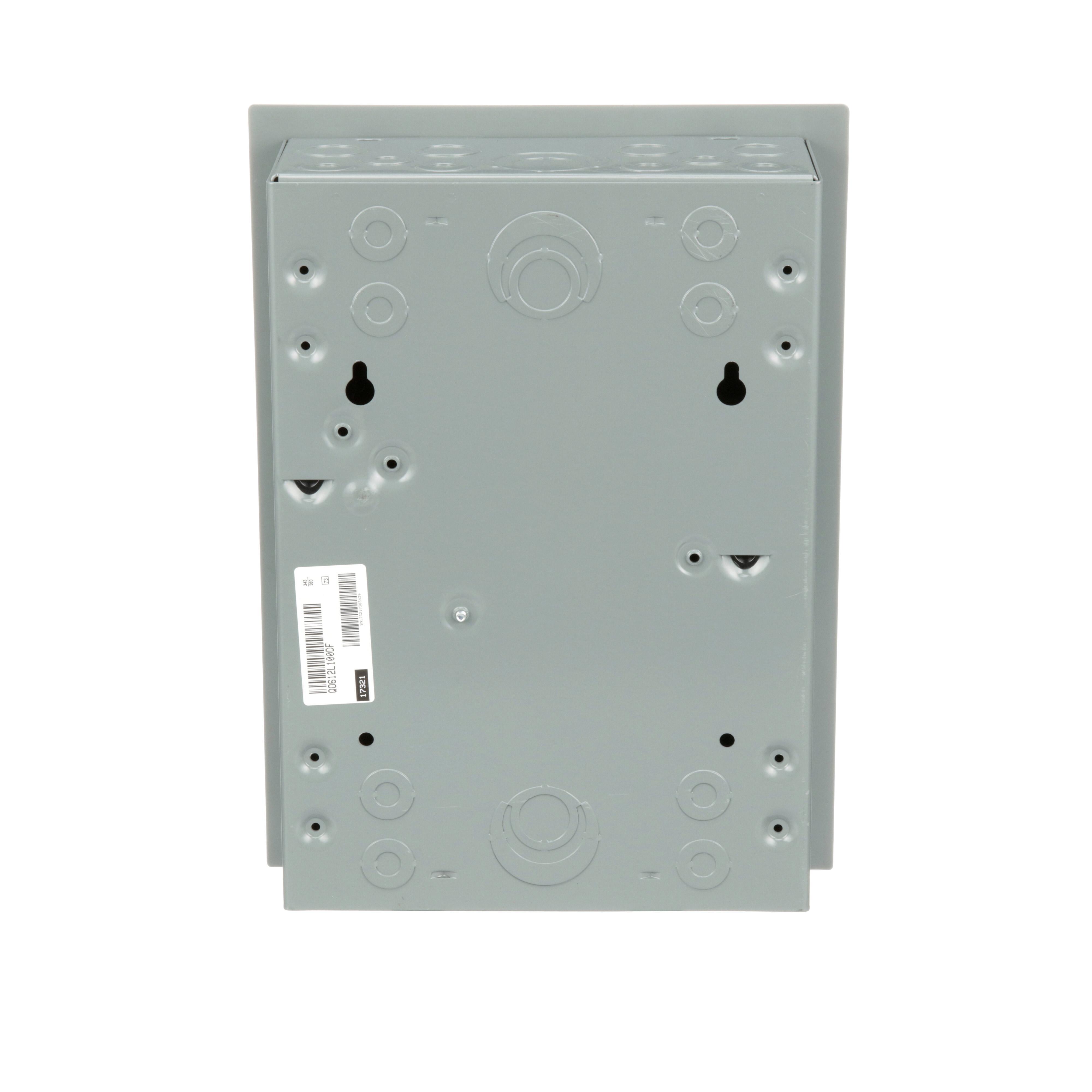

Description: Square D™ QO® Main Lug Loadcenter, 1-Phase Fixed, 120/240 VAC, 100 A, 10 kA Interrupt, 12 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 6 Spaces, 8 to 1 AWG Wire, Flush Mounting, NEMA 1 Enclosure, 4 Enclosure Box, Steel Housing Material, 8.88 in W x 3.8 in D x 12.57 in H Dimensions

Manufacturer PN: QO612L100DF

UPC:  78590178564

Kendall Electric Inc PN: 3959215

Invoice Description:

QO612L100DF SQD LOAD CENTER QO MLO


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

Square D™ QO® QO612L100DF 1-Phase Fixed Main Lug Loadcenter, 120/240 VAC, 100 A, 10 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ QO® Main Lug Loadcenter, 1-Phase Fixed, 120/240 VAC, 100 A, 10 kA Interrupt, 12 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 6 Spaces, 8 to 1 AWG Wire, Flush Mounting, NEMA 1 Enclosure, 4 Enclosure Box, Steel Housing Material, 8.88 in W x 3.8 in D x 12.57 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QO
 Dimensions 8.88 in W x 3.8 in D x 12.57 in H
 Enclosure NEMA 1
 Enclosure Box Size 4
 Housing Material Steel
 Includes Flush Cover With Door
 Manufacturer Part Number QO612L100DF
 Mounting Type Flush
 Number of Circuits 12
 Number of Spaces 6
 Standards/Approvals RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type 1-Phase Fixed
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Multiple ground bar locations to customized the panel to your needs
▪ Backed-out screws on neutral, ground a and twin and quad breaker terminals
▪ Factory removed main breaker knockout
▪ Low profile bus bars and insulated shielding improved safety and protection
▪ Flexible and convenient main and branch breaker knockouts
▪ 8 to 1 AWG copper/aluminum conductor
▪ Aluminum bus construction on fixed mains panels
▪ Tin plated 1-piece copper bus helps prevent corrosion and ensures superior performance
▪ Service entrance equipment capable panels
▪ Split neutral bars for neat wiring
▪ Top or bottom feed by rotating convertible mains panels 180 deg
▪ Single captive screw interior mounting on indoor panels to ease removal
▪ Straight in wiring to help minimize service cable installation
▪ Side hinge doors on outdoor convertible main panels
▪ Baked enamel gray surface finish
