Schneider Electric

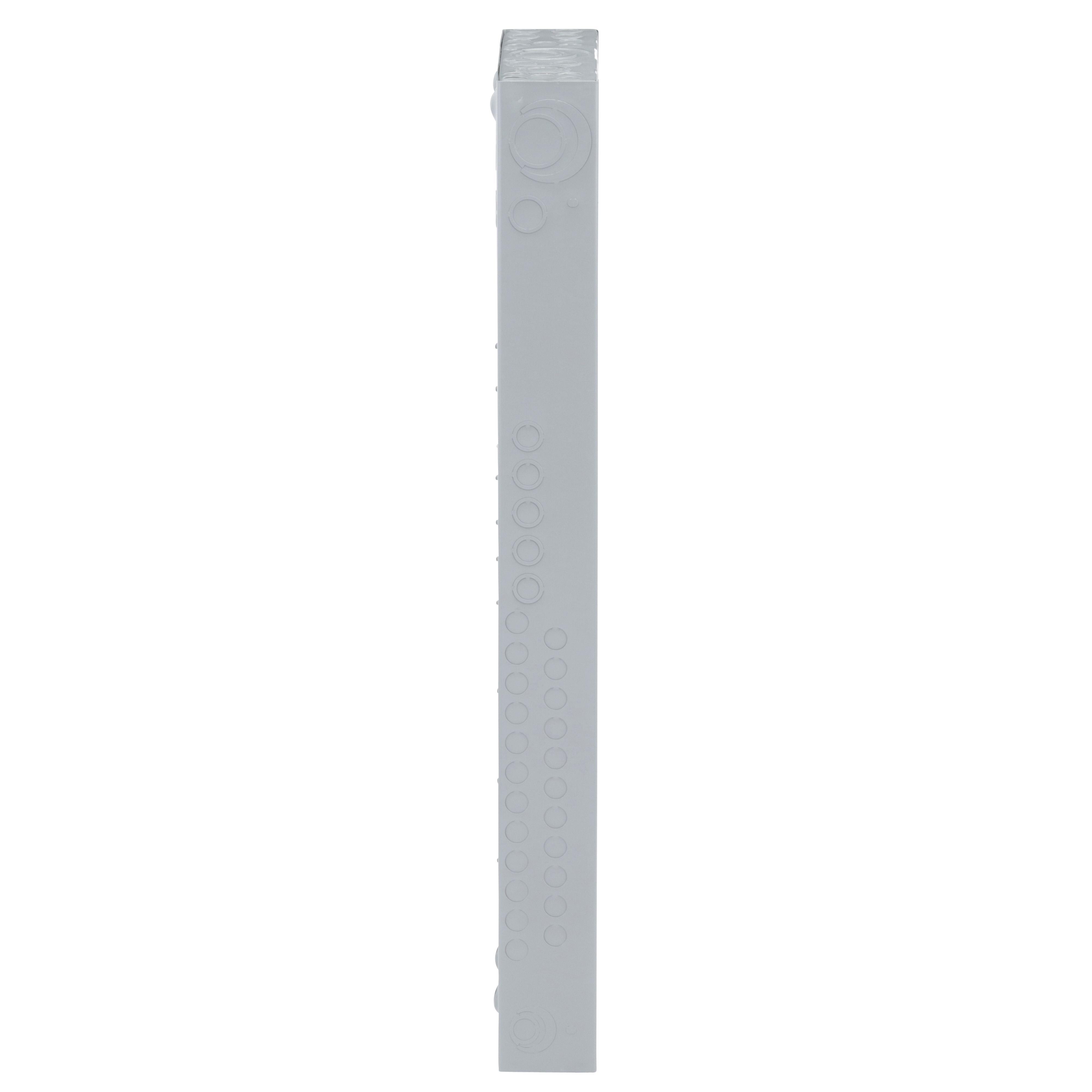

  • QO342L225G SQD LOAD CENTER QO MLO
  • QO342L225G SQD LOAD CENTER QO MLO
  • QO342L225G SQD LOAD CENTER QO MLO

Description: Square D™, QO342L225G, Main Lug Load Center, 3-ph Fixed, 208Y/120/240 V AC, 225 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 42 Circuits, QO/MLO Breaker, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 42 Spaces, 6 AWG to 300 kcmil Wire, Bolt-On Mounting, NEMA 1 Enclosure, Sheet Steel Housing Material, 14.25 in W x 3.75 in D x 37.98 in H Dimensions

Manufacturer PN: QO342L225G

UPC:  78590129553

Kendall Electric Inc PN: 3959211

Invoice Description:

QO342L225G SQD LOAD CENTER QO MLO


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

Square D™ QO342L225G 3-ph Fixed Main Lug Load Center, 208Y/120/240 V AC, 225 A, 1 Poles, 65 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides 225A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.
Square D™, QO342L225G, Main Lug Load Center, 3-ph Fixed, 208Y/120/240 V AC, 225 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 42 Circuits, QO/MLO Breaker, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 42 Spaces, 6 AWG to 300 kcmil Wire, Bolt-On Mounting, NEMA 1 Enclosure, Sheet Steel Housing Material, 14.25 in W x 3.75 in D x 37.98 in H Dimensions

Specifications

 Amperage Rating 225 A
 Application For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QO/MLO
 Dimensions 14.25 in W x 3.75 in D x 37.98 in H
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Housing Material Sheet Steel
 Includes Field Installed Grounding Bar
 Manufacturer Part Number QO342L225G
 Mounting Type Bolt-On
 Number of Circuits 42
 Number of Poles 1
 Number of Spaces 42
 Standards/Approvals RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Type 3-ph Fixed
 Video Links
 Voltage Rating 208Y/120/240 V AC
 Wiring Configuration 3/4-Wire

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50 Percent more terminations for clutter-free wiring
