Schneider Electric

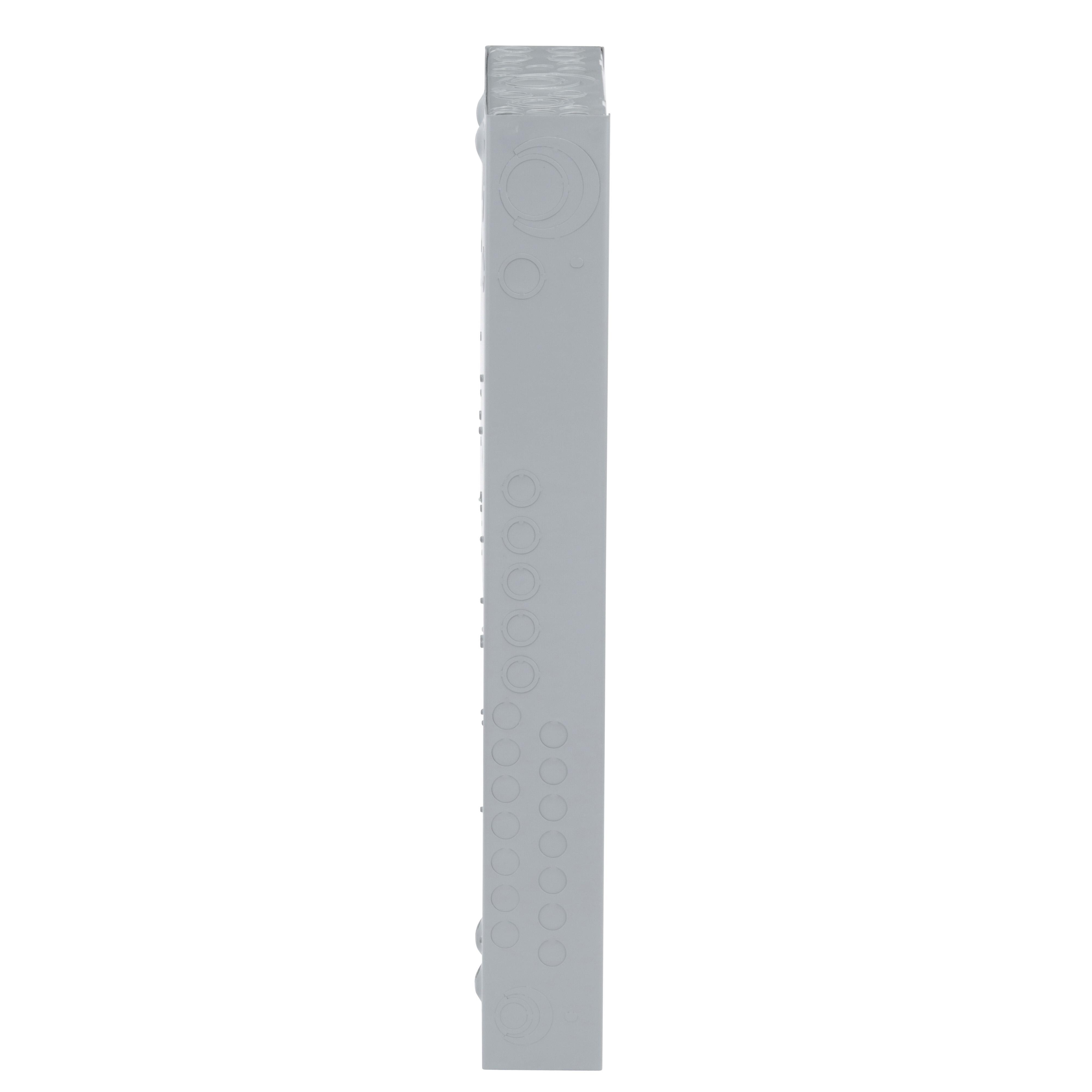

  • QO330L200G SQD LOAD CENTER QO MLO
  • QO330L200G SQD LOAD CENTER QO MLO
  • QO330L200G SQD LOAD CENTER QO MLO

Description: Square D™, QO330L200G, Three Main Lug Load Center, 3-ph Fixed, 208Y/120/240 V AC, 200 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 30 Circuits, QO Breaker, Panel Breaker Mounting, 3/4-Wire Delta Wiring Configuration, 30 Spaces, 6 AWG to 250 kcmil Wire, Bolted-On Mounting, NEMA 1 Enclosure, Welded Sheet Steel Housing Material, 29.86 in H x 14.25 in W x 3.75 in D Dimensions

Manufacturer PN: QO330L200G

UPC:  78590129550

Kendall Electric Inc PN: 3959209

Invoice Description:

QO330L200G SQD LOAD CENTER QO MLO


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

Square D™ QO330L200G 3-ph Fixed Three Main Lug Load Center, 208Y/120/240 V AC, 200 A, 1 Poles, 65 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides 200A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.
Square D™, QO330L200G, Three Main Lug Load Center, 3-ph Fixed, 208Y/120/240 V AC, 200 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 30 Circuits, QO Breaker, Panel Breaker Mounting, 3/4-Wire Delta Wiring Configuration, 30 Spaces, 6 AWG to 250 kcmil Wire, Bolted-On Mounting, NEMA 1 Enclosure, Welded Sheet Steel Housing Material, 29.86 in H x 14.25 in W x 3.75 in D Dimensions

Specifications

 Amperage Rating 200 A
 Application Residential, Commercial and Industrial Application
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QO
 Dimensions 29.86 in H x 14.25 in W x 3.75 in D
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Housing Material Welded Sheet Steel
 Includes Field Installed Grounding Bar
 Manufacturer Part Number QO330L200G
 Mounting Type Bolted-On
 Number of Circuits 30
 Number of Poles 1
 Number of Spaces 30
 Standards/Approvals UL Listed|NOM Rated|RoHS Compliant
 Type 3-ph Fixed
 Voltage Rating 208Y/120/240 V AC
 Wiring Configuration 3/4-Wire Delta

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50 Percent more terminations for clutter-free wiring
