Schneider Electric

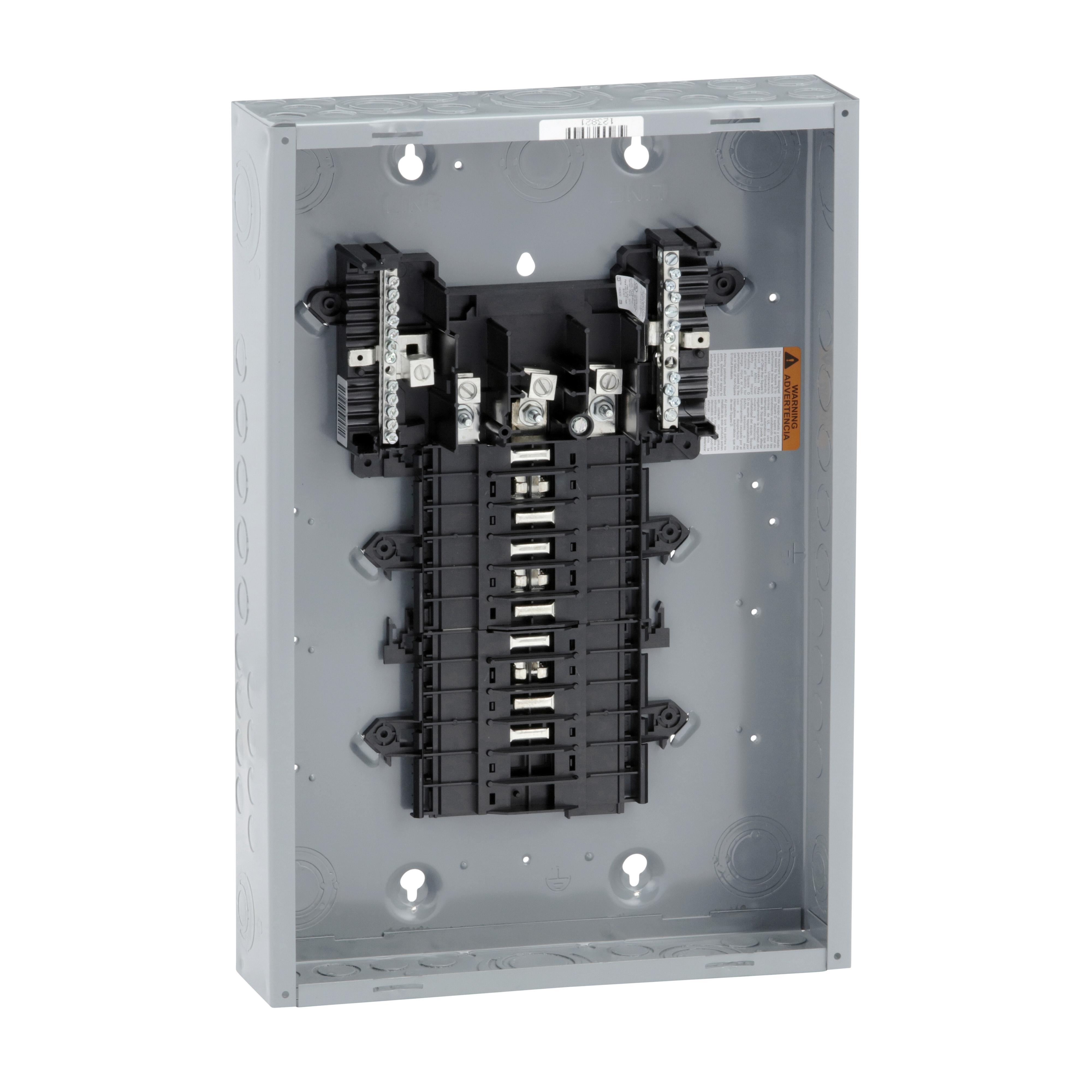

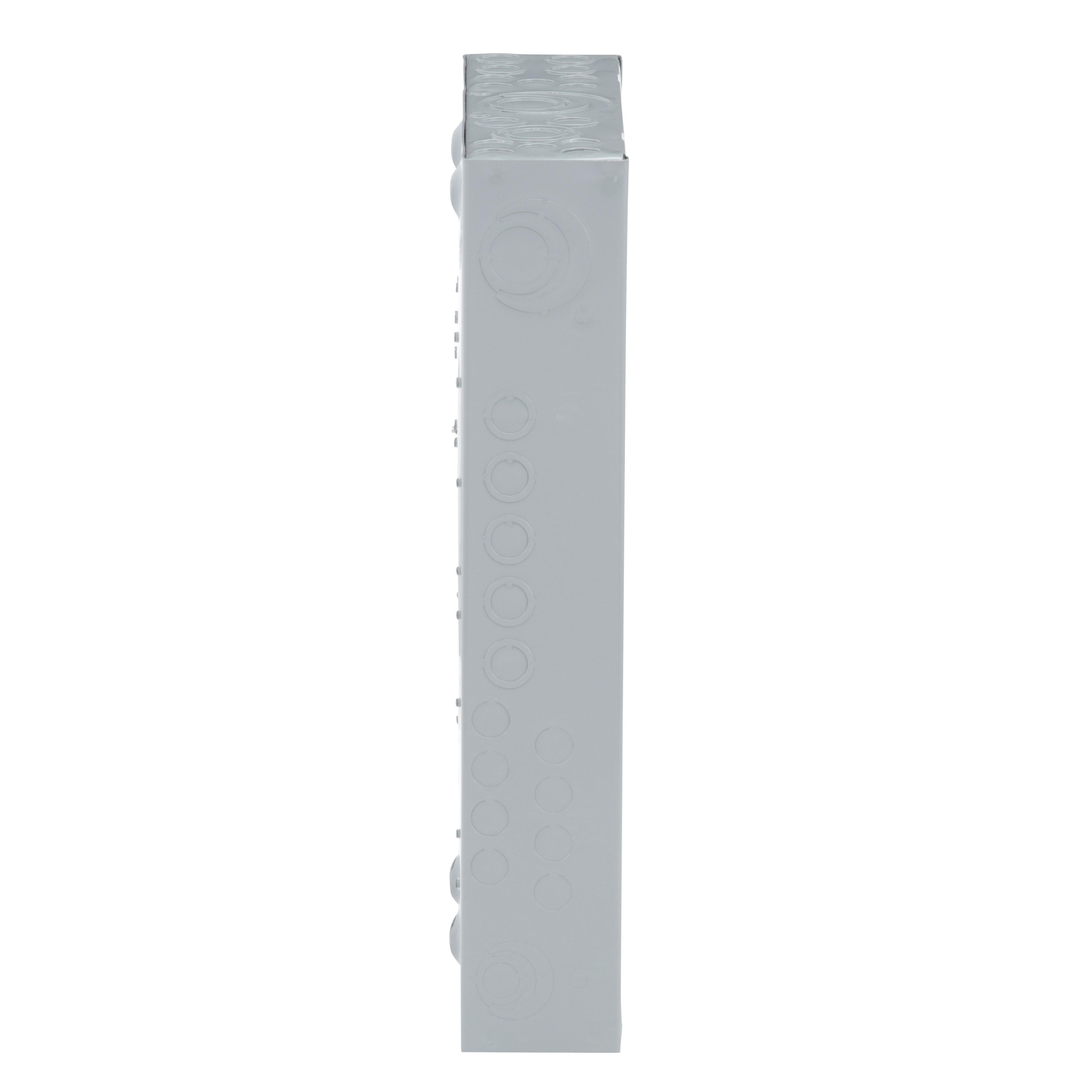

  • QO320L125G SQD LOAD CENTER QO MLO
  • QO320L125G SQD LOAD CENTER QO MLO
  • QO320L125G SQD LOAD CENTER QO MLO
  • QO320L125G SQD LOAD CENTER QO MLO

Description: Square D™ QO™ Main Lug Load Center, 3-ph Fixed, 208Y/120/240 V AC, 125 A, 1 Pole, 50/60 Hz, 65 kA Interrupt, 20 Circuits, QO/MLO Breaker, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 20 Spaces, 6 to 2/0 AWG Wire, Bolt-On Mount, NEMA 1, Sheet Steel Housing, 14.25 in W x 3.75 in D x 20.92 in H

Manufacturer PN: QO320L125G

UPC:  78590129531

Kendall Electric Inc PN: 4000447

Invoice Description:

QO320L125G SQD LOAD CENTER QO MLO


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

Square D™ QO™ QO320L125G 3-ph Fixed Main Lug Load Center, 208Y/120/240 V AC, 125 A, 1 Pole, 65 kA Interrupt

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 20 spaces and 20 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.
Square D™ QO™ Main Lug Load Center, 3-ph Fixed, 208Y/120/240 V AC, 125 A, 1 Pole, 50/60 Hz, 65 kA Interrupt, 20 Circuits, QO/MLO Breaker, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 20 Spaces, 6 to 2/0 AWG Wire, Bolt-On Mount, NEMA 1, Sheet Steel Housing, 14.25 in W x 3.75 in D x 20.92 in H

Specifications

 Amperage Rating 125 A
 Application For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications
 Brand Name Square D
 Breaker Mounting Panel
 Breaker Type QO/MLO
 Dimensions 14.25 in W x 3.75 in D x 20.92 in H
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Housing Material Sheet Steel
 Includes Field Installed Grounding Bar
 Manufacturer Part Number QO320L125G
 Mounting Type Bolt-On
 Number of Circuits 20
 Number of Poles 1
 Number of Spaces 20
 Standards/Approvals RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Type 3-ph Fixed
 Voltage Rating 208Y/120/240 V AC
 Wiring Configuration 3/4-Wire

Features

▪ Provides superior performance and durability
▪ Straight in wiring saves wire, labor, and time
▪ Faster installation using PoN breakers that connect directly
▪ 50% more terminations for clutter-free wiring
