Schneider Electric

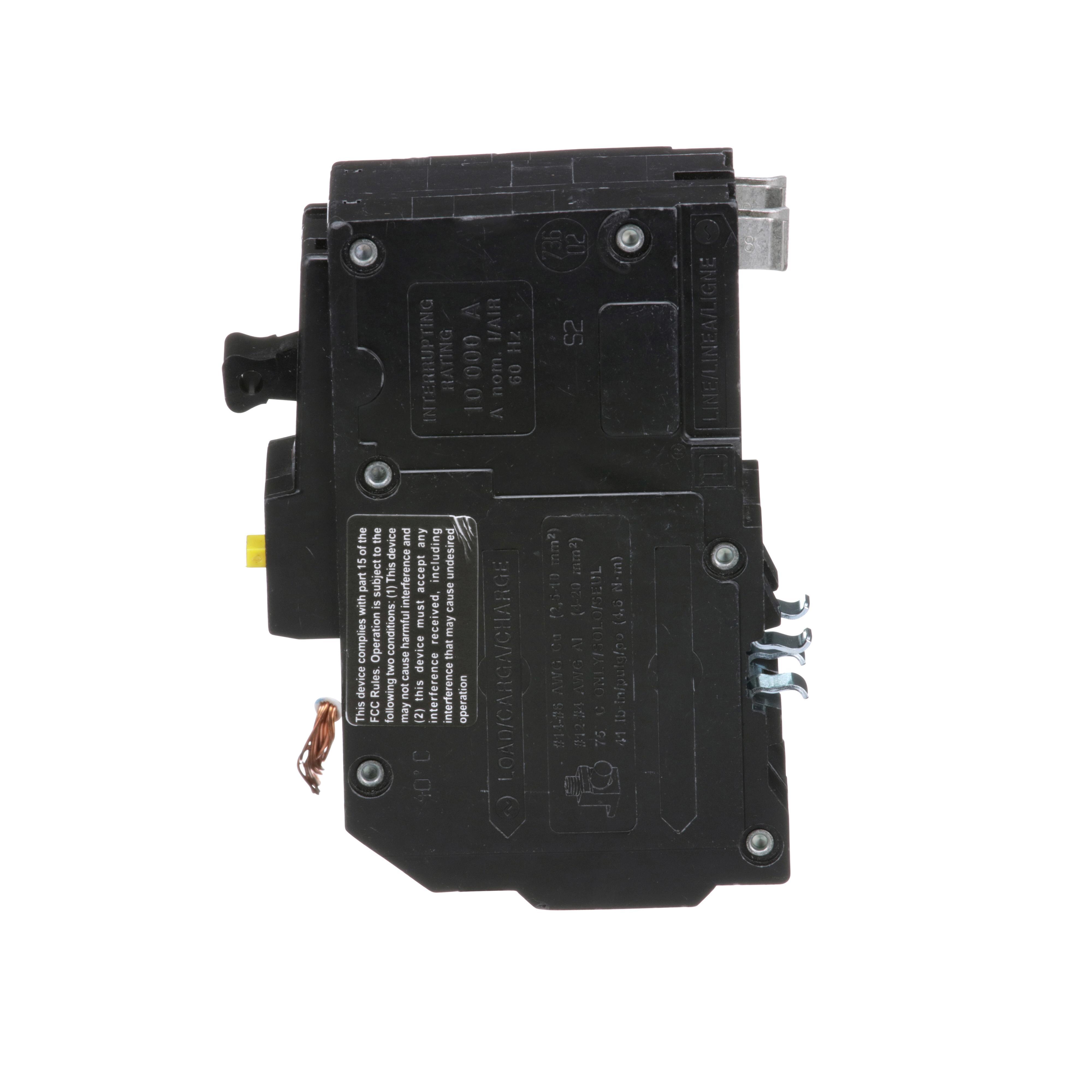

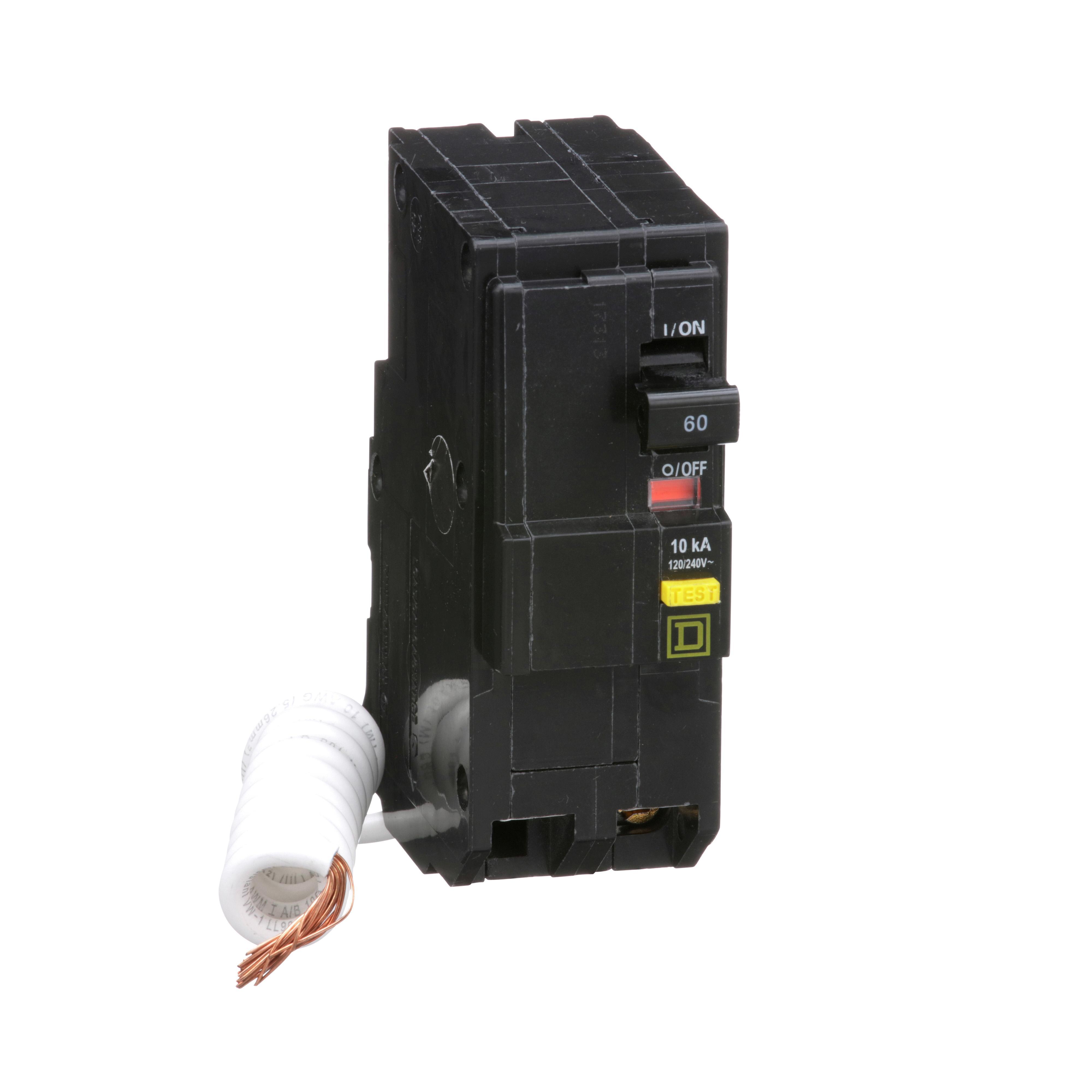

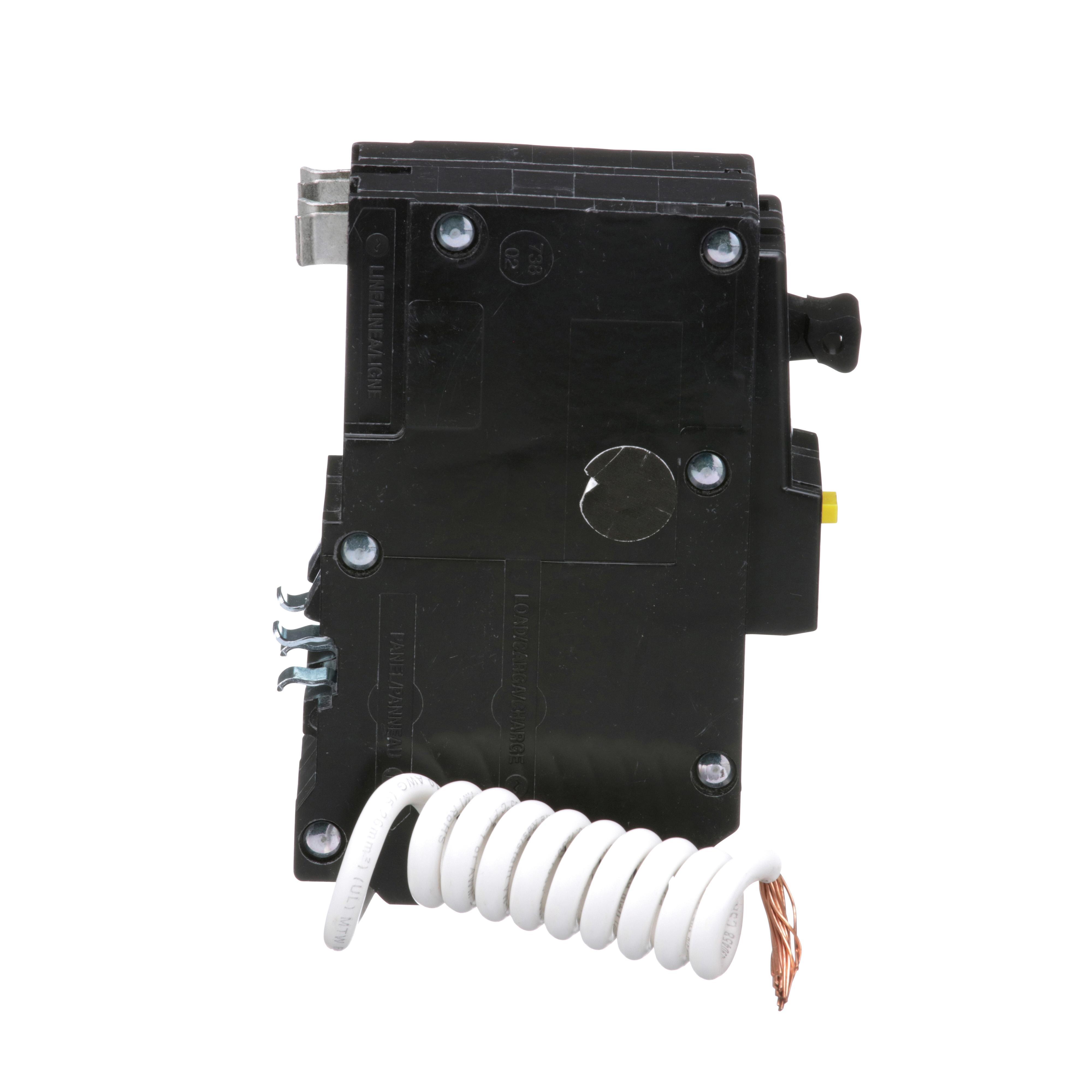

  • QO260GFI SQD MINIATURE CIRCUIT BREAKER 120/240V 60A NO NEUTRAL CONNECTION
  • QO260GFI SQD MINIATURE CIRCUIT BREAKER 120/240V 60A NO NEUTRAL CONNECTION
  • QO260GFI SQD MINIATURE CIRCUIT BREAKER 120/240V 60A NO NEUTRAL CONNECTION
  • QO260GFI SQD MINIATURE CIRCUIT BREAKER 120/240V 60A NO NEUTRAL CONNECTION
  • QO260GFI SQD MINIATURE CIRCUIT BREAKER 120/240V 60A NO NEUTRAL CONNECTION

Description: Square D™, QO260GFI, Miniature Circuit Breaker, Class A Ground Fault, 120/240 V AC, 60 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Plug-On Mounting, 40 deg C, 2.91 in L x 1.5 in W x 4.12 in H Dimensions

Manufacturer PN: QO260GFI

UPC:  78590176487

Kendall Electric Inc PN: 4000429

Invoice Description:

QO260GFI SQD MINIATURE CIRCUIT BREAKER 120/240V 60A NO NEUTRAL CONNECTION


SPEC SHEET

▸ See All in Ground-Fault Circuit Breakers


How Can We Make This Page Better?

Square D™ QO260GFI Class A Ground Fault Miniature Circuit Breaker, 120/240 V AC, 60 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™, QO260GFI, Miniature Circuit Breaker, Class A Ground Fault, 120/240 V AC, 60 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Plug-On Mounting, 40 deg C, 2.91 in L x 1.5 in W x 4.12 in H Dimensions

Specifications

 Amperage Rating 60 A
 Application For providing overload and short circuit protection designed to offer class A ground fault protection for people
 Brand Name Square D
 Connection Type Box Lug
 Dimensions 2.91 in L x 1.5 in W x 4.12 in H
 Frame QO
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QO260GFI
 Mounting Type Plug-On
 Number of Poles 2
 PART NUMBER KEYWORDS QO260GFI ; 8161844 ; 785901764878 ; 78590176487 ; 00785901764878 ; 0785901764878
 Phase 1
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 489|CSA 22.2 #144|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Temperature Rating 40 deg C
 Type Class A Ground Fault
 Video Links
 Voltage Rating 120/240 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
