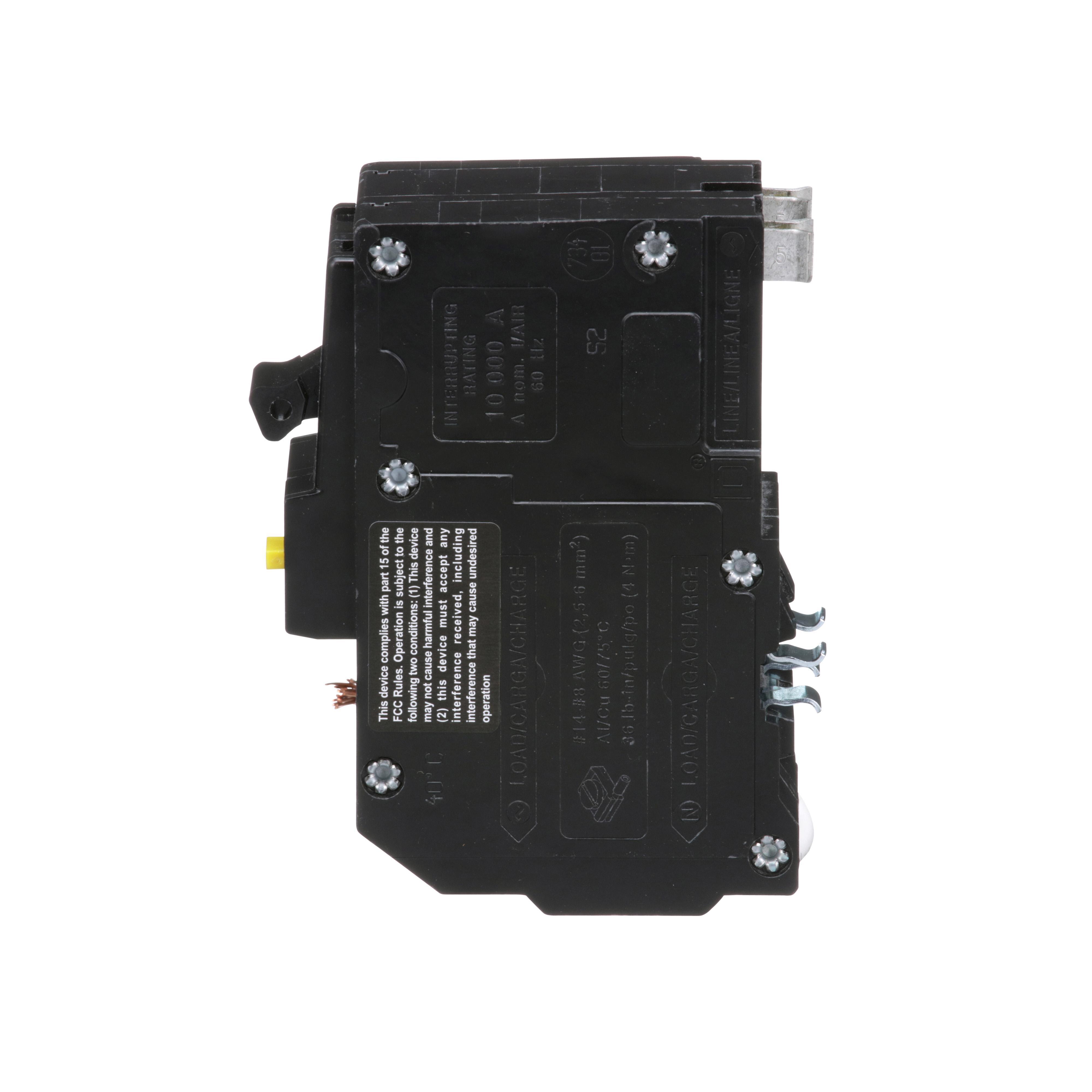

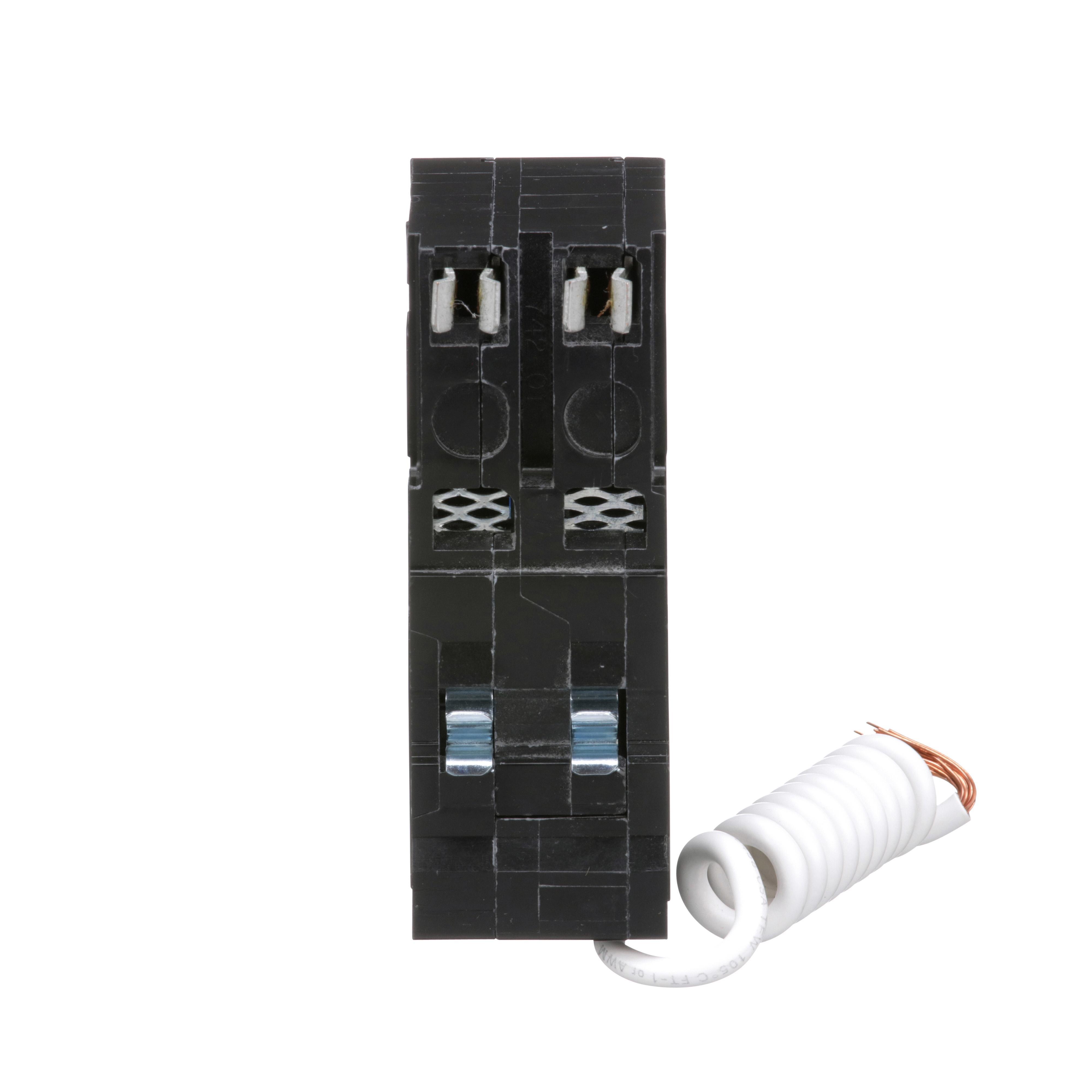

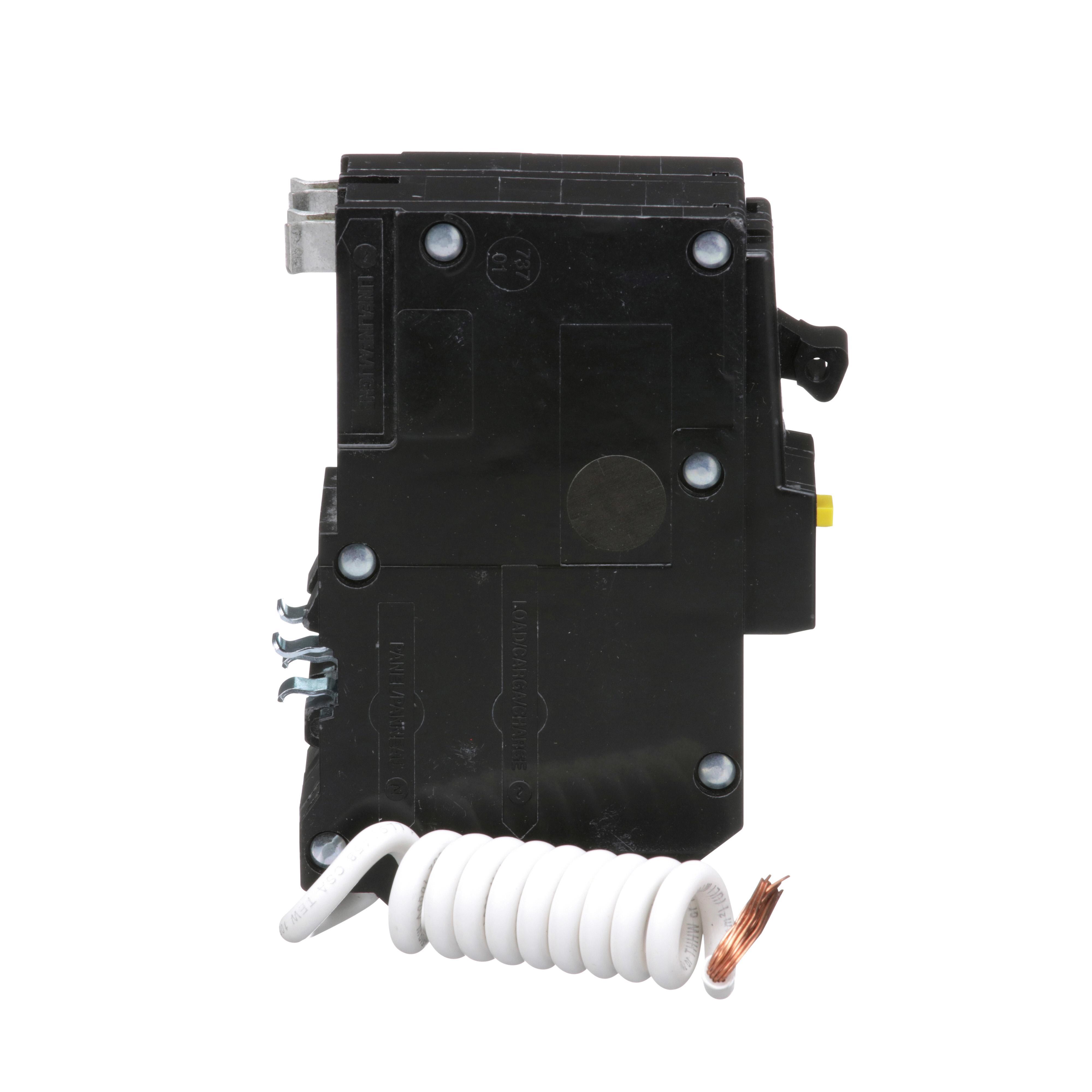

Description: Square D™, QO230GFI, 2-Pole Circuit Breaker, Class A Ground Fault, 120/240 V AC, 30 A, 60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 1.5 in W x 2.91 in D Dimensions

Manufacturer PN: QO230GFI

UPC:  78590156300

Kendall Electric Inc PN: 4000412

Invoice Description:

QO230GFI SQD MINIATURE CIRCUIT


SPEC SHEET

▸ See All in Ground-Fault Circuit Breakers


How Can We Make This Page Better?

Square D™ QO230GFI Class A Ground Fault 2-Pole Circuit Breaker, 120/240 V AC, 30 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™, QO230GFI, 2-Pole Circuit Breaker, Class A Ground Fault, 120/240 V AC, 30 A, 60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 1.5 in W x 2.91 in D Dimensions

Specifications

 Amperage Rating 30 A
 Application For providing overload and short circuit protection
 Brand Name Square D
 Connection Type Pressure Plate
 Dimensions 4.12 in H x 1.5 in W x 2.91 in D
 Frame QO
 Frequency Rating 60 Hz
 Manufacturer Part Number QO230GFI
 Mounting Type Plug-On
 Number of Poles 2
 PART NUMBER KEYWORDS QO230GFI ; 8092692 ; 13917753 ; 785901563006 ; 78590156300 ; 00785901563006 ; 0785901563006
 Phase 1
 Standards/Approvals CSA 22.2 No. 144 Certified|RoHS Compliant|UL 489 Listed
 Temperature Rating 40 deg C
 Type Class A Ground Fault
 Voltage Rating 120/240 V AC

Features

▪ Reliable and durable
▪ Plug-on neutral design and shorter footprint for faster installs
▪ Simple design and clear instructions for quick setup
