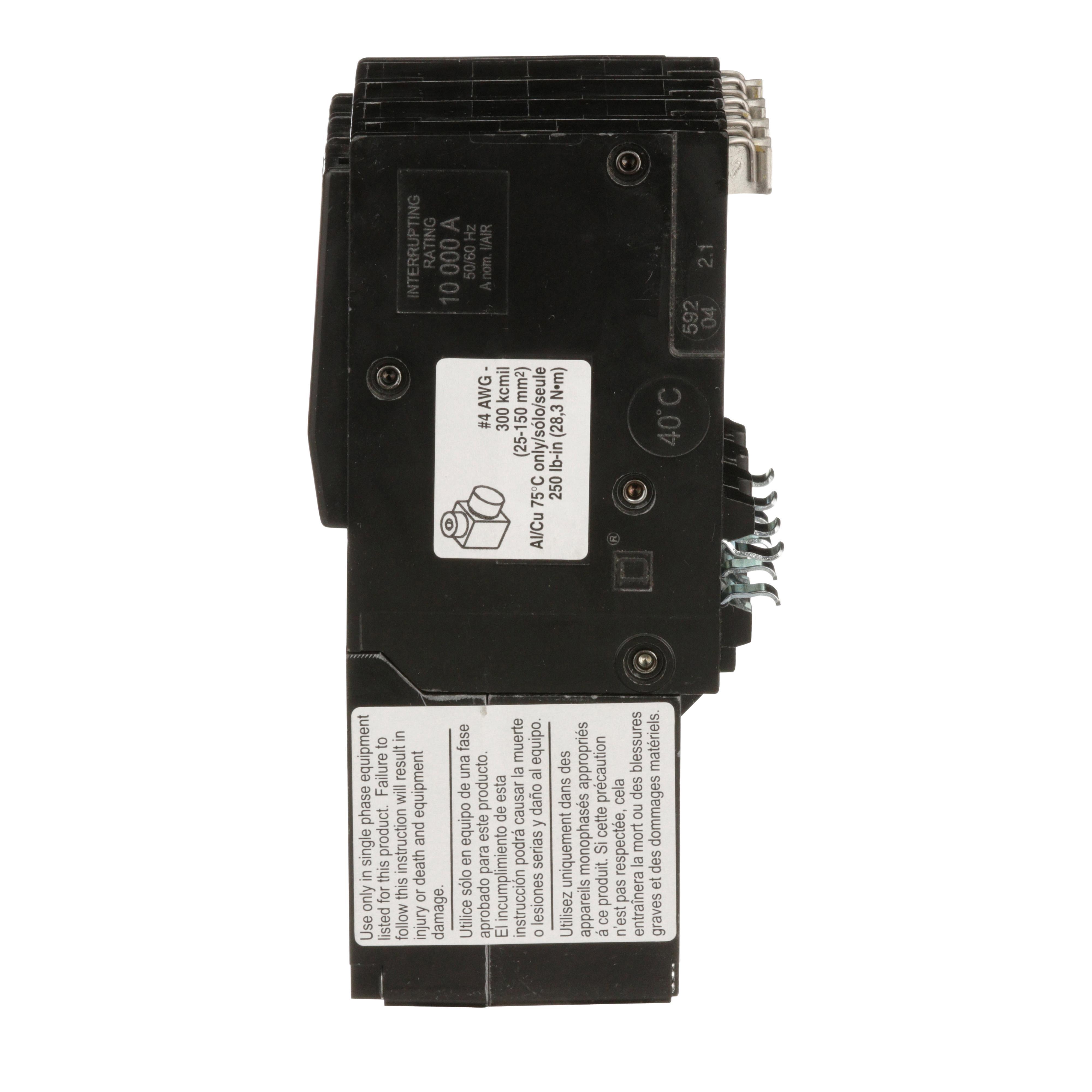

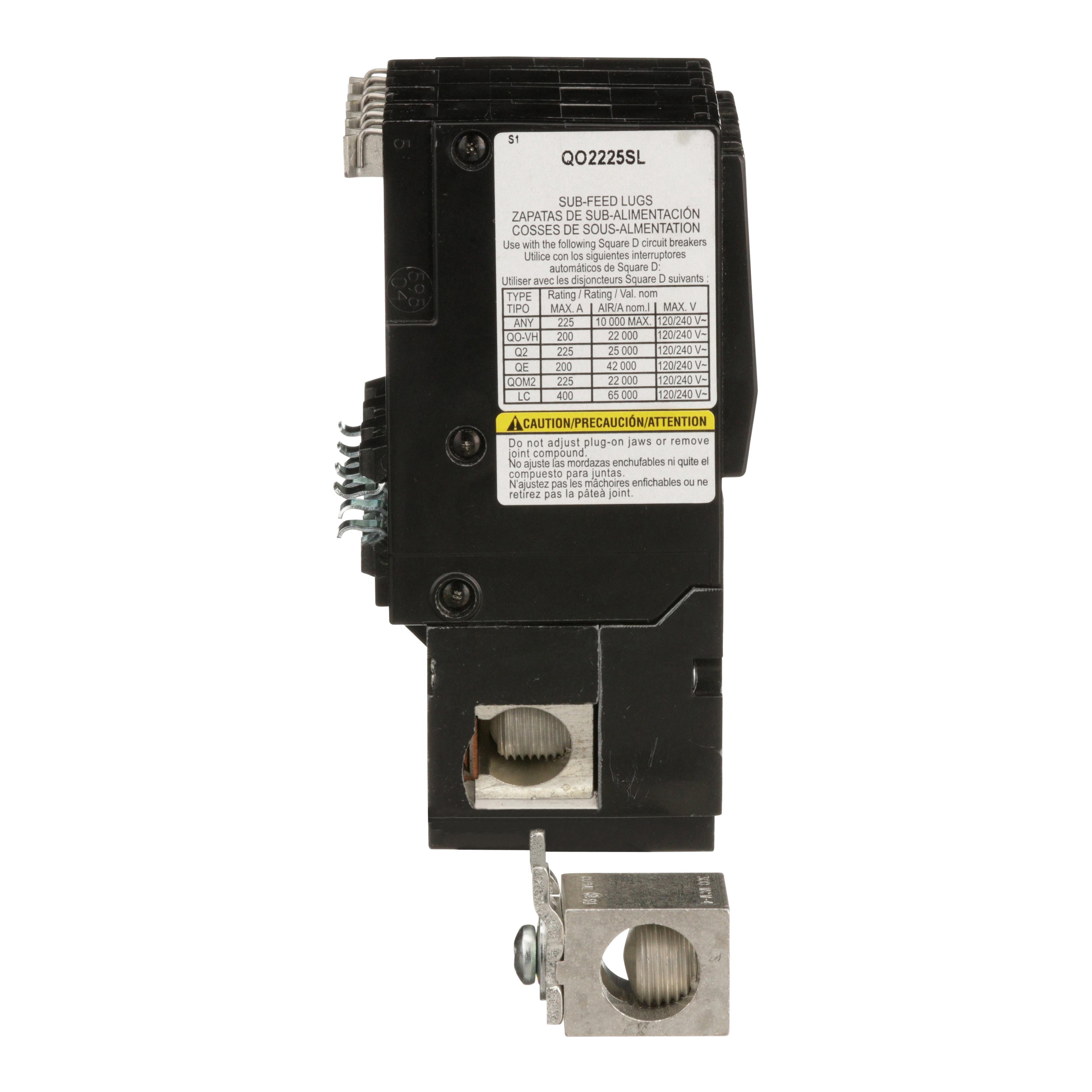

  • QO2225SL SQD CIRCUIT BREAKER
  • QO2225SL SQD CIRCUIT BREAKER
  • QO2225SL SQD CIRCUIT BREAKER
  • QO2225SL SQD CIRCUIT BREAKER
  • QO2225SL SQD CIRCUIT BREAKER

Description: Square D™ QO™ Miniature Sub-Feed Lug, 1-Phase Standard, 2 Pole, 25 A, For Use With: QO™ and QOB Miniature Circuit Breaker, 2.31 in L x 2.988 in W x 3-1/2 in H Dimensions

Manufacturer PN: QO2225SL

UPC:  78590175570

Kendall Electric Inc PN: 3960202

Invoice Description:

QO2225SL SQD CIRCUIT BREAKER


SPEC SHEET

▸ See All in Load Center Sub-Feed Lug Blocks


How Can We Make This Page Better?

Square D™ QO™ QO2225SL 1-Phase Standard Miniature Sub-Feed Lug, 2 Poles, 25 A, For Use With QO™ and QOB Miniature Circuit Breaker

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO and QOB miniature circuit breaker subfeed lug kit is rated for 225 A, 2 pole, and 4 spaces. Lugs will accept 4 AWG to 300 kcmil aluminum or copper wire.
Square D™ QO™ Miniature Sub-Feed Lug, 1-Phase Standard, 2 Pole, 25 A, For Use With: QO™ and QOB Miniature Circuit Breaker, 2.31 in L x 2.988 in W x 3-1/2 in H Dimensions

Specifications

 Amperage Rating 25 A
 Application HACR Rated and Qo Applications
 Brand Name Square D
 Dimensions 2.31 in L x 2.988 in W x 3-1/2 in H
 Manufacturer Part Number QO2225SL
 Number of Poles 2
 Standards/Approvals CSA Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL Listed
 Suitable For Use With QO™ and QOB Miniature Circuit Breaker
 Type 1-Phase Standard

Features

▪ 14 to 8 AWG aluminum/copper wire
▪ 120/240 VAC voltage rating
▪ One-phase
▪ 10 kA interrupting rating
▪ Plug-on mounting
▪ Trip indicator local signaling
